• Server REST Detail

  • Domain
    • {domain}
  • Protocol
    • https
  • Port
    • 443
  • Exp.
    • https://domain.name

(top)

• Over all REST Method detail

(top)

• Token Payload Specifications (Claims)

  • JSON data structure inside the Token after decoding.
  • Token Refresh Payload (AuthenPayloadRefresh)
    • Used for requesting a new Token Access without re-authenticating (Expires in 4 hours).

{
  "ProcessId": "uuid-string",      // Unique Identifier (Nonce) for the authentication process
  "Type": "refresh",               // Token type
  "Exp": 17250000000000000,        // Expiration time in DateTime.Ticks format
  "Id": "uuid-string",             // Token Id
  "Staff": true,                   // true = Staff, false = Non-staff / Student / Others
  "SystemKey": "your-system-key",  // System Key of the requesting system
  "Service": "ADFS"                // Authentication Service type (e.g., ADFS, SSO, ThaID)
}

*   **Token Access Payload (`AuthenPayloadAccess`)**
    *   Used as a Token Access attached to the API Request header (Expires in 3 minutes).

{
  "ProcessId": "uuid-string",
  "Type": "access",
  "Exp": 17250000000000000,
  "Id": "uuid-string",
  "Staff": true,                   // true = Staff, false = Non-staff / Student / Others
  "SystemKey": "your-system-key",
  "Service": "UAS",
  "AccessType": "system",          // Access type (e.g., "system" or "client")
  "NameEn": "John Doe",            // User's English name
  "NameTh": "จอห์น โด",             // User's Thai name
  "Email": ["[email protected]"], // Array of user's emails
  "UID": "1234567",                // User ID (e.g., Student ID or Staff ID)
  "SystemKeyRefresh": "your-system-key"
}

(Note: If the Service is ADFS:ThaID, additional claims like FirstTh, MidTh, LastTh, FirstEn, MidEn, LastEn are included).

(top)

• Category Client Authen

  • Client use for generate token key.

  • Method Authen

    • /adfs/v1/authen/

      • Authen and get token refresh.
        • Token refresh has expired in 4 hour.
        • Token refresh send to you system, with redirect on method GET.
      • Package
        • systemkey
          • System Key.
      • Example.
        • Path
          • {domain}/adfs/v1/authen/{GuiAuthKey}
          • {domain}/adfs/v1/authen/{GuiAuthKey}?correlationId={UUID}
          • {domain}/adfs/v1/authen/{GuiAuthKey}?correlationId={UUID}&option={optional}
        • Receive
          • you can custom path for receive token refresh and or option.
          • {0} is Token refresh.
          • {1} is correlationId.
          • {2} is option (optional: string empty).
          • http://localhost:8888/etc/#token={0}&correlationId={1}
          • http://domain.exp/token/{0}/{1}
          • http://your.domain/?token={0}&correlationId={1}
          • http://localhost:8888/etc/#token={0}&correlationId={1}&option={2}
          • http://domain.exp/token/{0}/{1}/{2}
          • http://your.domain/?token={0}&correlationId={1}&option={2}

  • Method /v1/access/

    • Get token access, with used token refresh from authen. And get token access for access API.
      • Token access has expired in 3 minutes.
      • Recommend to use token access for access API in 1 time, and request new token access for use API in next time.
    • Package
      • Base64 all parameter, with “.” (dot).
      • tokenRefresh
        • Used Data “tokenRefresh” from package authen
      • systemkey
        • System Key.
    • Example
      • Function generate package
        • package = base64({tokenRefresh}.{GuiAuthKey})
      • Path
        • {domain}/v1/access (package with header)
        • {domain}/v1/access?correlationId={UUID}
        • {domain}/v1/access?package={package}&correlationId={UUID}

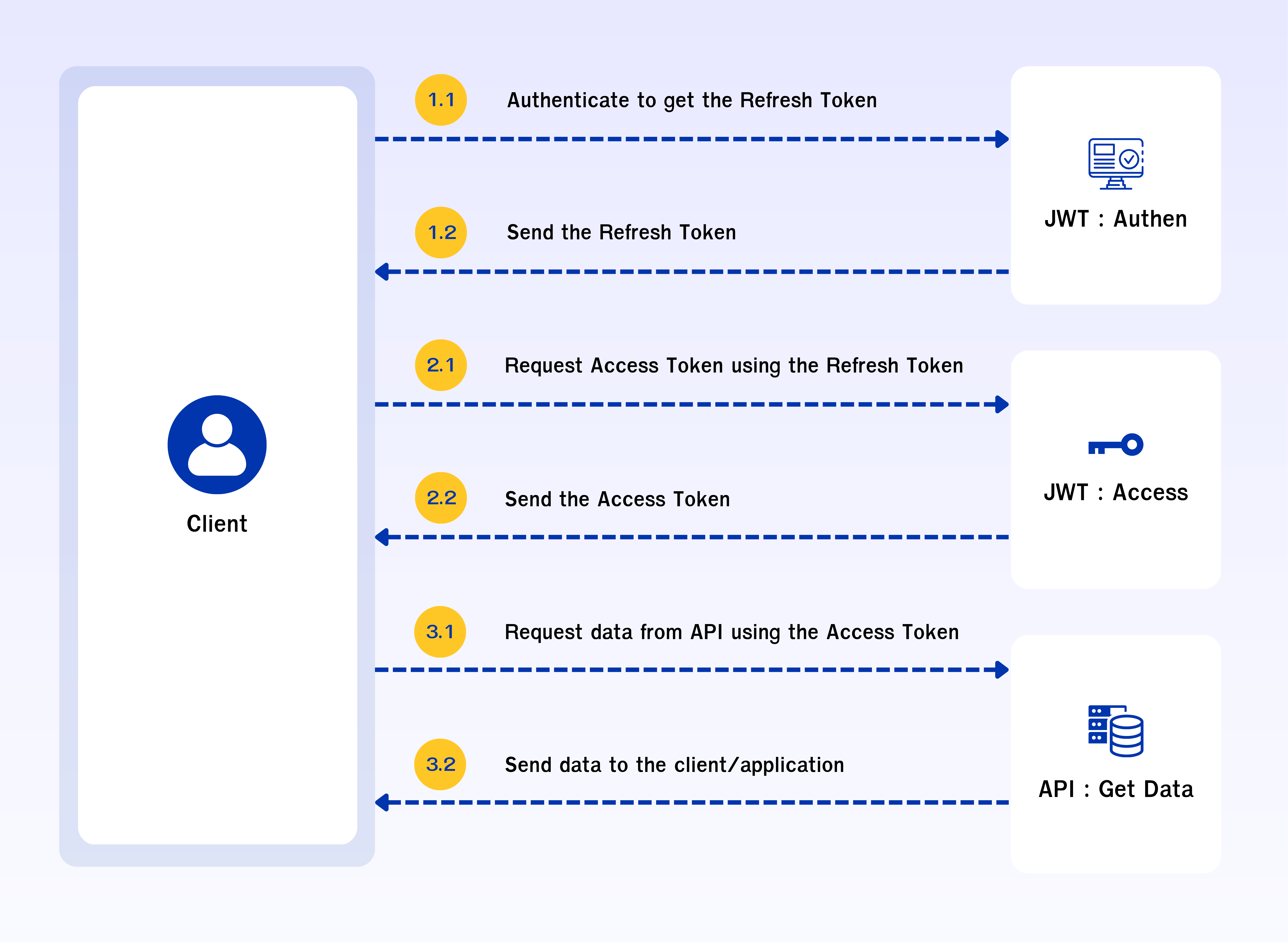

  • Flow Authen

(top)

• Category System Authen

  • System use for generate token key.
  • Method /v1/access/
    • Get token access, with used API Key. And get token access for access API.
      • Token access has expired in 3 minutes.
      • Recommend to use token access for access API in 1 time, and request new token access for use API in next time.
    • Package
      • No Package.
    • Example
      • Path
        • {domain}/v1/access/{APIKey}
        • {domain}/v1/access/{APIKey}?correlationId={UUID}

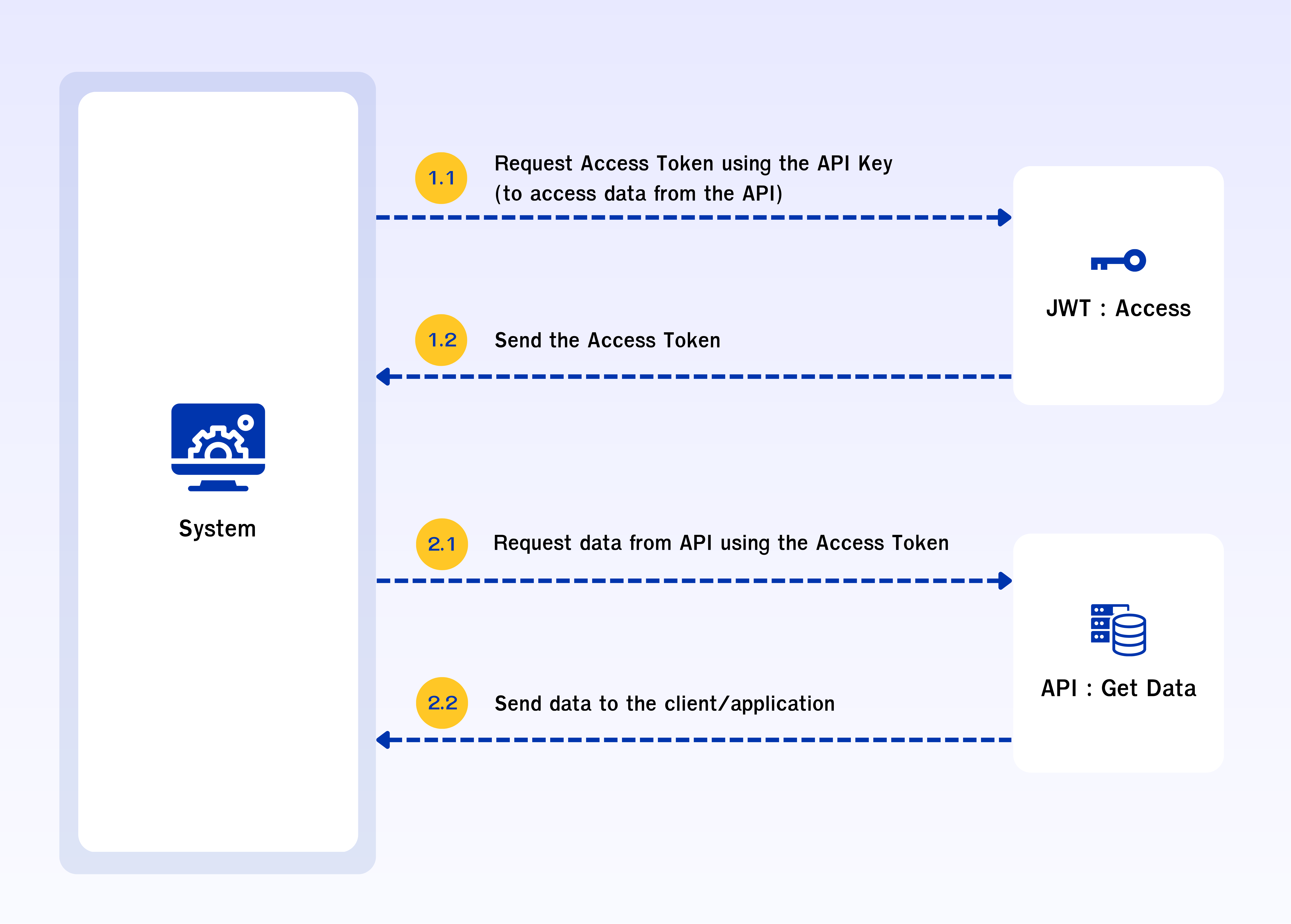

  • Flow Authen

(top)

• Category API Verify Signature

  • API Service use for verify signature from token access.

  • Method /v1/publickey/

  • Method /v1/publickeypem/

    • Get public key for verify signature token access.
    • Document & libraries
    • Package
      • Base64 all parameter, with “.” (dot).
      • tokenAccess
        • Used Data “tokenAccess” from package request API Authorization.
      • systemKey
        • System key
    • Example
      • Path
        • {domain}/v1/publickey (package with header)
        • {domain}/v1/publickey?package={package}
        • {domain}/v1/publickey?package={package}&correlationId={UUID}

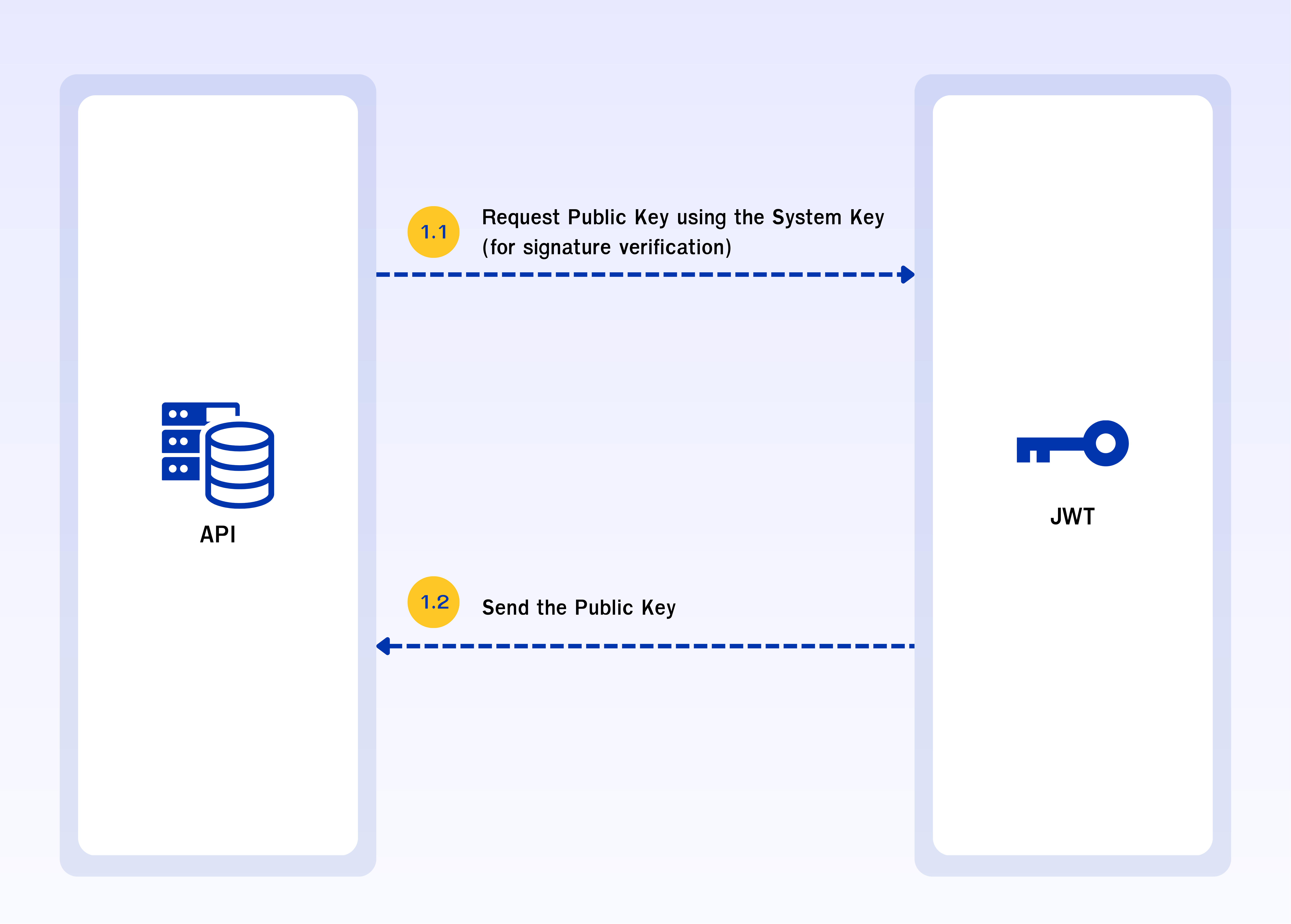

  • Flow Verify Signature

(top)
