STEP 1:

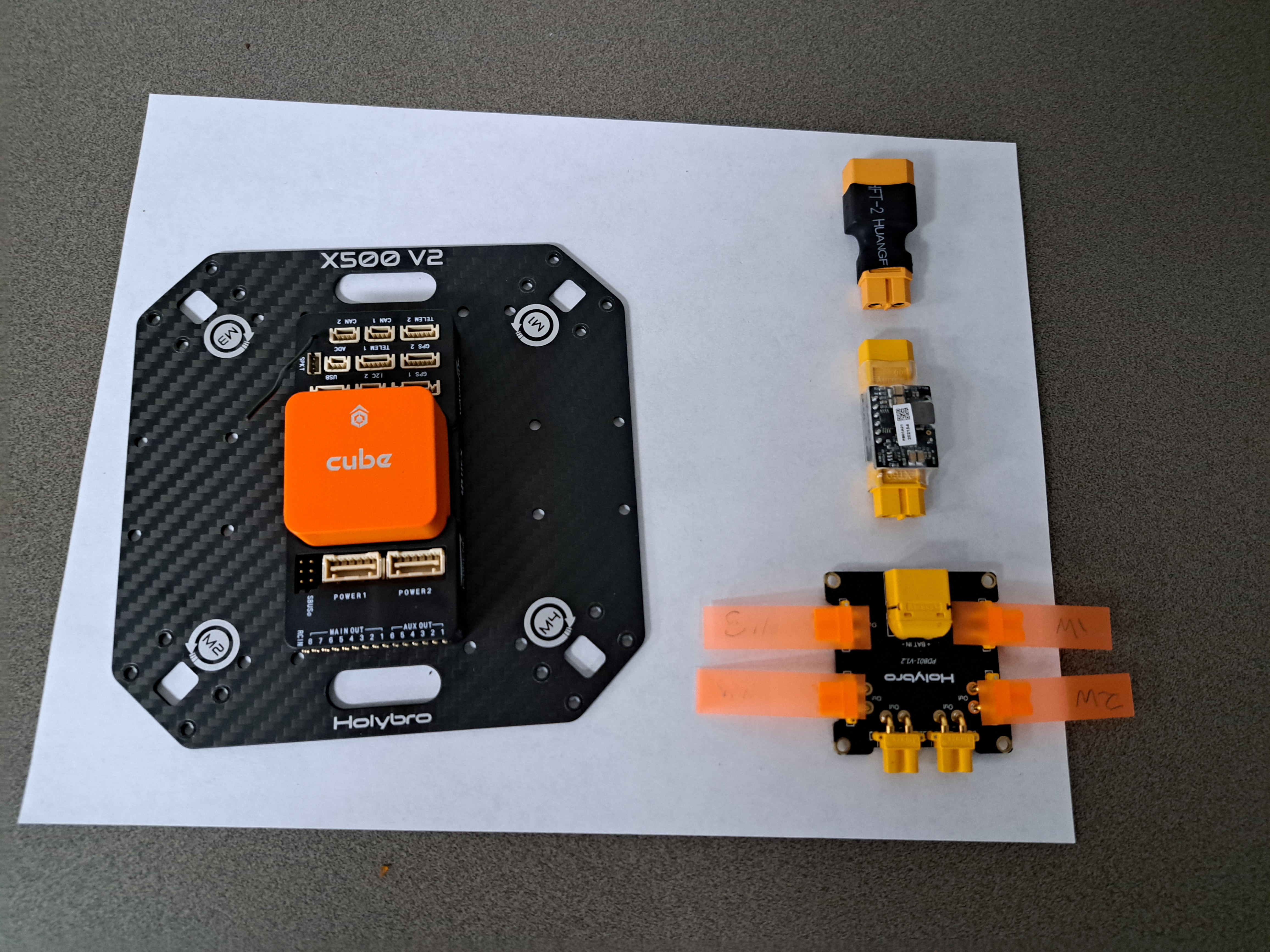

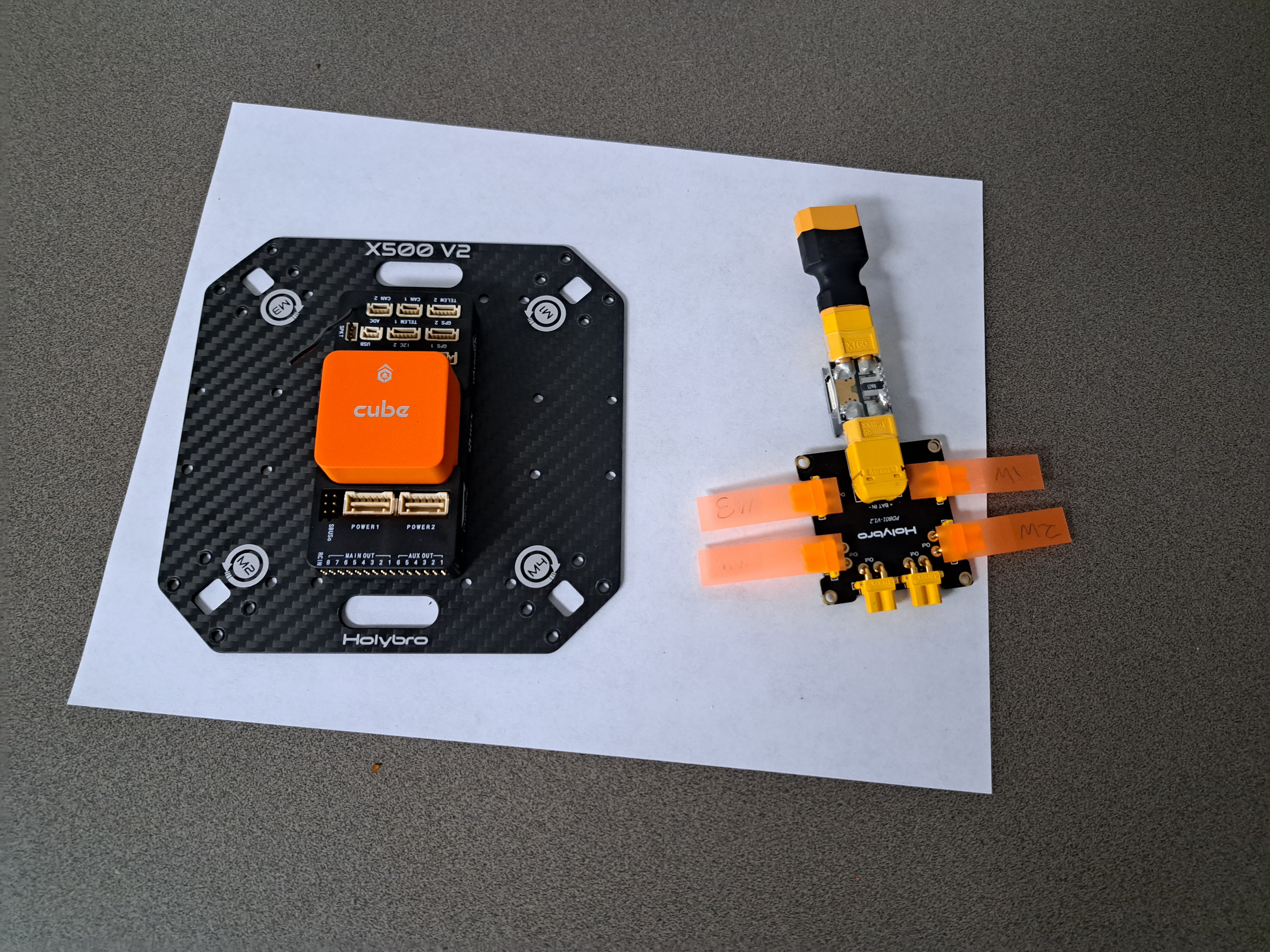

Collect the Power Distribution Board (PDB), the Power Module (PM), and an adapter for the batter (OPTIONAL).

20220907_102213 20220907_102116

STEP 2:

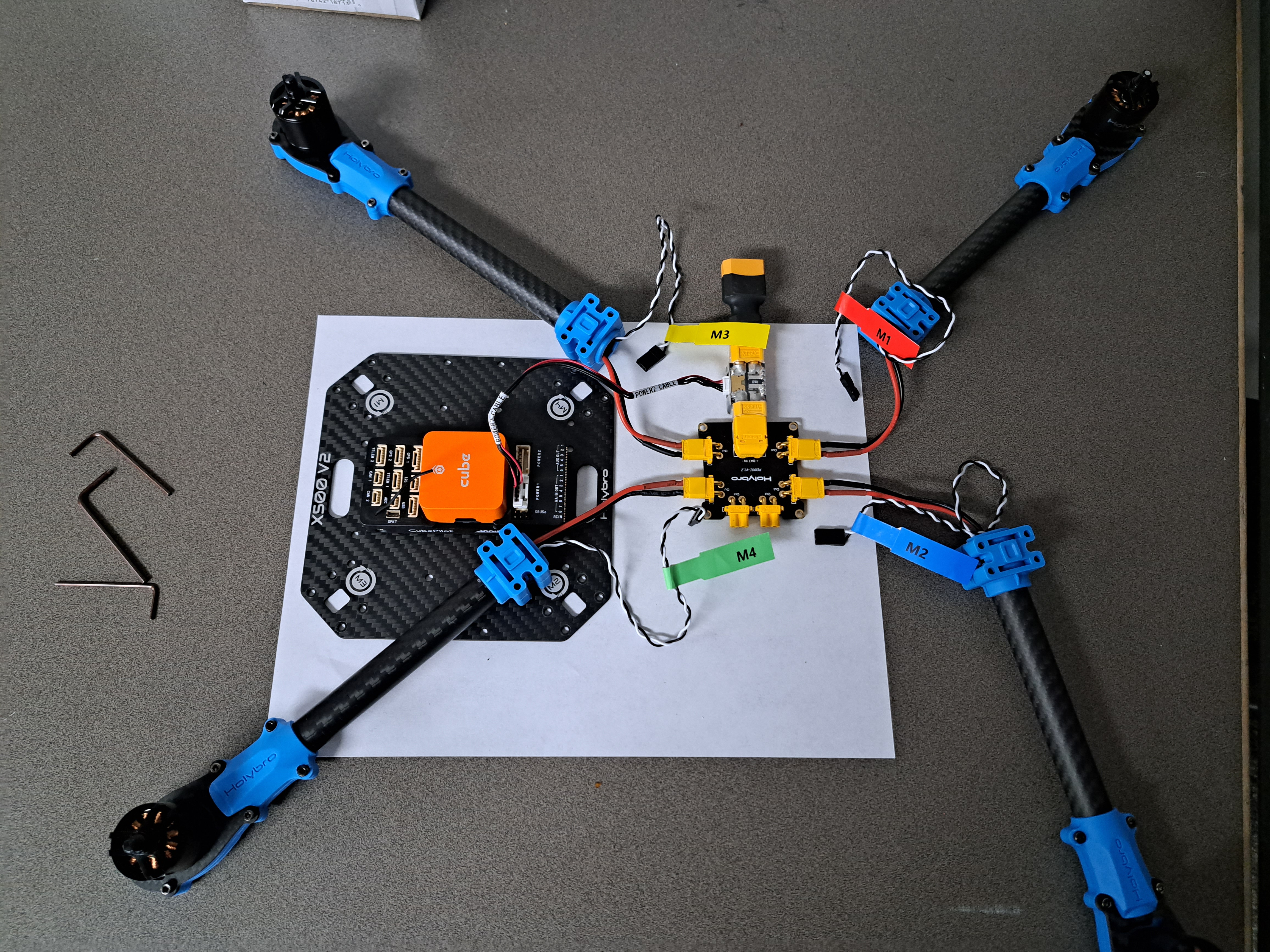

Attach the connector of the arms to the power distribution board. The position of the arms is important and must match what is shown in the picture above. The PDB is how the arms receive power from the battery.

20220906_162832

STEP 3:

Connect the power module to the flight controller. This module is how the controller receives power from the battery.
