| 1 |
1358 |
Sugnyani |
Stepper Motor,Stepper motor drive,Belt,pulley,Solenoid,Arduino nano,Dc jack,Dc pin,Male Female header pins,Terminal blocks. |

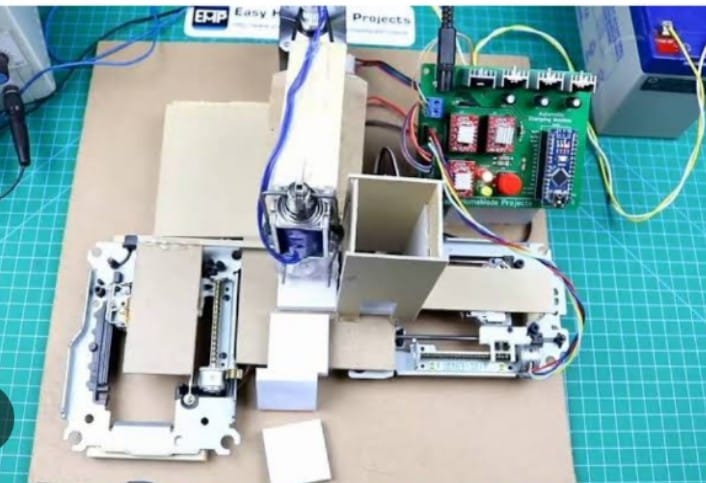

The stamp holder is positioned over the stamp pad, and the stepper motor is programmed to move the stamp holder up and down.When a command is received, the Arduino board sends a signal to the stepper motor, which moves the stamp holder down to make contact with the stamp pad.The stamp holder is held in place for a short period of time to ensure that the stamp receives adequate ink from the stamp pad.The stepper motor then moves the stamp holder up, and the stamp is imprinted on the desired surface.The process is repeated for each stamp that needs to be imprinted. |
https://youtu.be/FwiGPVqmz78 |
| 2 |
1310 |
Aditi |
Conveyor Belt,Rollers,DC Motor,Pneumatic Actuator,Pneumatic Pipes,Pneumatic Fittings,Pneumatic Valves,PLC,Proximity Sensor,Brackets &Mounts. |

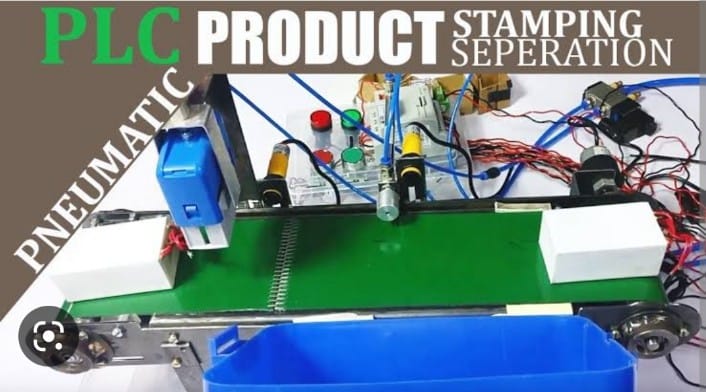

The paper to be stamp is placed on a conveyor belt which is connected to a sensor.The sensor detects the paper and sends a signal to the Programmable Logic Controller (PLC).The PLC then activates the stamping mechanism which consists of a rubber stamp, an ink pad, and a pneumatic cylinder.The pneumatic cylinder lowers the stamp onto the paper and then lifts it back up.The ink pad re-inks the stamp and the process repeats for the next paper.The stamped papers are then carried away by the conveyor belt to the tray. |
https://nevonprojects.com/automatic-stamping-labeling-machine-using-plc/ |
| 3 |
1326 |
Shridhar |
Conveyor belt,Servo Motor,Proximity sensors sensors,Indicators,PLC Programming Software,Ladder Logic,Ink pad. |

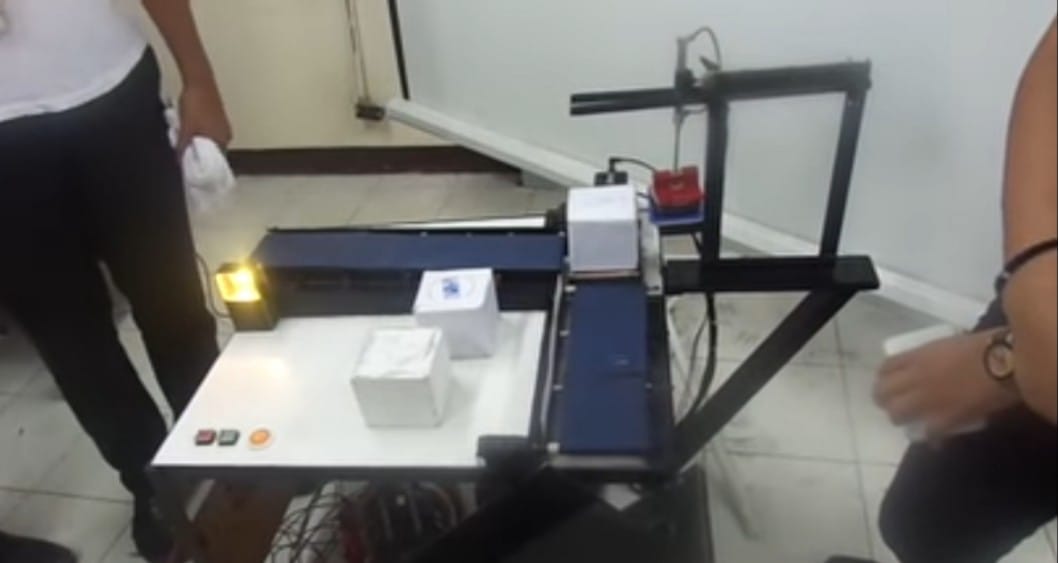

An automatic stamping machine using a PLC (Programmable Logic Controller) works by receiving inputs from sensors to detect the presence of materials and initiating the stamping process. The PLC controls the operation of the machine by receiving and processing these inputs and generating outputs that control the stamping operation. The stamping machine uses a mechanical system to stamp the material, and the PLC ensures the timing and coordination of the stamping process. The machine can be programmed to stamp different patterns, shapes, or letters according to the user's requirements. The PLC also monitors the machine's status and can alert the user if any errors occur during operation. |
https://youtu.be/aDD_xUXMlhs |
| 4 |
1347 |
Sayed |
Turning machine,Dc motor ,Servo Motor,Sensors,Rollers,electric generator,rotating cylinder. |

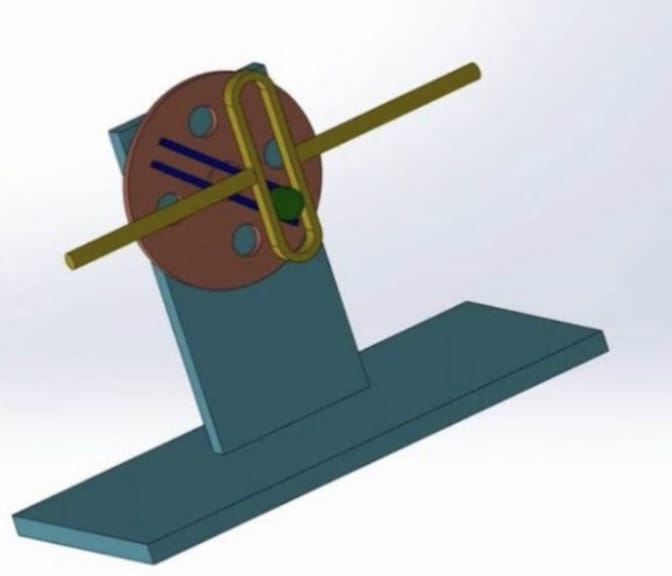

The operator places a metal sheet onto the bed of the stamping machine and sets the cylinder to the desired design.The rotating cylinder moves with the help of a DC motor. As it rotates, the engraved designs on its surface come into contact with the metal sheet. The servo motor is used to control the pressure and depth of the stamping process. It ensures that the cylinder presses with consistent force, creating the same pattern each time.The rotating cylinder presses against the metal sheet, causing the metal to bend or deform in the shape of the engraved design. The servo motor ensures that the cylinder applies the right amount of pressure, preventing the metal from tearing or becoming too thin.Once the stamping process is complete, the operator removes the metal sheet from the bed of the stamping machine, revealing the intricate design created by the stamping process. |
https://youtu.be/FwiGPVqmz78 |
