3D Models Of The Sub Functions/System
Parts Of The Prototype Model
Animation Of The Model
https://drive.google.com/file/d/1qoV9AtrlJpinZRQtU_mcEGgU-YgVFOBR/view?usp=sharing

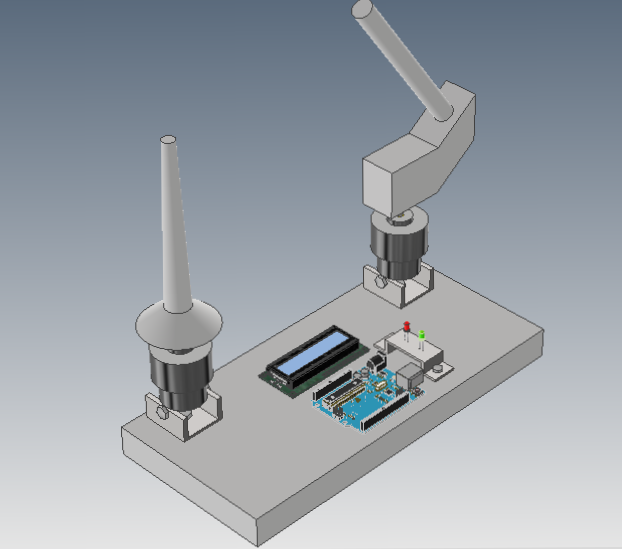

The Prototype Model of the Machine

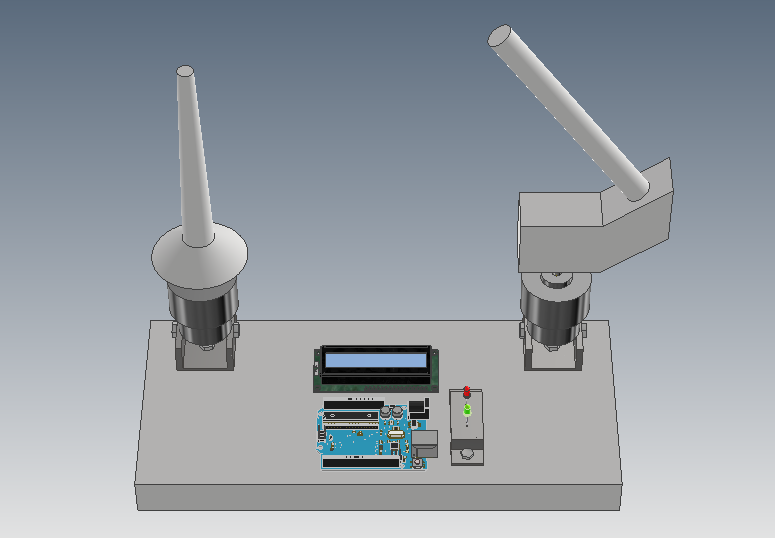

Top View Of The Model

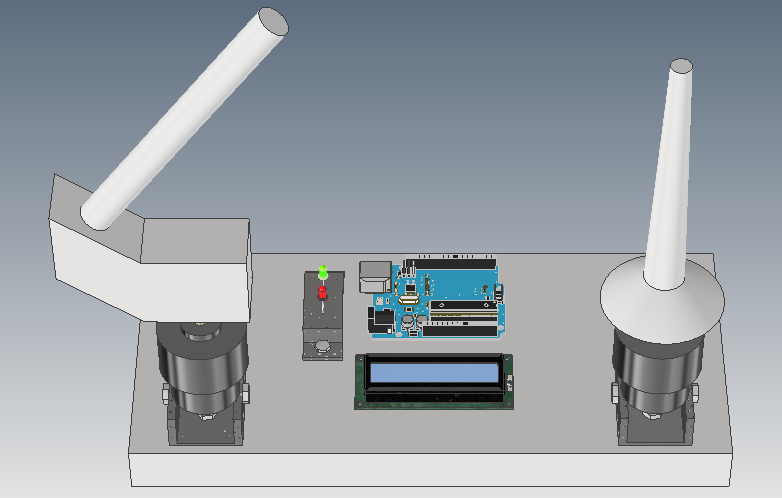

Left Side View Of The Model

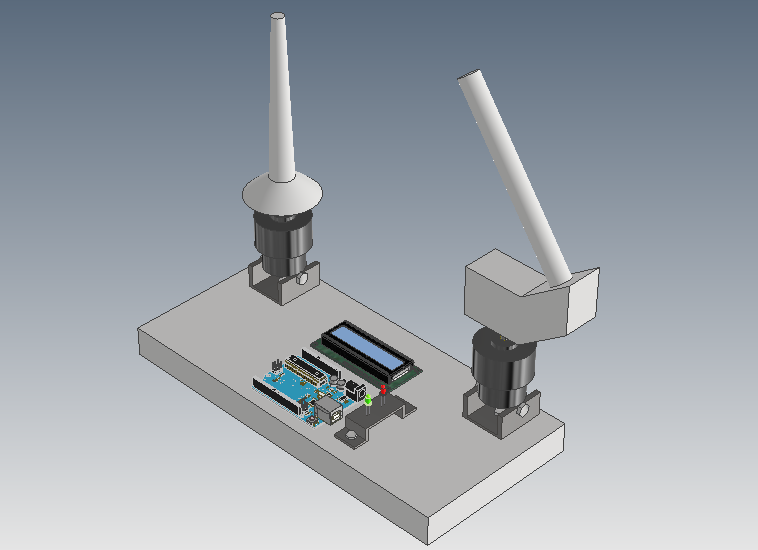

Right Side View Of The Model

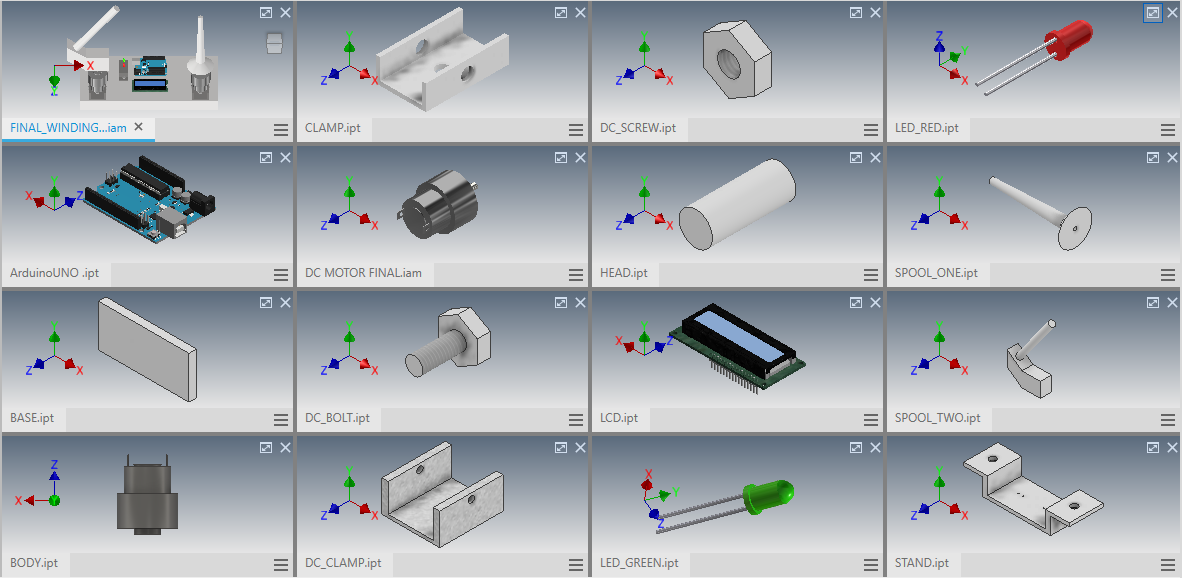

Yarn Twister Autodesk Inventor Model Parts
YARN TWISTER PARTS AND ASSEMBLED MODEL.zip

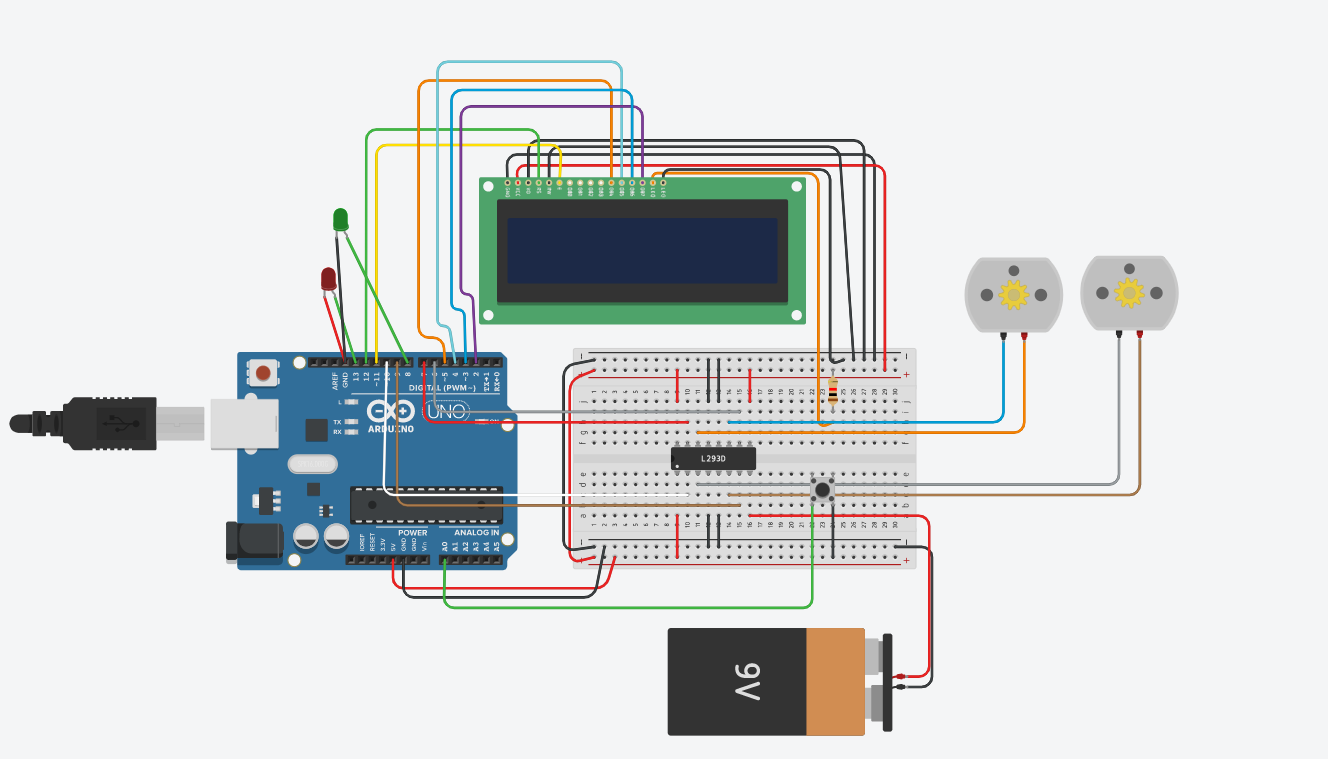

Circuit Diagram

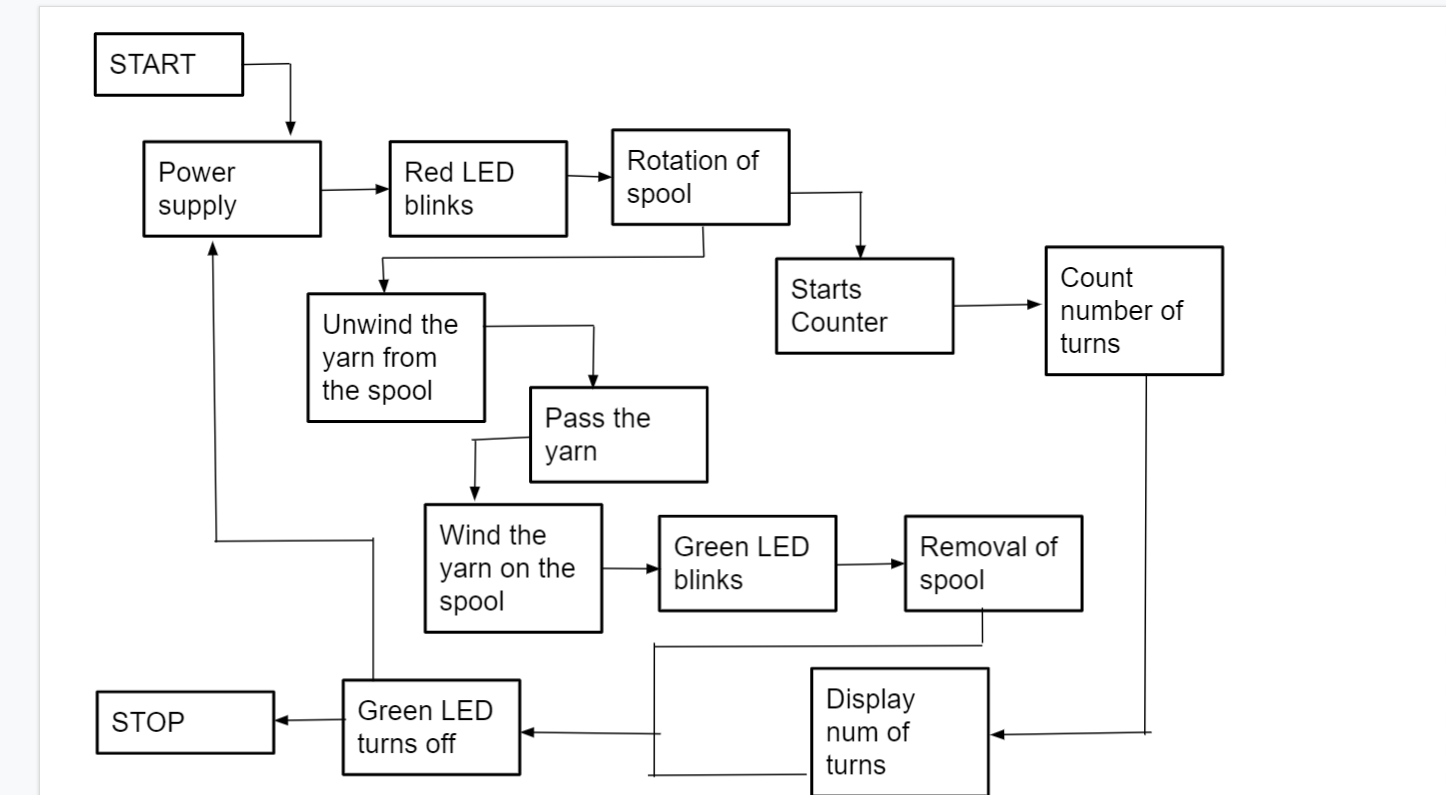

Flow Chart
3D Model Simulation
Bill Of Materials
| Sl.NO | OBJECT | TYPE | DESCRIPTION | QUANTITY | PRICE |
|---|---|---|---|---|---|
| 01 | Base | Board Sheet | To hold the materials 50cm*30cm | 1 | 20 |
| 02 | Spool holder | Wooden | To hold the yarn Spool | 1 | 450 |
| 03 | DC motor | - | - | 2 | 260 |
| 04 | Nuts and Bolts | - | To fix the materials | 5 | 170 |
| 05 | Stands | Cardboard stands | To place the sheet | 4 | 40 |
| 06 | Base | cardboard sheet | Placed over the stands and holds the hook | 1 | 15 |
| 07 | Hooks | Acrylic | To hold and pass the yarn from rotating spool | 1 | 25 |
| 08 | LCD Screen | - | To display number of turns | 1 | 120 |
| 09 | LED lights | - | To indicate the process | 2 | 10 |
| 10 | Arduino Uno | - | - | 1 | 800 |
| 11 | H-bridge | - | - | 1 | 30 |
| 12 | Bread board | - | 400 points(specification) | 1 | 65 |
| 13 | TOTAL BILL | - | - | - | 2005 |
