3D Models Of The Sub Functions/System
Sub System 2 : Processing Unit
The Processing unit has no mechanism, it is just a link between the Initial unit and Final unit. At first, when the bigger yarn unwinds from the initial unit , it is being passed by this intermediate unit to the final unit where winding takes place. Therefore the processing unit just passes it from one unit to other.
Parts Of Sub System 2

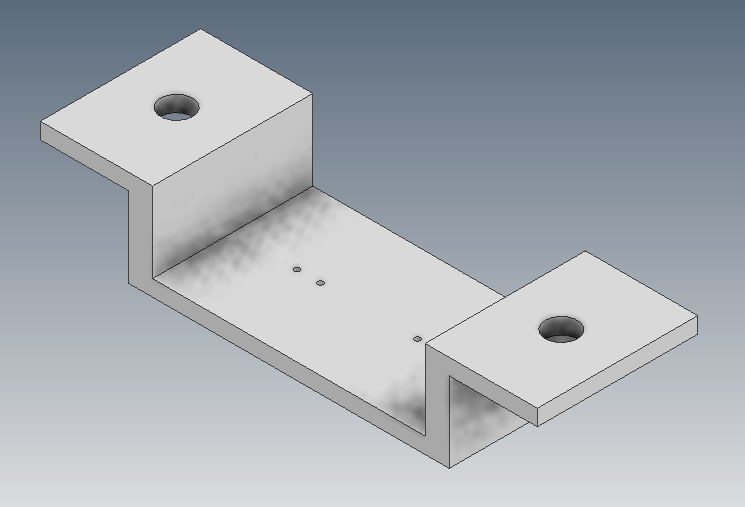

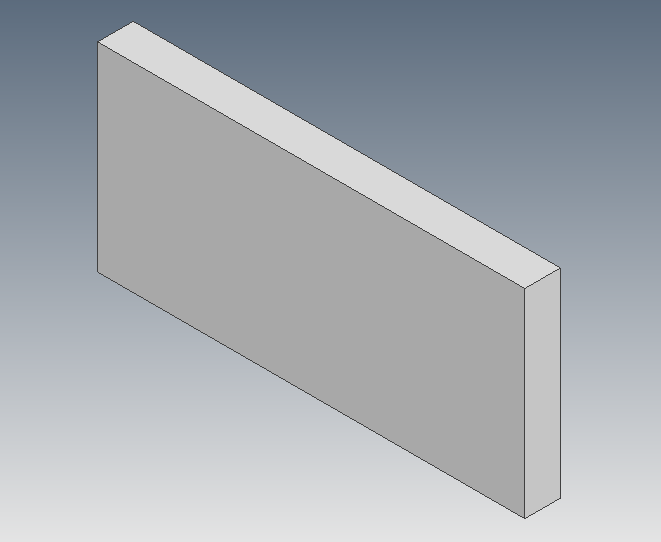

Base

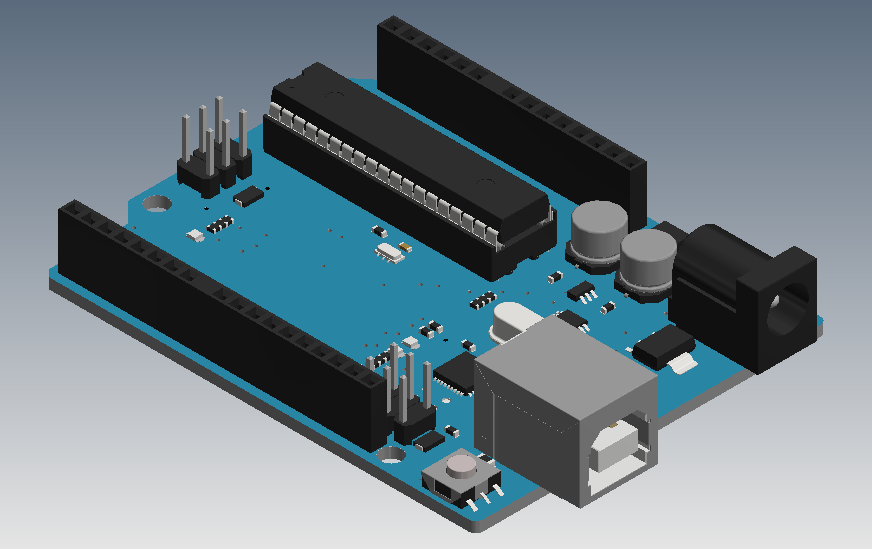

Arduino Uno

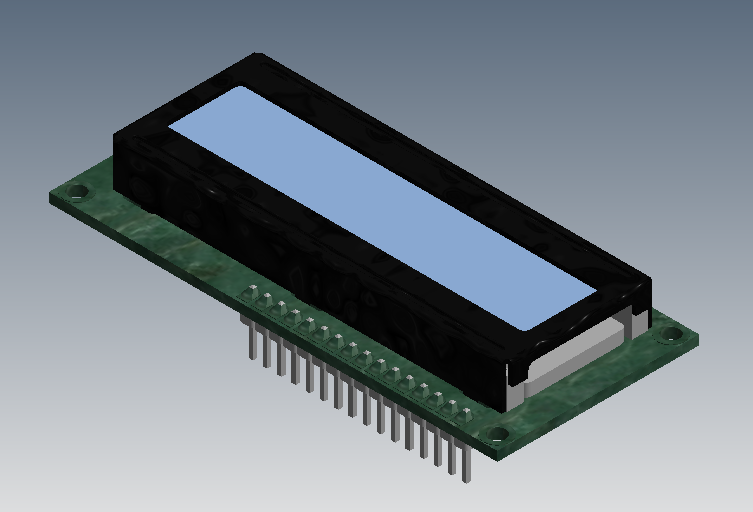

LCD Screen

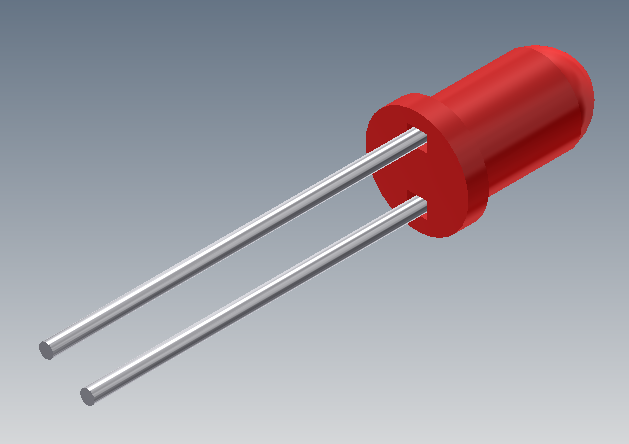

Red LED

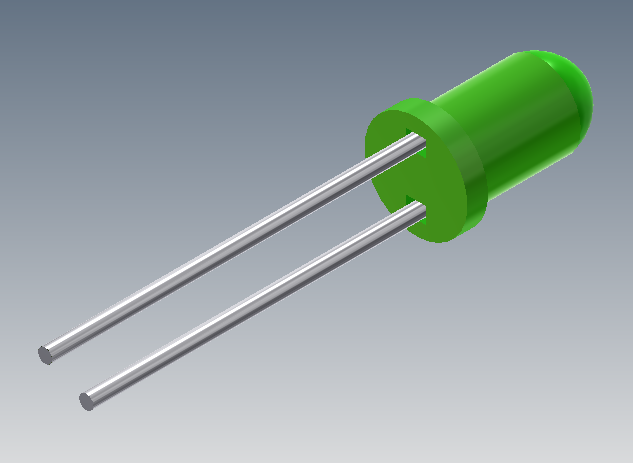

Green LED
Stand

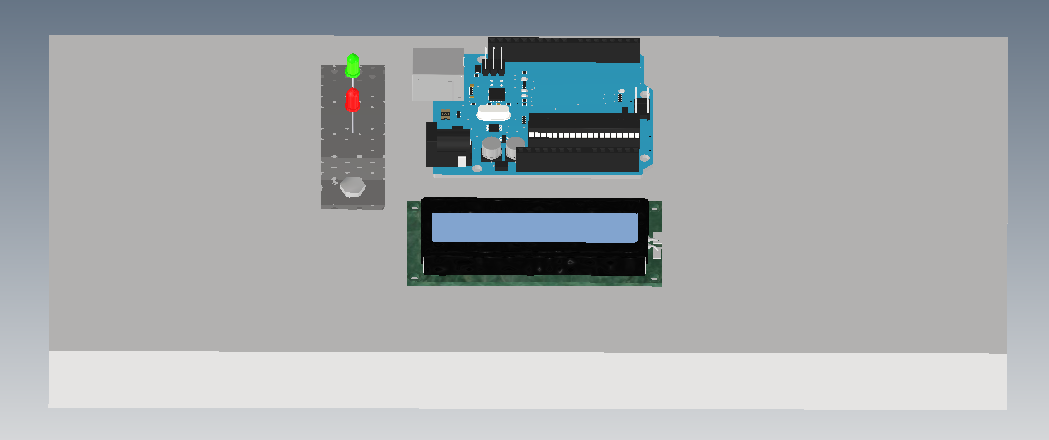

Image Of Entire Sub System 2

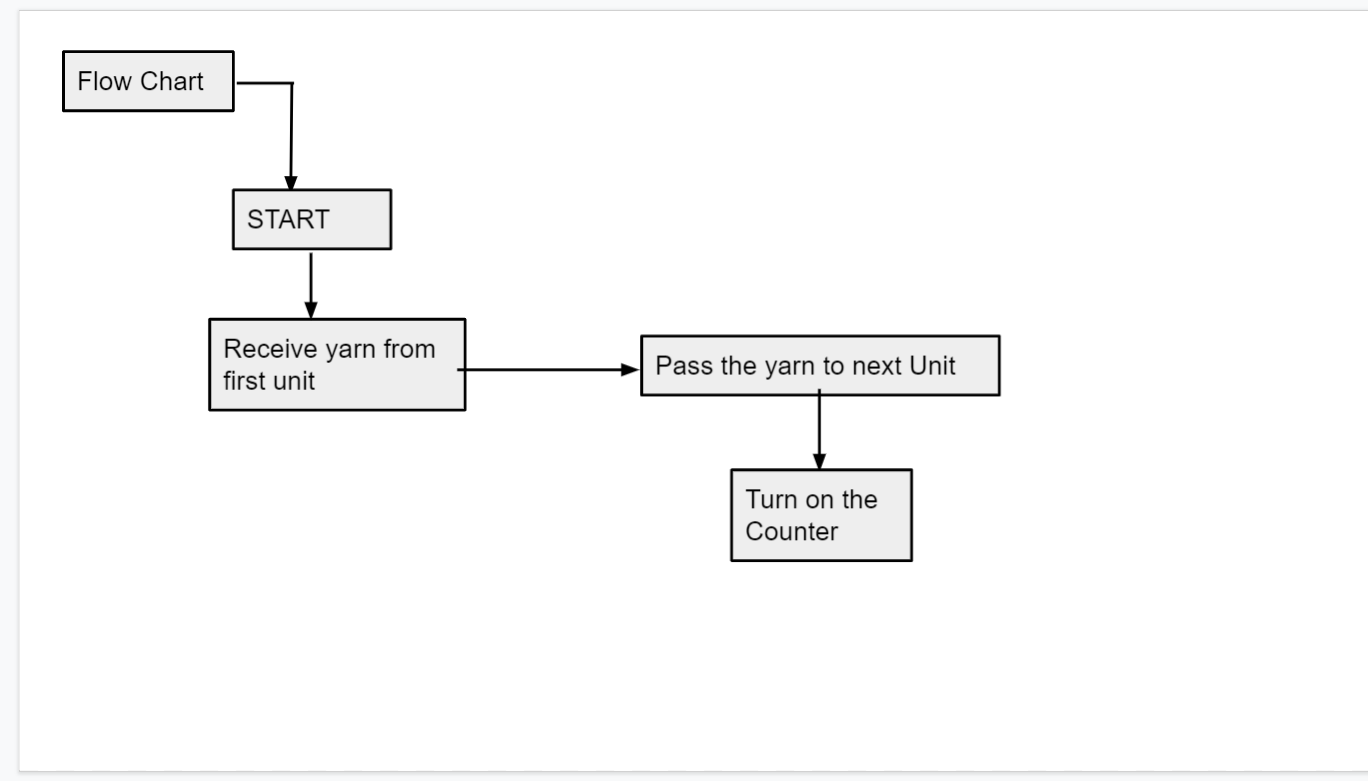

Flow Chart

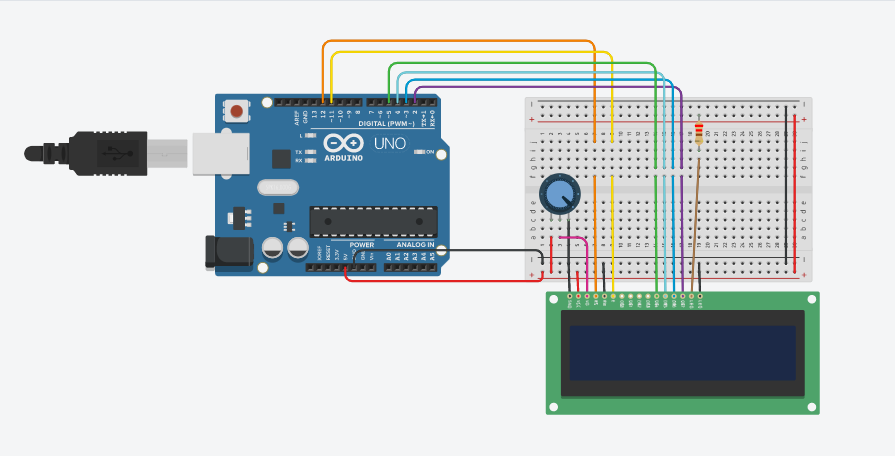

Counter
BILL OF MATERISLS
| SR.NO | OBJECT | TYPE | DESCRIPTION | QUANTITY | PRICE |
|---|---|---|---|---|---|
| 01 | Stands | Cardboard Stands | To place the LED | 1 | 40 |
| 02 | Base | Cardboard Sheet | Placed over the stands and holds the hook | 1 | 15 |
| 03 | Hooks | Acrylic | To hold and pass the yarn from rotating spool | 1 | 25 |
| 04 | Nuts and Bolts | - | To fix the materials | 5 | 170 |
| 05 | LCD Screen | - | To display number of turns | 1 | 120 |
