Sub System 1 : Initializing Unit
Parts Of Sub System 1
Base

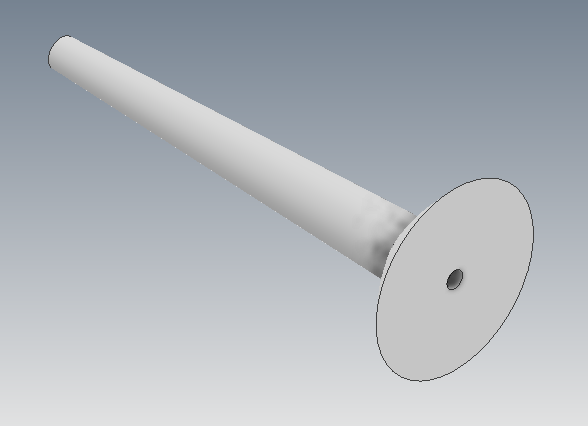

Spool
DC Motor
Clamp
Bolt
Nut

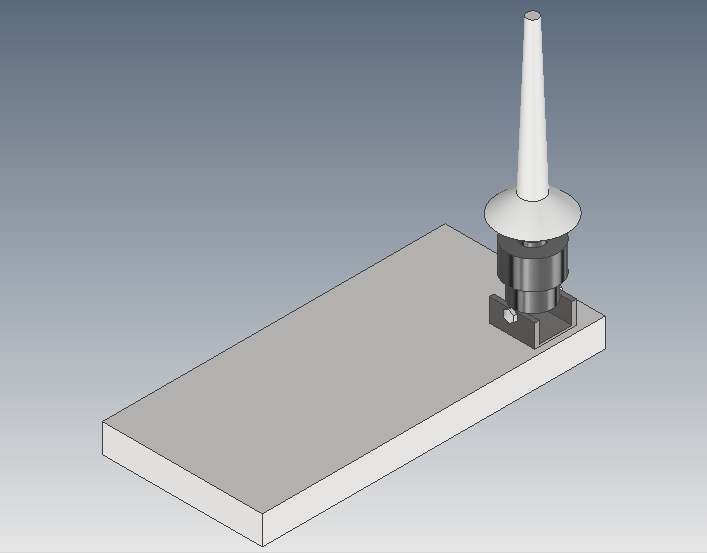

Image Of Entire Sub System 1

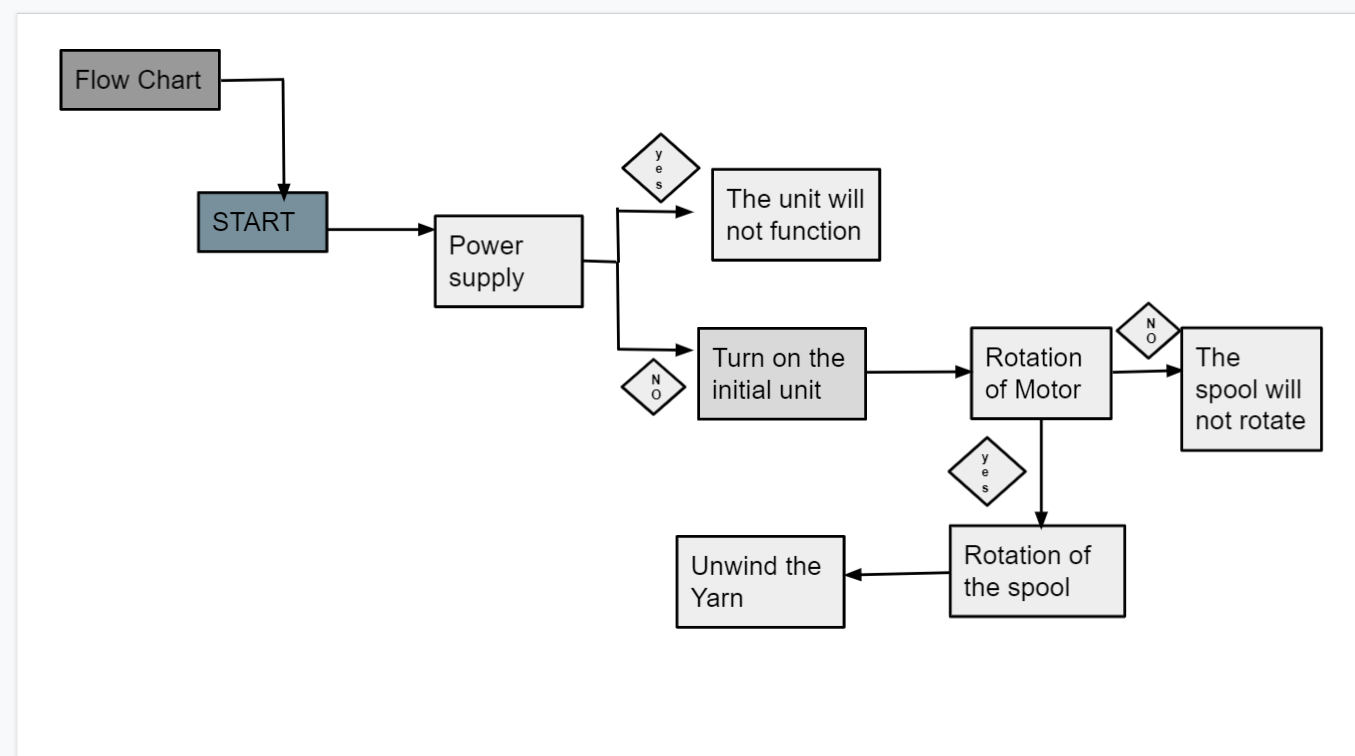

Flow Chart
Circuit Diagram
Bill Of Materials
| Sl.NO | OBJECT | TYPE | DESCRIPTION | QUANTITY | PRICE |
|---|---|---|---|---|---|
| 01 | Base | Board Sheet | To hold the materials 50cm*30cm | 1 | 20 |
| 02 | Spool holder | Wooden | To hold the yarn Spool | 1 | 450 |
| 03 | DC motor | - | 12V-60 rpm(specification) | 1 | 130 |
| 04 | Nuts and Bolts | - | To fix the materials | 5 | 170 |
| 05 | Arduino Uno | - | - | 1 | 800 |
| 06 | H-bridge | - | - | 1 | 30 |
