INTRODUCTION
A winding machine or winder is a machine for wrapping string, twine, cord, thread, yarn, rope, wire, ribbon, tape, etc. onto a spool, bobbin, reel, etc. The main purpose of winding machine is to reel the yarn, ribbon or silk from winding machine or spinning machine into larger volume objects. While winding, the winder can also remove impurities or defects on yarn , ribbon or silk which improves the productivity of the later process and equipment.
The working principle of the winding machine
The working principle of the winding machine is to place the wound object in the center of the turntable, start the turntable motor to rotate, and naturally rotate the turntable to make the object realize the peripheral wrapping film machine. At the same time, the elevator motor is also started, which drives the whole assembly of the winding and binding machine to move up and down to achieve the winding of the object in the height direction, which realizes the wrapping of the entire outer surface of the object.
Classification of Winding Machine
On the basis of material they wind
- Coil winding machine
- Film winding machine
- Rope winding machine
- Paper winding machine
- Foil winding machine
- Spool winding machine
- Cop winding machine
On the basis of working
- Shaft or shaft-less winding machine
- Cantilevered turret winding machine
- Carriage style winding machine!

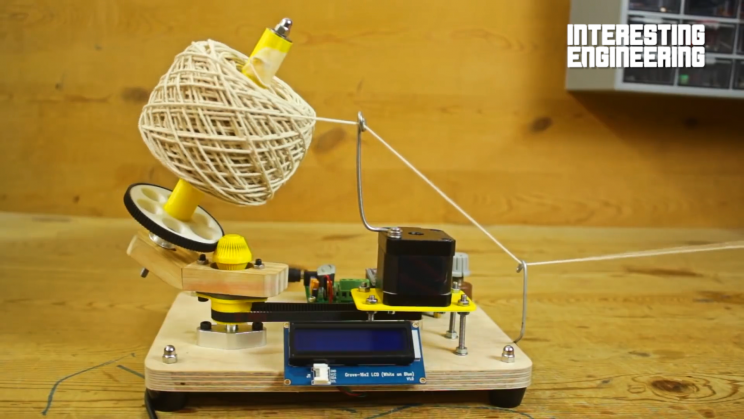

Automatic Winding Machine
Winders are used heavily in textile manufacturing, especially in preparation to weaving where the yarn is wound onto a bobbin and then used in a shuttle. Ball winders, such as the Scottish liaghra, are another type of winder that wind the yarn up from skein form into balls. Ball winders are commonly used by knitters and occasionally spinners.
Need Statement
An industry in Hubballi is looking for a miniaturized winding machine that can wrap string, twine, cord, thread, yarn, ribbon, and tape.
