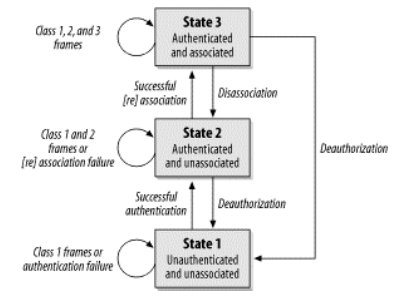

Frame Transmission and Association and Authentication States

Frame Classes

Frames are also divided into different classes.

• Class 1 frames can be transmitted in State 1

• Class 1 and 2 frames in State 2

• Class 1, 2, and 3 frames in State 3.

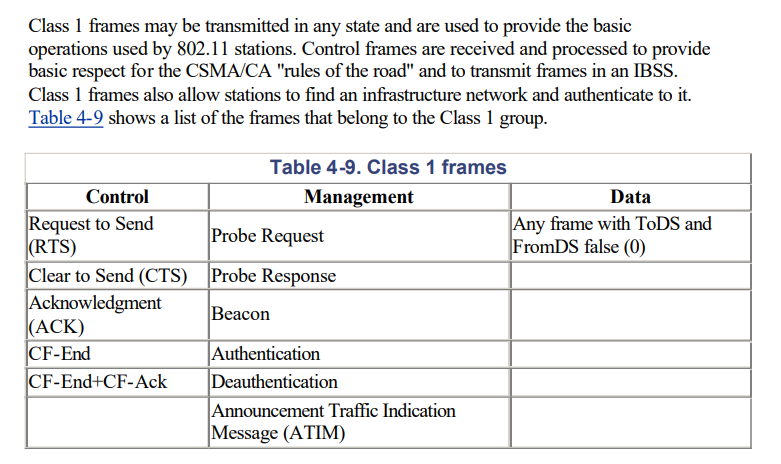

Class 1 Frame

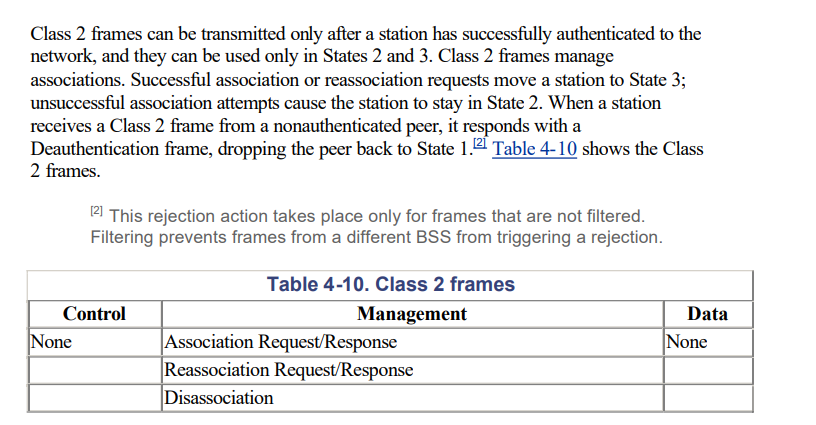

Class 2 frames

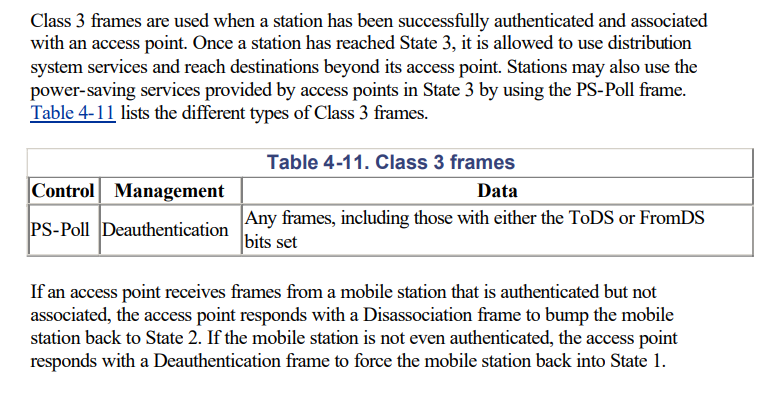

Class 3 frames
