Build Guide

Here you can see almost all details of build Jiran.

BOMs:

Jiran Classic
Name Value Package Qty Optional Aliexpress
PCB 2
Basic Case 1
Switch MX/Alps/Choc 56
Bumpons 12 $1.30
Standoff 6mm M2 14 $1.74
Screw 4mm M2 28 $1.57
Pro micro 5V 16MHz 18x33.5mm 2 $3.46
Diode 1N4148 THT/SMD (SOD-123) 56 $0.85
Resistor 4.7k THT/SMD (1206) 2 $0.51
Resistor 10k THT/SMD (1206) 2 yes $0.51
Resistor 330r THT/SMD (1206) 56 yes $0.51
TRRS jack PJ-320A 2 $1.09
Tact switch DIP 3.5X6X4.3mm 2 yes $0.90
Mosfet 2N7002 SOT-23 2 yes $0.74
LED THT 1.8mm 56 yes $0.82
Jiran Cherry
Name Value Package Qty Optional Aliexpress
PCB 2
Basic Case 1
Switch MX/Alps/Choc 56
Bumpons 12 $1.30
Standoff 6mm M2 14 $1.74
Screw 4mm M2 28 $1.57
Pro micro 5V 16MHz 18x33.5mm 2 $3.46
Diode 1N4148 THT/SMD (SOD-123) 56 $0.85
Resistor 4.7k THT/SMD (1206) 2 $0.51
TRRS jack PJ-320A 2 $1.09
Tact switch DIP 3.5X6X4.3mm 2 yes $0.90
Jiran Hotswap
Name Value Package Qty Optional Aliexpress
PCB 2
Basic Case 1
Switch MX/Alps/Choc 56
Socket MX Switch 56 $12.50
Bumpons 12 $1.30
Standoff 6mm M2 14 $1.74
Screw 4mm M2 28 $1.57
Pro micro 5V 16MHz 18x33.5mm 2 $3.46
Diode 1N4148 THT/SMD (SOD-123) 56 $0.85
Resistor 4.7k THT/SMD (1206) 2 $0.51
TRRS jack PJ-320A 2 $1.09
Tact switch DIP 3.5X6X4.3mm 2 yes $0.90
  • Mosfet, LED, 10k and 330r resistors optional, they are used for backlighting
  • Be careful when choosing the length of the screws, if your plate, underplate and cover is more than 1.5mm thick, you should choose 6mm screws
  • Also you need TRS or TRRS cable for connection between halves, choose any you like

Optional parts

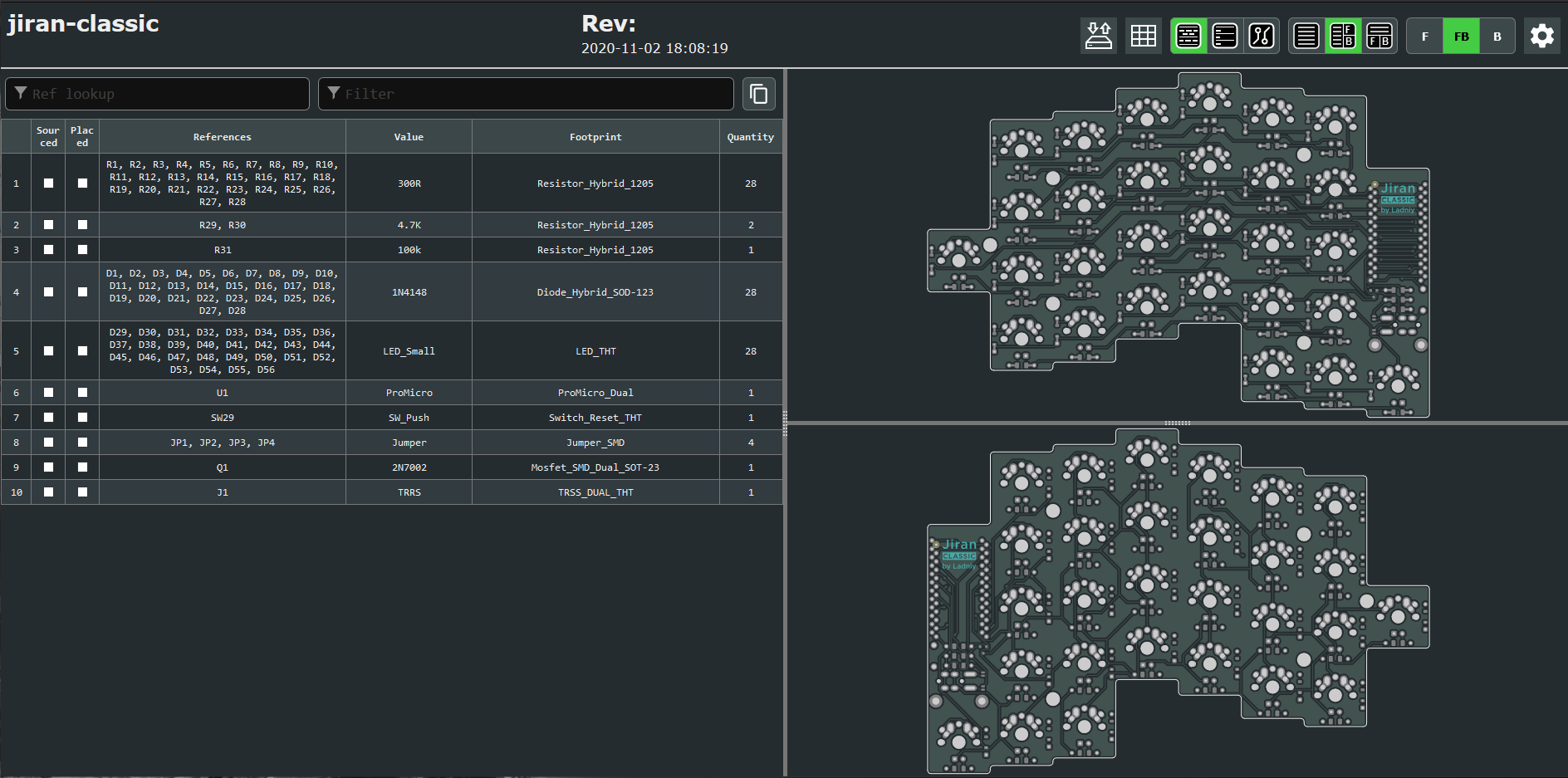

iBom

Please follow my iBOM file to properly position the components on the PCB:
