8.Modelling System Integration

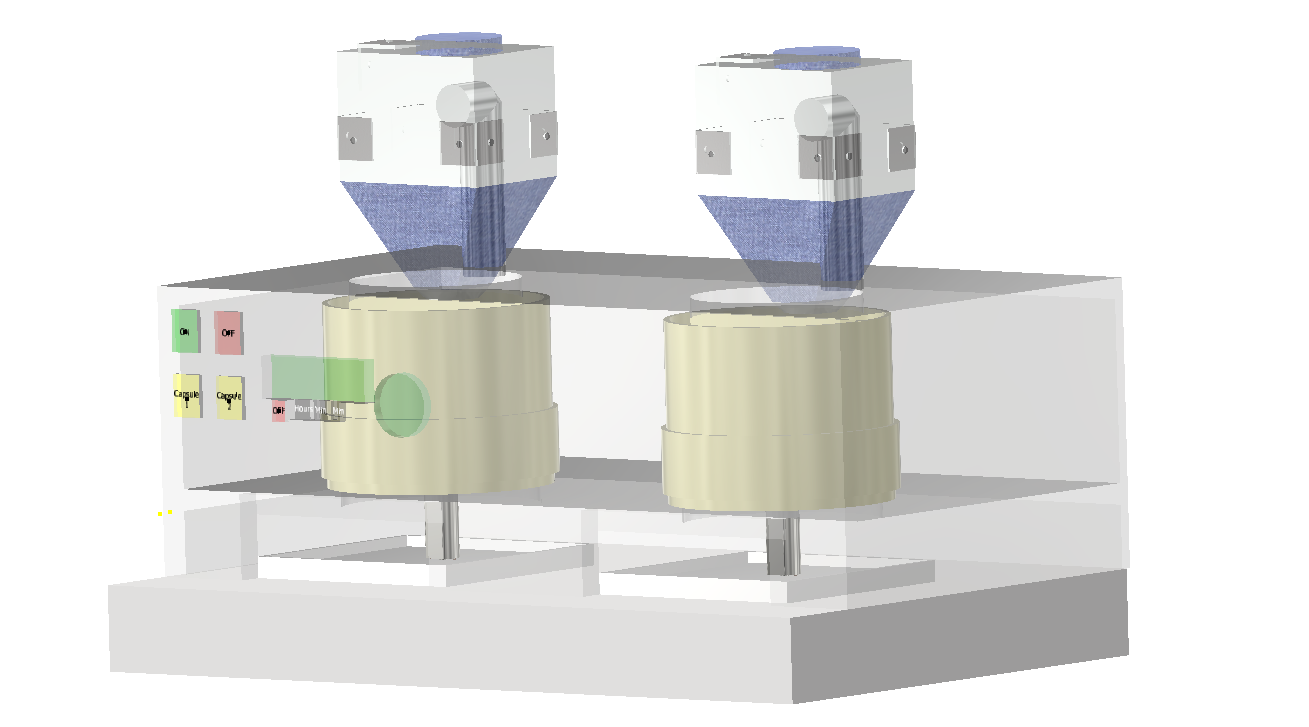

3D Modelling

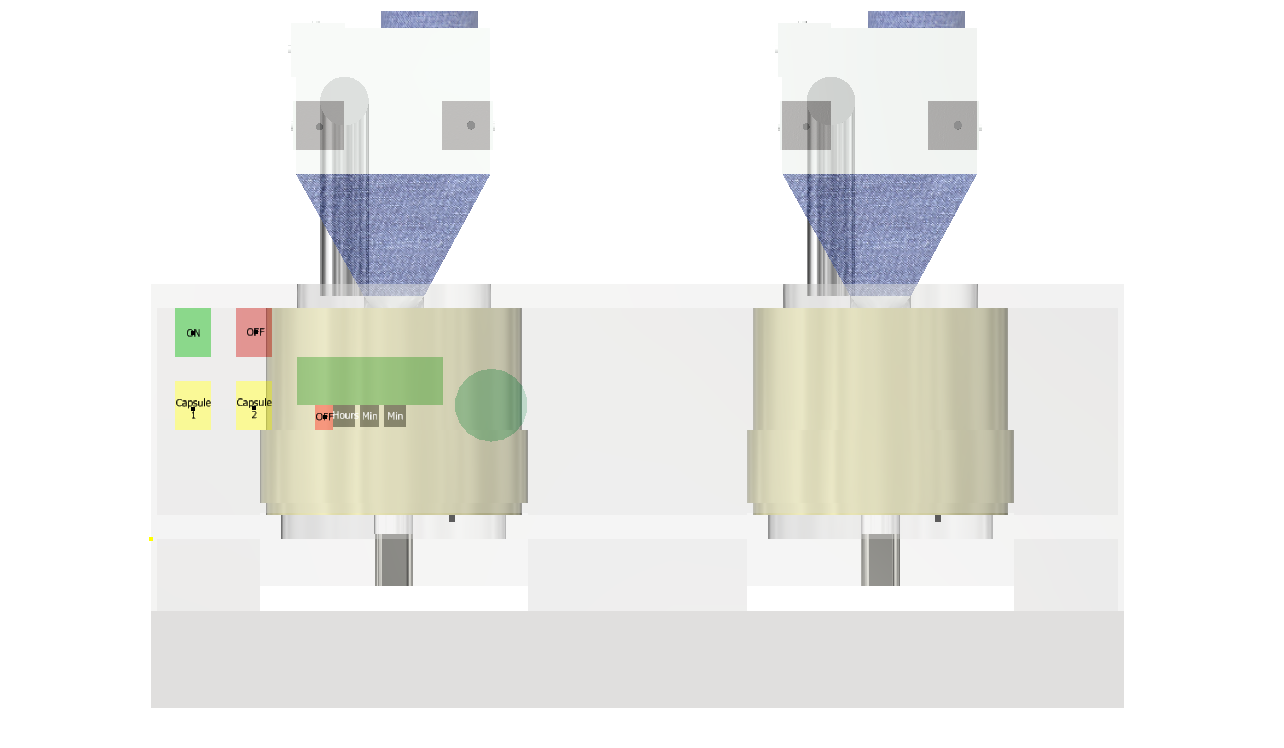

Front View
Side View

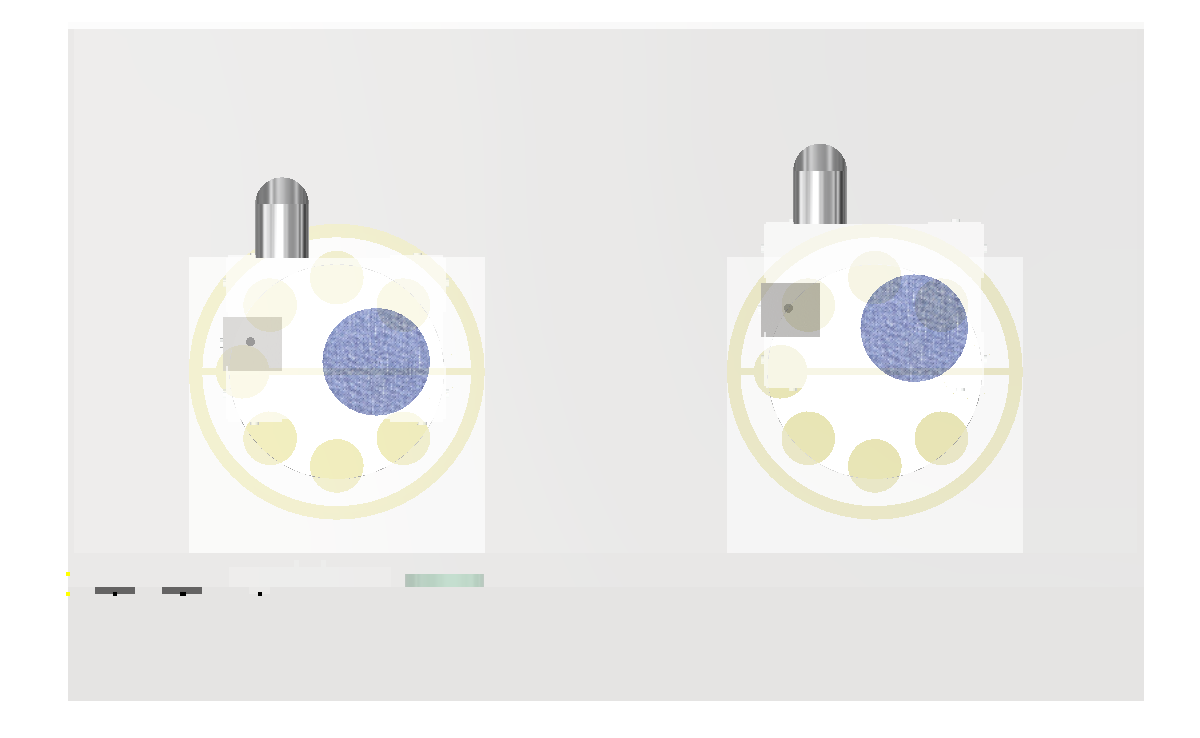

Top View

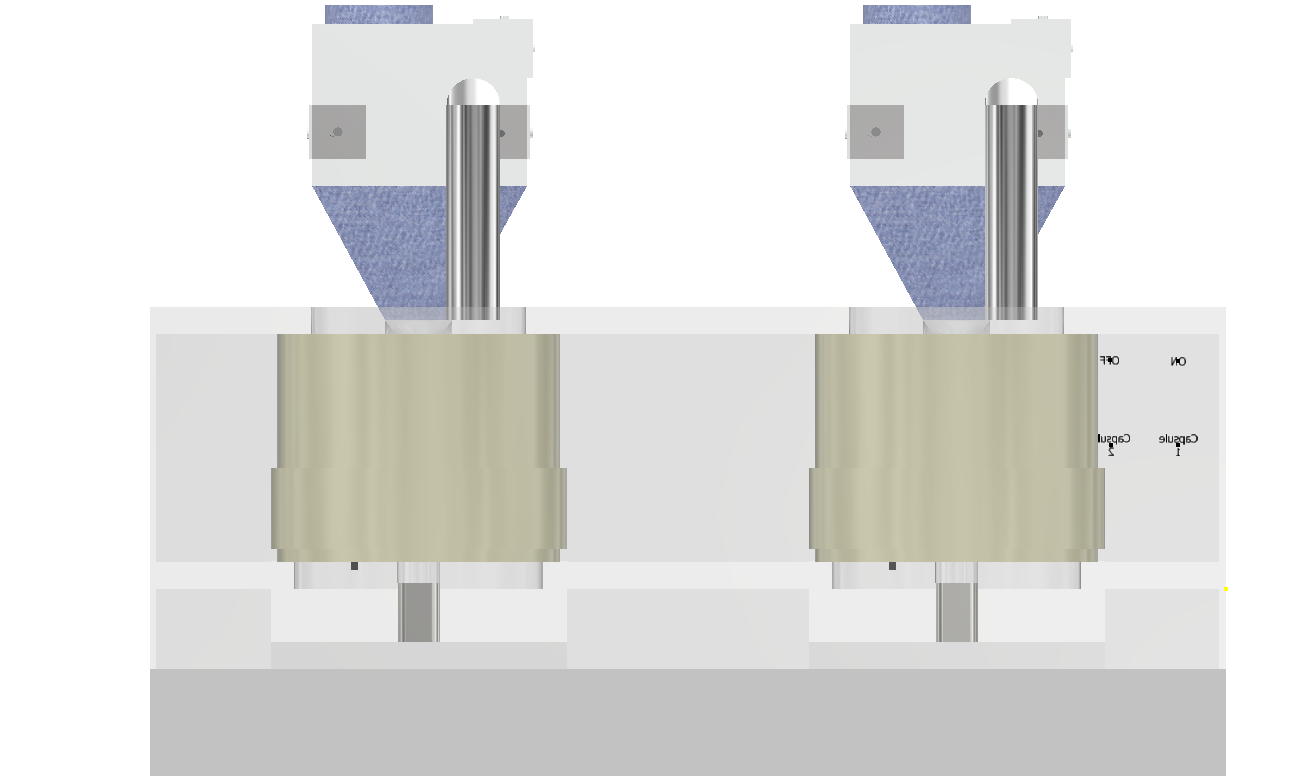

Back View

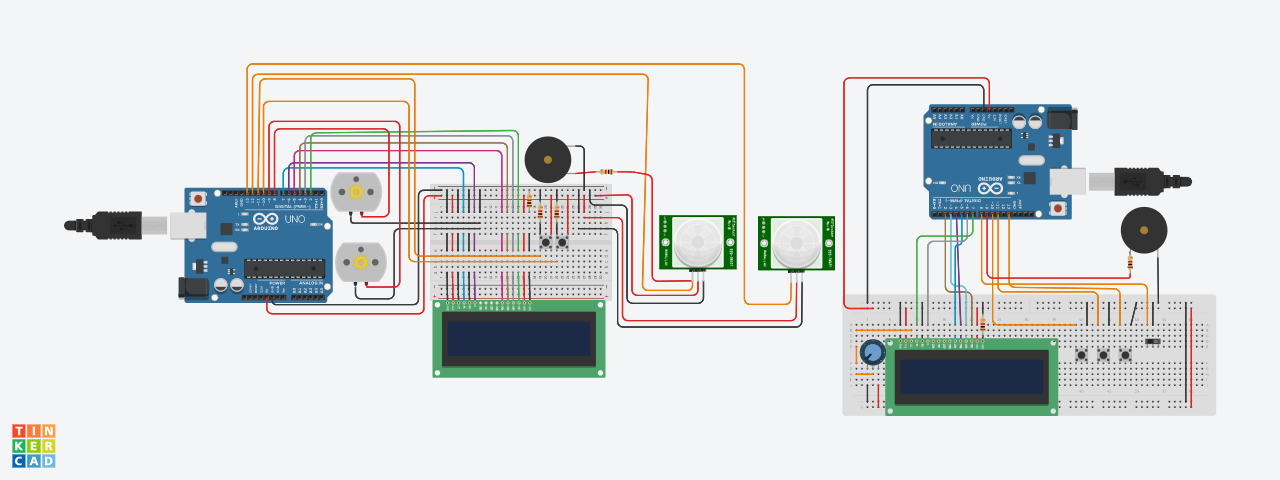

Integrated Circuit Diagram

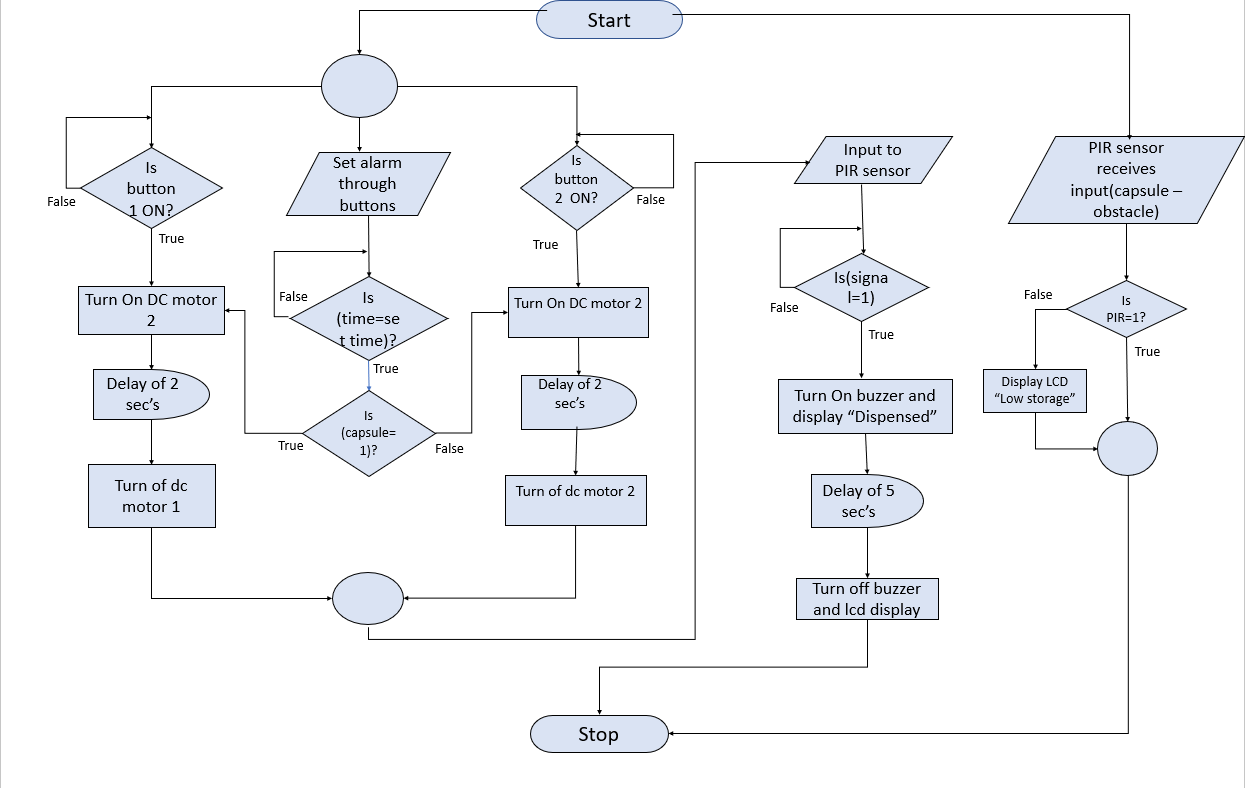

Integrated Flow Chart
Bill Of Materials
| Unit: | PART NAME | MATERIAL | DIMENSION | QUANTITY | FABRICATION PROCESS |
|---|---|---|---|---|---|
| Storage unit | L clamps | Steel | 2*2 cm | 10 | Drill hole and fix |
| Nuts and bolt | Iron | 3mm ,1 cm long | 14 | Fix | |
| Container | Acrylic sheet | 4mm thick 4*(8x10) mm | 2 | Fix and drill hole | |
| Cap for the container | Plastic | 4 cm diameter | 2 | Place | |
| Pir sensor | - | - | 2 | - | |
| Dispensing unit | Disk | Acrylic sheet | Dia :10 cm 1*(11x8) | 2 | - |
| Dc motor | - | - | 2 | - | |
| Support | Aluminum | - | 2 | Fix and hole | |
| Indication unit | Arduino uno | - | 68.4*53.4mm | 1 | |
| Arduino cable | - | - | 1 | ||
| Adapter | - | 5v-5Amp | 1 | - | |
| Jumper wires | - | - | 30 | - | |
| Realtime clock | - | 4cm diameter | 1 | Fix | |
| Lcd display | - | 60mm*30mm | 1 | Fix | |
| Buttons | - | 0.5 cm (dia) | 6 | Fix | |
| IR sensor | - | - | 1 | - | |
| Buzzer | - | - | 1 | - | |
| Bread board | - | Small | 1 | - | |
| Casing unit | L Clamps | Steel | 2cm*2cm | 10 | Drill hole and fix |
| Nut and bolt | Cast Iron | Dia-3mm, 1cm-Height | 10 | Fix | |
| Box | Acrylic sheet | 4 mm thick 3*(20x15) 2*(15x15) | 5 | Fix and drill hole |
