7.Modelling Sub Systems Deliverables
3D Modelling
Storage and dispensing unit

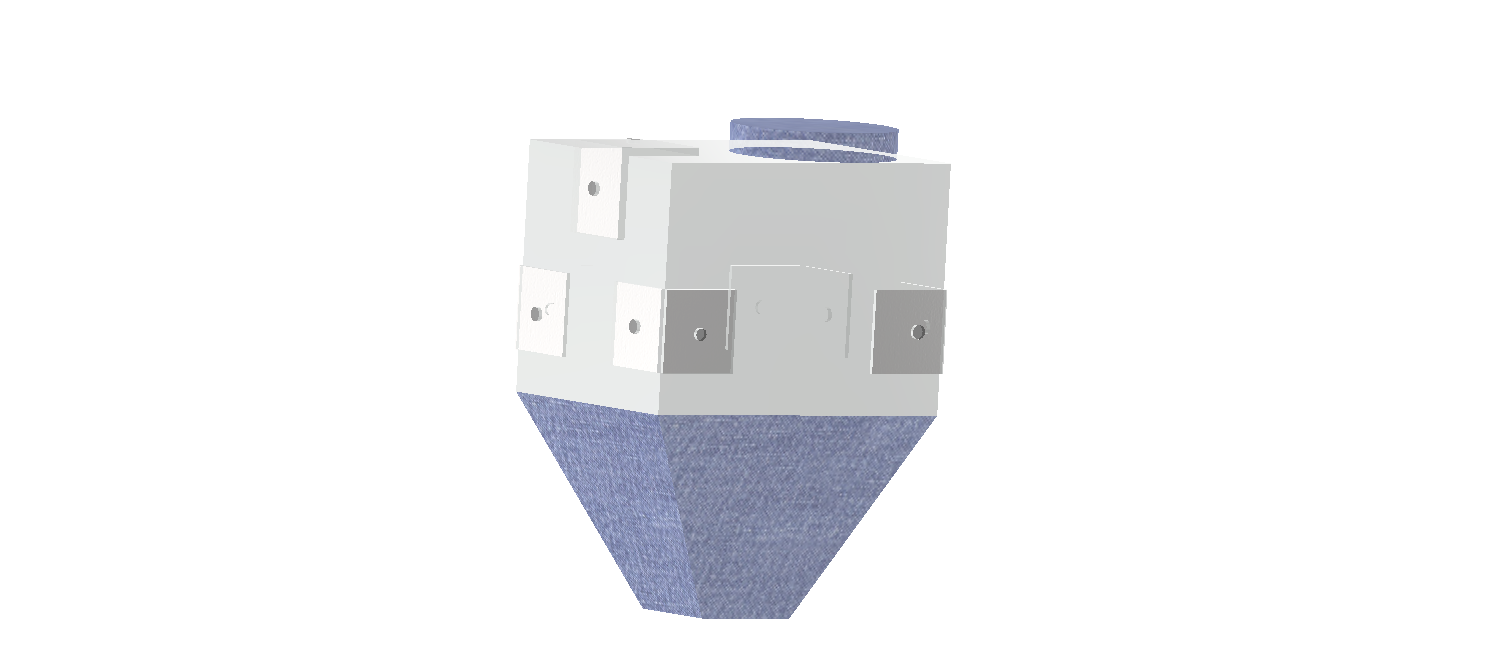

Storage Unit

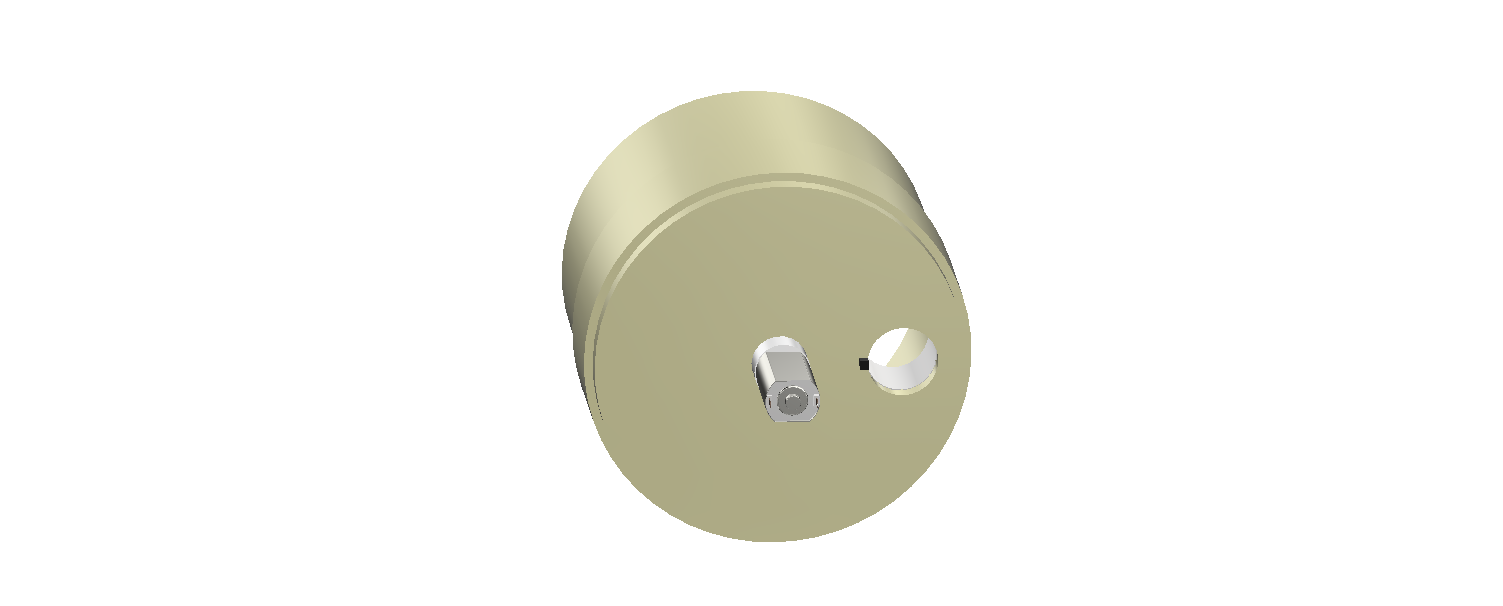

Dispensing Unit

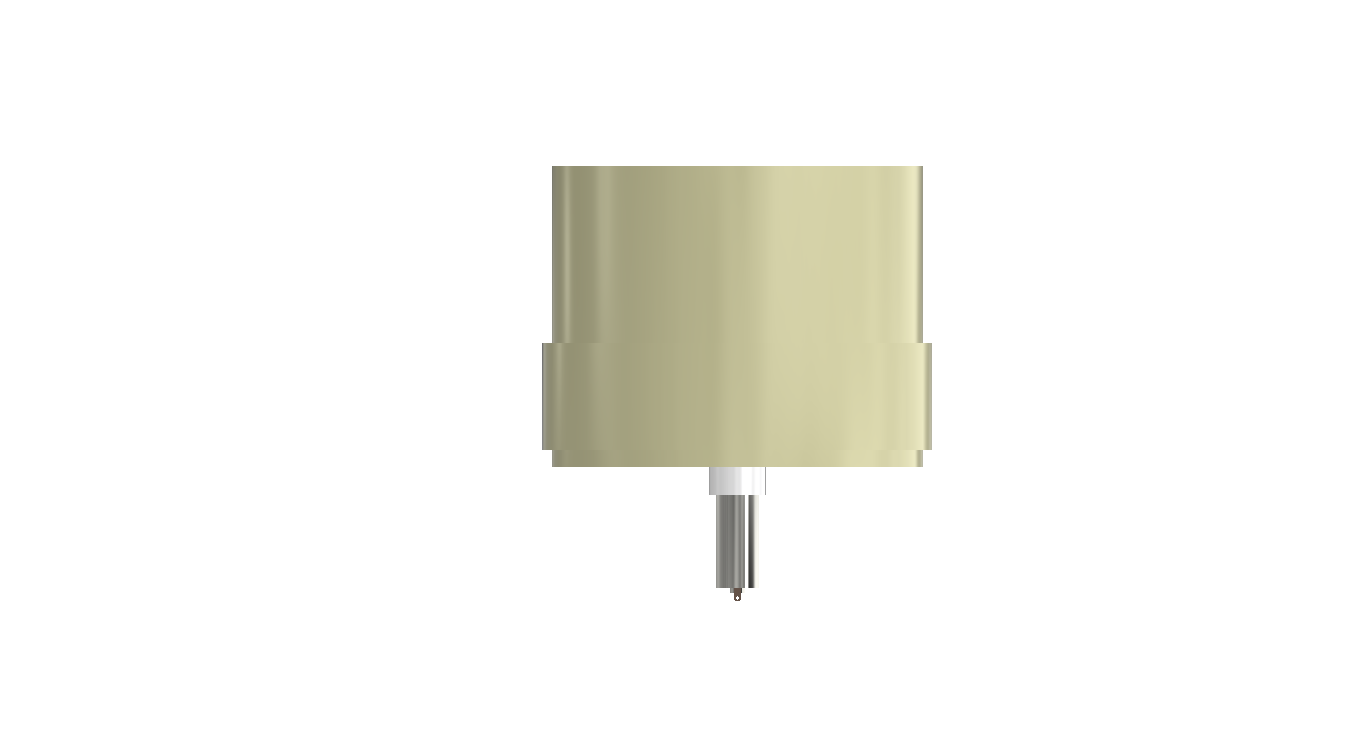

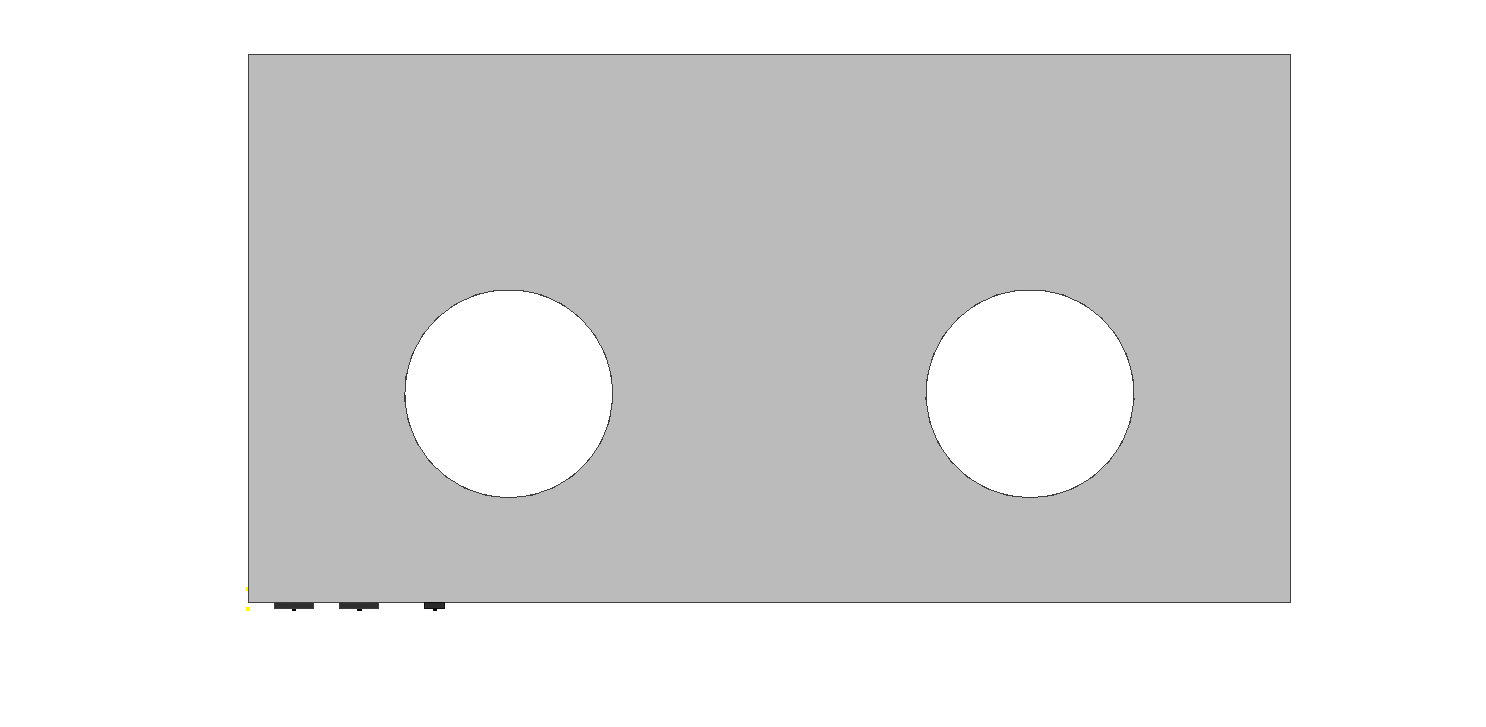

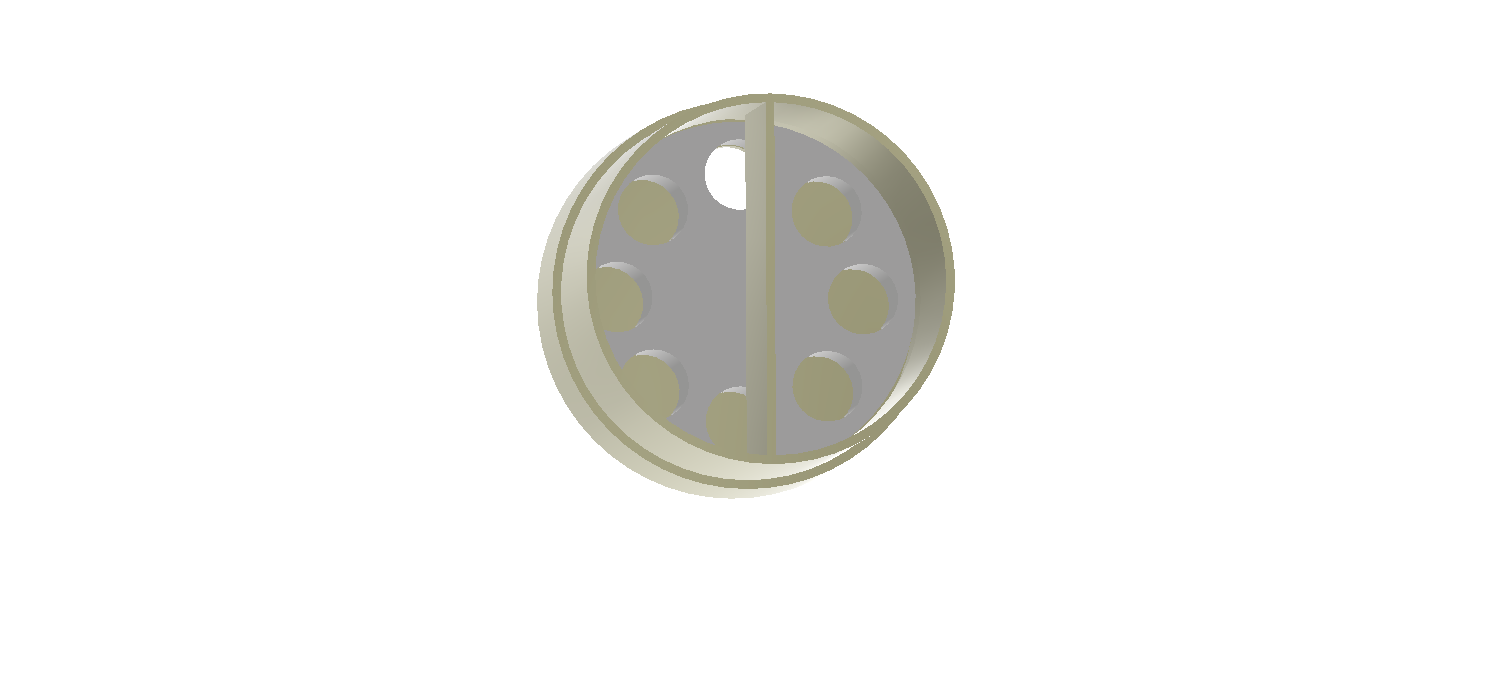

Top view
Side view
Bottom view

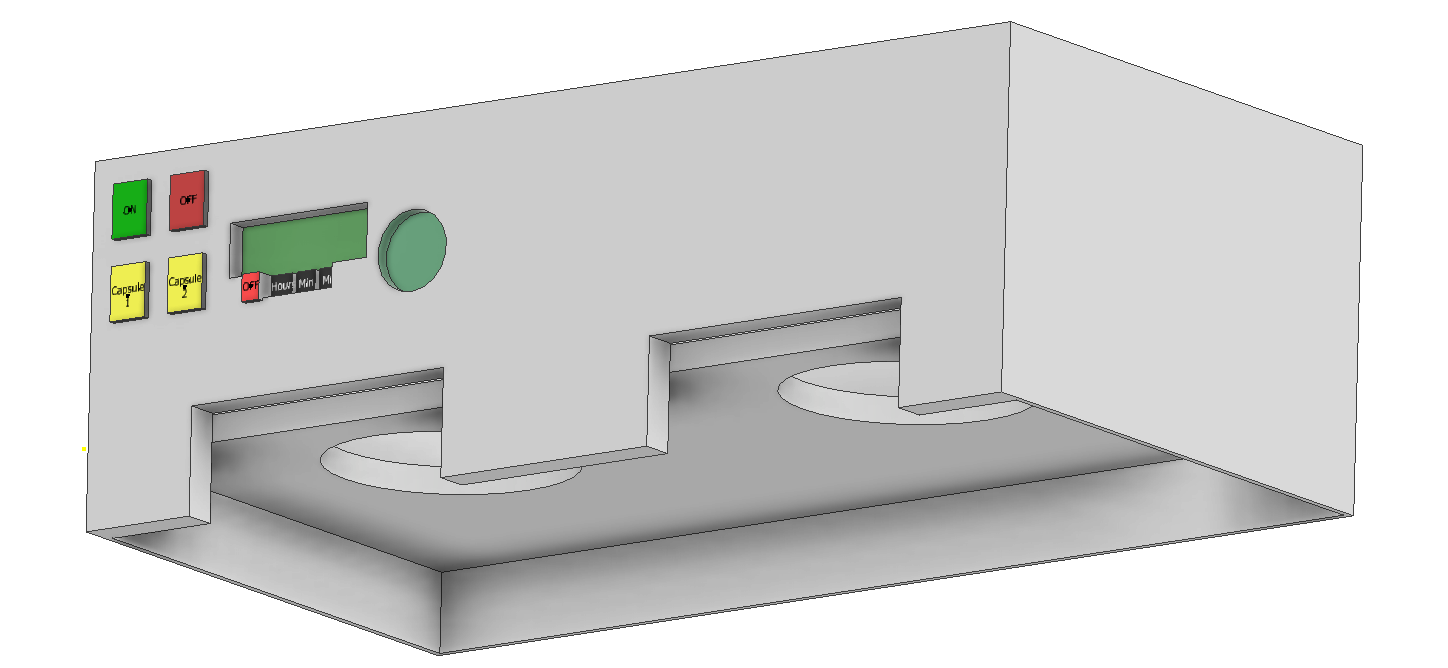

Indication And Casing Unit

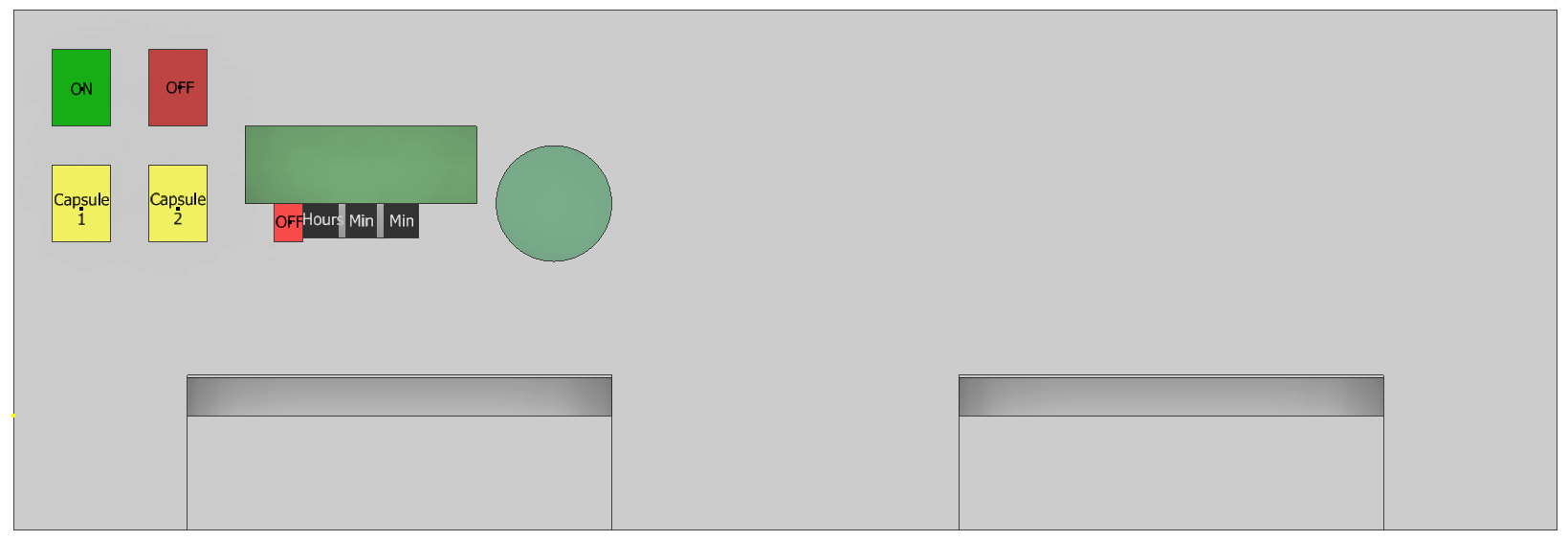

Front view
Top view
Side view
Circuit Diagram

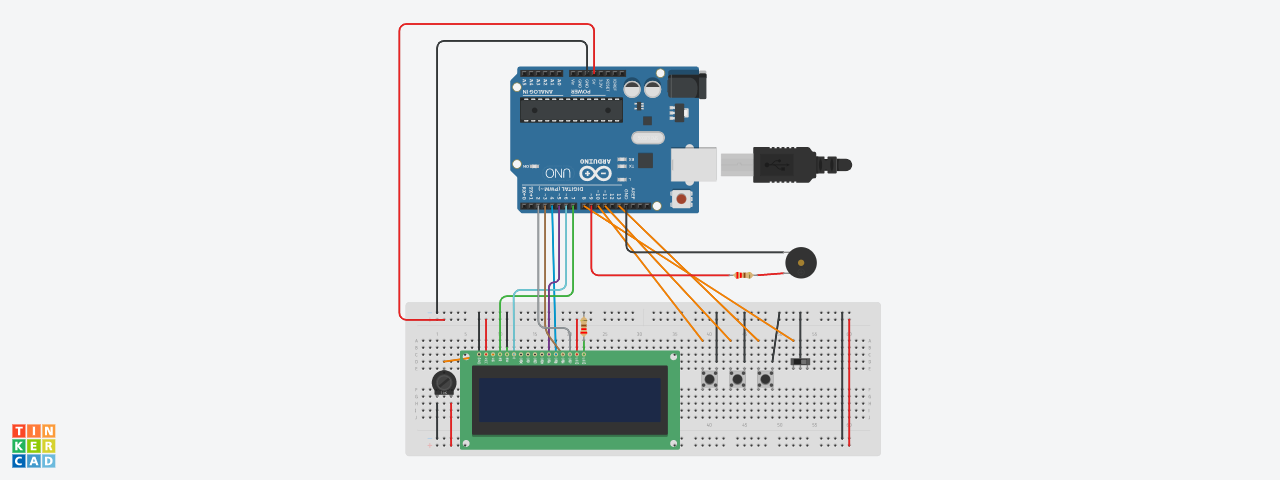

Indication Unit Circuit Diagram

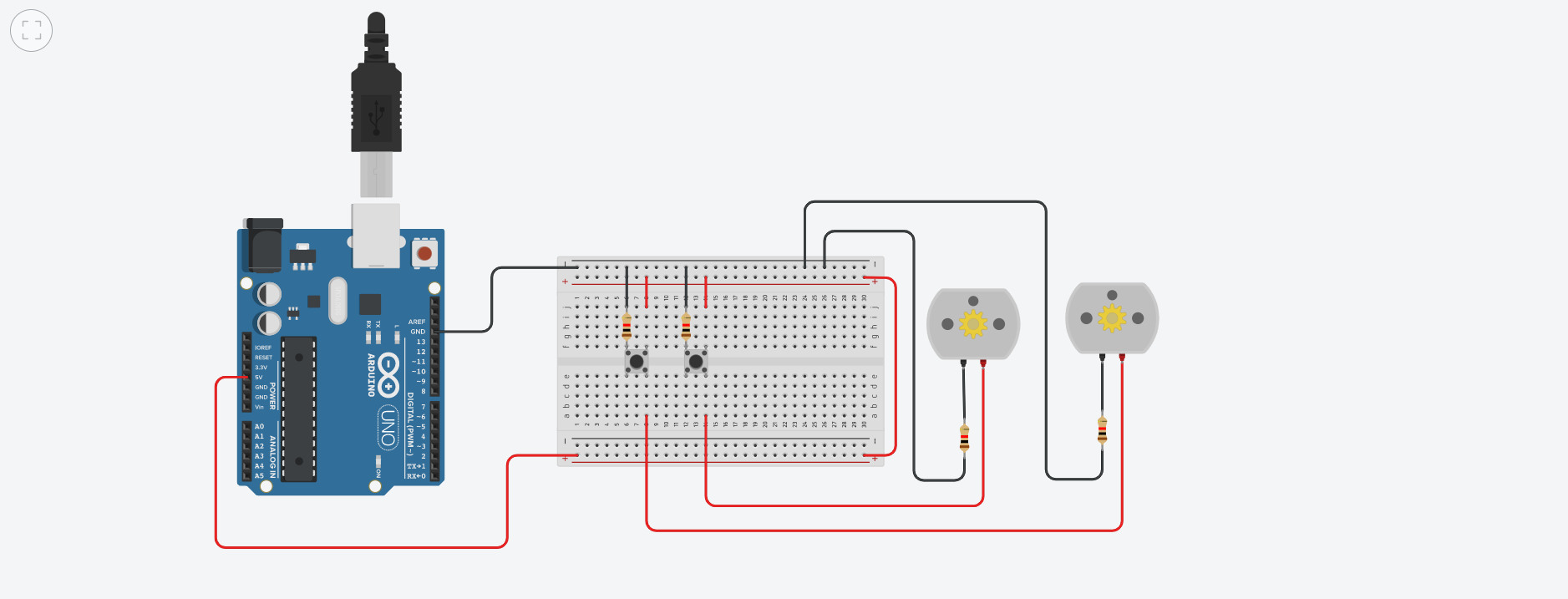

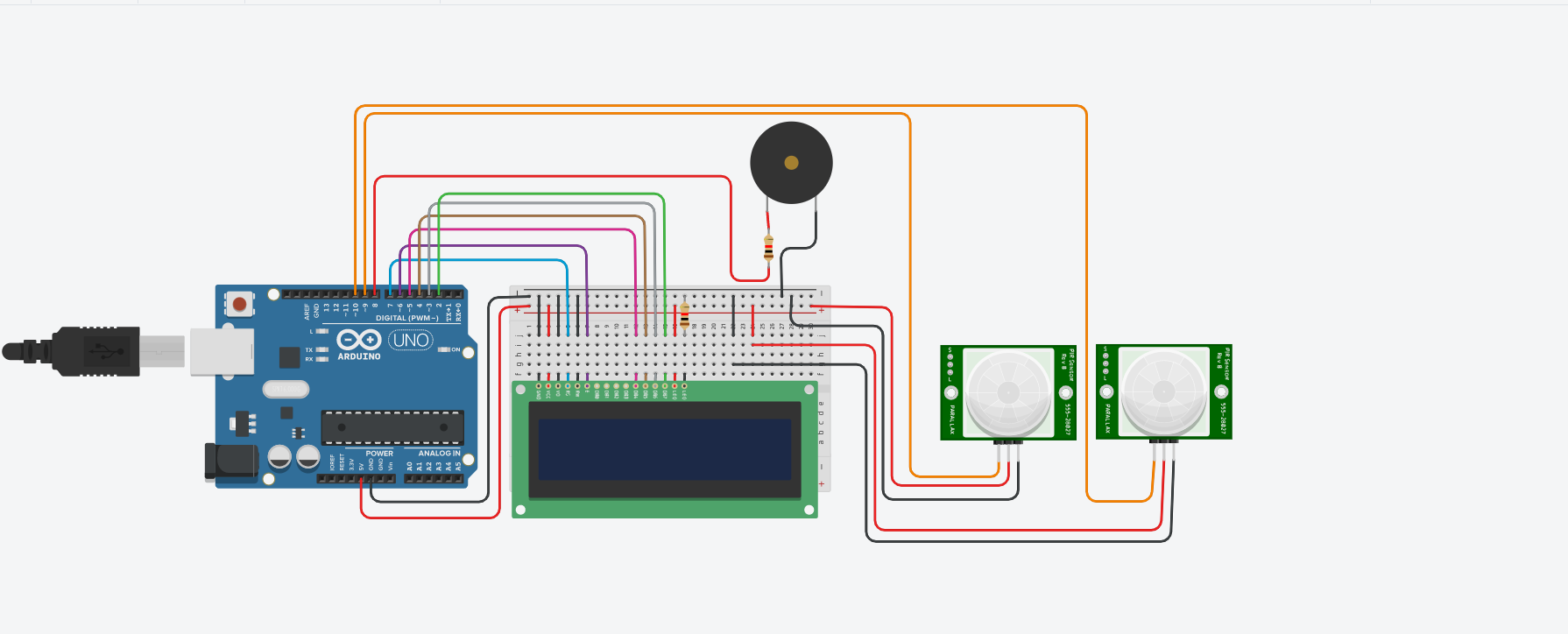

Dispensing Unit Circuit Diagram
Time Reminder Circuit Diagram
Flow Chart

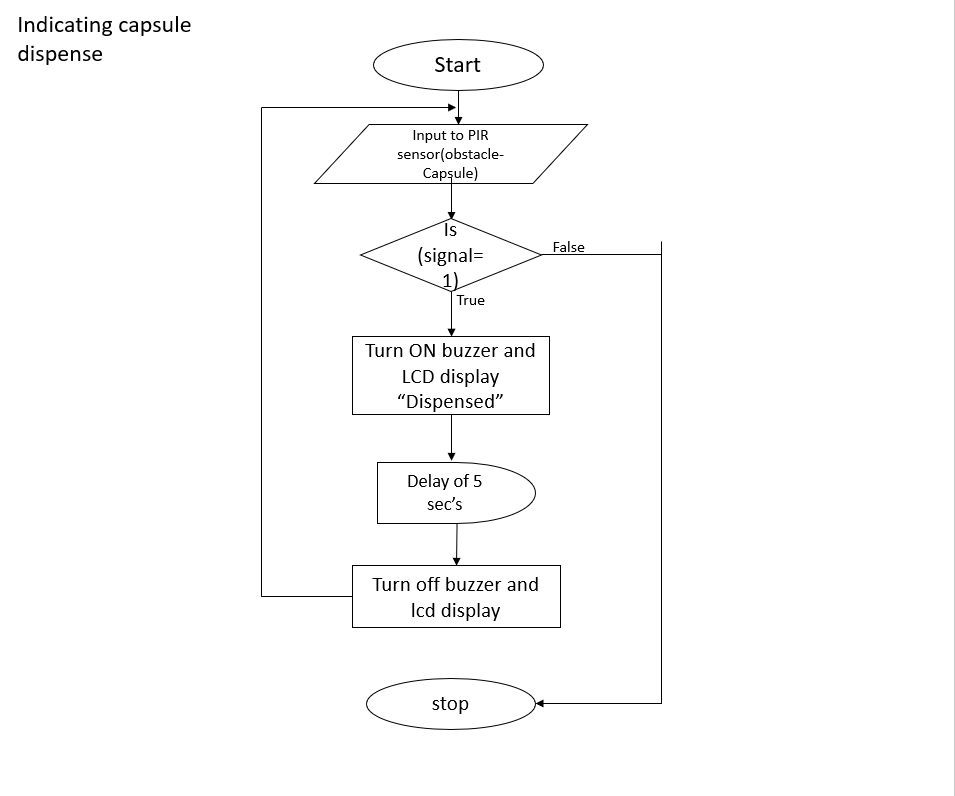

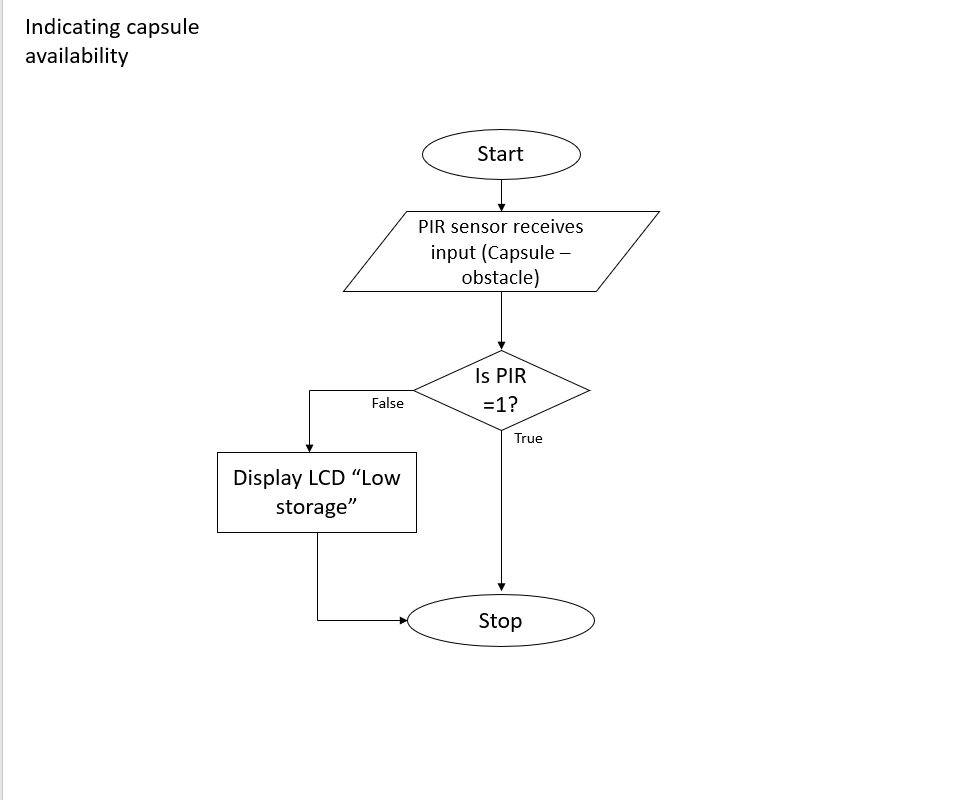

Indication Unit Flow Chart

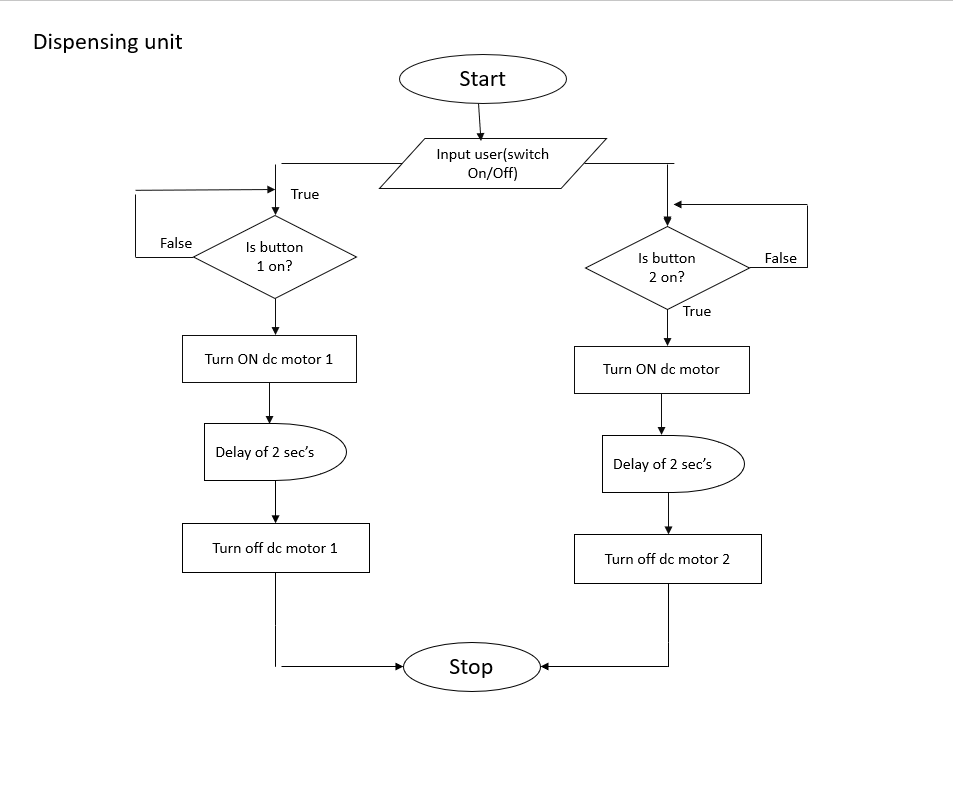

Dispensing Unit Flow Chart

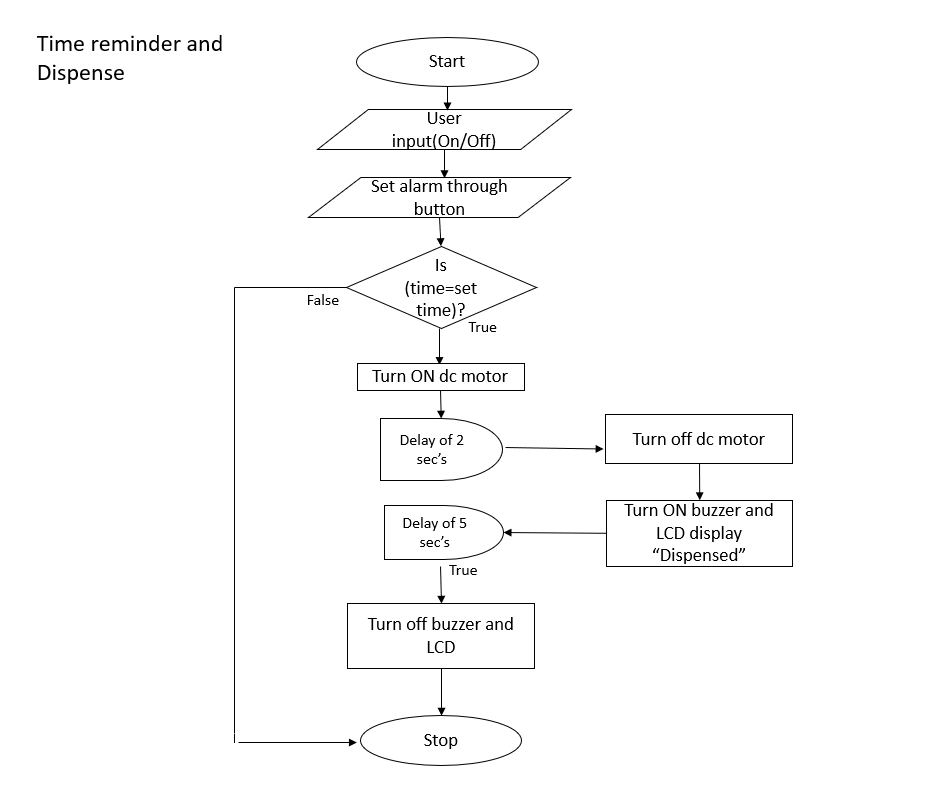

Time Reminder Flow Chart
Bill Of Materials
Storage Unit
| Unit: | PART NAME | MATERIAL | DIMENSION | QUANTITY | FABRICATION PROCESS |
|---|---|---|---|---|---|
| Storage | L clamps | Steel | 2*2 cm | 10 | Drill hole and fix |
| Nuts and bolt | Iron | 3mm ,1 cm long | 14 | Fix | |
| Container | Acrylic sheet | 4mm thick 4*(8x10) mm | 2 | Fix and drill hole | |
| Cap for the container | Plastic | 4 cm diameter | 2 | Place | |
| Pir sensor | - | - | 2 | - |
Dispensing Unit
| Unit: | PART NAME | MATERIAL | DIMENSION | QUANTITY | FABRICATION PROCESS |
|---|---|---|---|---|---|
| Dispensing unit | Disk | Acrylic sheet | Dia :10 cm 1*(11x8) | 2 | - |
| Dc motor | - | - | 2 | - | |
| Support | Aluminum | - | 2 | Fix and hole |
Indication Unit
| Unit: | PART NAME | MATERIAL | DIMENSION | QUANTITY | FABRICATION PROCESS |
|---|---|---|---|---|---|
| Indication unit | Arduino uno | - | 68.4*53.4mm | 1 | |
| Arduino cable | - | - | 1 | ||
| Adapter | - | 5v-5Amp | 1 | - | |
| Jumper wires | - | - | 30 | - | |
| Realtime clock | - | 4cm diameter | 1 | Fix | |
| Lcd display | - | 60mm*30mm | 1 | Fix | |
| Buttons | - | 0.5 cm (dia) | 6 | Fix | |
| IR sensor | - | - | 1 | - | |
| Buzzer | - | - | 1 | - | |
| Bread board | - | Small | 1 | - |
Casing Unit
| Unit: | PART NAME | MATERIAL | DIMENSION | QUANTITY | FABRICATION PROCESS |
|---|---|---|---|---|---|
| Casing unit | L Clamps | Steel | 2cm*2cm | 10 | Drill hole and fix |
| Nut and bolt | Cast Iron | Dia-3mm, 1cm-Height | 10 | Fix | |
| Box | Acrylic sheet | 4 mm thick 3*(20x15) 2*(15x15) | 5 | Fix and drill hole |
