Concept Generation

1.1 Functions Established :

sl.No.	Functions
1	Indicate the system on/off
2	Accept input from user
3	Store capsule
4	Dispense the capsules
5	Collect the capsules
6	Alert the shortage of capsules
7	Set the reminder
8	Display the reminder
9	Indicate capsule dispense
10	Time reminder for the prescribed medicine

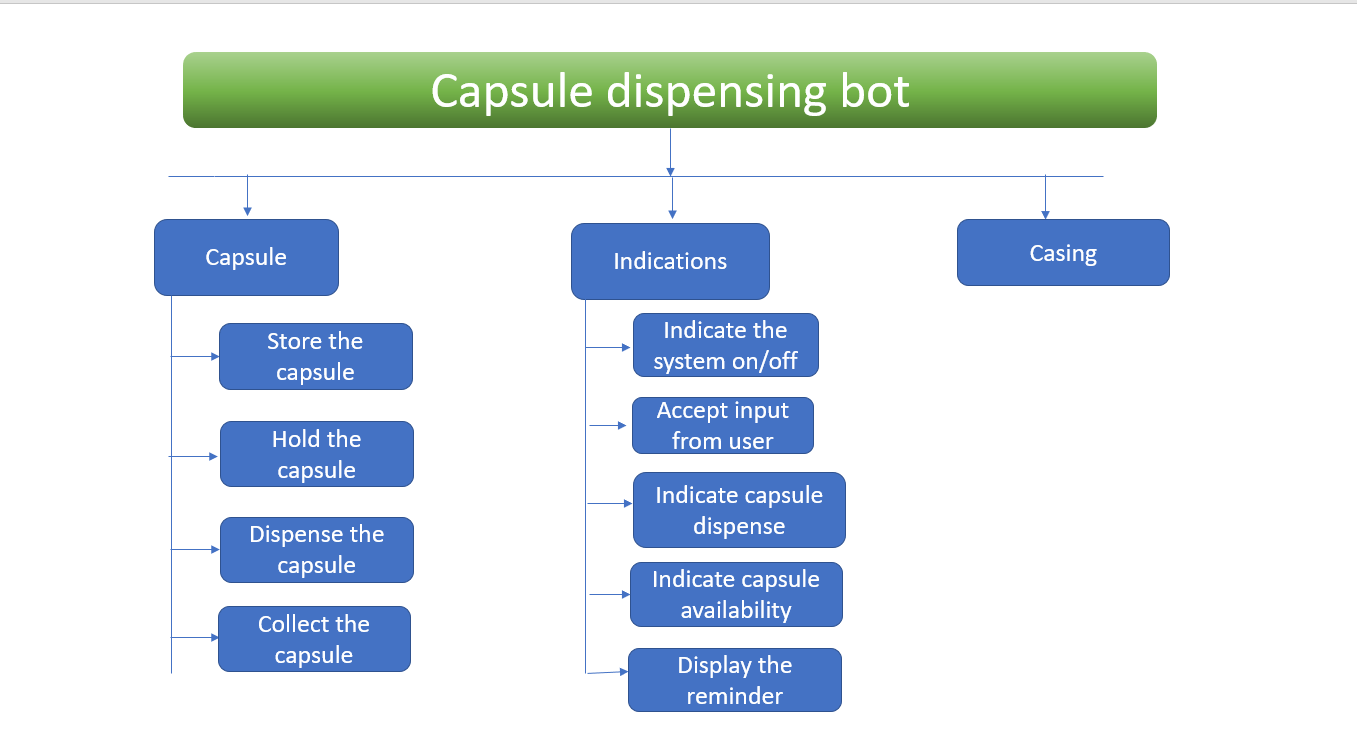

1.3 Functions Tree:

1.2 Function Cluster:

Sub-Systems Identified:

1. Storage and dispensing unit
2. Indication unit
3. Casing unit

Establishing Means-

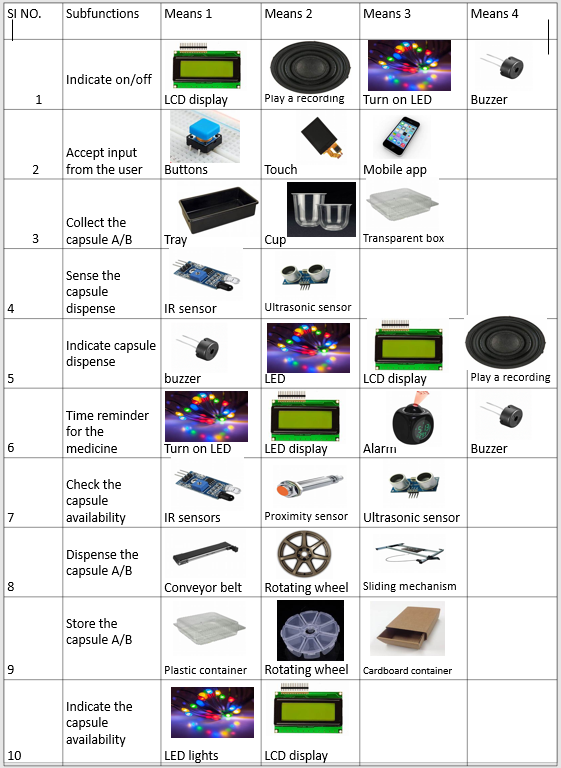

Morphological Chart:

Concept Generation:

Design 1

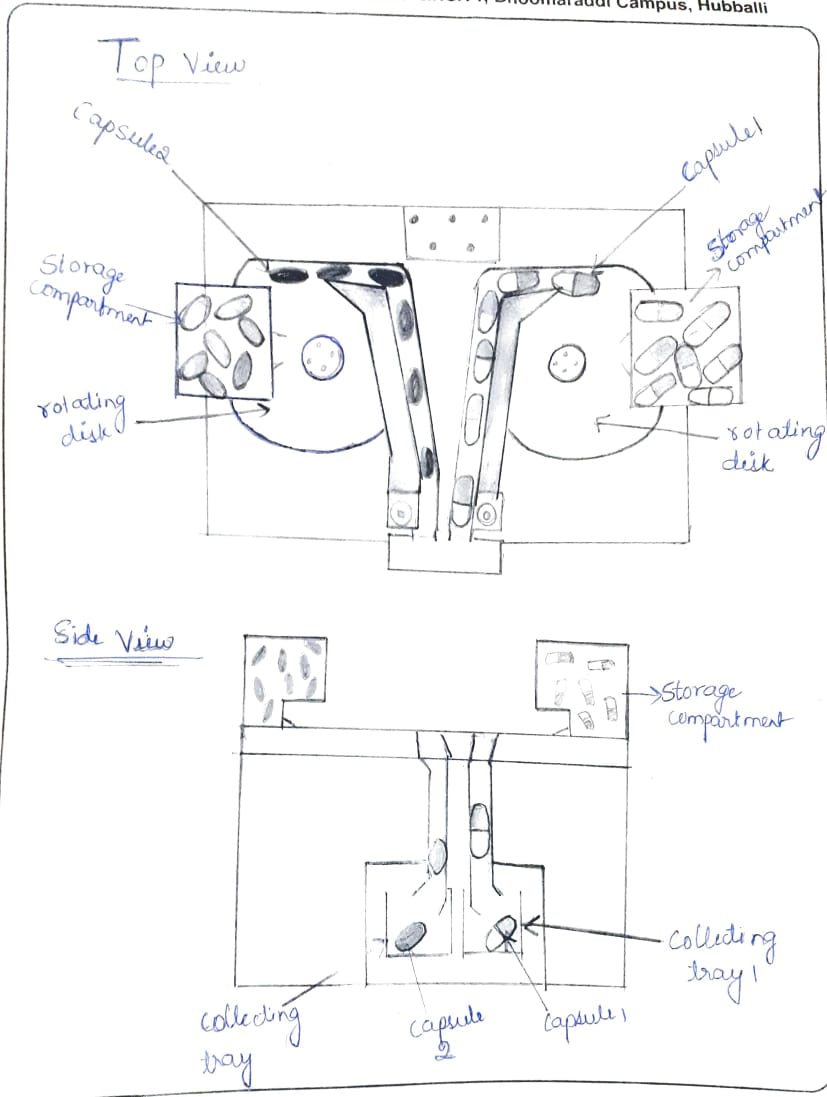

Design 2

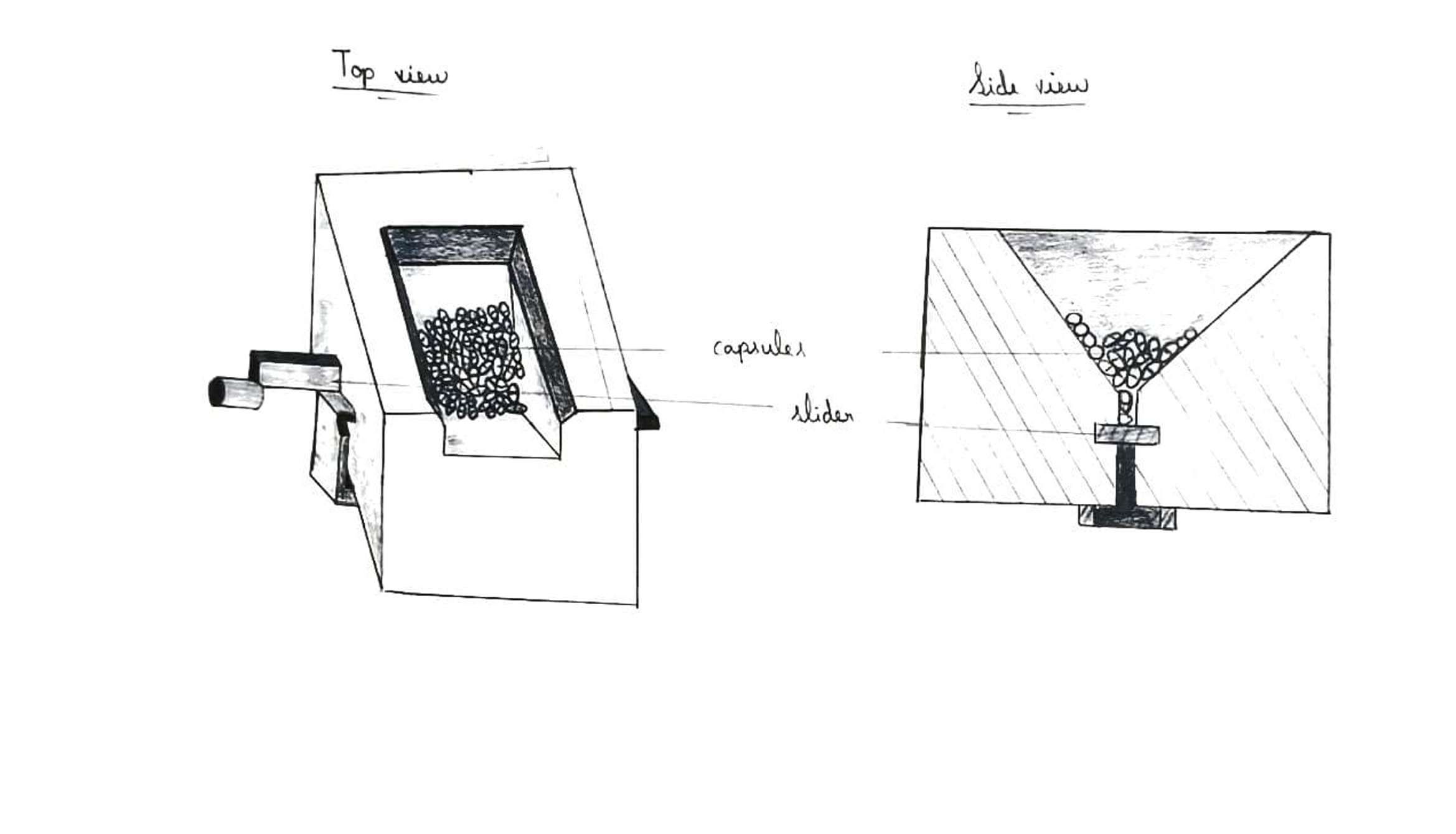

Design 3

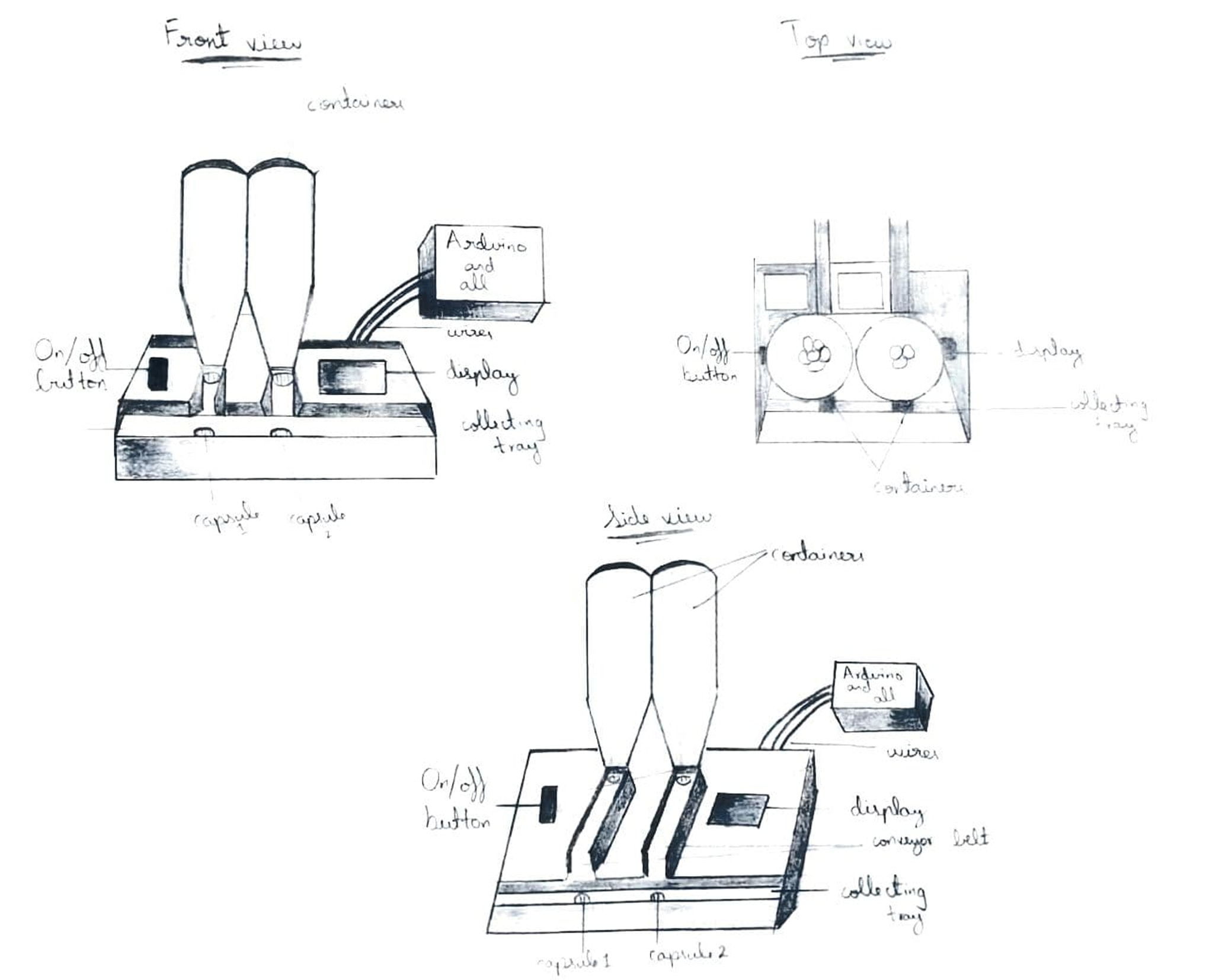

Design 4
