Need statement
A science and automata museum interested in exhibiting interactive and decorative science models in an event. So the museum is looking for nominations.
Introduction
The decoration is a creation of mind according to your way of likes, dislikes and style. Everyone wants a good life with no stress, but it is hard to make such a way of life. Yes, but one thing is possible, to live with less tension. The main function of decorative is to embellish something other than itself. The purpose of modern museums is to collect, preserve, interpret, and display objects of artistic, cultural, or scientific significance for the education of the public. From a visitor or community perspective, the purpose can also depend on one's point of view. The automata interactive models in the museum will amuse visitors of that place.
Some of the existing decorative models are:
1.Spooky Candy Box:
Details:
| SI NO | Components Used |
|---|---|
| 1 | Arduino Uno |
| 2 | Bolt IoT Bolt Wifi Model |
| 3 | Buzzer |
| 4 | Jumper Wires |
Things Required
- Arduino Uno r3 or Boltduino
- Bolt v2
- HC SR04 Ultrasonic distance sensor
- Cardboard box
- A pair of scissors
- Double sided tape
- A few decorative items
Connections:

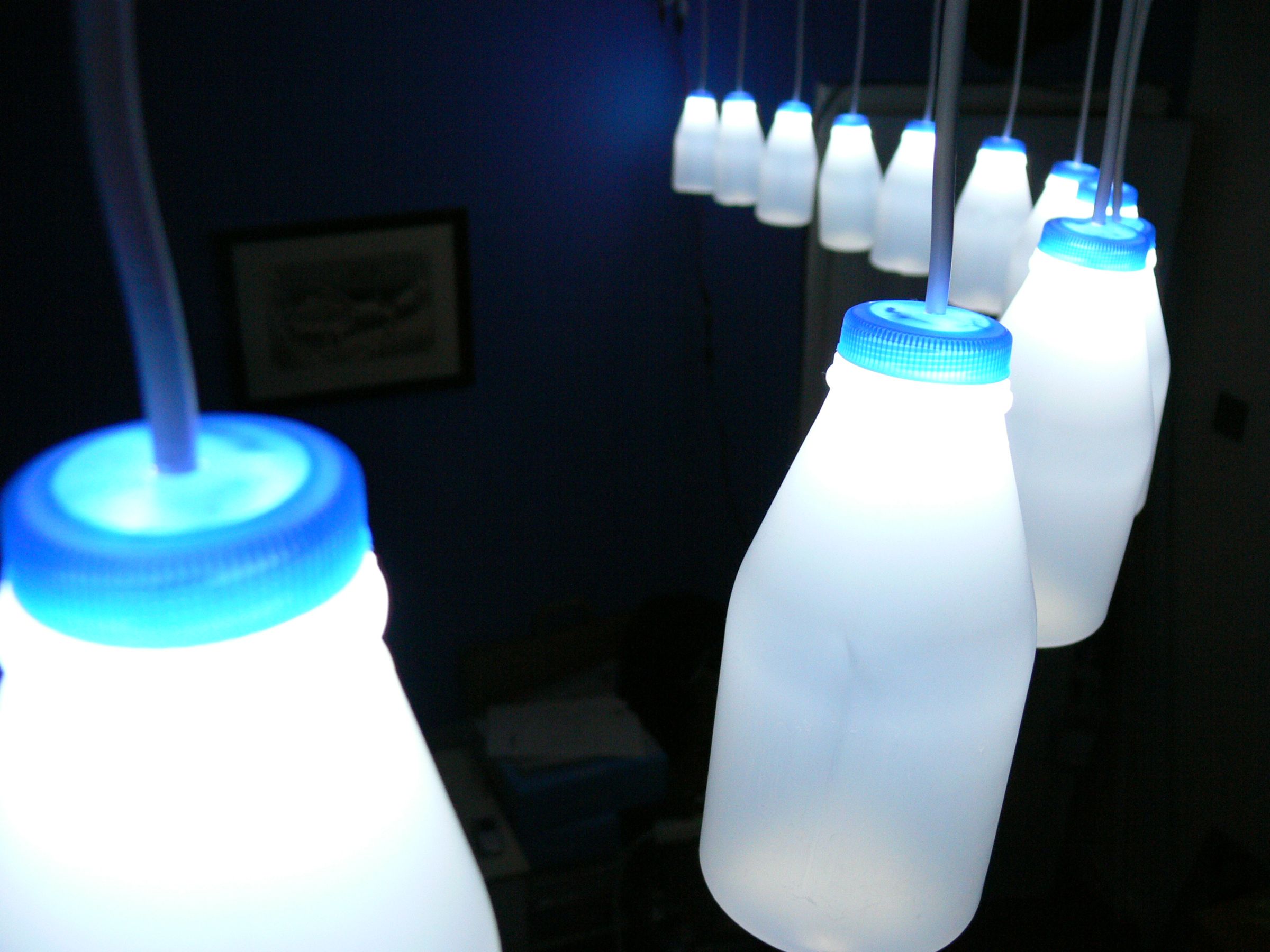

2.Addressable Milk Bottles (LED Lighting + Arduino)
Materials needed
| SI NO | Components |
|---|---|
| 1 | PE milk bottles |
| 2 | Sheet of 3mm clear acrylic |
| 3 | 2 core electrical cable (or speaker wire will do - it can be fairly light duty since it will only take about 12v and very little current, depending on how you design your circuit). |
| 4 | LEDs |
| 5 | Resistors |
| 6 | Solder |
| 7 | Heat shrink tubing |
| 8 | An old transformer (wall wart to Americans), plus socket+plug to go with it. |
| 9 | Braided copper wire |
| 10 | Solid core bell wire |
| 11 | Zip ties |
Tools Required
| SI NO | Tools |
|---|---|
| 1 | Drill |
| 2 | Hole cutter (matched to the width of your milk bottle caps |
| 3 | Assorted tiny drill bits |
| 4 | Junior hacksaw (depending on what you use as a housing) |
| 5 | Screwdrivers |
| 6 | Wire strippers |
| 7 | Side cutters/Wire clippers |
| 8 | Soldering iron |
| 9 | Multimeter |
| 10 | Third hand (vital for soldering components together) |
| 11 | Desoldering wick (if you salvage any components from other devices) |
| 12 | Crocodile clip leads (for testing/prototyping) |
Final Model Video
References
| SI NO | Project Name | Links |
|---|---|---|
| 1 | Spooky Candy Box | https://create.arduino.cc/projecthub/shoeb-ahmed/spooky-candy-box-0834b1?ref=search&ref_id=Decorative&offset=4 |
| 2 | Addressable Milk Bottles (LED Lighting + Arduino | www.instructables.com/Milk-Bottle-LED-Lights-Arduino-Controlled/ino) |
Links for some Automata decorative working models:
1)https://youtu.be/7W3wgwUfjZA
2)https://youtu.be/PHzZjUK9BuQ
3)https://youtu.be/-z5GUI90FuM
4)https://youtu.be/fUl4PJ-Ca2o
