SUB - SYSTEM NAME 1

SENSING THE PAPER

SUB - SYSTEM NAME 2

ACCEPTING THE INPUT

SUB - SYSTEM NAME 3

ROLLING THE PAPER

FABRICATION PLAN

The base is built with foam sheet.

Part Material used Dimensions
Lower Base 10 mm thick foam sheet 27.5 x 30 sq.cms
Outer Side Walls 5 mm thick foam sheet 7 x 30 sq.cms
Inner and Upper Walls 5 mm thick foam sheet 3 x 30 sq.cms
Paper Base 5 mm thick foam sheet 21.5 x 30 sq.cms
Gear for Rolling 5 mm thick acrylic 15 mm diameter hole and 20 teeths

INTERACTION ASPECT DETAILS

Sub-System 1
Sub-System 2 Sub-System 3
Energy Interaction --- ---
Data Interaction Sensing of paper ---
Material Interaction ---- Paper to be cut
Spatial Interaction --- ---
Sub-System 2
Sub-System 1 Sub-System 3
Energy Interaction --- ---
Data Interaction Sensing of paper ---
Material Interaction ---- ---
Spatial Interaction --- ---
Sub-System 3
Sub-System 1 Sub-System 2
Energy Interaction --- ---
Data Interaction Sensing of paper ---
Material Interaction ---- ---
Spatial Interaction --- ---

PROGRAM

#include<LiquidCrystal.h>

LiquidCrystal lcd(2,3,4,5,6,7);

void setup()

{

pinMode(8,INPUT);

pinMode(9,INPUT);

pinMode(10,OUTPUT);

pinMode(11,OUTPUT);

int pieces=0,piece1;

lcd.begin(16,2);

while(digitalRead(9)!=0) { lcd.print("Hello World!");

 lcd.setCursor(0,1);

 lcd.print("Insert the Paper");

}

if(digitalRead(9)==1)

{

lcd.setCursor(0,1);

lcd.print("Paper detected  ");

delay(2000);

lcd.setCursor(0,0);

lcd.print("Select Quantity ");

lcd.setCursor(0,1);

lcd.print("Cut    Pieces ");

for(pieces=0;pieces>=0;pieces++)

{

  lcd.setCursor(4,1);

  lcd.print(pieces);

  if(digitalRead(8)==HIGH)

  {

    piece1=piece;

    break;

  }

  delay(1500);

}

}

}

void loop() {

}

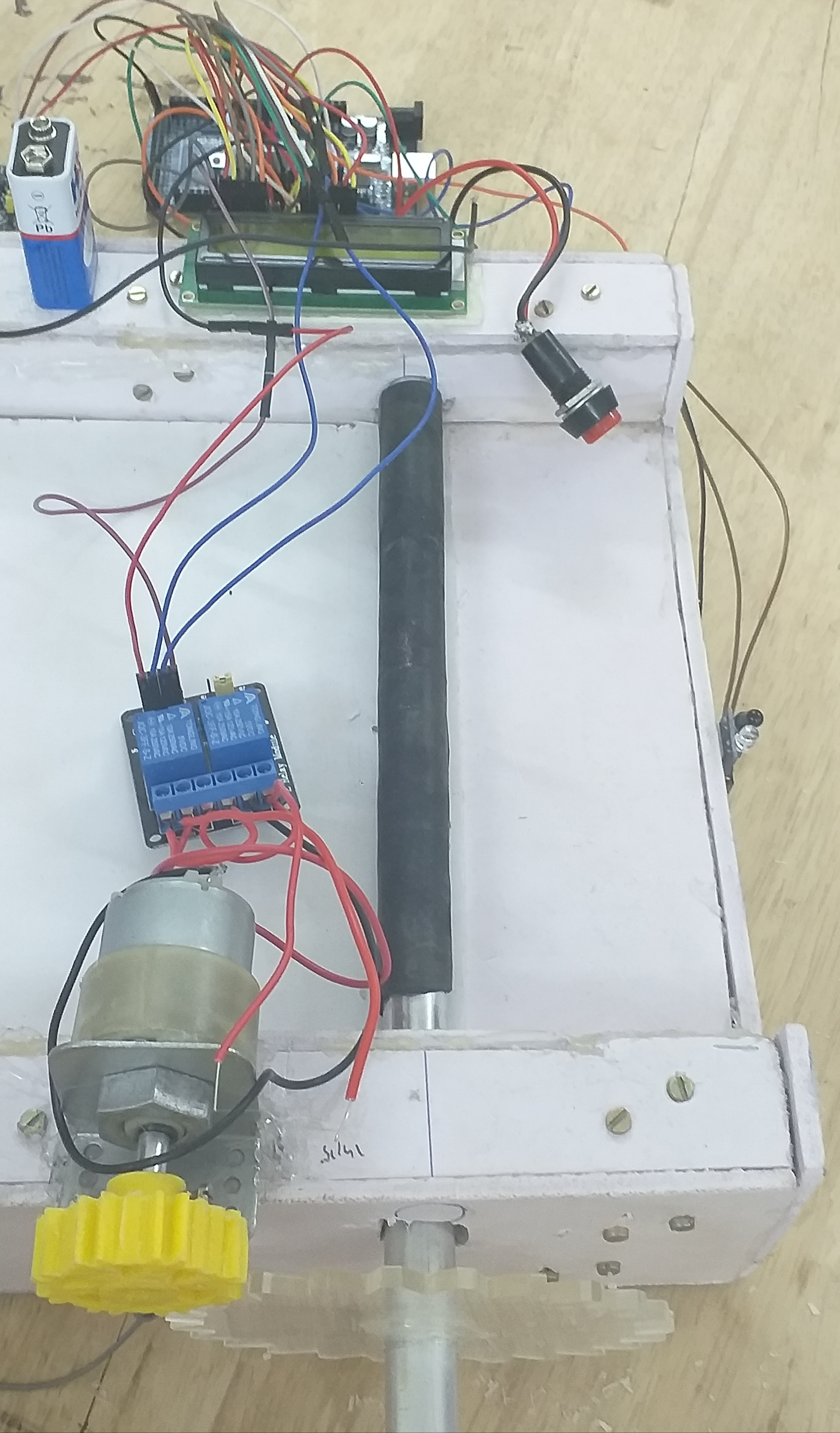

BUILT SUB - SYSTEM PHOTO

Fig. 1. Built Sub - system Photo
