Memory usage in TinScript is designed to be both controlled externally, and as static as possible, in several ways:

Table of Contents TinAlloc() Function Registration Hash Tables Memory Map Approximate Footprint

• All allocations within TinScript use the above macro, defined in integration.h.
  • By default, this is simply a wrapper to new()
  • The first argument to TinAlloc() is one of the types, defined in the AllocTypeTuple, allowing you to choose the source of the allocation (heap, mempool, SBA, whatever...)
  • Examples are:
    • ALLOC_TreeNode used when parsing - perhaps a temporary heap is suitable.
    • ALLOC_VarTable a variable dictionary - fixed size, so either a heap or mempool.
    • ALLOC_CodeBlock' a variable size, and not temporary, so it's own heap might be preferred.
    • ALLOC_ObjEntry object entry - likely to be many, so a memory pool?

Every registered function or method instantiates a registration object.

• These are templated, so the number and types of arguments mean there are varying sized objects.
• They're declared statically, so they are created before execution, and live in static memory forever.

Every CHashTable<> has two attributes to help control memory usage:

• They are all implemented as a fixed size array of linked lists.
  • The trade off being, more collisions, but the tables themselves never grow, regardless of how many items are added.
  • Constants are declared at the top of TinScript.h (e.g. kLocalVarTableSize) so a balance between collisions and fixed size arrays can be tuned for your solution.
• Second, All hash tables are tables of pointers only.
  • Every CHashTableEntry is a fixed size class containing a pointer, a hash value, and linked list members.
  • This means, you could if you choose, have one large pool of entries to be shared between all hash tables, regardless of type.

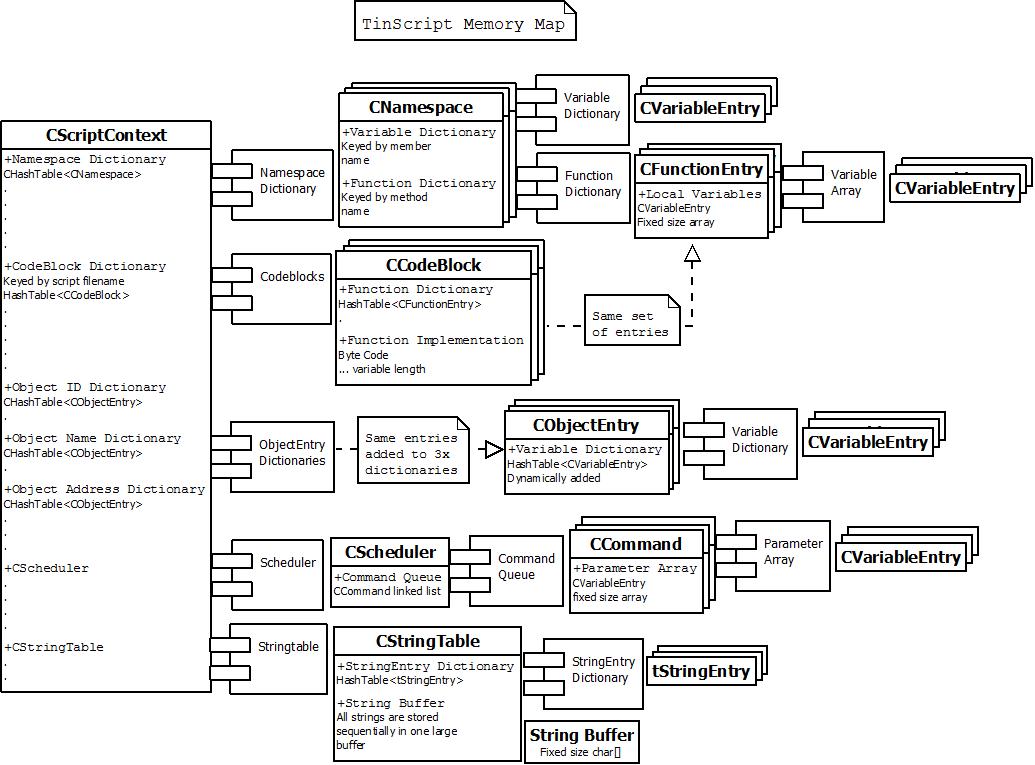

Below is a memory map of TinScript, beginning with the (self contained) CScriptContext.

• The only variable sized elements of TinScript are the code blocks, as the byte code generated from compiling a script cannot be pre-determined.
• Everything else is simply the number of a fixed size object... CVariableEntry, CFunctionEntry...
• As mentioned above, the dictionaries are fixed size (with best guess initial but tunable sizes).
• (Of course, this doesn't include the number of objects created or registered.)

The current sizes of the most used classes are:

• CScriptContext: ~65Kb (most of which is scratch buffers used for type conversions)
• CStringTable: 32Kb (the single buffer storing all strings)
• CObjectEntry: 36b
• CNamespace: 40b
• CVariableEntry: 300b (most of which is the char[256] name)
• CFunctionEntry: 372b (most of which is the char[256] name), with 8x

Some napkin math:

• If you used TinScript with, say, 200 namespaces, 10000 objects, and 2000 functions, 2000 dynamic variables, the approximate footprint would be somewhere in the neighborhood of 1.4Mb.
• From the FLTK Demo, the compiled (in memory) size of the 500 line script file "asteroids.ts" is approximately 14Kb.
