3.Conceptual design - K-Division-2021-2022-Even/Repo-15 GitHub Wiki
4.1 Establishing Functions
| S no | Functions from user perspective | Functions from designer perspective |
|---|---|---|
| 1 | Turn on/off | Provide switch to turn on/off the machine |
| 2 | Keep the paper in machine | Sense the paper |
| 3 | Apply glue to paper | Provide mechanism to apply glue to paper |
| 4 | Indication after process completion | Indicate after the process is completed |
| 5 | Machine should be in its original condition after process completion | Glue stick returns to initial position |
4.2 Function tree
4.3 Morphological chart
| S no | Subfunctions | Means 1 | Means 2 | Means 3 | Means 4 |
|---|---|---|---|---|---|

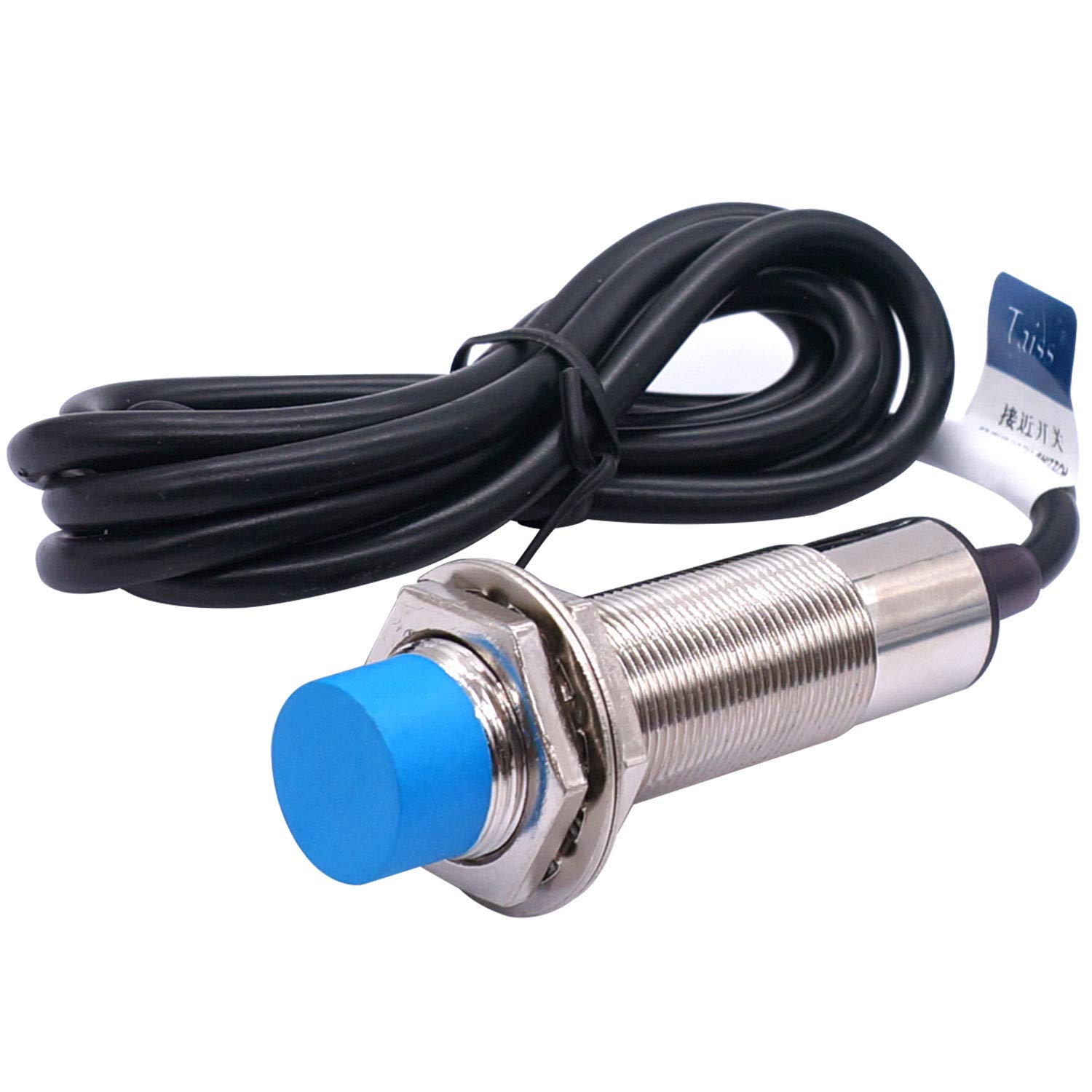

| 01 | Sense paper | IR sensor | Ultrasonic sensor | Proximity sensor | Optical sensor |
 |
 |
 |
 |
||
| 02 | Applying glue | Crank slider | CAM mechanism | Pulley and belts mechanism | Slider mechanism |
 |
 |
 |
 |
||

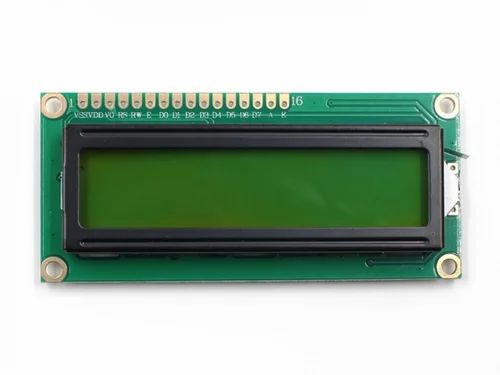

| 03 | Indicate machine on/off | LED indicator | Beep/buzzer | LCD Screen | |
 |
 |
 |
|||
| 04 | Indicate process completion | LED indicator | Beep/buzzer | LCD Screen | |
|
|
|
|||

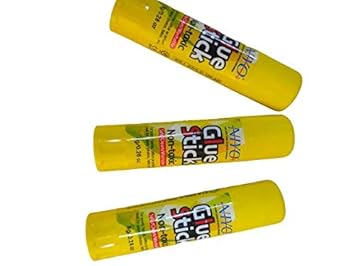

| 05 | Refilling glue | Replacing glue stick | Injecting glue directly | ||
 |
 |
||||
| 06 | Casing | Foam sheet | Wood | Acrylic sheet | |
 |
 |
 |
Concept Designs
Design 3:By Gokul
Design 2:By Shrinidhi
Design 1:By Parveen
Design 4:By Satwik
