Pugh chart
Objective |
Weights |
Portability |
5 |
Ease of use |
6 |
Good looking |
3 |
Cost |
4 |
Design Objective |
Weight |
Design 1 |
Design 2 |
Design 3 |
Design 4 |
Portability |
5 |
datum |
++ |
-- |
-- |
Ease of use |
6 |
datum |
- |
- |
+ |
Good looking |
3 |
datum |
+ |
++ |
+ |
Understandable |
9 |
datum |
+ |
+ |
+ |
Cost |
4 |
datum |
- |
- |
+ |
Score(+) |
|
0 |
22 |
15 |
18 |
Score(-) |
|
0 |
10 |
16 |
10 |
Total |
|
0 |
12 |
-1 |
8 |
5.1 Justifications for scores given
Design no |
Objective |
Score alloted |
Justification |
1 |
Portability |
0 |
Easier to carry as a box |
|
Ease of use |
0 |
Used by operating with the gears |
|
Good looking |
0 |
|
|
Cost |
0 |
Cost effective due to simple mechanism and prototype |
2 |
Portability |
2 |
Easy to carry as a globe from one place to another. |
|
Ease of use |
-1 |
Setting of time and date is a bit complicated using this mechanism |
|
Good looking |
1 |
Globe with the time displaying beautifies the prototype |
|
Understandable |
1 |
User understandable as the time is displayed clearly in the digital form |
|
Cost |
-1 |
Using the chain sprocket mechanism and the design makes it a bit costly |
3 |
Portability |
-2 |
Carrying the fragile large candles is difficult |
|
Ease of use |
-1 |
The rotating candles with gear mechanism makes it complicated to use |
|
Good looking |
2 |
The prototype with candles rotating and displaying time adds beauty |
|
Understandable |
1 |
The Time display is simple numeric which is understandable to the user |
|
Cost |
-1 |
The gear mechanism and candle sticks makes it costlier |
4 |
Portability |
-2 |
Large gears connected with each other make it difficult to carry |
|
Ease of use |
1 |
Easier to use the clock for setting of the time due to its analog gear mechanism |
|
Good looking |
1 |
Look good with big gears displaying the time and date |
|
Understandable |
1 |
Analog Clock makes it easier to understand the time and date |
|
Cost |
1 |
Simple analog indication with gears make it cost effective |
5.2 Selected Design
5.3 Product architecture
Subsystems identified are
Sl no. |
Subsystem |
1 |
Casing unit |
2 |
Time setting unit |
3 |
Displaying unit |
4 |
Interface unit |

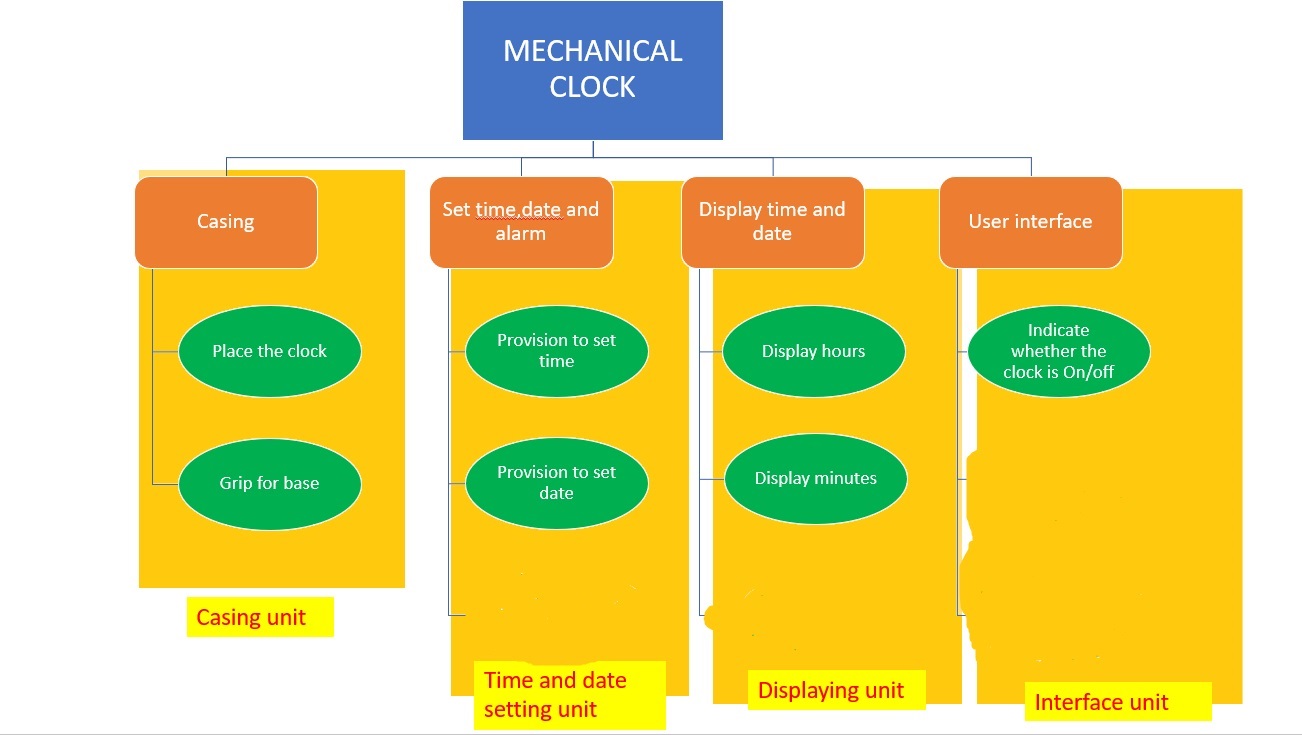

5.4 Function clustering
5.5 Interaction between subsystems
Casing unit |
Time and date setting unit |
Displaying unit |
Interface unit |
Spatial |
Yes |
No |
Yes |
Data |
No |
No |
No |
Material |
Yes |
Yes |
Yes |
Time and date setting unit |
Displaying unit |
Interface unit |
Casing unit |
Spatial |
Yes |
No |
Yes |
Data |
Yes |
Yes |
No |
Material |
Yes |
Yes |
No |
Displaying unit |
Interface unit |
Casing unit |
Time and date setting unit |
Spatial |
Yes |
Yes |
Yes |
Data |
Yes |
No |
Yes |
Material |
Yes |
No |
Yes |
Interface unit |
Casing unit |
Time and date setting unit |
Displaying unit |
Spatial |
Yes |
Yes |
Yes |
Data |
No |
Yes |
Yes |
Material |
Yes |
Yes |
Yes |
