2. Concept Generation and Product Architecture - J-division-2020-2021-even/Repo-13 GitHub Wiki
3.1 Establishing Functions
Table 1: List of all identified functions
Sl.No | User Perspective | Designer Perspective |
---|---|---|
1 | Read the input | Switch on the bot |
Request for input | ||
Read the input | ||
Confirm the input | ||
2 | Hold the pen | Hold the pen |
Make adjustments | ||
3 | Hold the paper | Sense the paper |
hold the paper | ||
Make adjustments | ||
4 | Drawing the pattern | Analyze the input |
Move accordingly | ||
Stop when instructed and resume | ||
5 | Alert after completion | Stop after completion |
Indicate after completion | ||
Switch off the bot |
3.2 Function tree
3.5 Establishing Means –Morphological Chart
Sr. No. | Functions | 1st mean | 2nd mean | 3rd mean | 4th mean |
---|---|---|---|---|---|
1 | Request for input | LED LIGHT![]() |

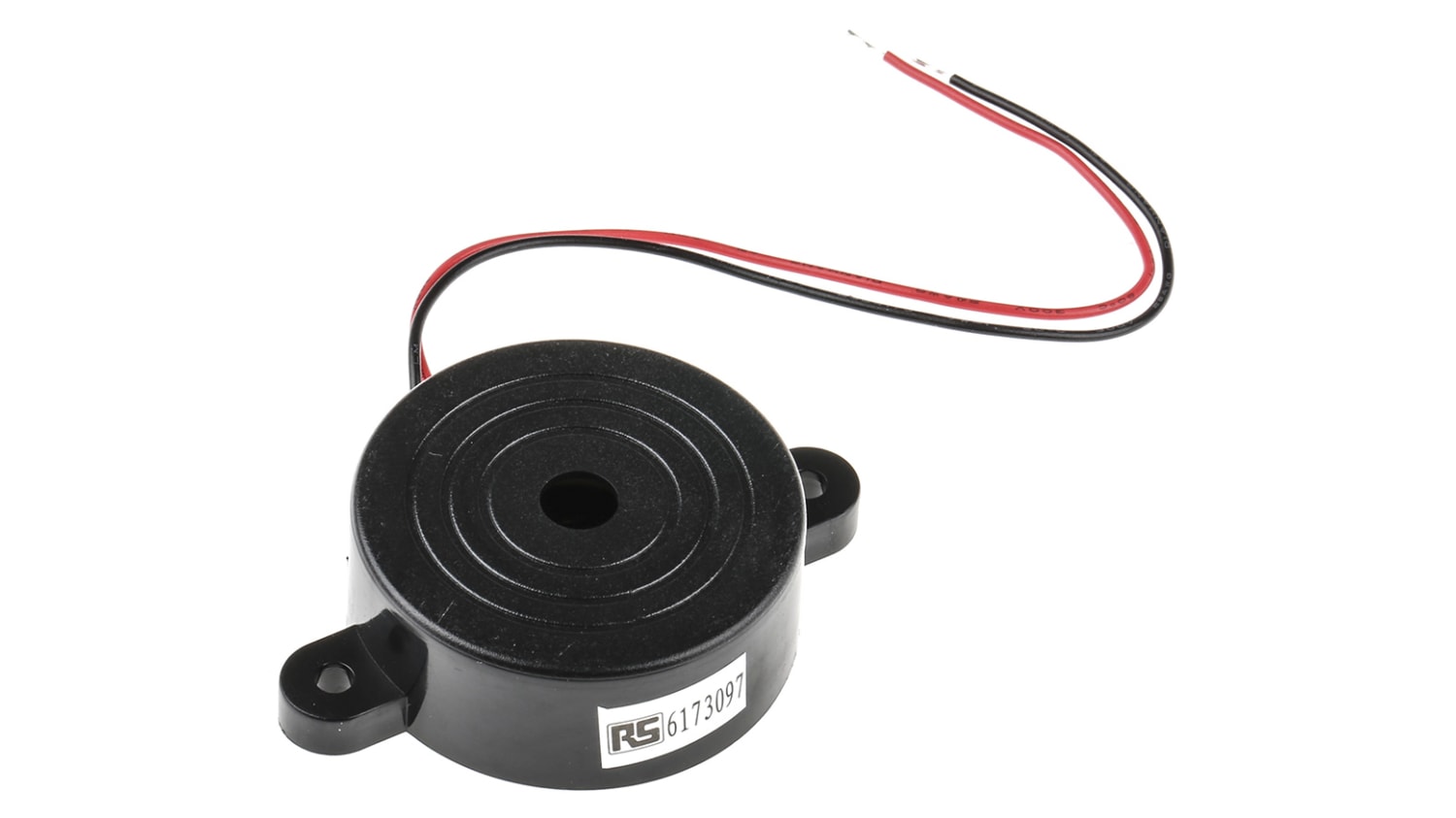

BUZZER |
SPEAKER |

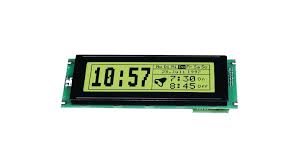

LCD DISPLAY |
2 | Read the input | BUTTONS![]() |
MOBILE APP![]() |
QR CODES![]() |
BLUETOOTH |
3 | Hold the paper | PAPER CLAMP![]() |
GRIPPER![]() |
PAPER CLIPS![]() |
THUMBSTACKS |
4 | Mechanism to draw | MECHANICAL ARM HOLDER![]() |
EDGE CLAMP![]() |
ROBOTIC ARM![]() |
Linkage System![]() |
5 | Drawing the pattern | SKETCH PENS![]() |
PENCILS |
MARKERS![]() |
CRAYONS |
6 | Motion of bot | DC MOTOR![]() |
STEPPER MOTOR![]() |
BLDC MOTOR |
SERVO MOTOR![]() |
7 | Alert after completion | LED LIGHT![]() |
BUZZER |
SPEAKER |
LCD DISPLAY |
