4. CONCEPT GENERATION - I-Division-2021-2022-Even/Repo-14 GitHub Wiki
4.1 Establishing Functions
Table 1:List of identified functions.
Sl. no. | Functions |
---|---|
1. | Store the keys and coins |
2. | Hold the keys |
3. | Lock/unlock the box |
4. | Indicate if the box is locked or unlocked |
5. | Provision to solve the puzzle. |
7. | Identify the right input |
8. | Indicate if the input is correct |

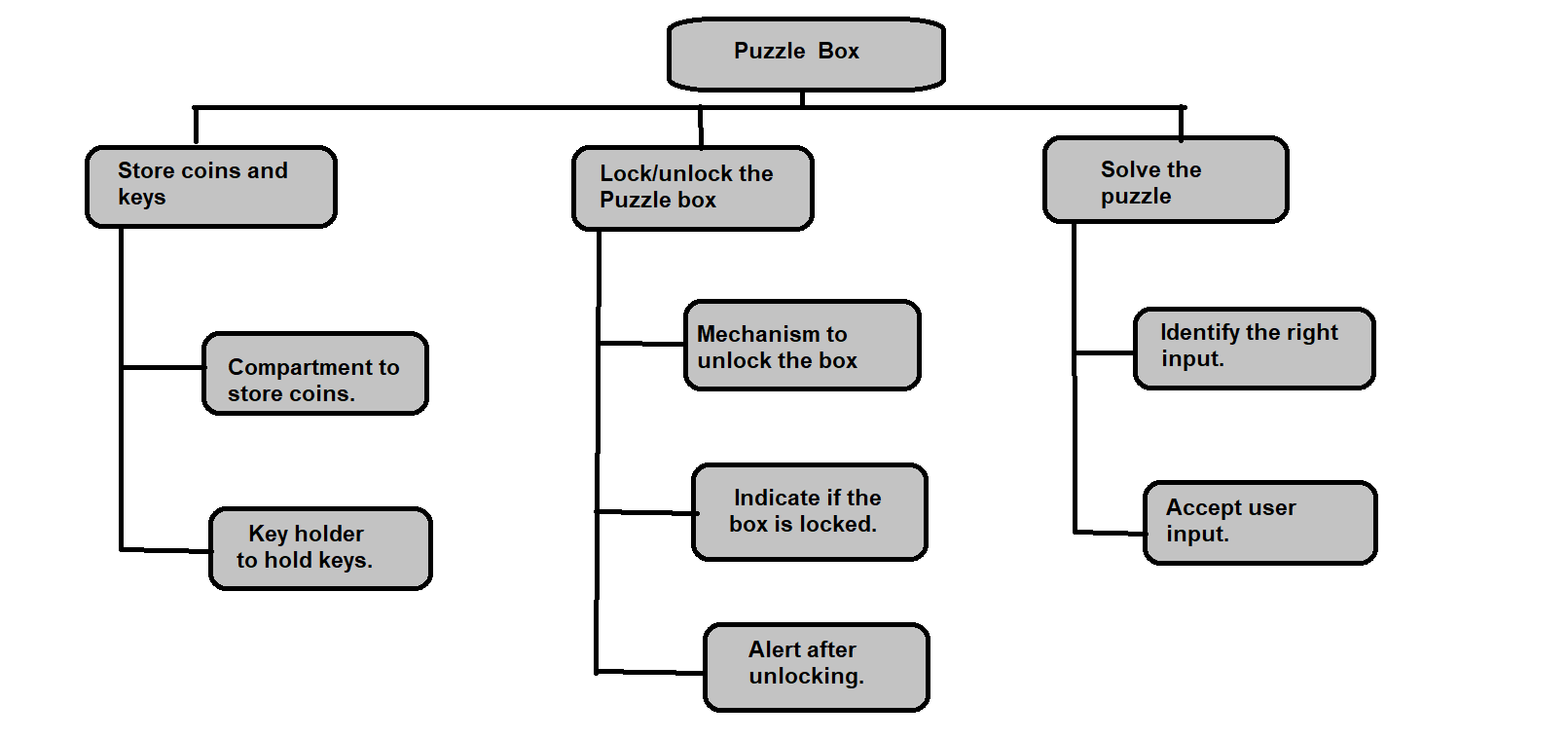

4.2 Function Tree

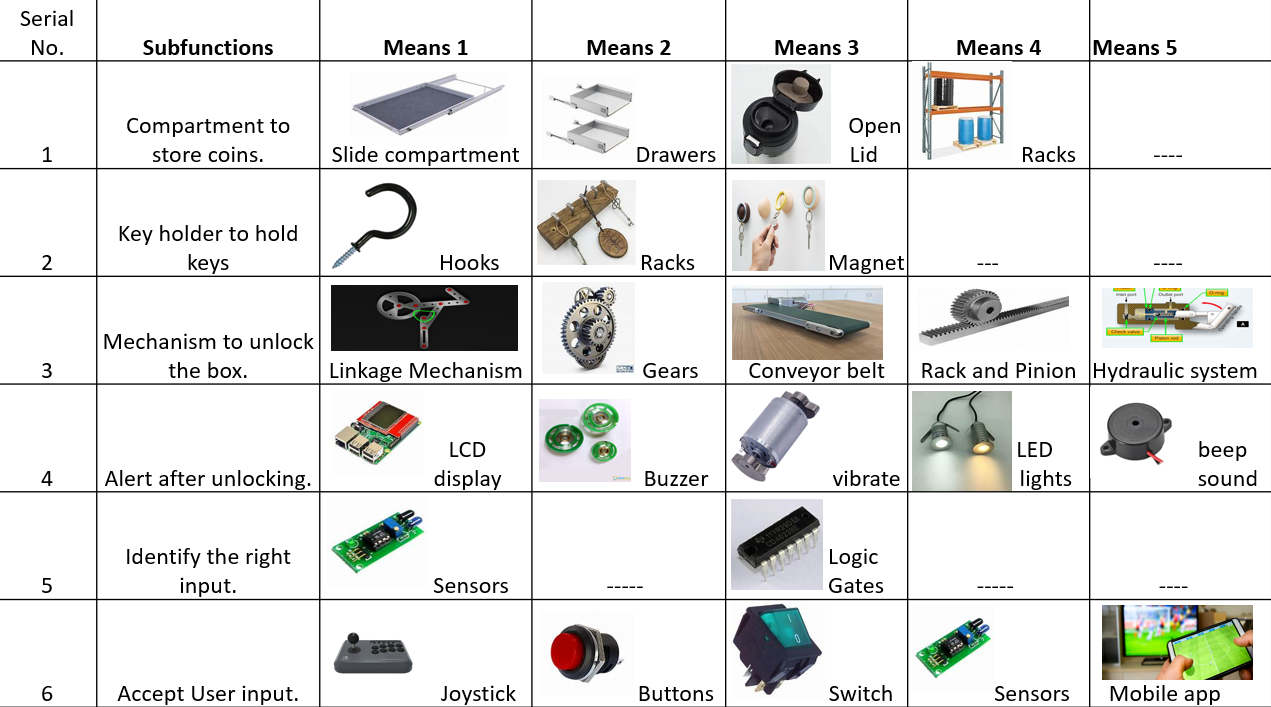

4.3 Morphological Chart
4.4 Generated Concepts

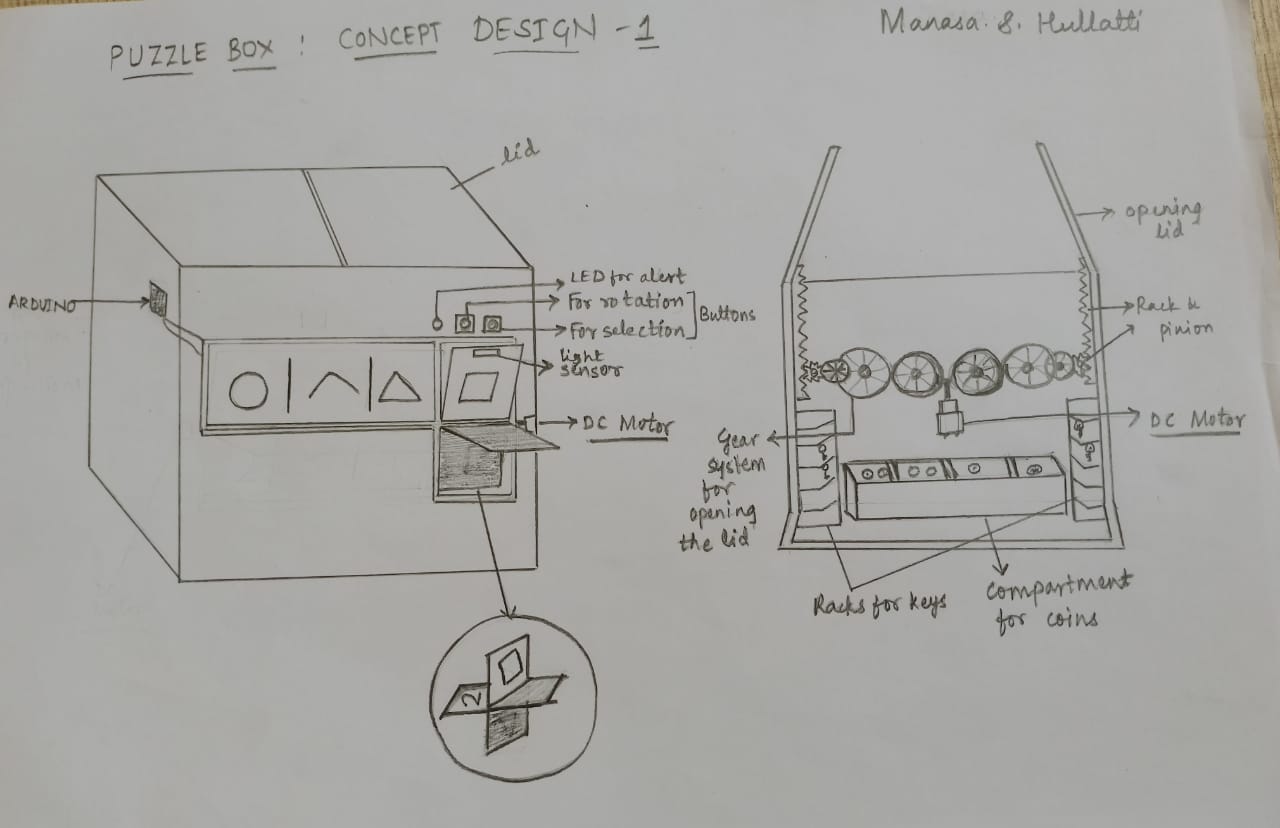

Design 1:
Design 2:
Design 3:
Design 4:

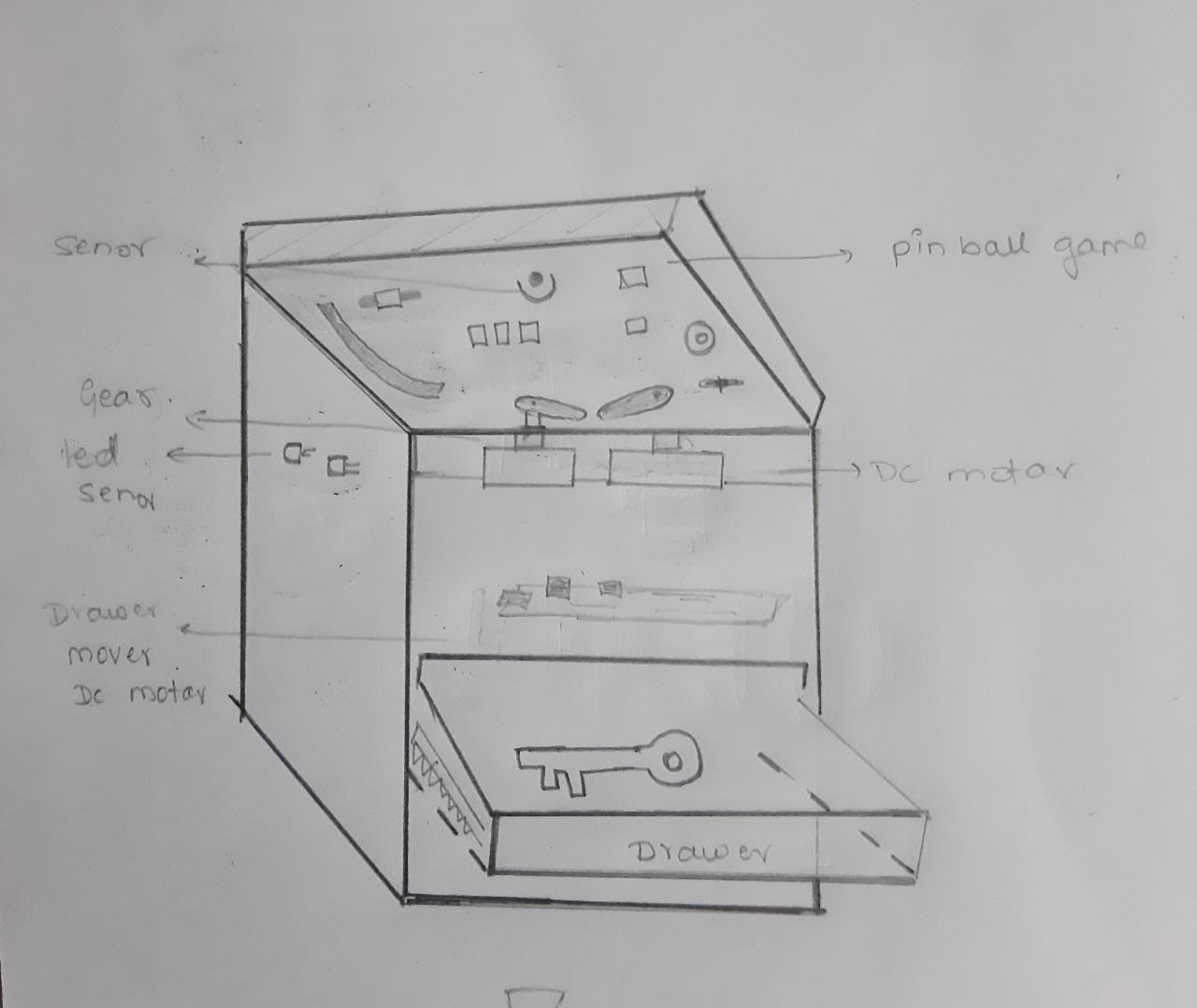

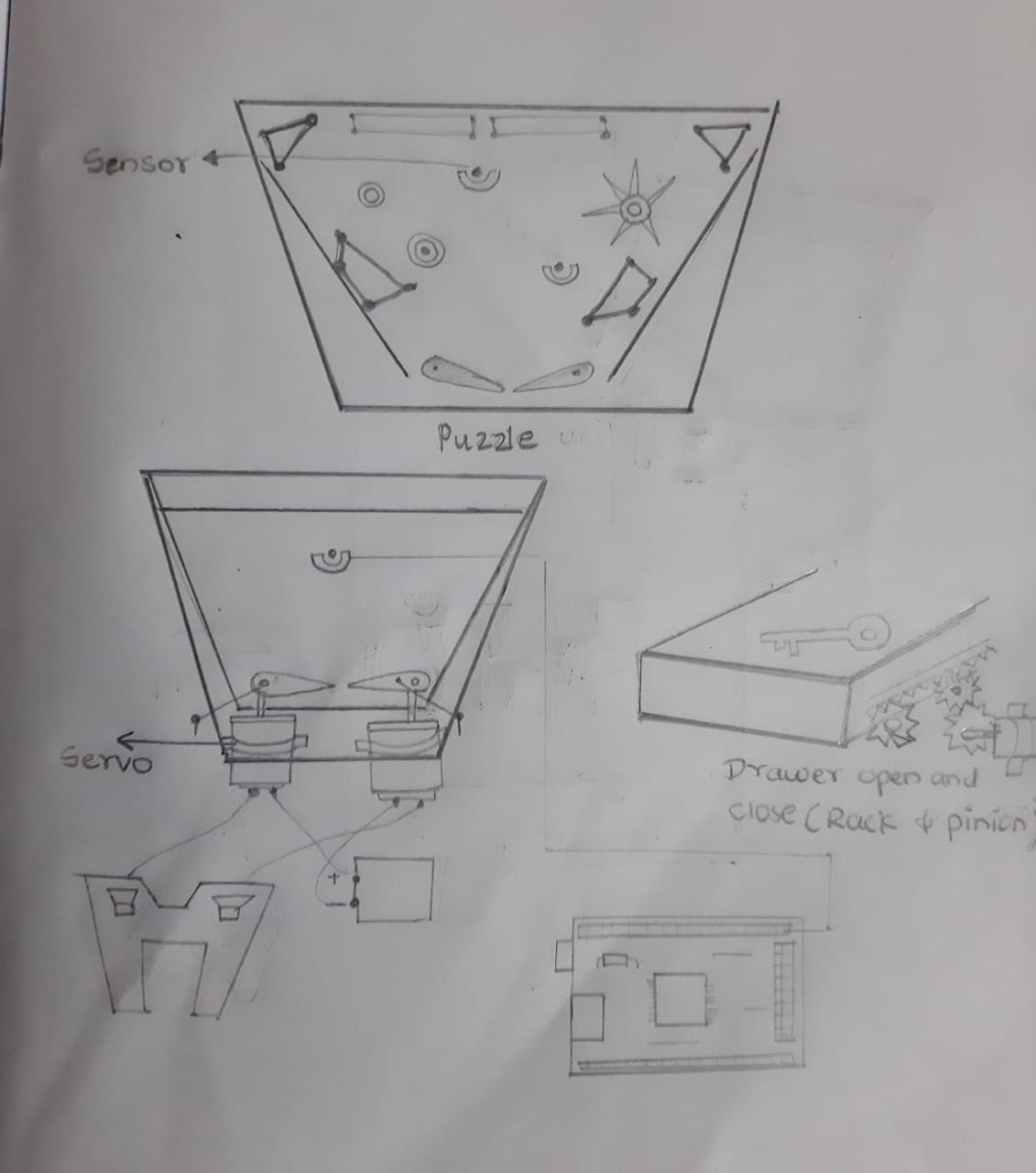

Pinball puzzle box
