Name: Puzzle box
Source : you tube
Components : Arduino UNO , Jumper wire, dc motor, sensor .
Mechanism :
-
Puzzle box opening mechanism can be done by using linkage mechanism.
-
It contains 2 number wheels set as shown.
-
The clockwise movement of wheel is done by by using DC Motor.
-
A specific number is the code of the puzzle box .
-
The user needs to set right number by moving a wheel in clockwise direction .
-
Correct number is detected by sensor.
-
If the answer is right ,the box unlocks.
Link for video:

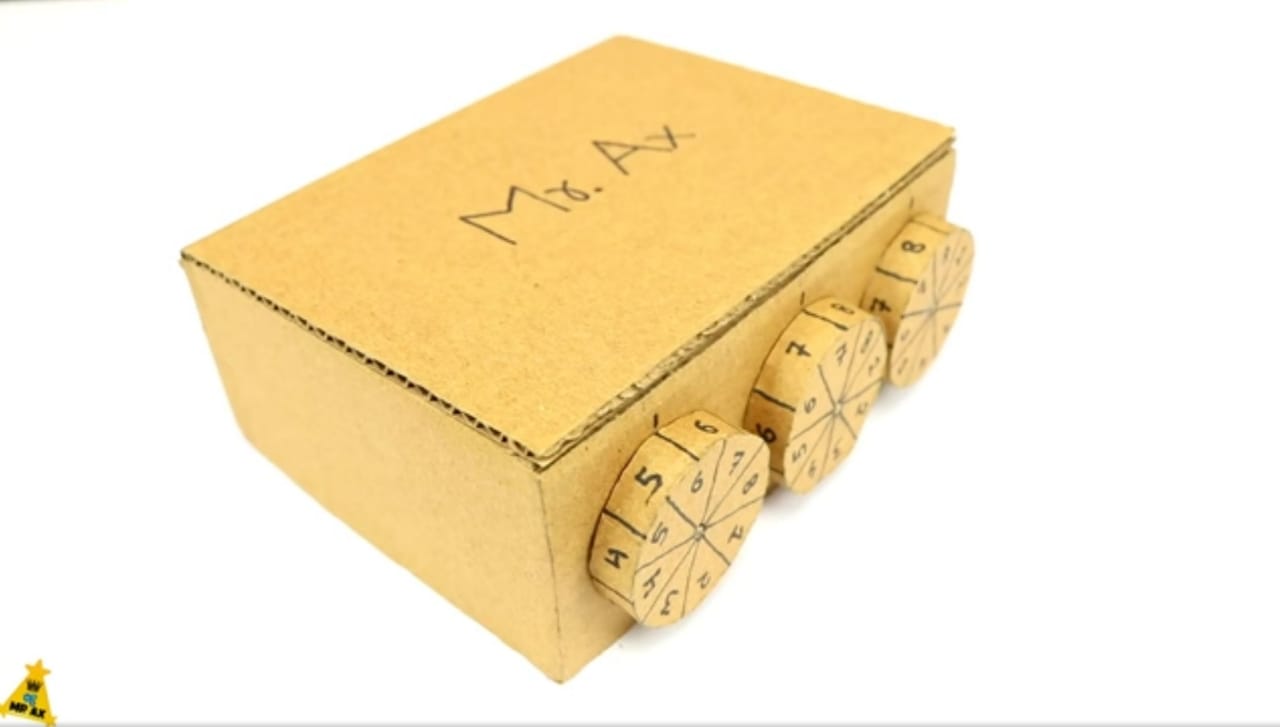

PHOTOS :
