Summary:

Doc Link

TIL(time to live)

  • How many pings it does before it stops
  • if it goes on forever it will mess with the network (length of our data + the headers itself)

Outcomes:

  • Refresh Wireshark skills and knowledge of protocol communication, packet data/ transfer.
  • Concepts behind packet spoofing
  • Concepts behind SYN-SCAN and SYN FLOOD

1. Install Wireshark and run Windows 10 VM

Exploring Packets

  • In the first packet, what is the source (browser, or web client) IP address?

  • What is the destination (web server) IP address?

  • What is the length? (value in length Column)?


  • Notice the frame length matches the value you just recorded


In the top Packet List section, right-click on the first packet. Choose the option for Conversation filter (TCP). There are actually 2 TCP conversations in this stream. We want to concentrate on the first one


Can you find the TCP 3-way handshake?

SYN, SYN-ACK, ACK

  • What packet numbers does it use?

Packets 1, 2 and 3


  • What packet does the HTTP protocol show up in?

Packet 4


This is the start of the http conversation

  • Packet 38 is the end of the http conversation (HTTP 200 OK)


  • Packets 40-43 are the TCP FIN sequence to end the connection


  • What Web Server application is in use here?

Apache


  • In the first packet, click on the Ethernet II header
  • What is the source MAC address?

00:00:01:00:00:00

  • What is the destination Mac address?

fe:ff:20:00:01:00



1d. Statistics: Now let’s explore some statistics of the conversation.


1e. Get a baseline of normal traffic.


IP address spoof:

  • Use Wireshark to capture a ping communication between your VM and your host

VM: 192.168.7.82 Host: 192.162.7.103

  • Open up Wireshark with Ethernet0

  • Ping Host with VM



  • Capture ping of VM to Host in Wireshark


Spoof

1. Go to the Nmap directory


if you want to get to CMD from a folder you can click on the nav bar and type in CMD



  1. Run nping -h

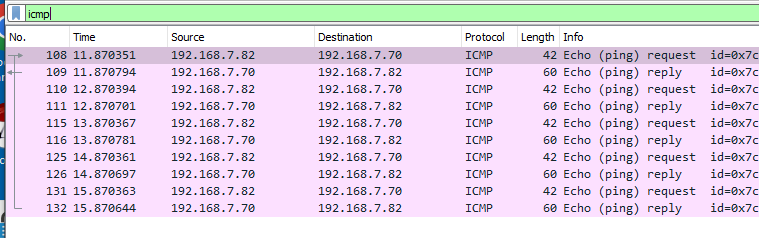

  1. Wireshark capture of nping of WinClone23 (192.168.7.70)

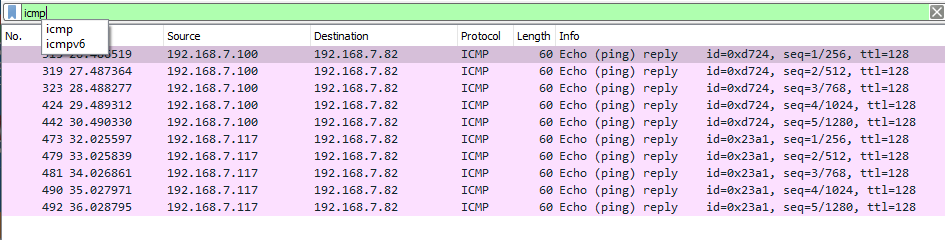

  1. Professor used my VM Ip address to initiate and I saw the icmp traffic of my professors IP(192.168.7.100) to my IP(192.168.7.82)


Now, you are going to use another live “spoofed” station’s IP address as the source IP in a ping to your neighbor. Your neighbor will be running Wireshark to capture the ping requests and responses.

  1. Impersonating James(192.168.7.131) and sending it to Mike (192.168.7.75)


(there are 5 packets lost because the attacker never receives the ping replies)

James spoofing Mikes IP, and using me as a target:

image nping

SYN SCAN/Flood

  1. Open Zenmap

(can get you in a lot of trouble legally)


  1. Type in the custom Zenmap command

Me being targeted by Mike


Links used: https://www.hackingarticles.in/understanding-nmap-scan-wireshark/
