SAM Hierarchy structure

Down below the generic approach and structure can be seen.

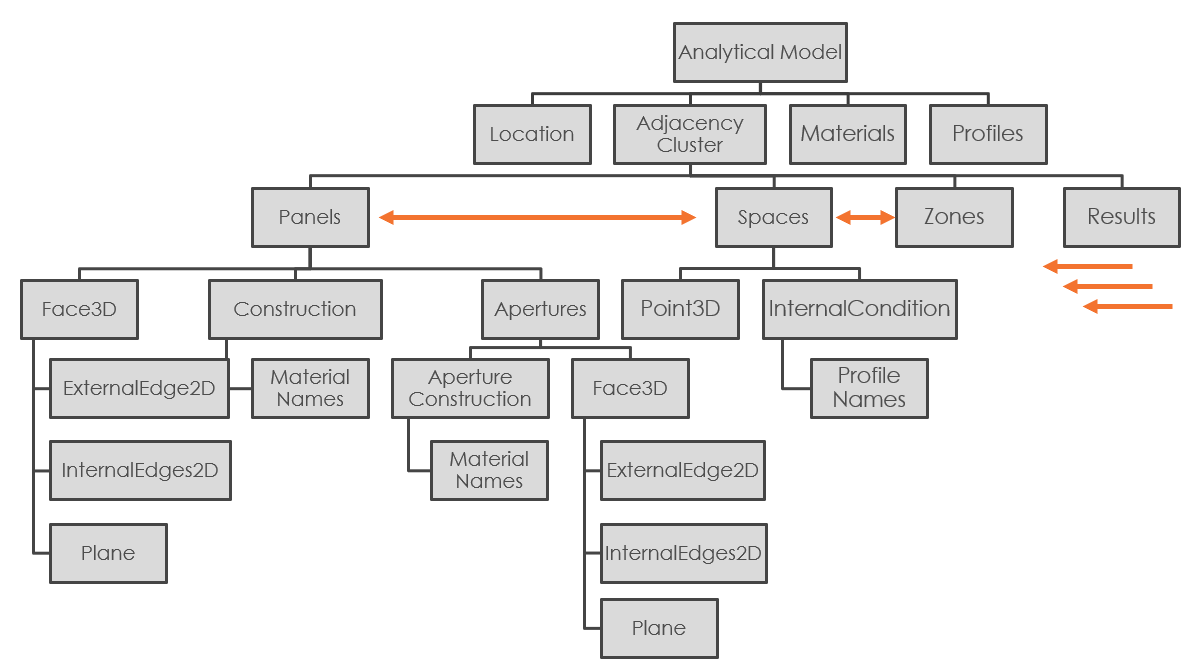

Structure

Analytical Model -> Adjacency Cluster -> Spaces,Panels -> Geometry3D, 2D

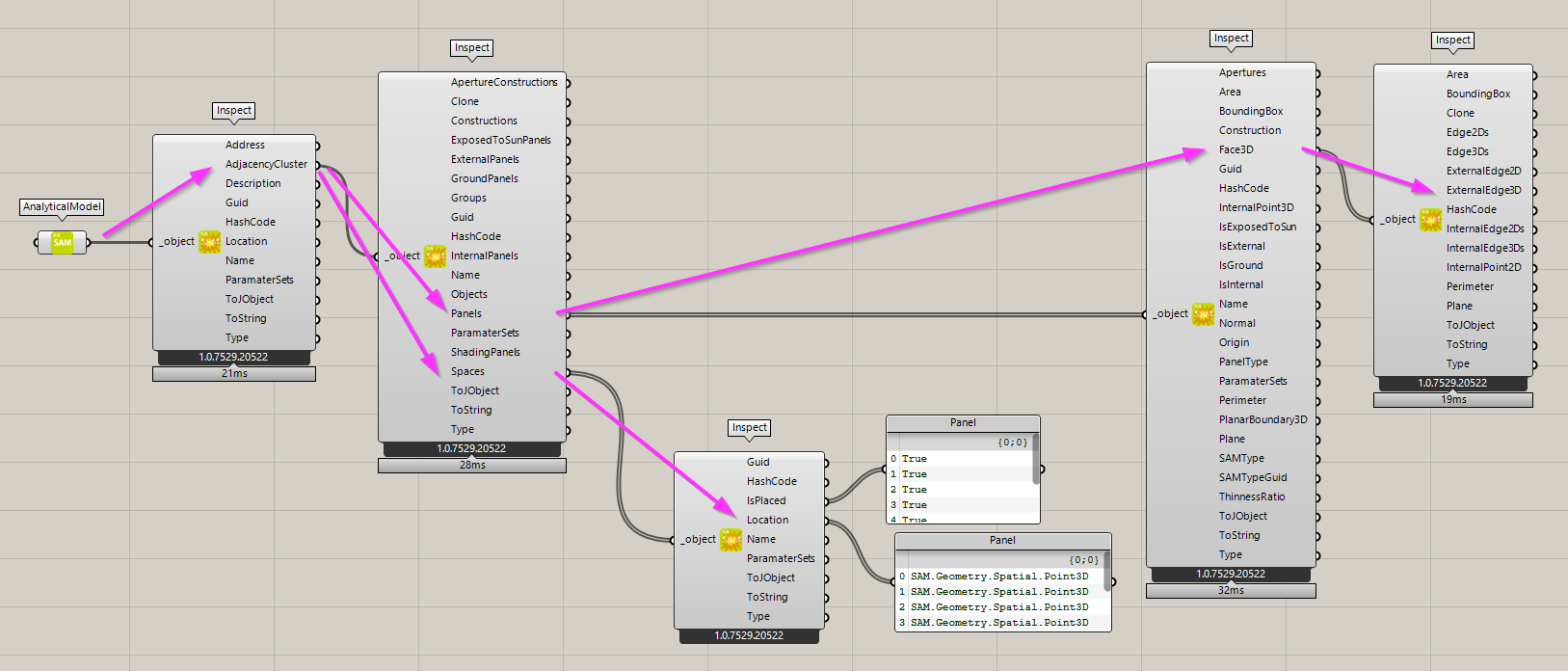

Use the Inspect component to query any object

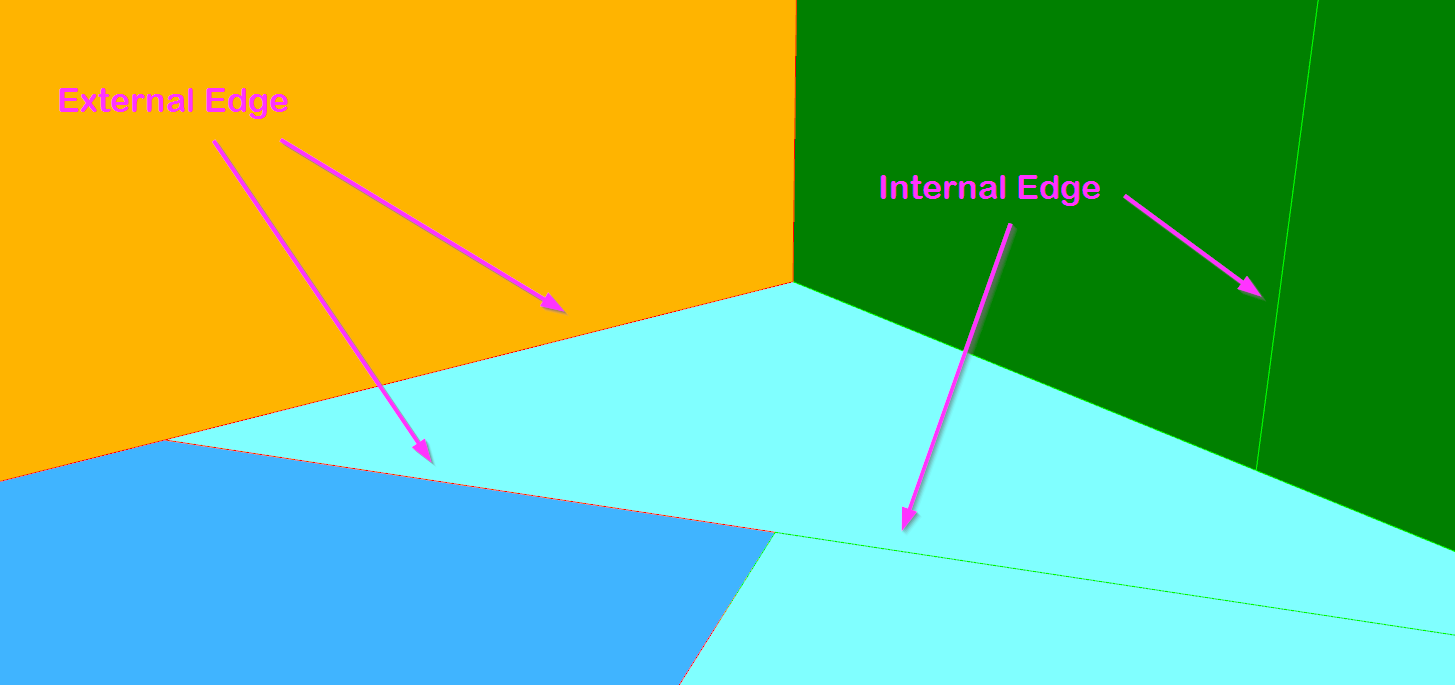

Colours: Edges

PanelType:
PanelType Colors

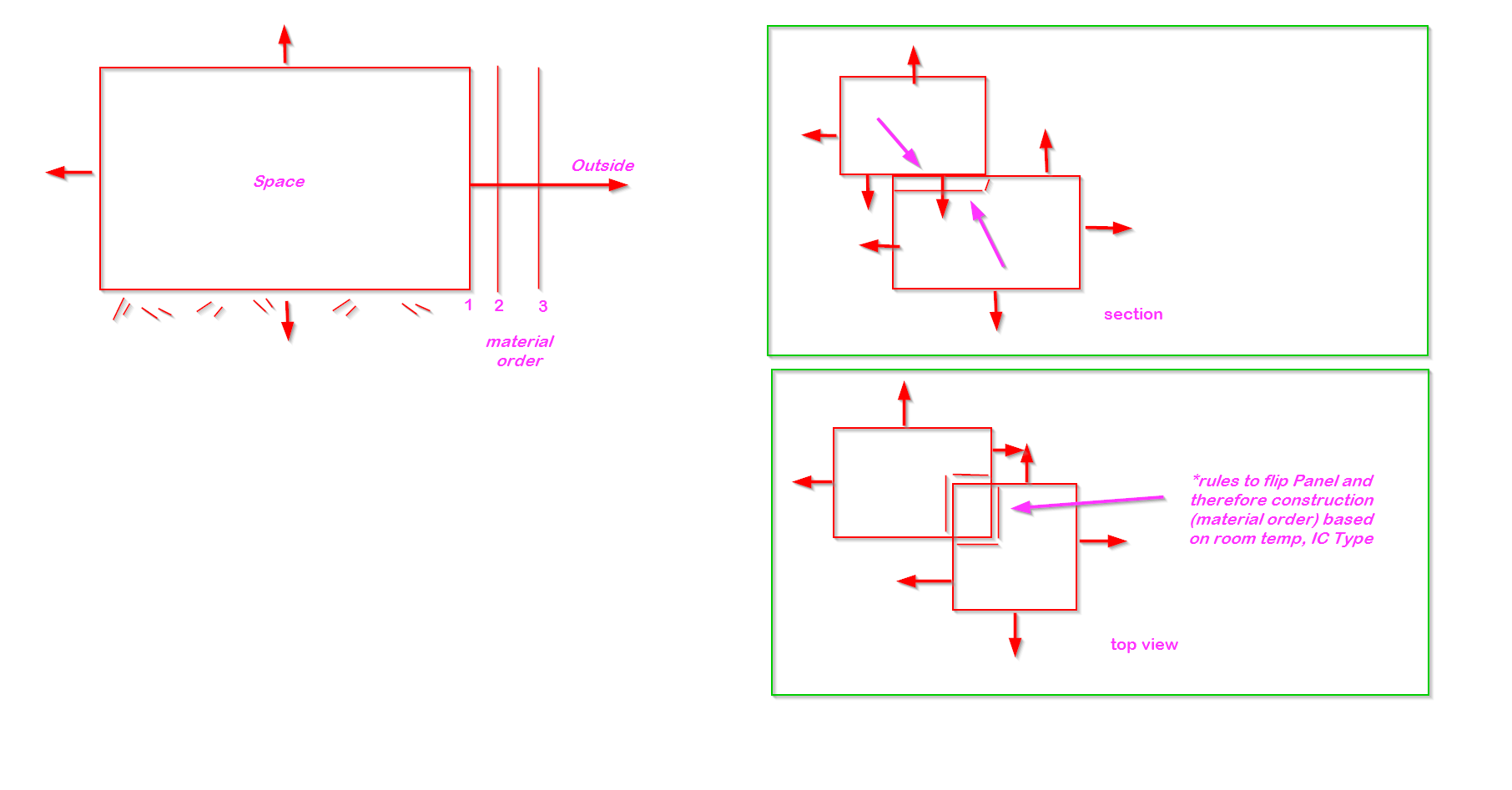

In Construction Material we can build in layers from the inside to the outside. Material Rule

So, we can build the internal floors from the ceiling void side.

Panel Tilt Roof = 0deg, Wall = 90deg, Floor = 180deg

Panel Azimuth North= 0deg, East = 90deg, South= 180deg, West= 270deg
