Rune production and current limits · Minecraft 1.21.1

Version: released AoA 3.7.16.1 for Minecraft 1.21.1. This guide separates two verified input recipes from registered station behavior whose survival acquisition still needs checking in the actual pack. It does not import the older Runation progression into the modern game.

Item and block browser · Recipe browser · Historical 1.16.5 handbook

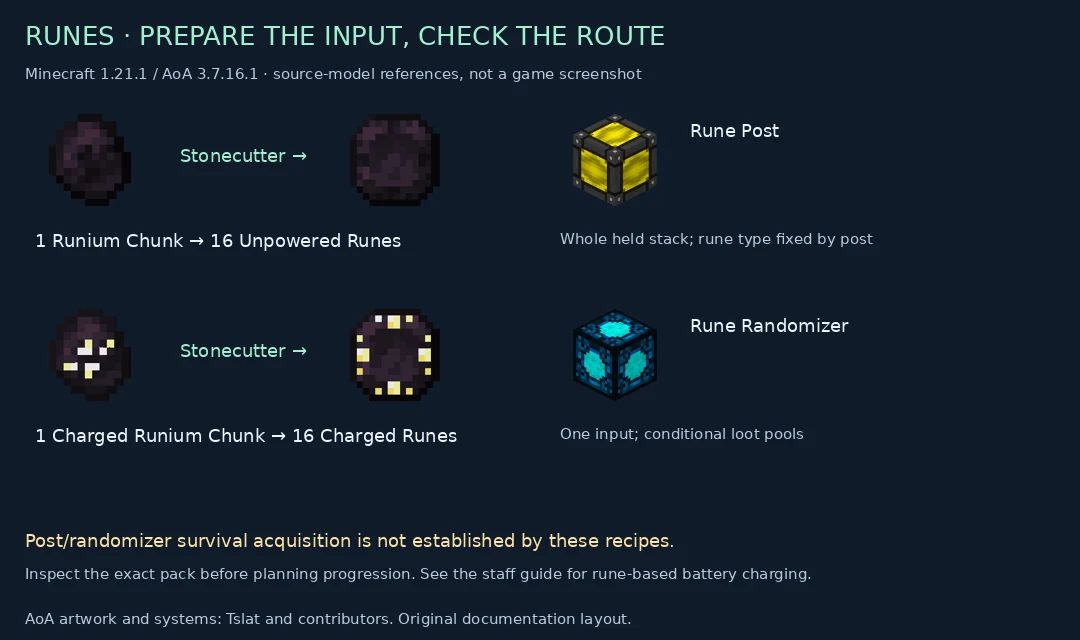

1. Prepare the right input

Stonecutter input	Output	Post generation factor
1 Runium Chunk	16 Unpowered Runes	1 rune per submitted input
1 Charged Runium Chunk	16 Charged Runes	2 runes per submitted input

These are two released stonecutting recipes. A crafting-grid arrangement from another release is not interchangeable. Charged Runes also appear in Carved Rune of Power recipes; keep portal-building stock separate from experimentation.

No direct crafting recipe for a Rune Post or Rune Randomizer was found in this release's recipe directory. Their registration, textures and block-drop tables alone do not establish that a player can naturally obtain them. Check your exact pack's world generation, custom recipes or administrative provision before committing resources. This page does not certify structure placement or a complete survival acquisition route.

For a battery-enabled staff, runes are ingredients in its version-specific charging recipe. Follow Staff batteries and charging to match the required rune types and costs. These stations do not themselves attach a battery or grant the old Runation skill.

2. If your pack provides a Rune Post

1. Pick the post matching the rune you want. Fourteen registered post mappings are listed below.
2. Leave the block directly above it non-motion-blocking. A motion-blocking block triggers the blocked-shrine feedback and prevents the inspected conversion path.
3. Split off only the input you want to spend. Using a RuneSource submits the entire held stack, not one item. Survival consumes that whole stack immediately; Creative retains it.
4. Wait for the scheduled conversion. Its internal countdown budget is 20 × (3 + floor(output count / 10)) ticks, processed in five-tick steps after an initial scheduled call. This is not a guaranteed wall-clock duration or proof of persistence across unload/restart.
5. Collect the spawned rune item entities above the post. The code sets no pickup delay and no gravity. Setting the thrower does not by itself prove exclusive owner-only pickup.

A stack of 16 Unpowered Runes targets 16 output runes; 16 Charged Runes targets 32. Post type determines which rune, rather than a weighted random pool.

Batch-size warning: the final stack is calculated from the total

The inspected released task constructs each output stack with min(64, count), while its loop continues until the accumulated spawned count reaches the target. It does not use the remaining count for the final stack.

Submitted inputs	Intended target	Stack quantities constructed by the inspected loop
32 Charged Runes	64	64
33 Charged Runes	66	64 + 64
40 Charged Runes	80	64 + 64
63 Charged Runes	126	64 + 64
64 Charged Runes	128	64 + 64

This is an exact bytecode-supported arithmetic finding, not a live-game reproduction or a guarantee that all entities are accepted into the world. Until the target build is tested, use small batches whose target is at most 64. Restoration work should use the remaining count for the final stack and test conservation at 64, 66, 80, 126 and 128 outputs.

3. Understand the Rune Randomizer before spending the last input

Unlike a post, the inspected Randomizer consumes one Unpowered or Charged Rune per interaction outside Creative, then asks the misc/rune_randomizer loot table for items.

• Charged-input pool: 14 equally weighted rune types.
• Unpowered-input pool: 8 equally weighted rune types.
• Each eligible pool has one base roll; its selected entry produces 1–3 of that rune.
• Both pools have luck-dependent bonus-roll fields. At zero luck this leaves the single base roll. Do not interpret the equal entry weights as an unconditional chance per click when pool conditions may fail.

Important: the pool conditions inspect the player's equipped/held items after the submitted stack was reduced. They are not given an immutable copy of the submitted input. No equipment slot is specified, so the condition examines all equipment slots, including both hands.

Independent state examples, matching that ordering:

Before clicking	Equipped state after consumption	Eligible pool conditions
Last Unpowered Rune, no other rune equipped	Neither type remains	Neither pool
2 Unpowered Runes, no other rune equipped	1 Unpowered Rune remains	Unpowered
Last Charged Rune, no other rune equipped	Neither type remains	Neither pool
Last Unpowered Rune, Charged Rune in other hand	Charged Rune remains	Charged
2 Charged Runes, Unpowered Rune in other hand	Both types remain	Both

These are source/bytecode and independent state-model findings, not an in-game loot test. They explain why a simple “Charged always yields one of fourteen” claim would be misleading. Avoid testing with your last valuable input or a different rune source in your other hand. A corrected implementation should choose the intended pool from the submitted input snapshot, then consume it consistently.

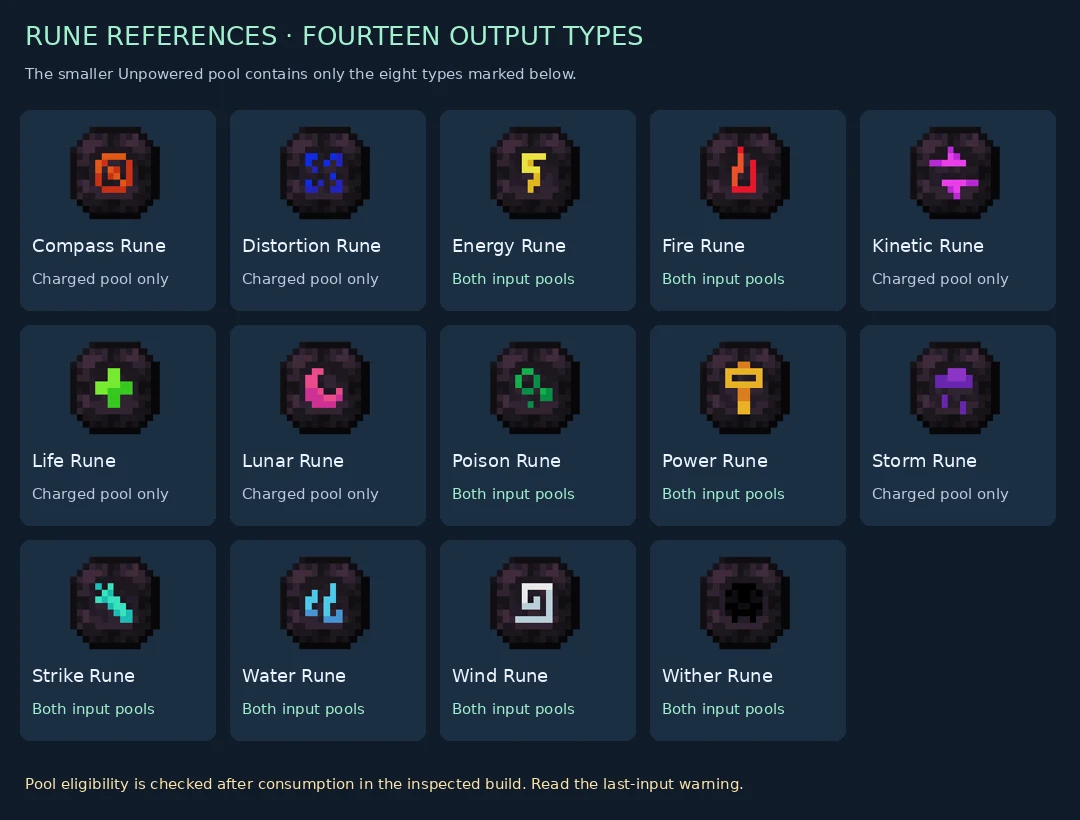

4. Recognize the output types

Rune / matching post	Unpowered pool	Charged pool
Compass	—	Yes
Distortion	—	Yes
Energy	Yes	Yes
Fire	Yes	Yes
Kinetic	—	Yes
Life	—	Yes
Lunar	—	Yes
Poison	Yes	Yes
Power	Yes	Yes
Storm	—	Yes
Strike	Yes	Yes
Water	Yes	Yes
Wind	Yes	Yes
Wither	Yes	Yes

Troubleshooting

• Nothing happens at a post: verify the input is Unpowered/Charged, clear the block above it, and confirm your pack actually exposes the inspected station implementation.
• Your full stack disappeared: whole-stack submission is the inspected post behavior. A Randomizer is a different one-input interaction.
• No Randomizer reward from the last item: check the post-consumption equipment condition described above; do not keep feeding valuable items to diagnose it.
• A new world has no obvious post recipe or structure: acquisition is unresolved here. A resource browser entry is not a survival guarantee.
• Runes do not charge your modern staff: check battery attachment, stored-cast data, capacity and the exact rune-cost set in the staff charging guide.

Evidence and restoration acceptance

Recipes, selected released method bytes, source hashes and independent cases · Original illustration provenance · Source findings and repair targets.

Acceptance still needs actual target-build tests for post acquisition, blocked space, whole-stack consumption, Creative behavior, final-stack conservation, item-spawn rejection, both hands, final Randomizer input, luck, player departure, chunk unload and save/reload. No private Enderloom patch, performance improvement or runtime parity is claimed.

AoA models, textures and systems are by Tslat and contributors. The diagrams and analysis are original documentation work built from pinned official resources; they are not gameplay screenshots.
