Nine NPC texture-atlas mismatches in AoA 3.7.1

Version: Minecraft 1.20.1, AoA3-1.20.1-3.7.1-all.jar. These are static resource/bytecode findings and proposed restoration references. The game has not been patched or run to certify a fix.

What the released code does

The released AoAEntityRendering.humanoidLayerDefinition supplier creates a vanilla humanoid mesh with CubeDeformation.NONE, zero vertical offset and a 64×64 texture atlas. Nine inspected NPC registrations use that supplier, HumanoidModel::new, and a 64×32 PNG.

Texture dimensions need not always equal the model's atlas dimensions, but here the humanoid mesh's UVs and the old 64×32 NPC layout visibly disagree. The static reconstruction reproduces the misplaced texture bands. Changing the declared atlas height to 32, without changing the seven-part geometry or PNG, yields the intended-looking layout below.

The neutral humanoid mesh was extracted from the official Minecraft 1.20.1 HumanoidModel.createMesh factory using a restricted symbolic reader. Unsupported operations stop extraction. This does not execute game code. Mojang's official mappings identify the class and method; class hashes, method calls and the released AoA supplier bytecode are retained in the evidence.

Compare the released mapping with the proposed correction

The left image keeps the released 64×64 atlas. The right changes only atlas height to 32. Both use the exact released NPC texture and identical neutral geometry. Runtime animation, equipment and lighting are outside this comparison.

NPC Released atlas configuration Proposed 64×32 atlas reference

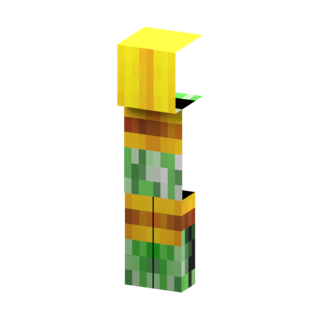

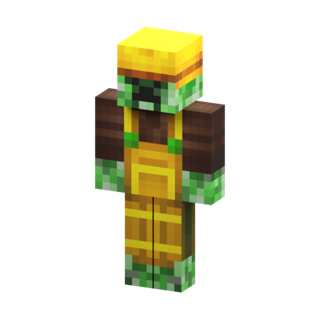

Creep Banker Creep Banker: released atlas Creep Banker: proposed atlas

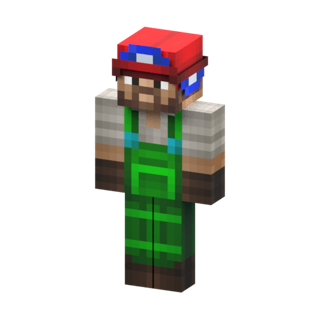

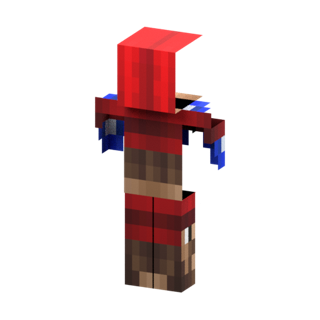

Crystal Trader Crystal Trader: released atlas Crystal Trader: proposed atlas

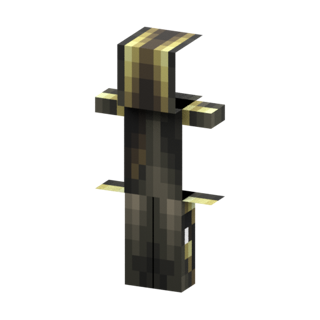

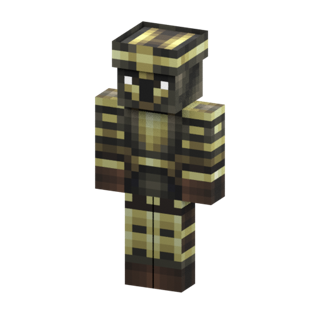

Dungeon Keeper Dungeon Keeper: released atlas Dungeon Keeper: proposed atlas

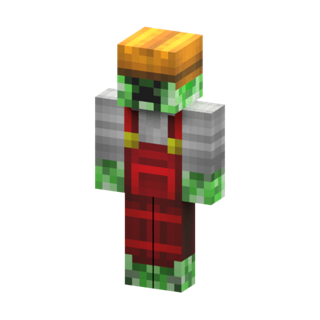

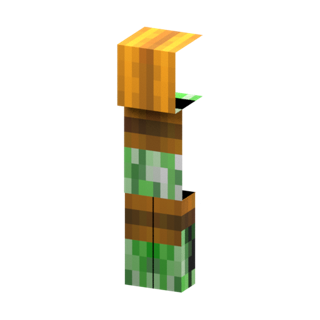

Explosives Expert Explosives Expert: released atlas Explosives Expert: proposed atlas

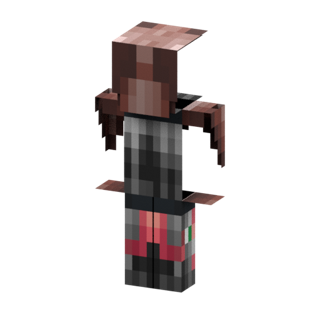

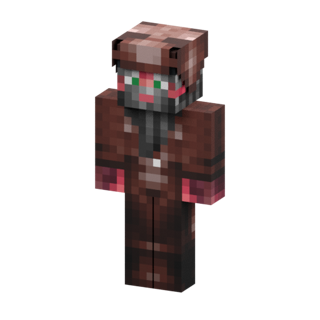

Metalloid Metalloid: released atlas Metalloid: proposed atlas

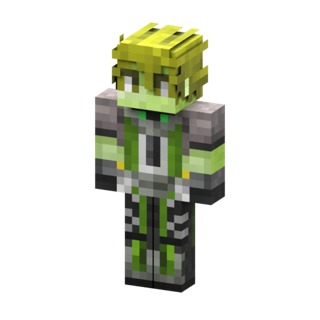

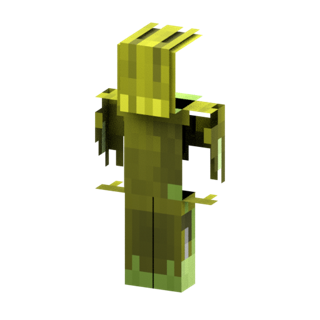

Naturalist Naturalist: released atlas Naturalist: proposed atlas

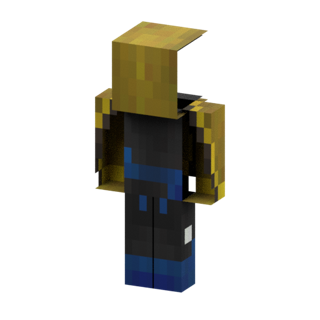

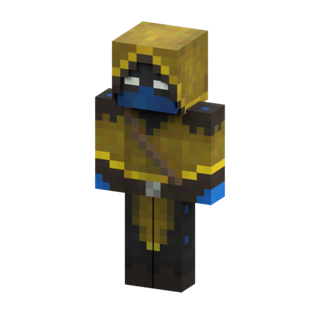

Shyre Archer Shyre Archer: released atlas Shyre Archer: proposed atlas

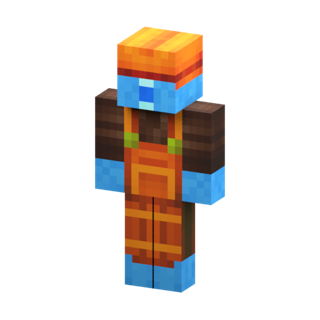

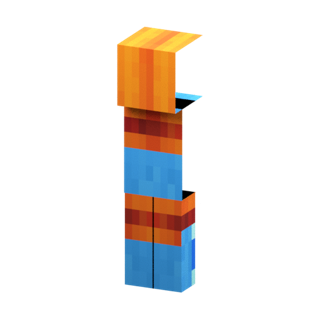

Shyre Banker Shyre Banker: released atlas Shyre Banker: proposed atlas

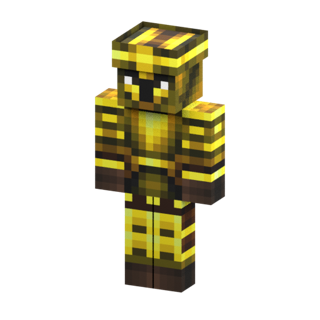

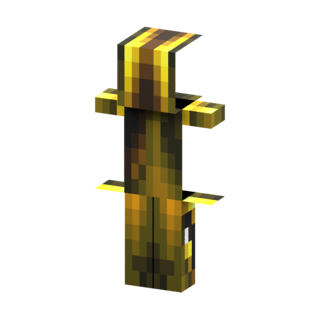

Token Collector Token Collector: released atlas Token Collector: proposed atlas

Restoration checklist

  • Confirm the target Enderloom build still uses this exact supplier and texture layout.
  • Use a separate 64×32 layer definition for these legacy NPC textures, or deliberately convert each texture to a correct 64×64 layout. Do not change unrelated NPCs globally.
  • Verify head/hat, torso, mirrored arms and mirrored legs at front, back and side views.
  • Check idle/walk animations, equipment layers, baby/adult scaling where supported, resource-pack overrides and hitboxes in game.
  • Add a targeted regression fixture for each of the nine registrations and preserve the original texture hashes.
  • Treat the comparison image as a proposed fix until live tests pass.
