Foliage Overlays and Default Tints

Precasian Grass and Stranglewood use layered faces. Their colored grass/vines are not separate geometry floating over the block: they are cutout textures on matching surfaces, with tint callbacks. A strict equal-depth documentation renderer can accidentally hide those layers.

What these references show

  • Ten released model resources across 1.20.1 and 1.21.1, each in two presentations: untinted source and vanilla default palette.
  • Six searchable inventory cards and their atlas crops now show the corrected default-palette reference. Horizontal helper models are documented separately, without inventing inventory entries.
  • The AoA source delegates Precasian Grass coloring to vanilla grass, and Stranglewood/vine coloring to vanilla Acacia Leaves. The decoded default foliage RGB is #48b518 in both releases.
  • Grass uses the official colormap at temperature 0.5, downfall 1.0, pixel (127,127): RGB (124,189,107), #7cbd6b. The official class methods and colormap hashes are retained.
  • Only faces with a declared tint index are colored. Untinted wood and soil pixels keep their original texture colors. Matching coplanar faces are composited in declared model order.

1.20.1

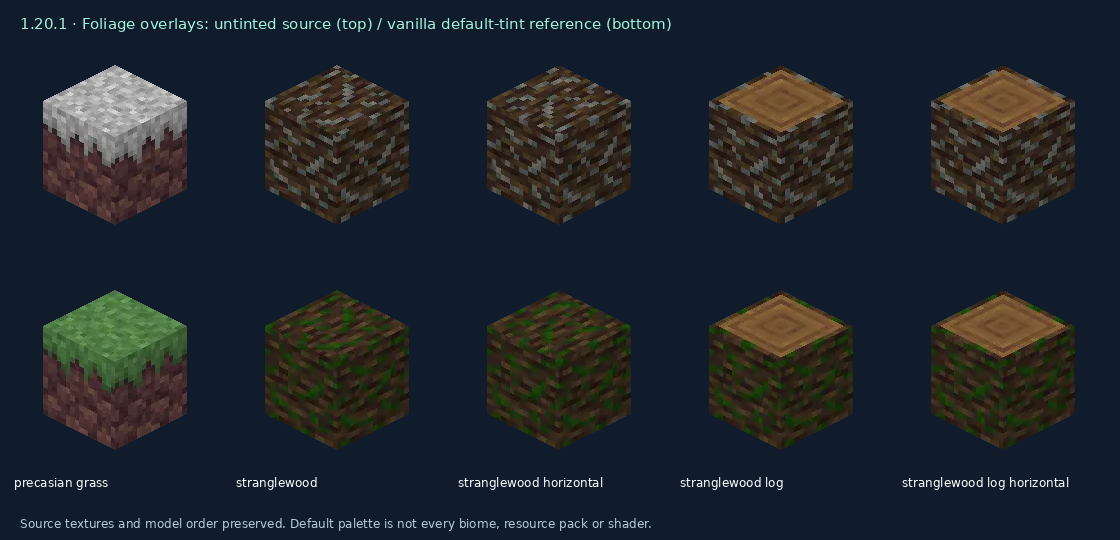

Untinted and default-tinted foliage references for 1.20.1

1.21.1

Untinted and default-tinted foliage references for 1.21.1

Limits that matter

These are documentation renders, not in-game screenshots. The chosen palette is a defined default reference, not a promise that every biome has those colors. Runtime biome blending, lighting, resource-pack colormaps and shaders can change appearance. The horizontal model names do not imply that this neutral GUI camera reproduces every blockstate rotation.

The source registration and official default-color methods are inspected separately; this is not a proof of complete released callback equivalence or a live render test. Binary-alpha overlap and matching position/UV preconditions are asserted before compositing.
