Minecraft 1.12.2 / AoA 3.3.6. Every one of the 33 inspected bows now has a four-state source-texture sheet: its resting layer and the three released draw overrides. That is 132 checked texture references, not 132 different weapons.

These are the actual 16×16 layer0 textures enlarged with nearest-neighbor scaling over a checkerboard. They supplement the existing source-model portraits. They are not assembled 3D draw poses, interpolated animation, or in-game screenshots.

Column	Released model predicate
Resting layer	Base model's layer0 texture
First drawing layer	pulling = 1
Second drawing layer	pulling = 1 and pull threshold 0.65
Third drawing layer	pulling = 1 and pull threshold 0.90

All 33 inspected base model JSONs declare this same sequence of three overrides. The predicate thresholds are model-selection data. They should not be confused with the separate curved arrow-velocity calculation in the firing guide.

The selected pull property uses the bow draw multiplier and elapsed use time divided by 20 while an active item is a BaseBow. The separate pulling property requires active use and the active stack to be the same stack. These two checks are not interchangeable. The released property methods are included in the evidence.

Open a name below for its sheet. The item link opens the normal source-model portrait and draw-timing panel; the draw-state image is created only when that panel is first expanded, with a full-resolution fallback link if the image fails to load.

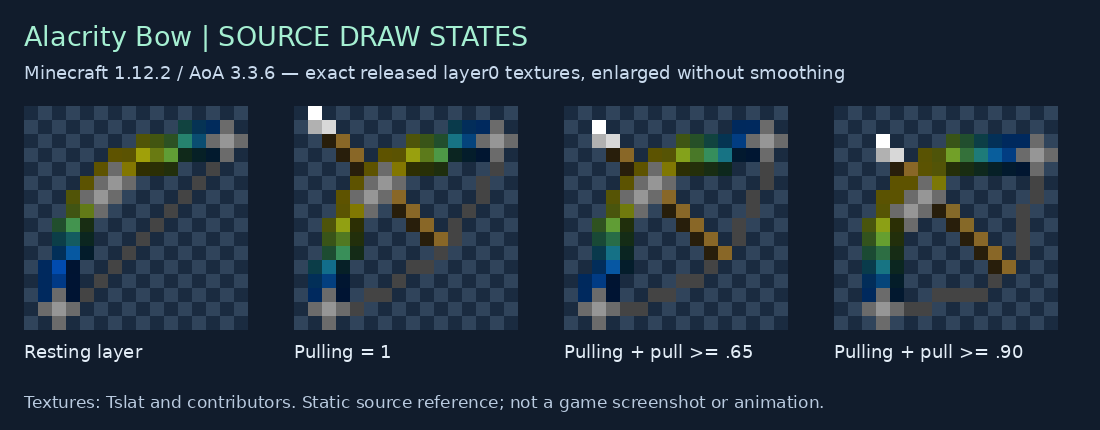

Alacrity Bow · four source states

Open Alacrity Bow item and timing reference.

Ancient Bow · four source states

Open Ancient Bow item and timing reference.

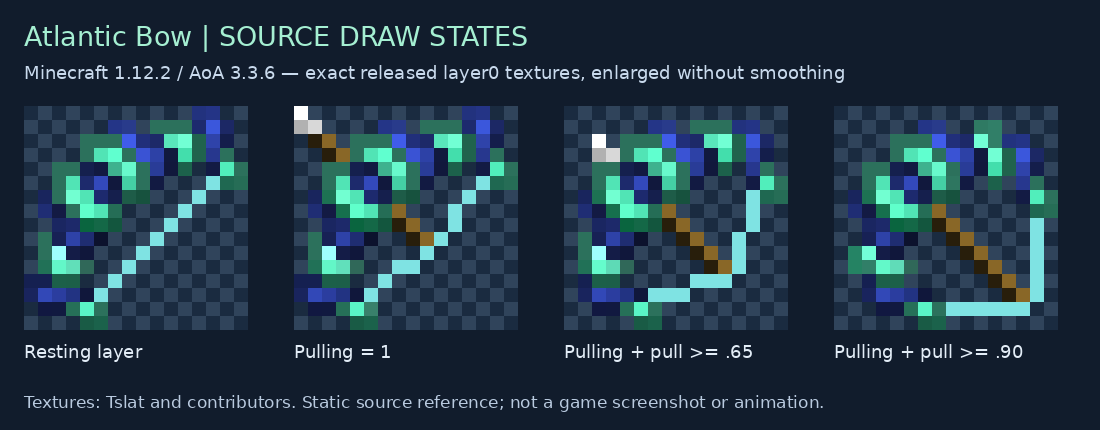

Atlantic Bow · four source states

Open Atlantic Bow item and timing reference.

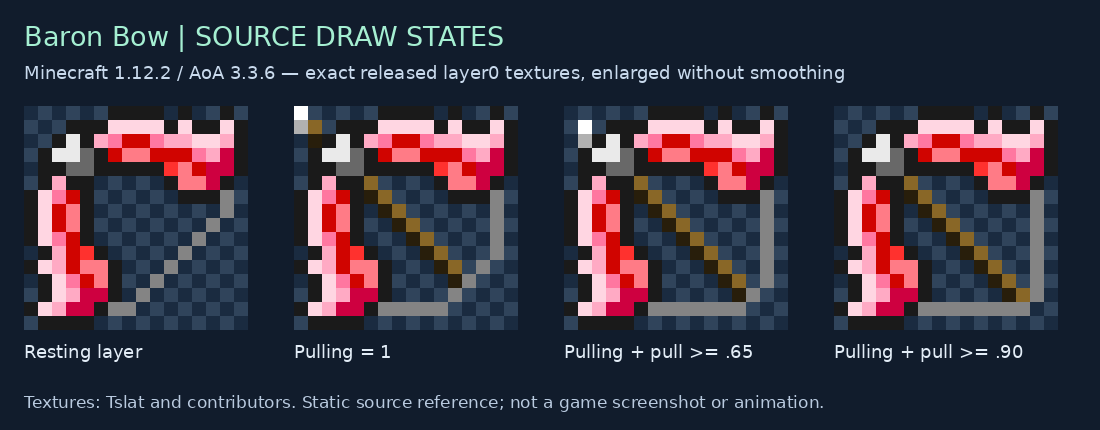

Baron Bow · four source states

Open Baron Bow item and timing reference.

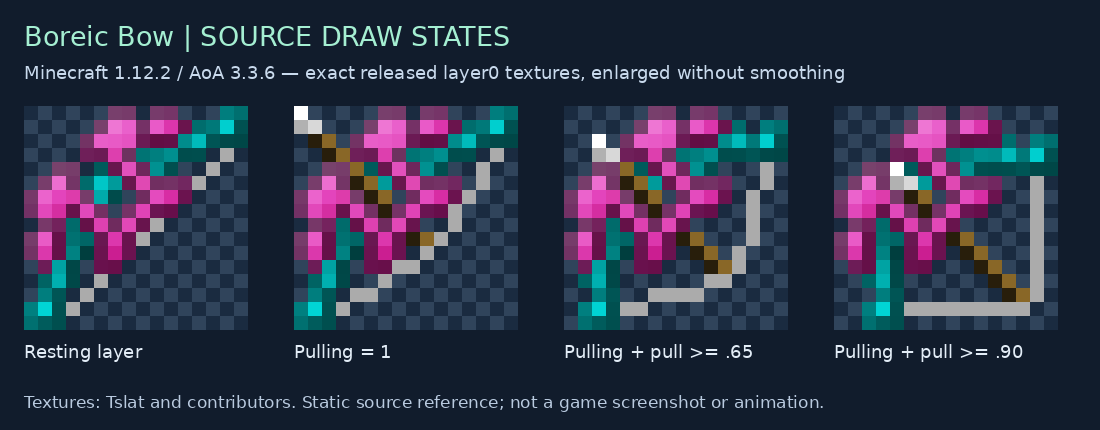

Boreic Bow · four source states

Open Boreic Bow item and timing reference.

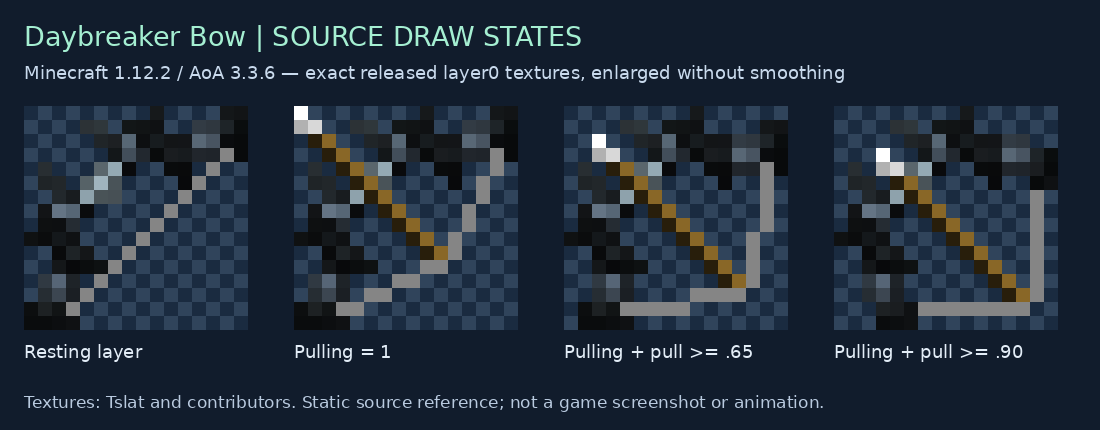

Daybreaker Bow · four source states

Open Daybreaker Bow item and timing reference.

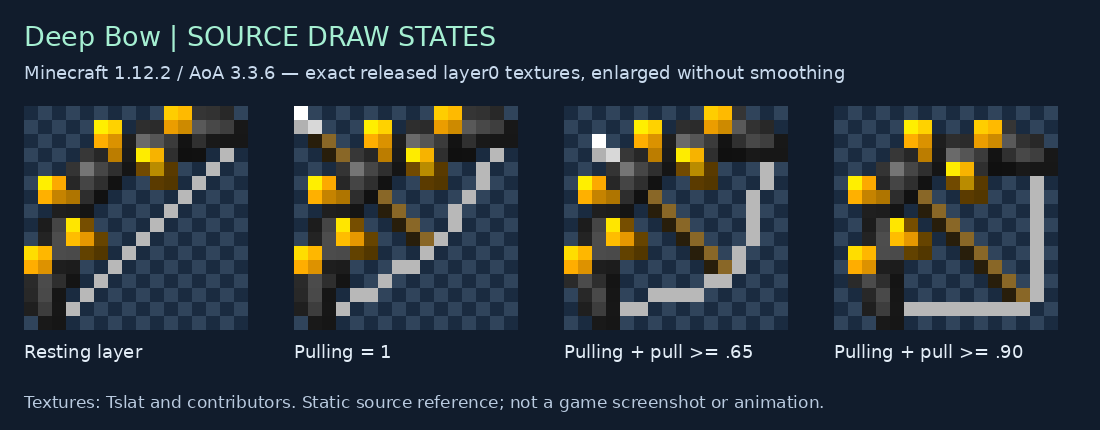

Deep Bow · four source states

Open Deep Bow item and timing reference.

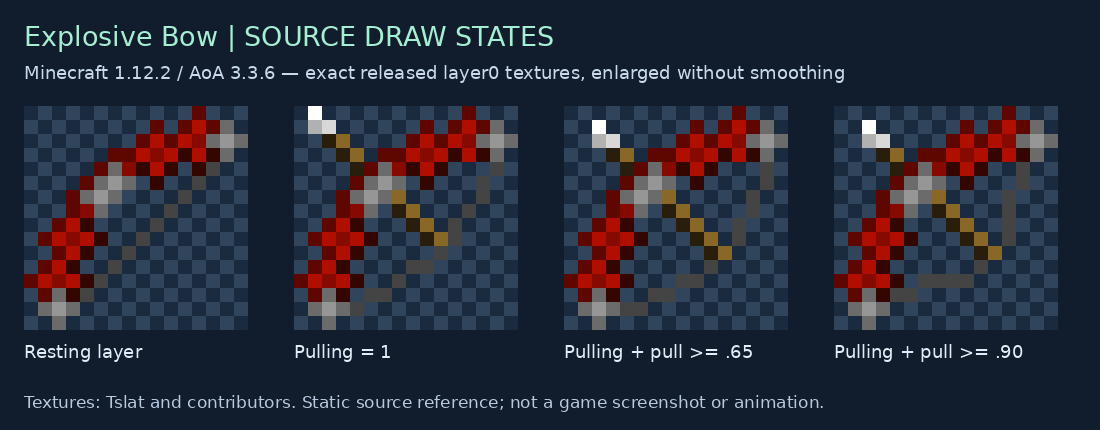

Explosive Bow · four source states

Open Explosive Bow item and timing reference.

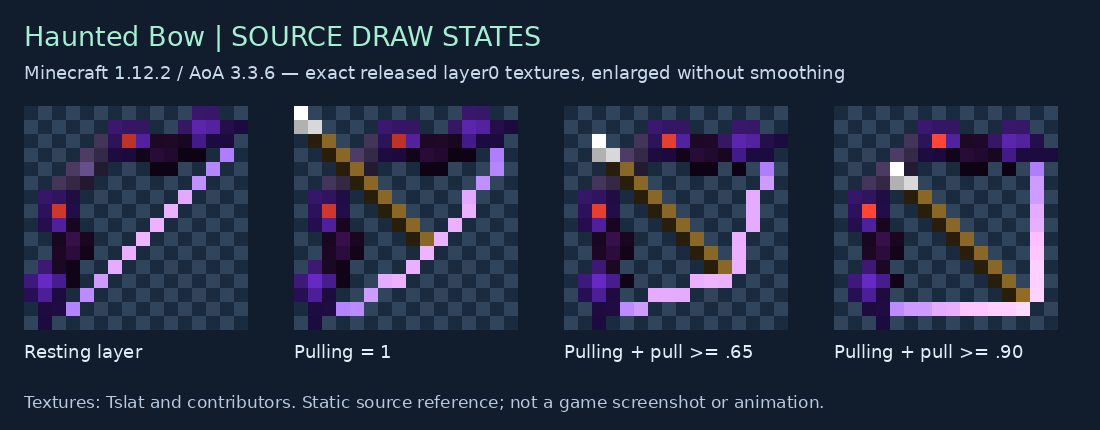

Haunted Bow · four source states

Open Haunted Bow item and timing reference.

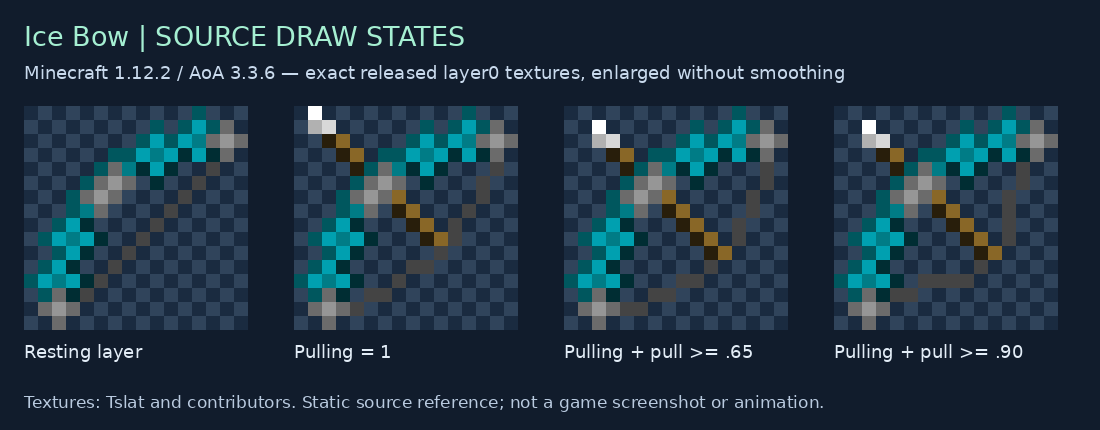

Ice Bow · four source states

Open Ice Bow item and timing reference.

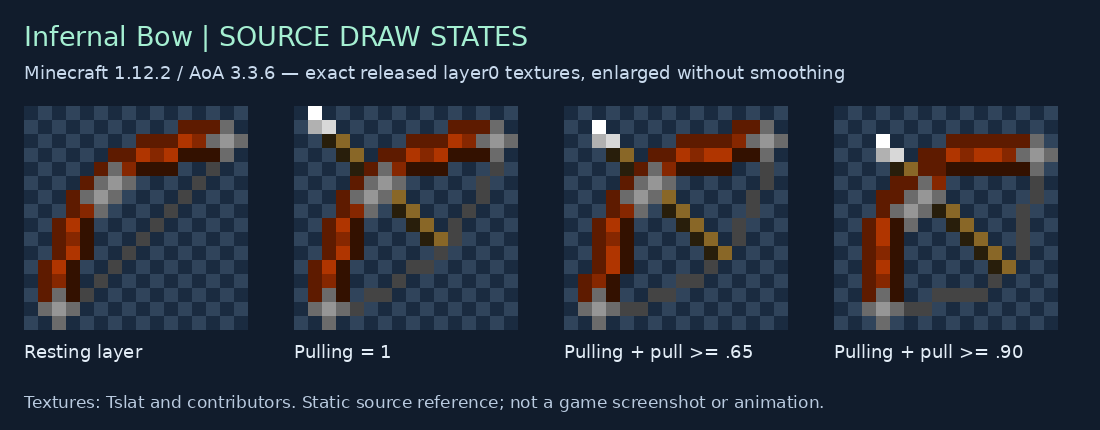

Infernal Bow · four source states

Open Infernal Bow item and timing reference.

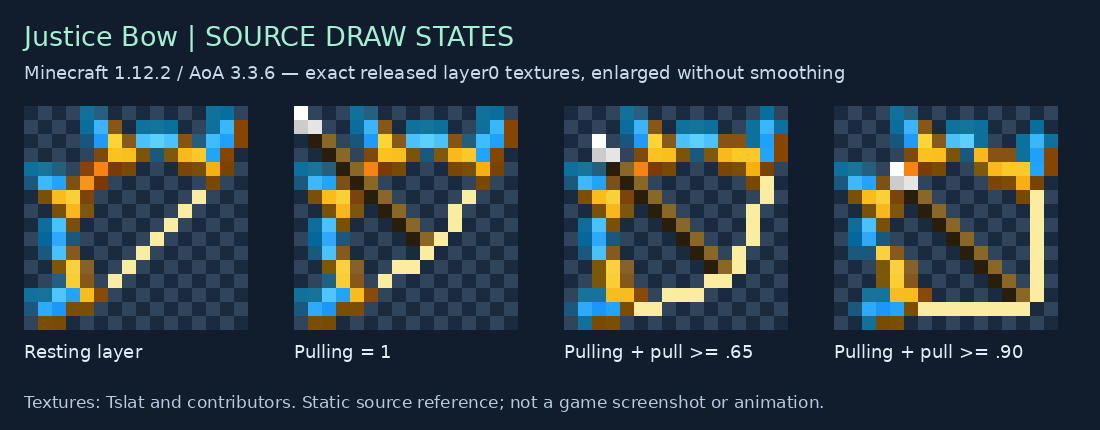

Justice Bow · four source states

Open Justice Bow item and timing reference.

Lunar Bow · four source states

Open Lunar Bow item and timing reference.

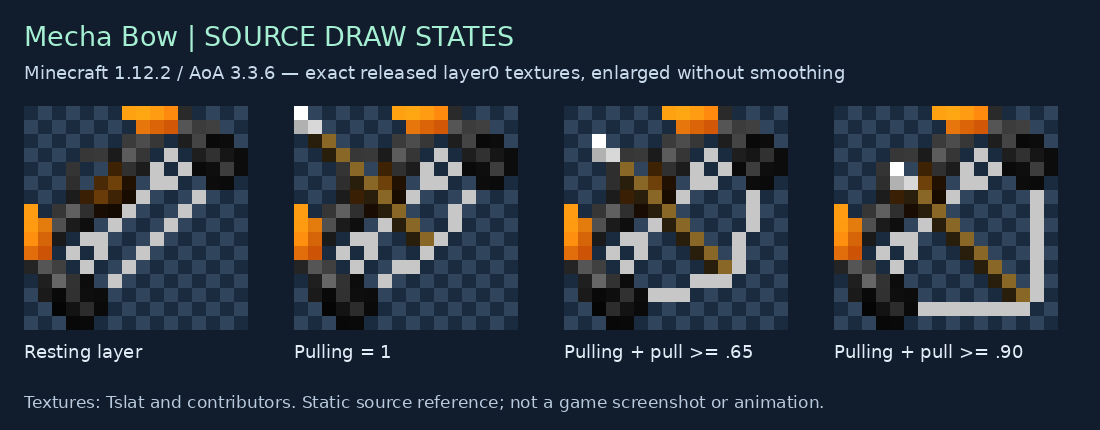

Mecha Bow · four source states

Open Mecha Bow item and timing reference.

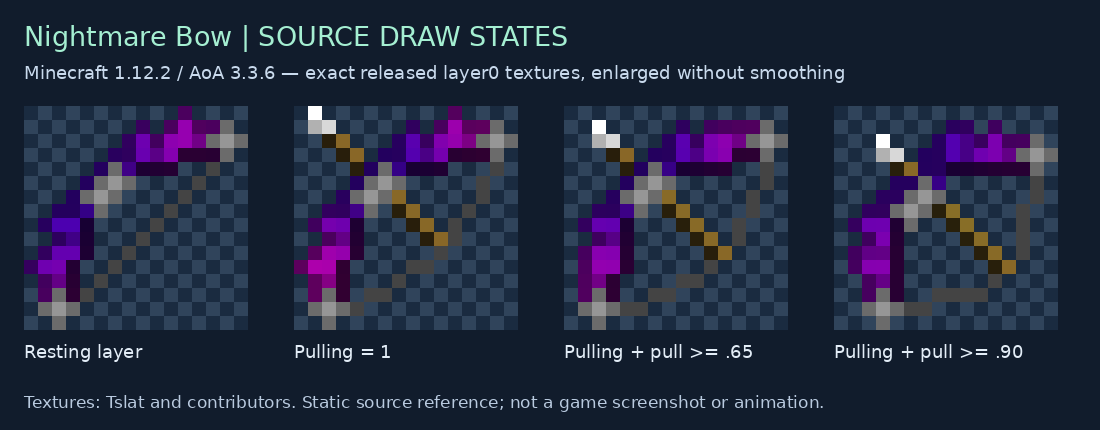

Nightmare Bow · four source states

Open Nightmare Bow item and timing reference.

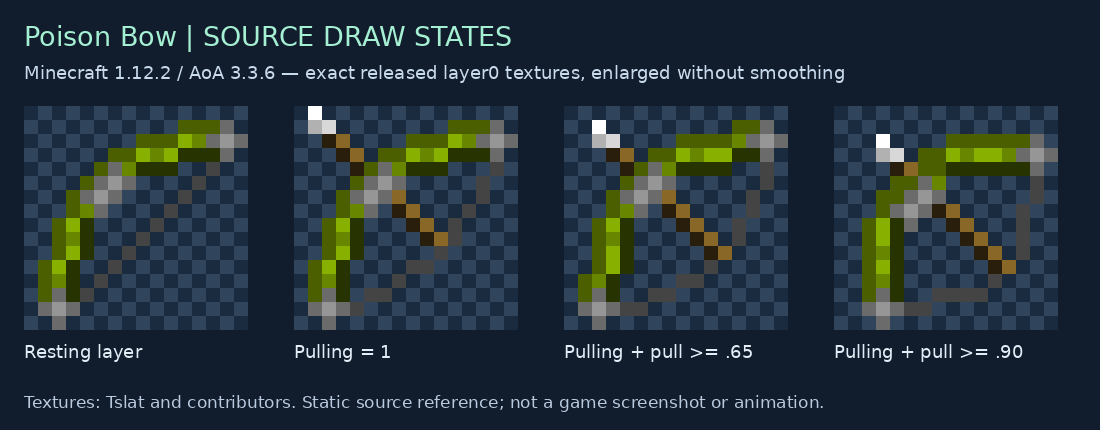

Poison Bow · four source states

Open Poison Bow item and timing reference.

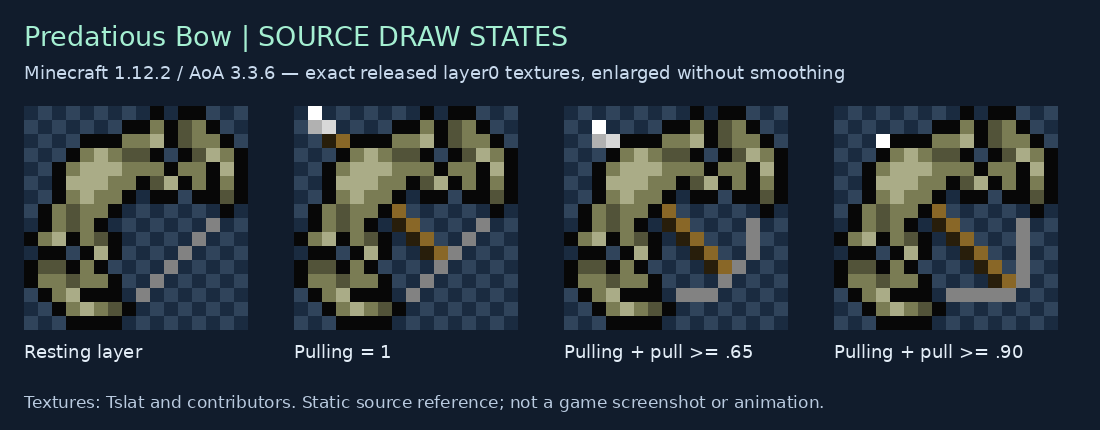

Predatious Bow · four source states

Open Predatious Bow item and timing reference.

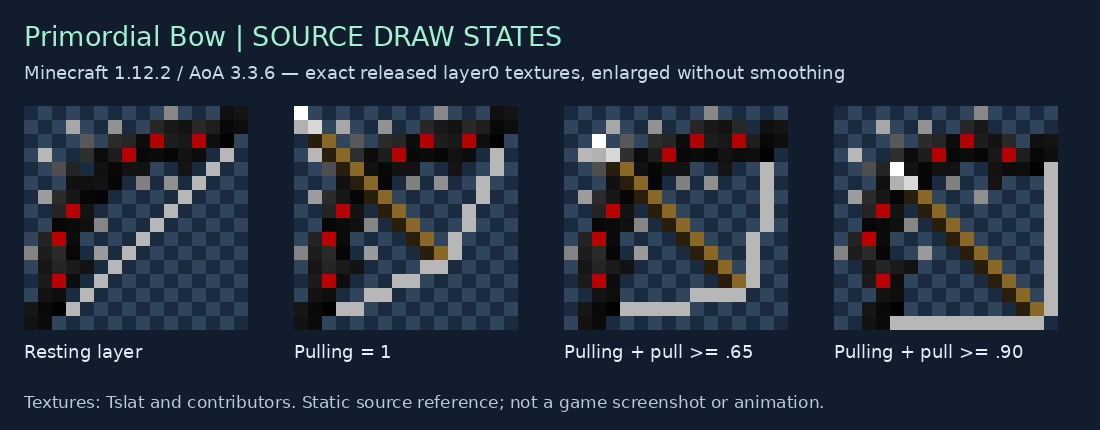

Primordial Bow · four source states

Open Primordial Bow item and timing reference.

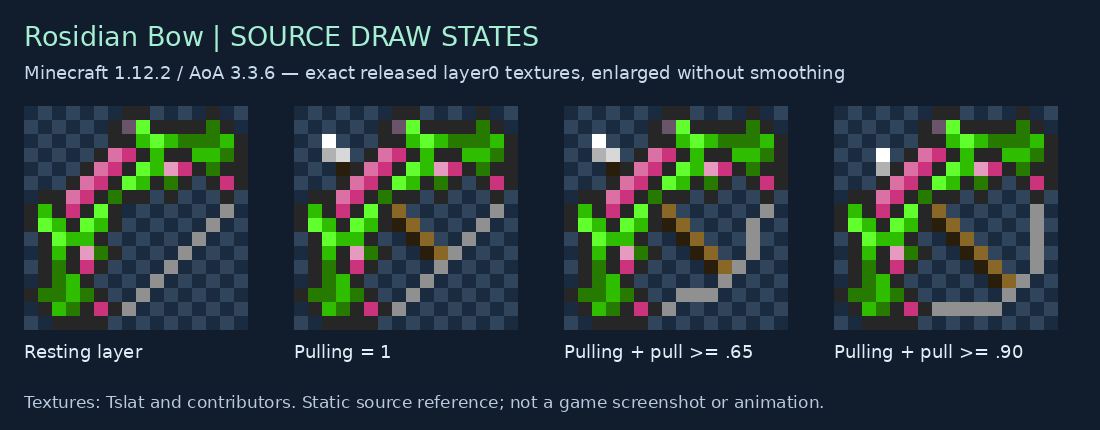

Rosidian Bow · four source states

Open Rosidian Bow item and timing reference.

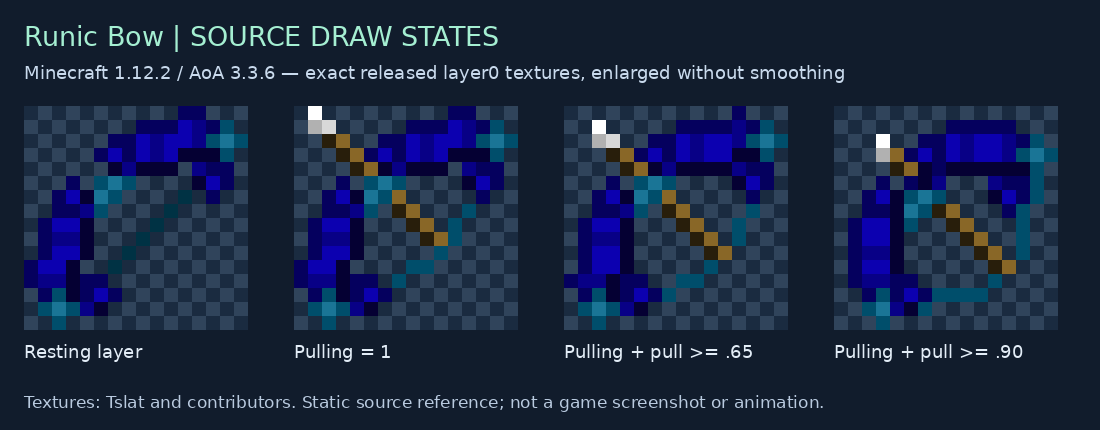

Runic Bow · four source states

Open Runic Bow item and timing reference.

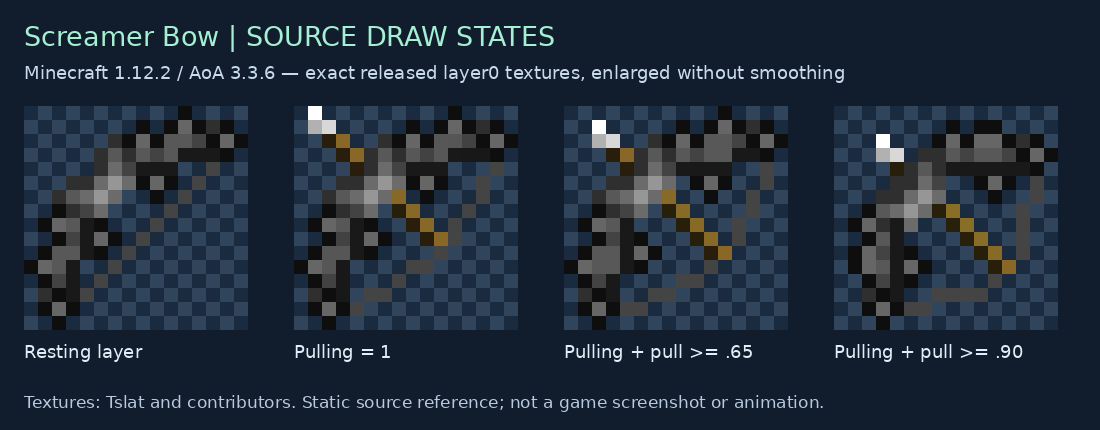

Screamer Bow · four source states

Open Screamer Bow item and timing reference.

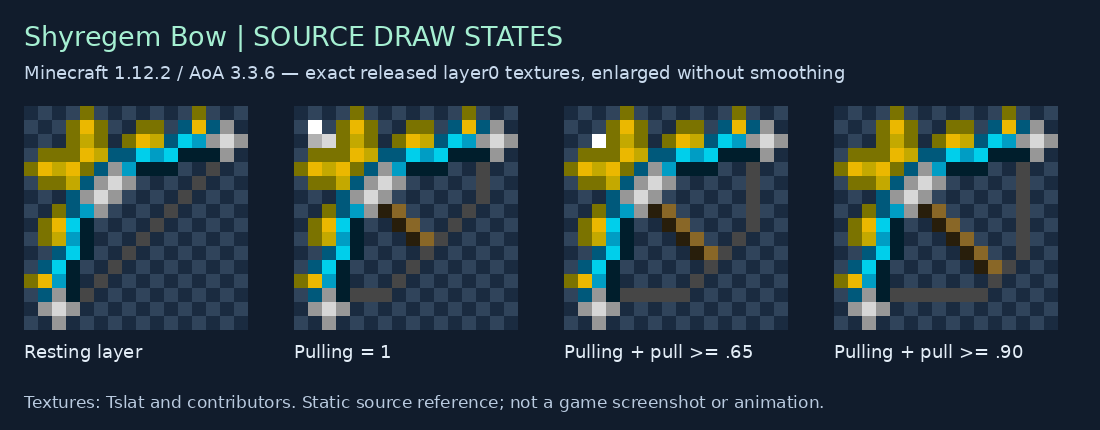

Shyregem Bow · four source states

Open Shyregem Bow item and timing reference.

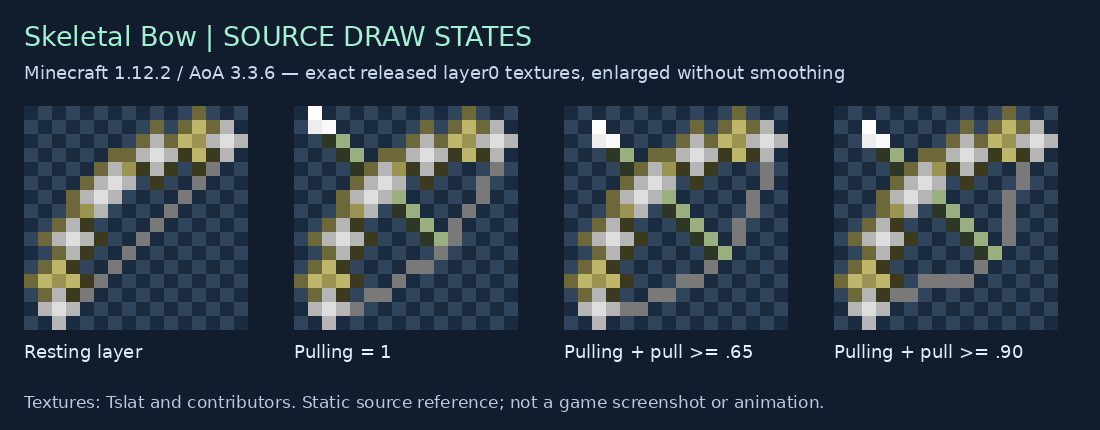

Skeletal Bow · four source states

Open Skeletal Bow item and timing reference.

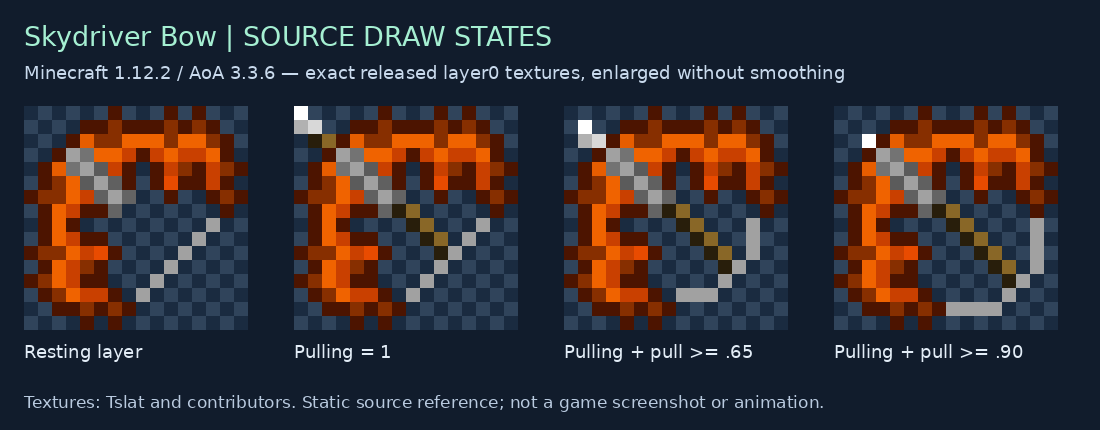

Skydriver Bow · four source states

Open Skydriver Bow item and timing reference.

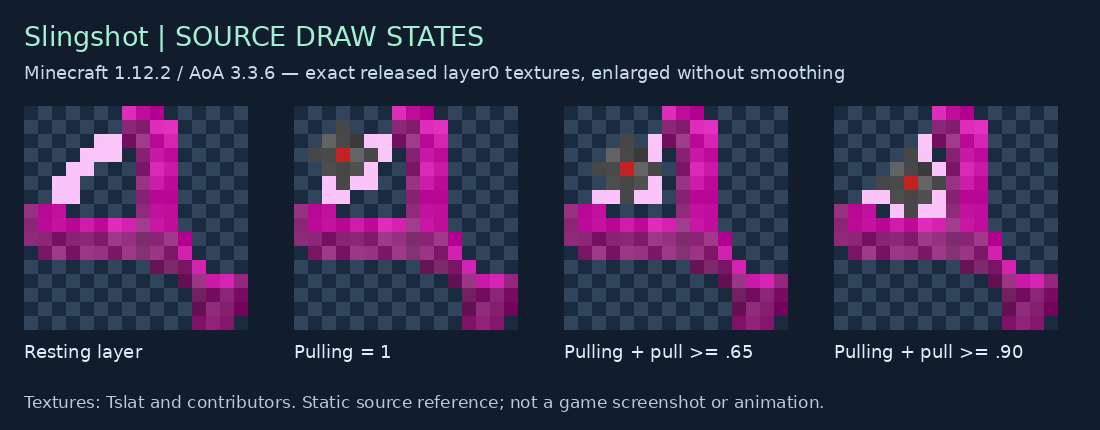

Slingshot · four source states

Open Slingshot item and timing reference.

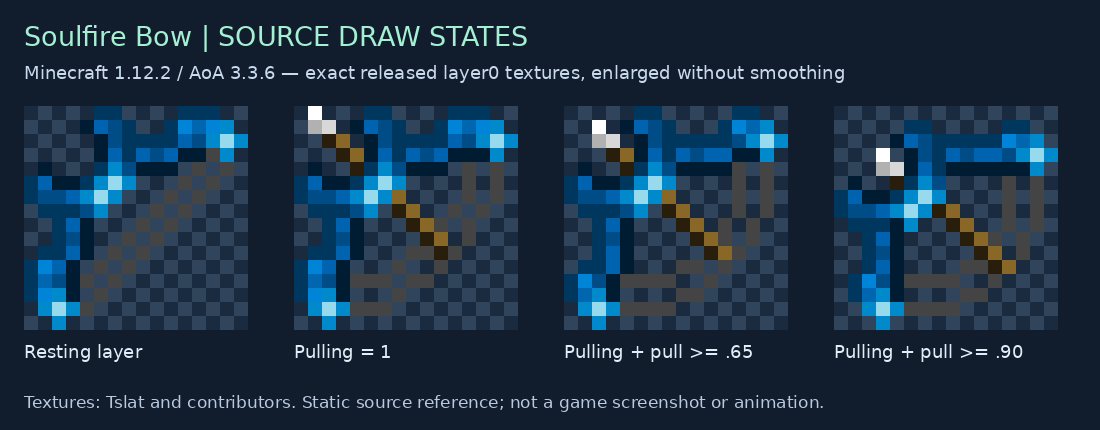

Soulfire Bow · four source states

Open Soulfire Bow item and timing reference.

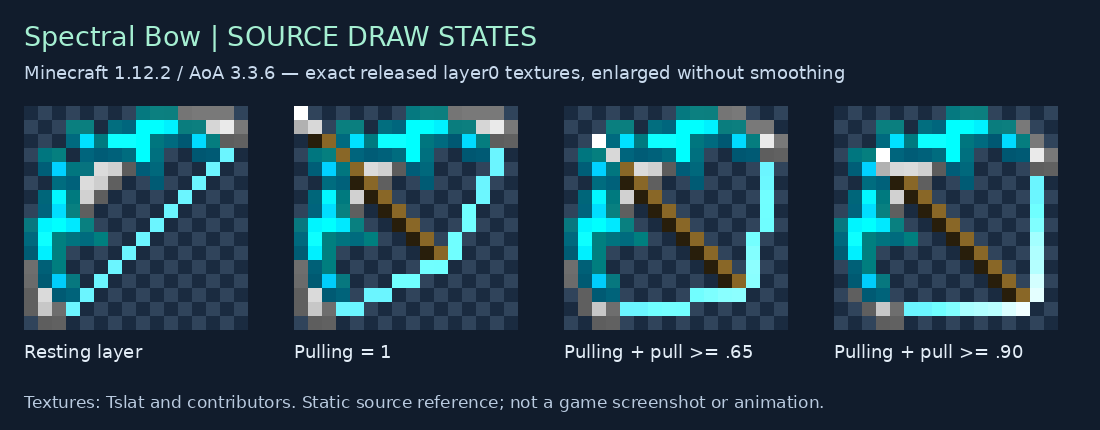

Spectral Bow · four source states

Open Spectral Bow item and timing reference.

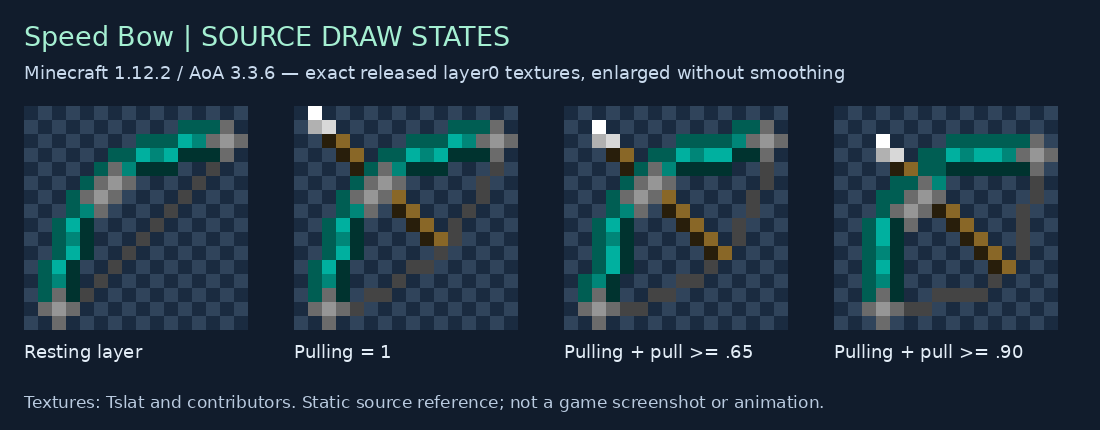

Speed Bow · four source states

Open Speed Bow item and timing reference.

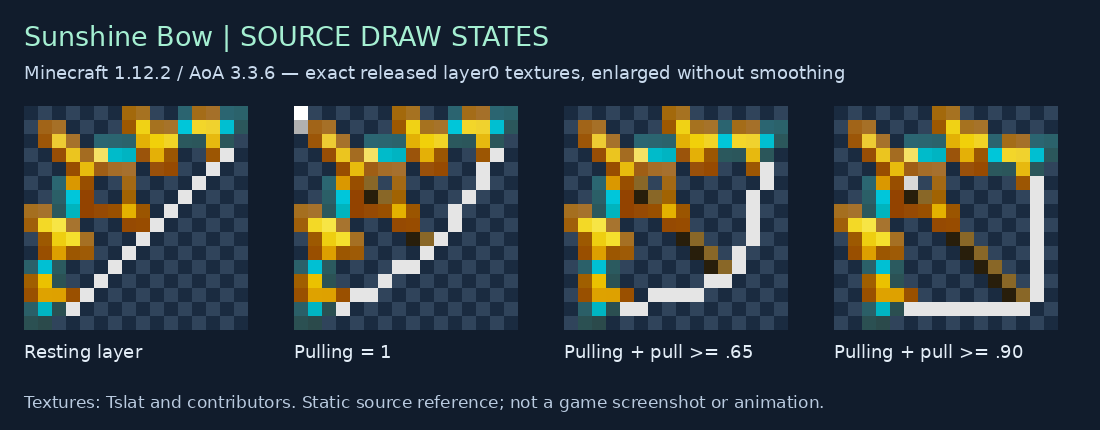

Sunshine Bow · four source states

Open Sunshine Bow item and timing reference.

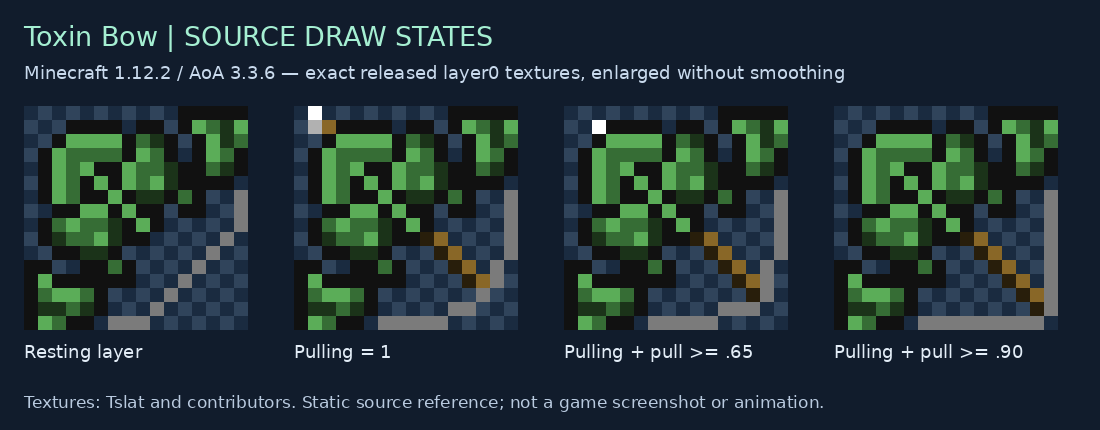

Toxin Bow · four source states

Open Toxin Bow item and timing reference.

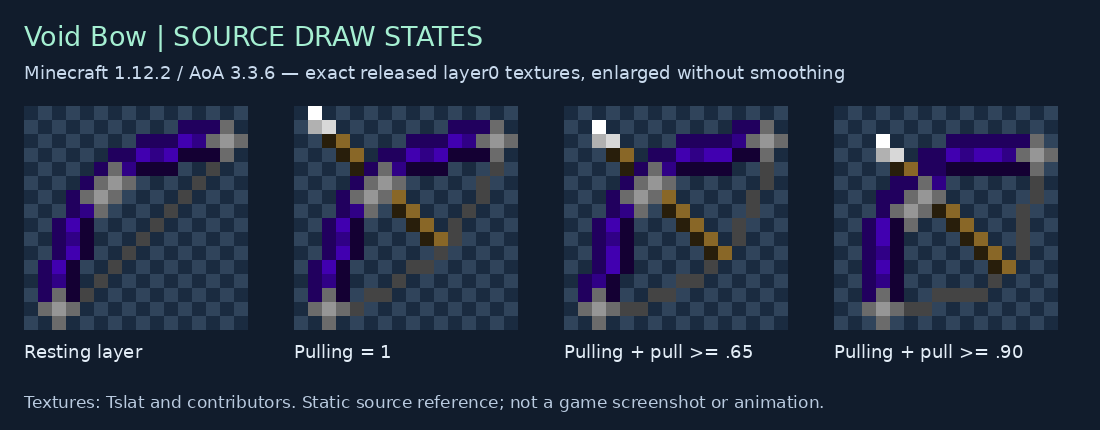

Void Bow · four source states

Open Void Bow item and timing reference.

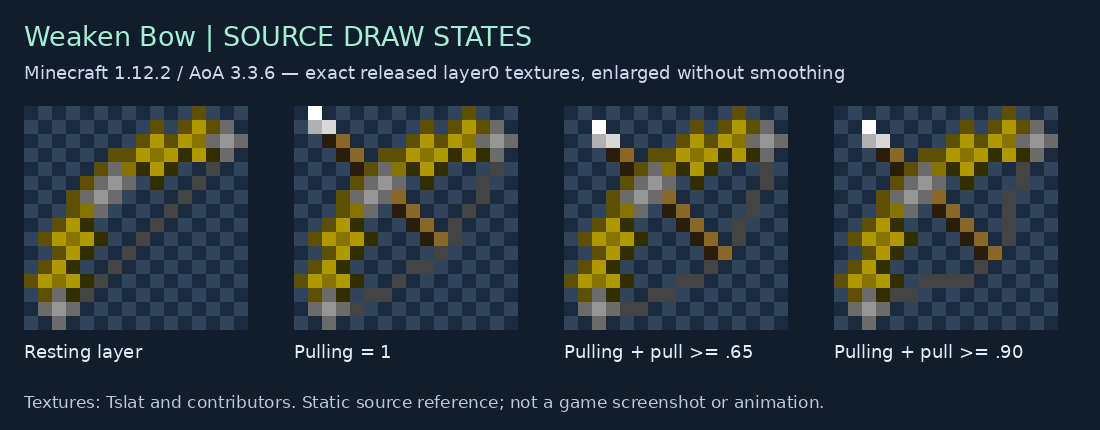

Weaken Bow · four source states

Open Weaken Bow item and timing reference.

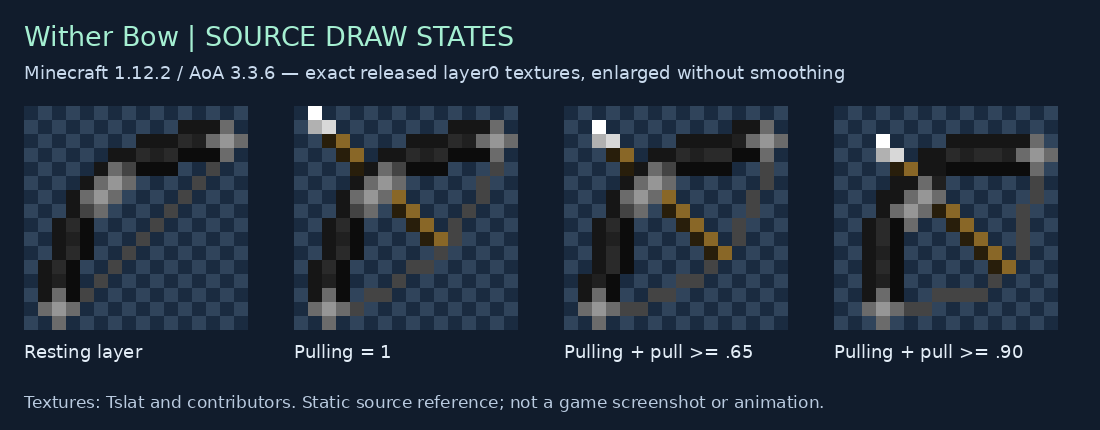

Wither Bow · four source states

Open Wither Bow item and timing reference.

The separate 1.16.5, 1.20.1 and 1.21.1 comparison gallery contains 558 additional version-specific source-state references. It preserves changed artwork instead of copying a newer sheet into every release.

The 33 base JSONs inherit item/bow. The 99 inspected override JSONs name aoa3:item/weapons/bows/speed_bow as their parent while supplying their own layer0 texture. Those parent references are retained in the evidence; this documentation does not silently rewrite them or claim that a flat sheet validates the entire inherited transform/override pipeline.

For a renderer port or optional weapon remodel, verify base and draw transforms, handedness, active-stack selection, resource-pack overrides and state transitions in the target client. Preserve the original textures and predicates until a deliberate replacement has been tested. A missing transition in a new renderer is not fixed merely by displaying the four textures in a wiki.

132 texture/model references, 33 output hashes and two released property methods · Draw timing and ammunition walkthrough.
