This is a modification of the StarRating widget of the OPAL project. It implements a simple star rating toolbar that allows the user to rate anything.

There is a difference between this implementation and the OPAL implementaiton: when the user click a selected star,

  • if the star has not been selected, the star and all stars below it will be selected;
  • if the star is the highest star that has been selected, the star will be unselect by the clicking;
  • if the star is not the highest star that has been selected, the clicking will cause the star and all stars below it be selected and all stars above it be unselected.

In this way, we could easily unselect all stars.

Usage

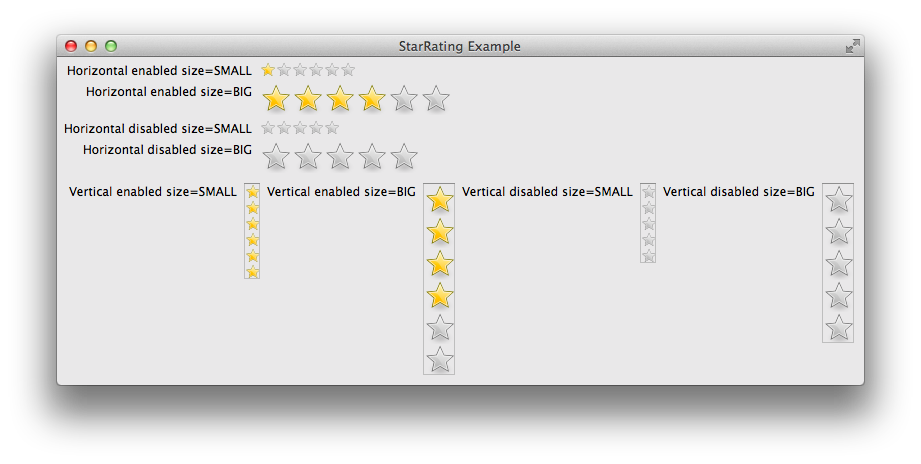

Screen Shot of the StarRating Widget

In order to create a StarRating component, you must provide

  • the parent component,
  • the SWT styles,
  • the size of the star (StarRating.Size.SMALL or StarRating.Size.BIG), and
  • the maximum number of stars (i.e., the maximum rating level).

The following codes will specifies the maximum number of starts.

StarRating rating = new StarRating(shell, SWT.NONE, StarRating.Size.SMALL, 10);

Or you can use the default maximum number of starts (which is 5):

StarRating rating = new StarRating(shell, SWT.NONE, StarRating.Size.BIG);

Example

An example is located in the source repository:

src/test/java/com/github/haixing_hu/swt/starrating/StarRatingExample.java
