4. CONCEPT GENERATION - H-Division-2021-2022-Even/Repo-14 GitHub Wiki
4.1 Establishing Functions
| SL. NO | FUNCTIONS |
|---|---|
| 1. | Provide options to the user. |
| 2. | Press the appropriate option. |
| 3. | Send the signal at initiation to the machine. |
| 4. | Process the signals. |
| 5. | Detect the shape selected by user. |
| 6. | Generate means to convey the user. |
| 7. | Display the points on the leader board. |
| 8. | Alert when the task is completed. |
| 9. | Indicate machine on/off. |
| 10. | Indicate when there is a problem in the machine. |

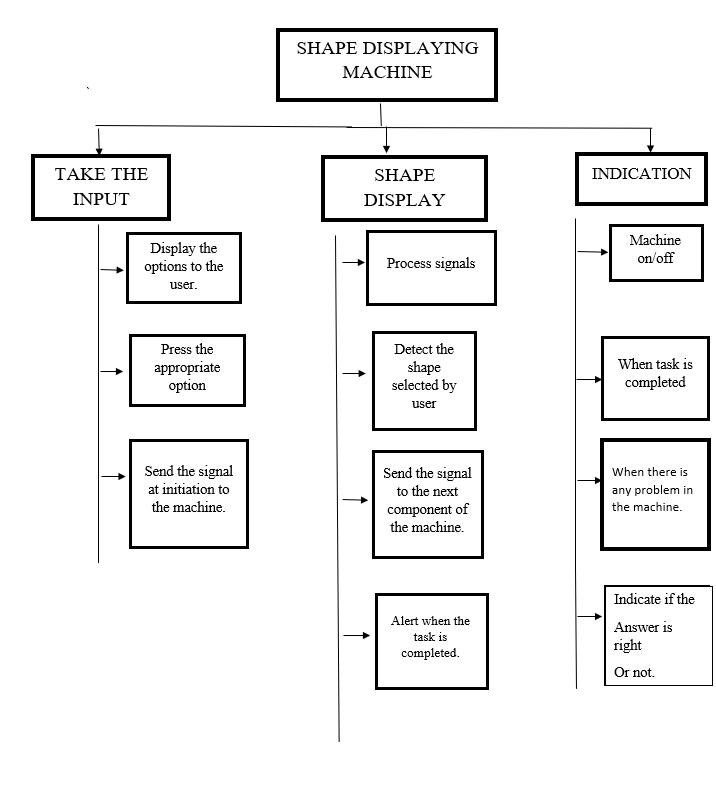

4.2 Function Tree
4.3 Morphological Chart
| Sl. no | Subfunctions | Means 1 | Means 2 | Means 3 | Means 4 |
|---|---|---|---|---|---|
| 1. | Input Way |  BLUETOOTH |
 BUZZER |
 KEYBOARD |
|
| 2. | Catch the signal |  ETHERNET CABLE |
 ZIGBEE/XBEE |
 WIFI |
 BLUETOOTH |
| 3. | Process Signals |  MICRO CONTROLLER |
 SINGLE BOARD COMPUTER |
 FPGA |
|
| 4. | Motors |  DC MOTOR |
 SERVO MOTOR |
 STEPPER MOTOR |
|
| 5. | Audio indication |  BUZZER |
 AIR HORN |
 VOCAL SPEAKER |
|
| 6. | Visual indication |  LED |
 LCD |
 FLAG |
|
| 7. | Casing |  ACRYLIC COVER |
 METAL CASING |
4.4 Generated Concepts

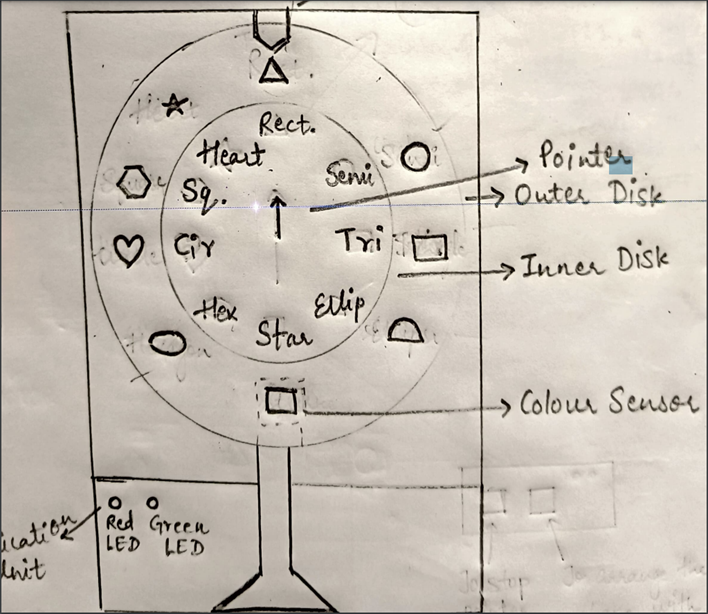

4.4.1 Design 1

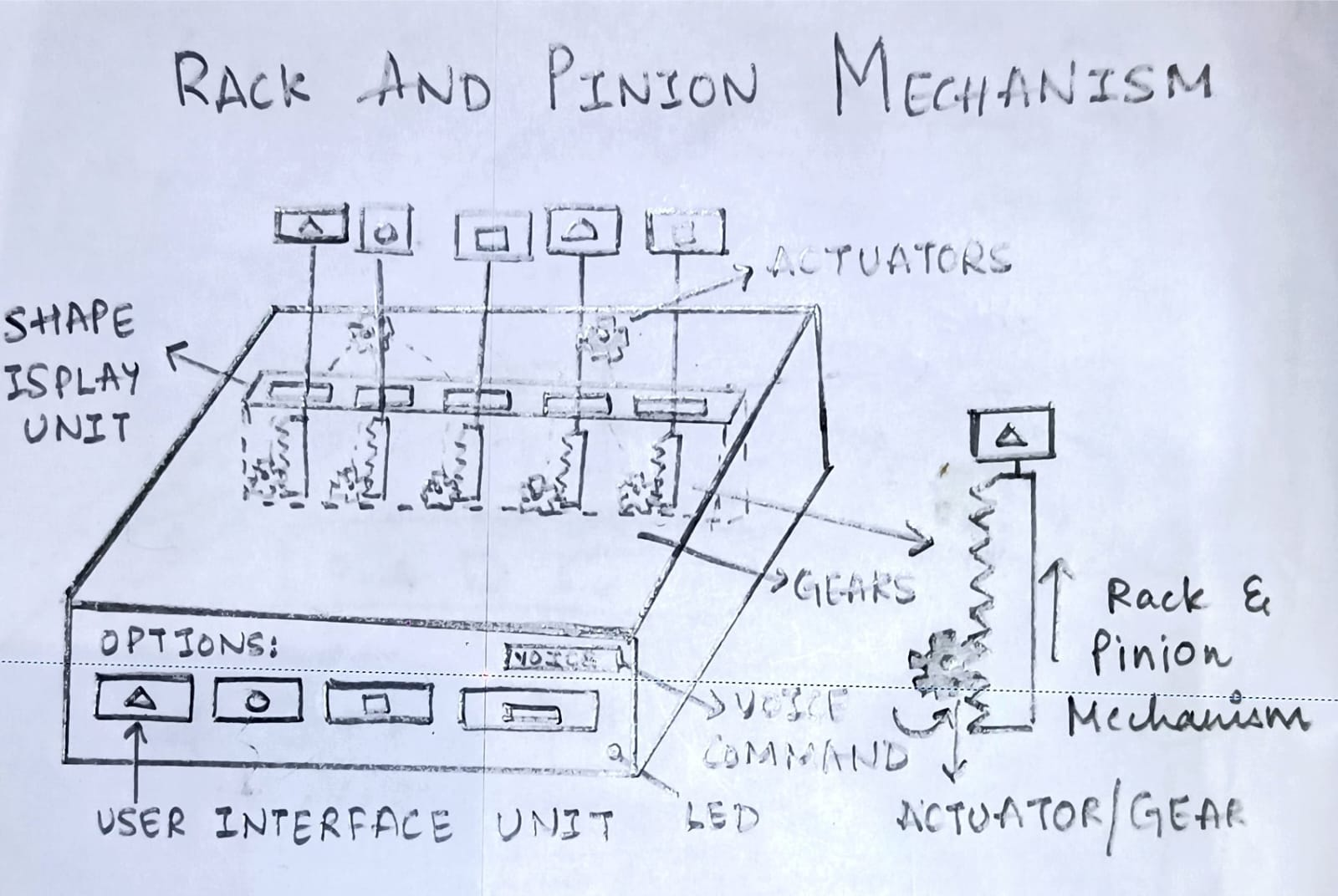

4.4.2 Design 2

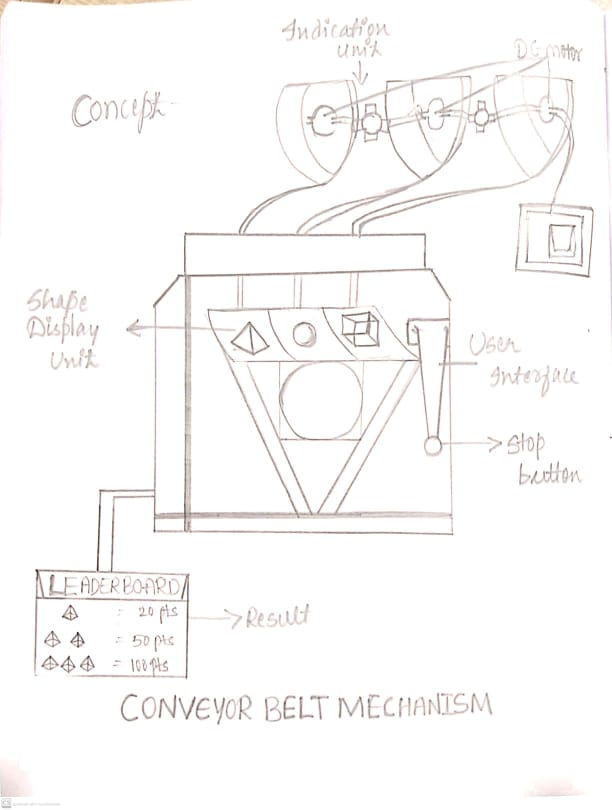

4.4.3 Design 3

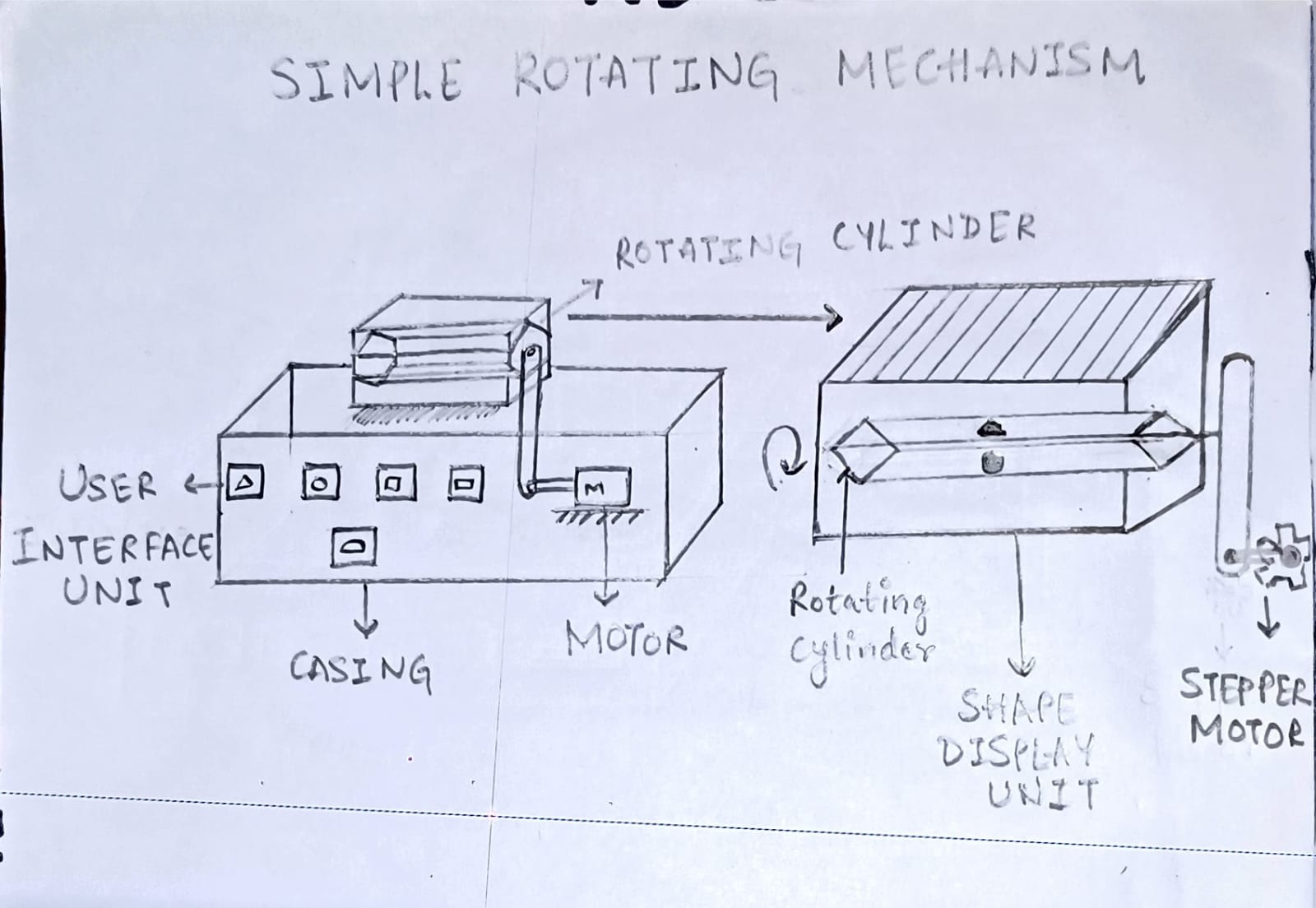

4.4.4. Design 4
