phenobox tech hw - Gregor-Mendel-Institute/PhenoBox-System GitHub Wiki

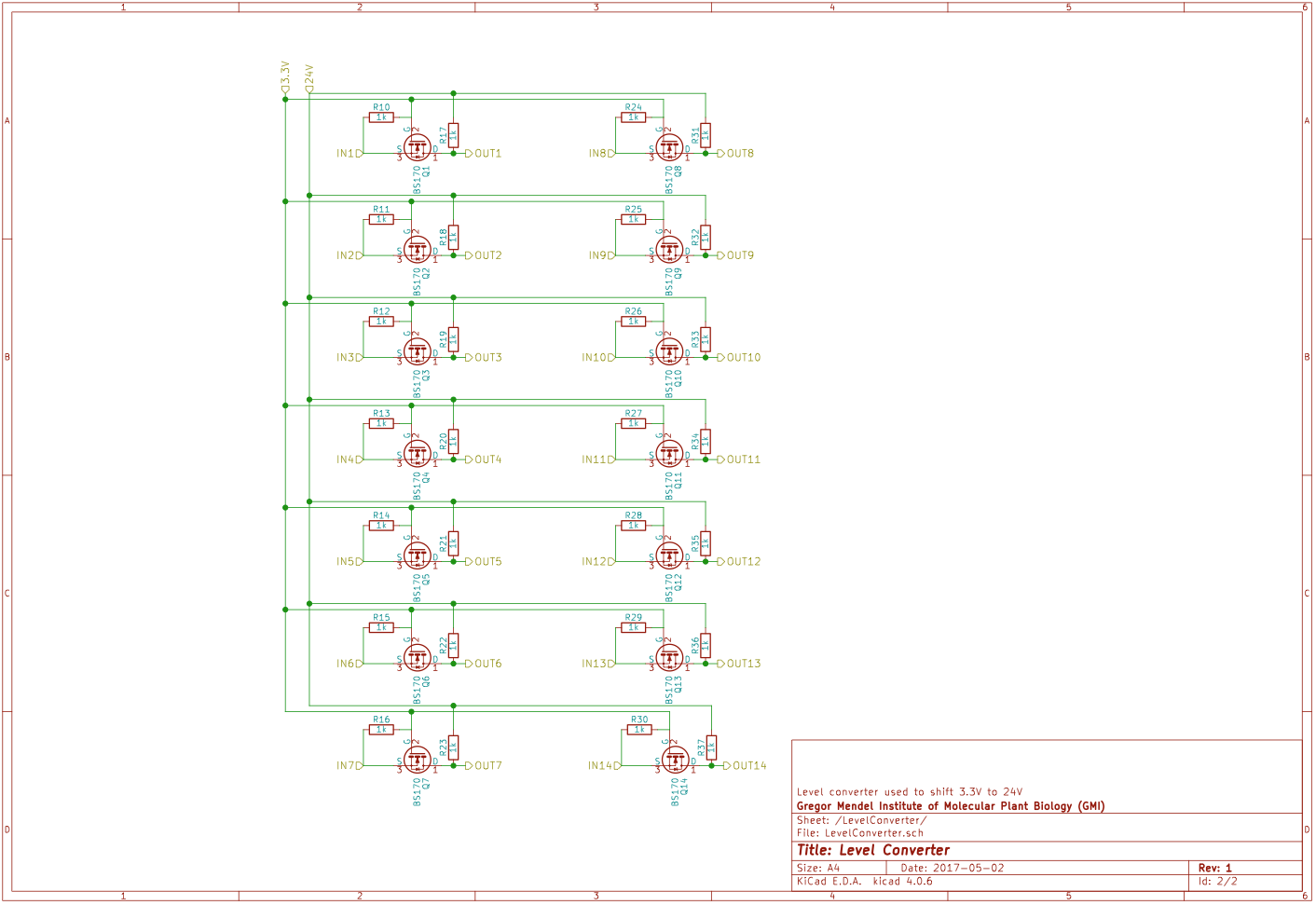

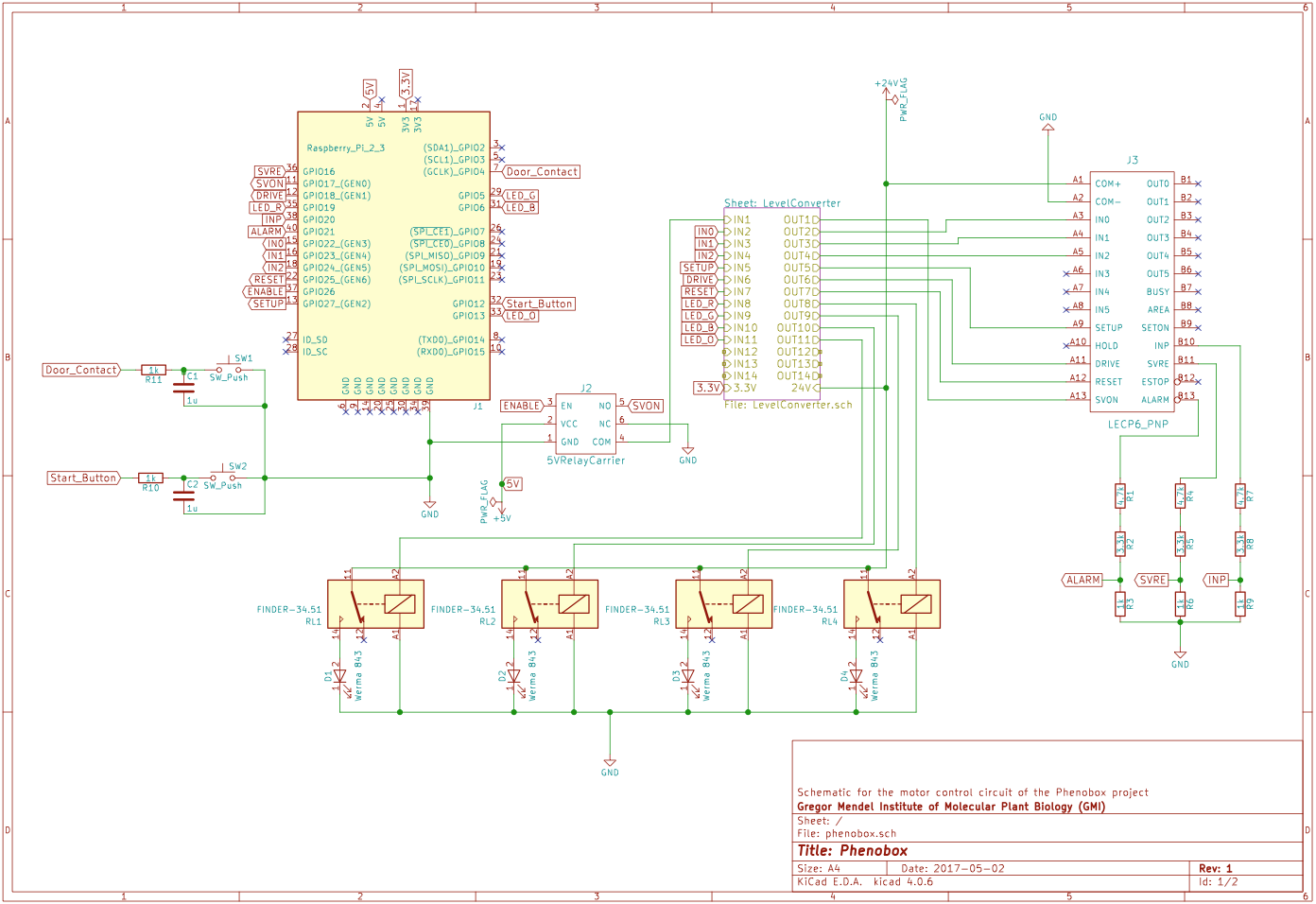

This page will outline the needed components and present a description of the electronics inside the phenobox
| Quantity | Component |
|---|---|
| 1 | Raspberry Pi 3 |
| 1 | SMC LER10K actuator |
| 1 | 5V/3A Power supply |
| 1 | 24V/4A Power supply |
| 1 | Generic Push Button |
| 1 | Generic Micro Switch |
| 1 | 5V Relay |
| 4 | 24V Relay/3.3V controllable |
| 33 | 1/4W Resistor 1k |
| 3 | 1/4W Resistor 4.7k |
| 3 | 1/4W Resistor 3.3k |
| 2 | 1uF Capacitor |
| 14 | BS170 N-Channel MOSFET |
| 4 | 24V Signal LEDs |
For more in-depth information about the parts (concrete names and brands) please refer to the [original publication](TODO link to paper)
