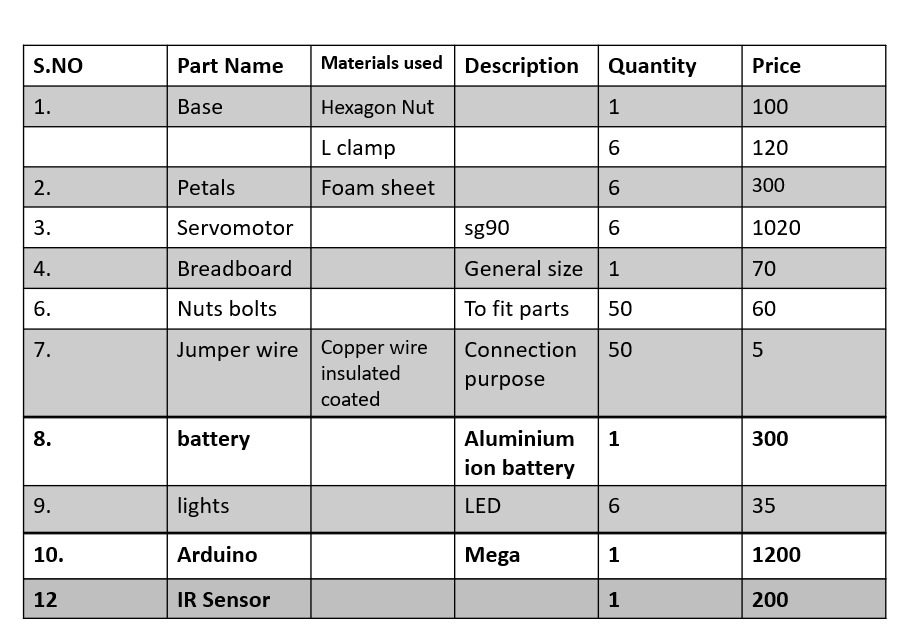

6.1 Bill of materials

6.2 Flow chart

INTGREATED FLOW CHART

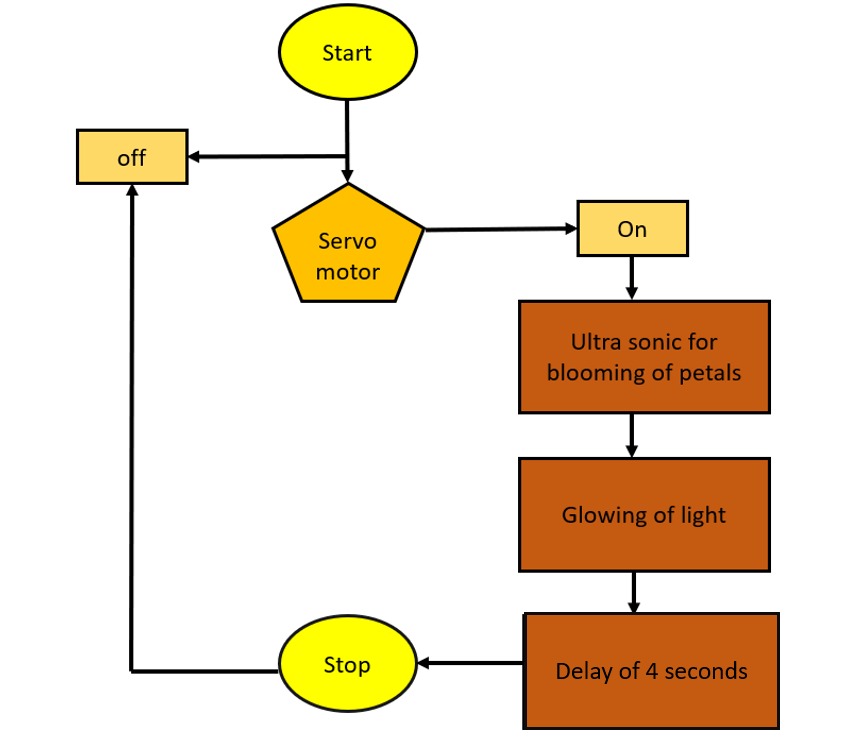

BLOOMING UNIT FLOW CHART

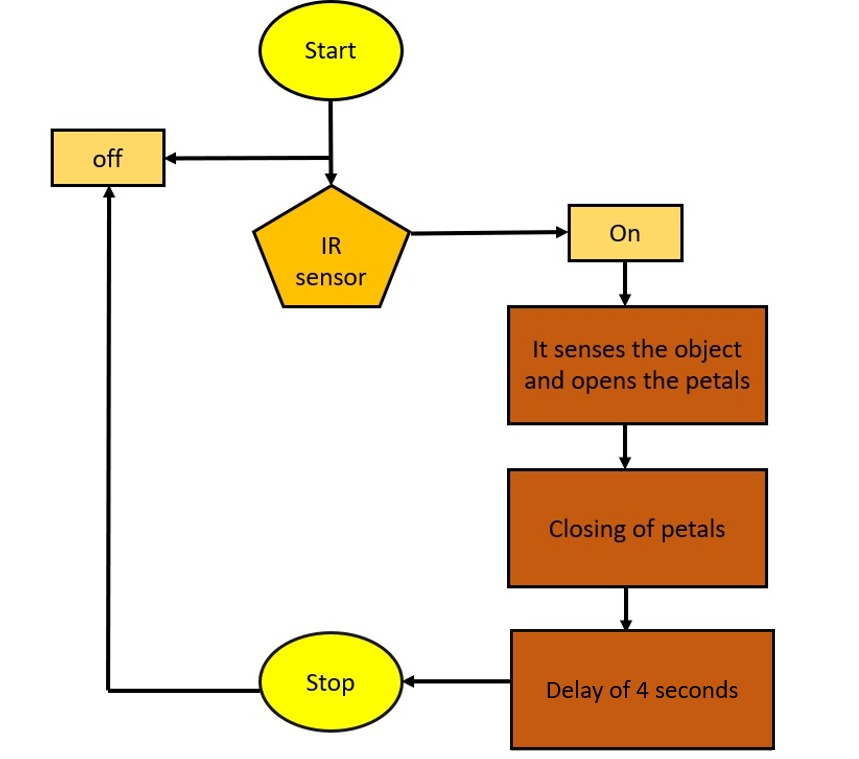

SENSING UNIT FLOW CHART

6.3 Circuit

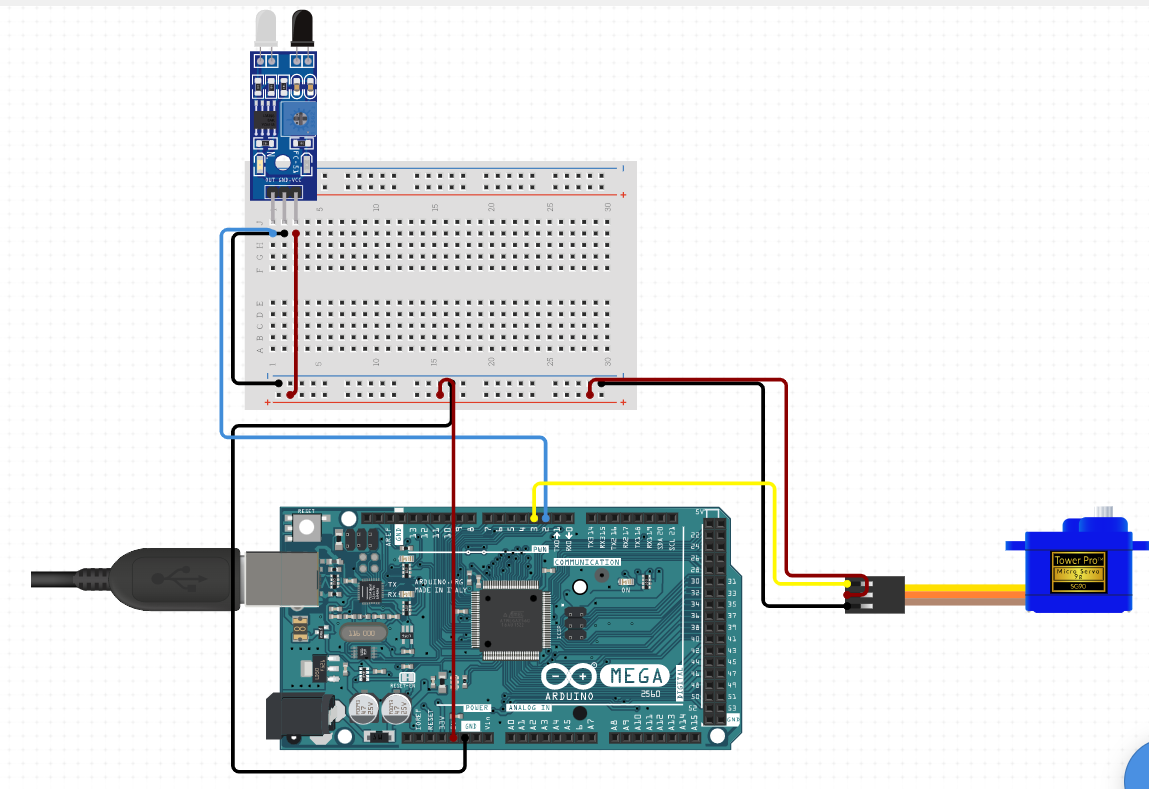

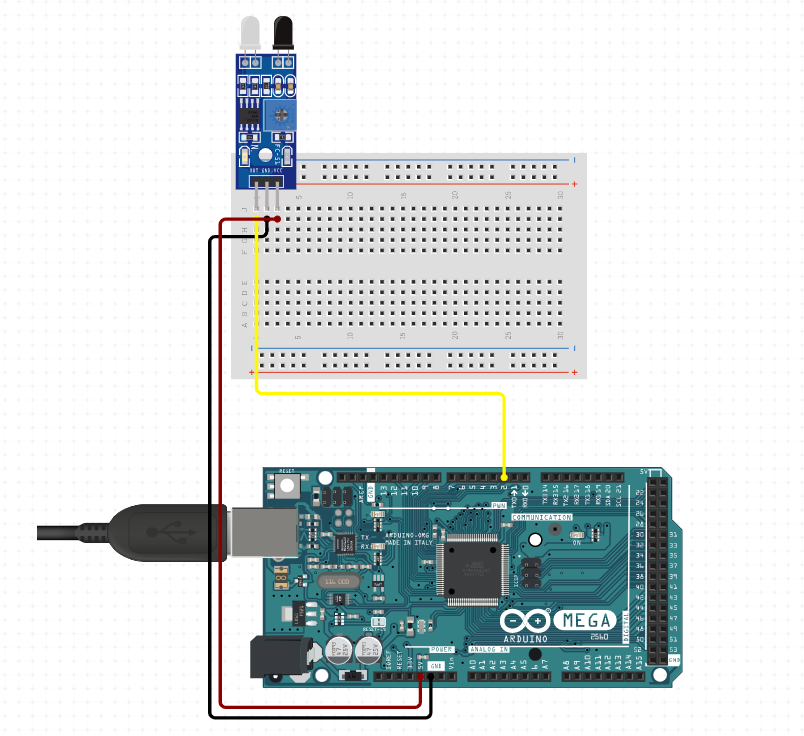

Arduino with IR sensor

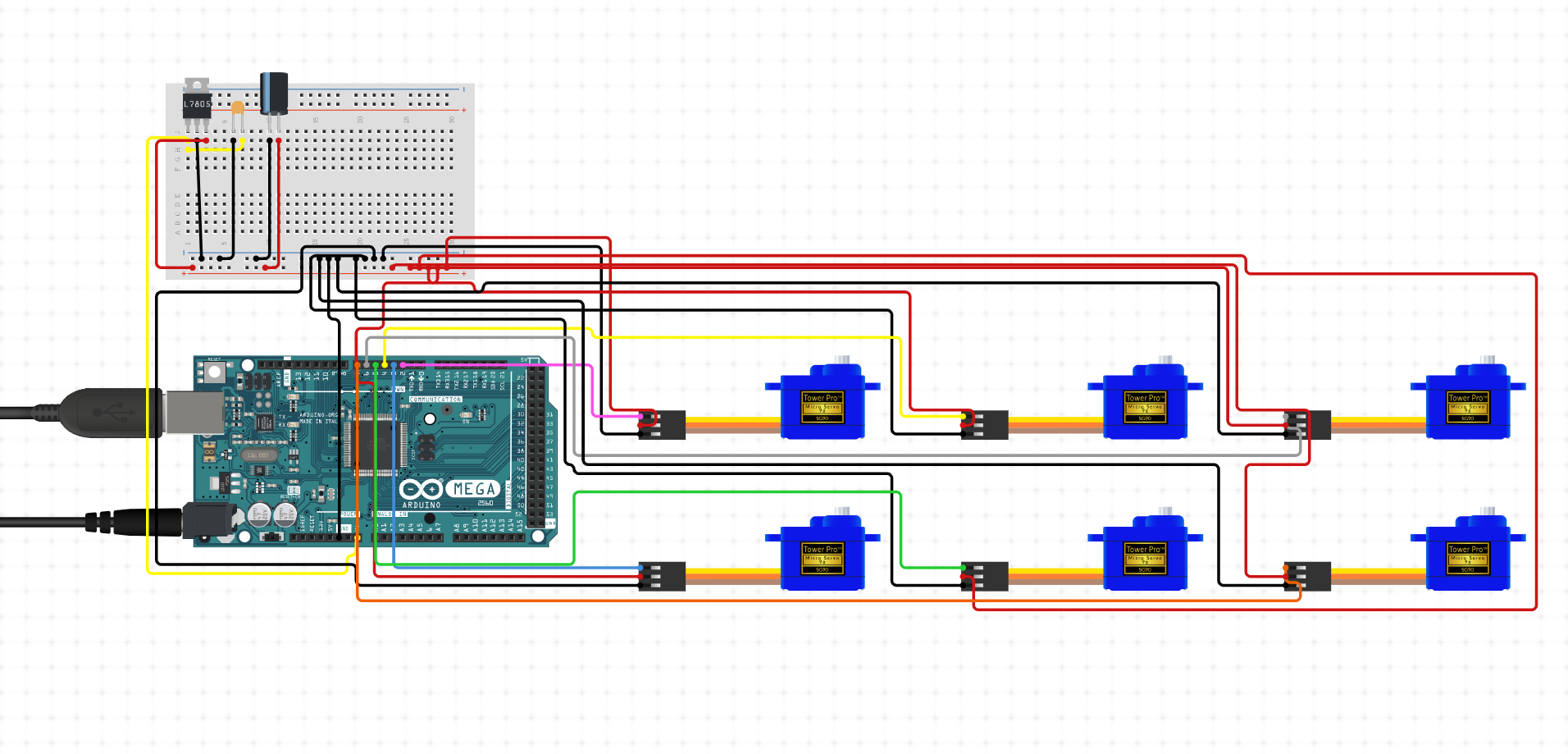

Arduino with servomotors

Arduino with both IR sensor and servomotor

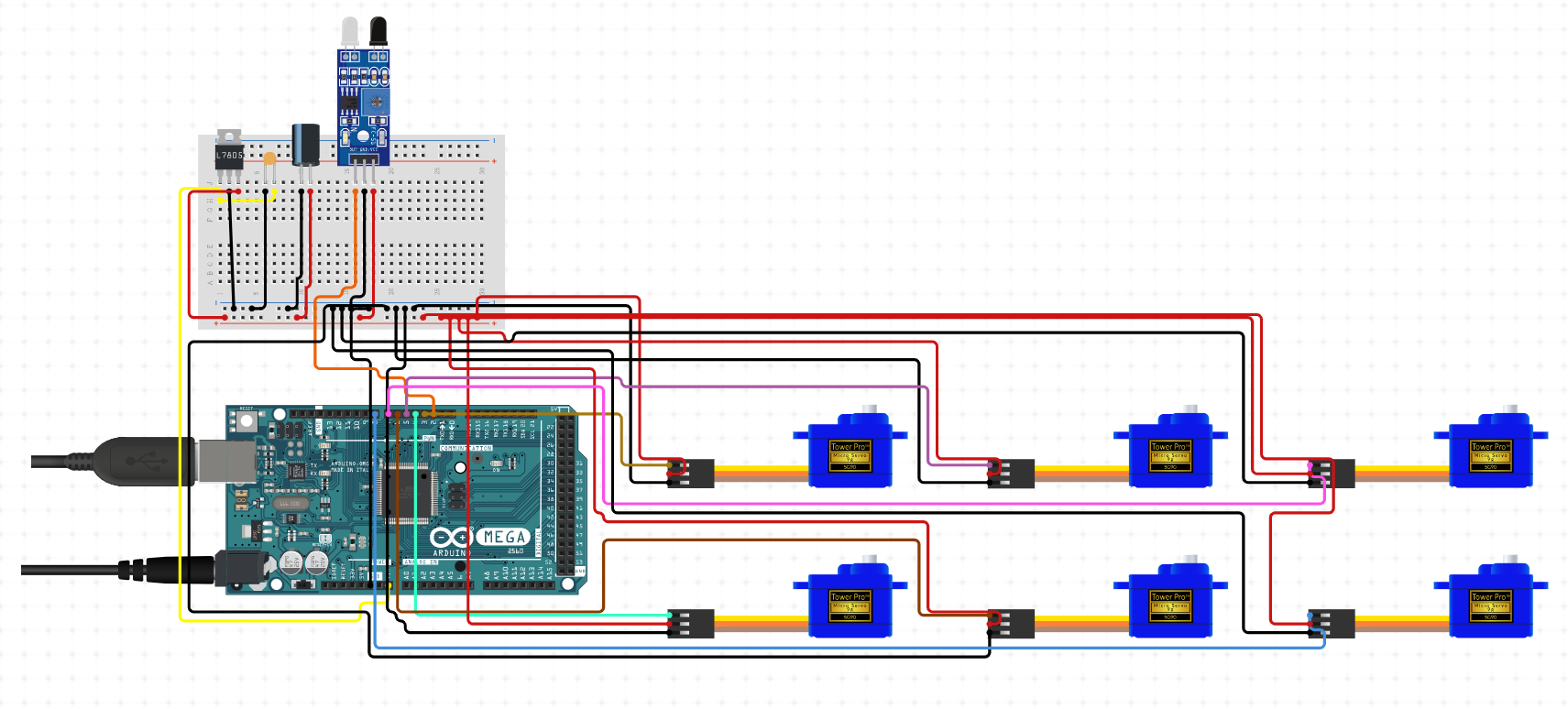

Final Circuit Design

6.4 3D Model

Servo Motor

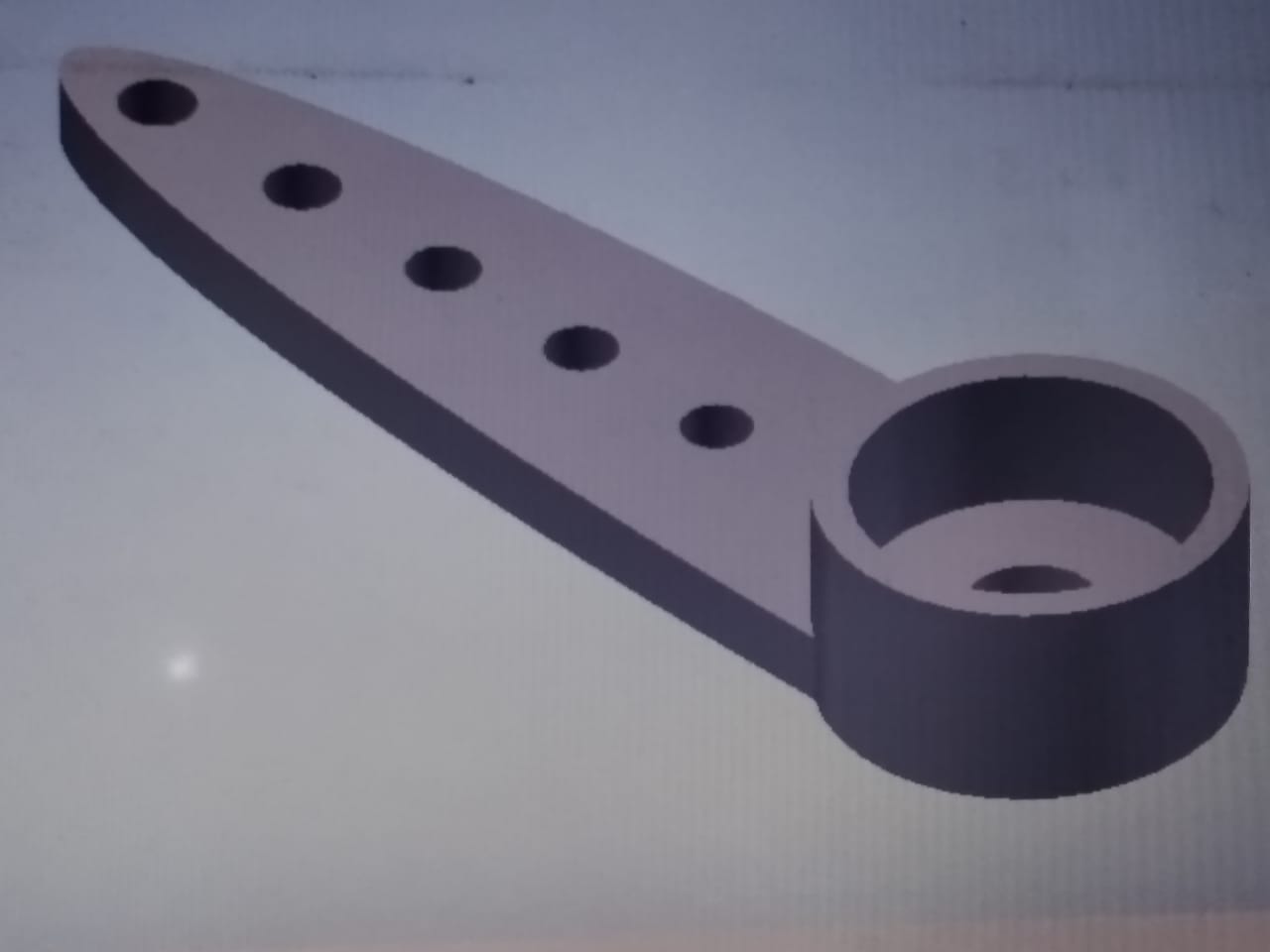

Part 1 of servo

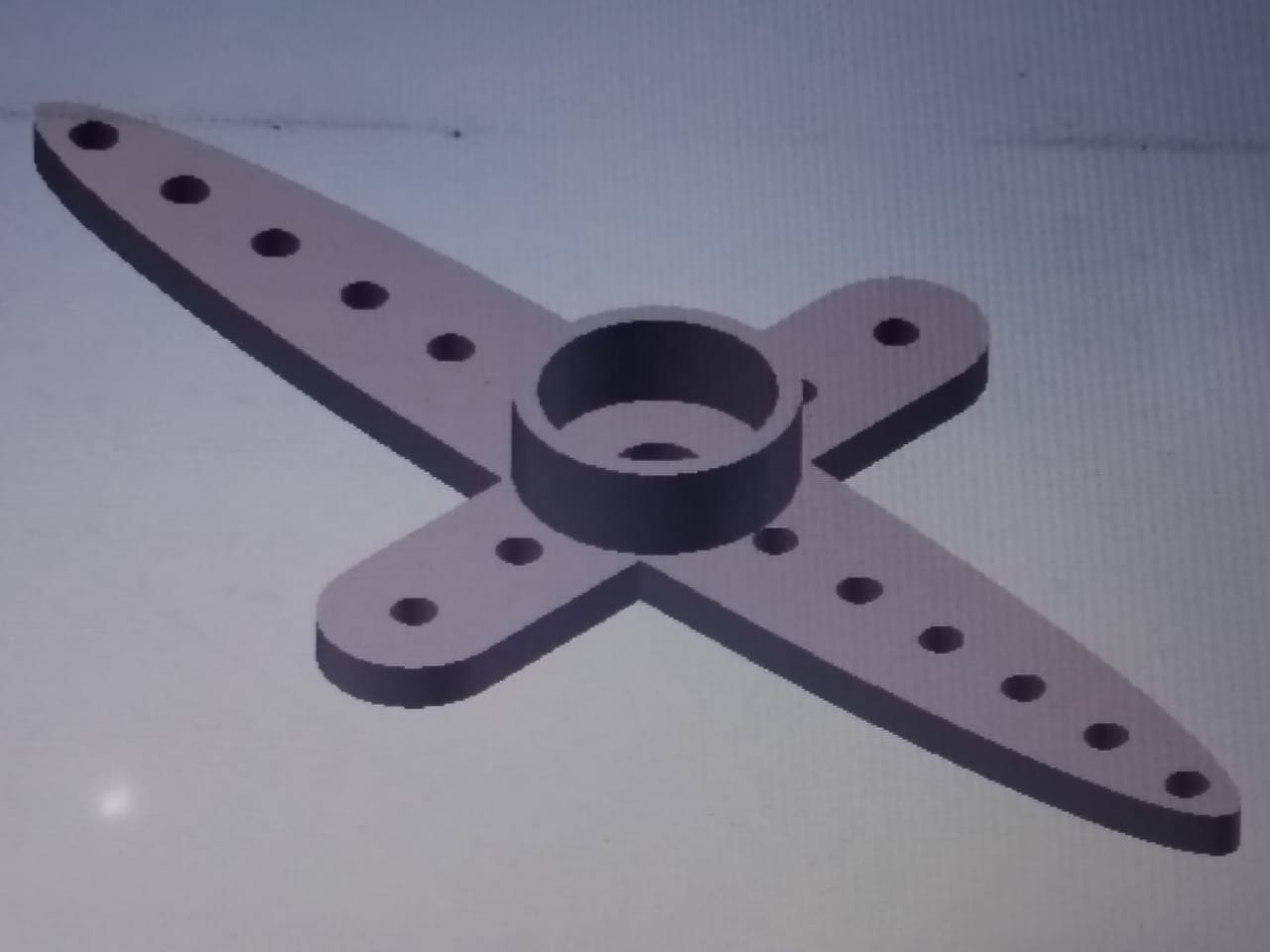

Part 2 of servo

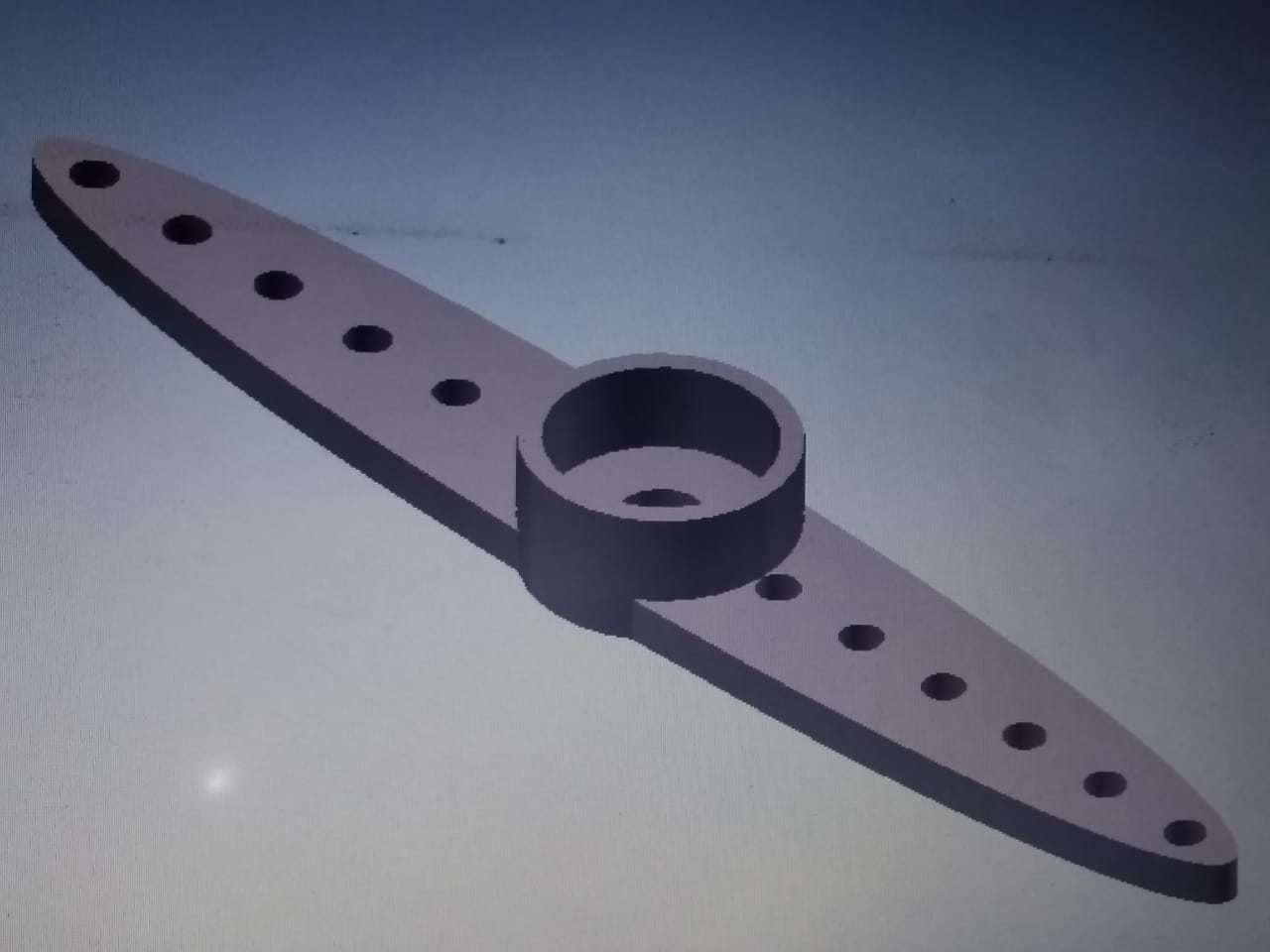

Part 3 of servo

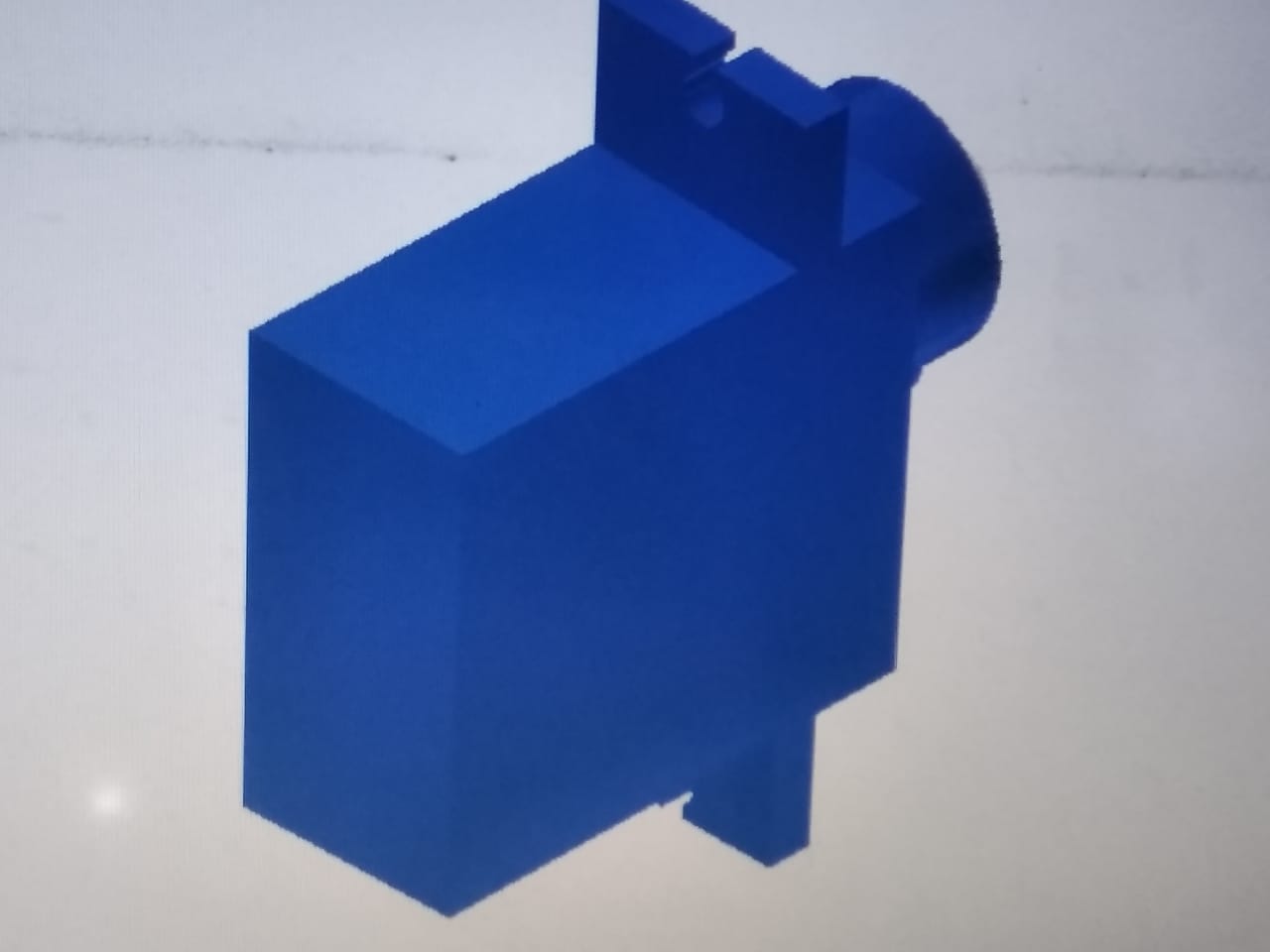

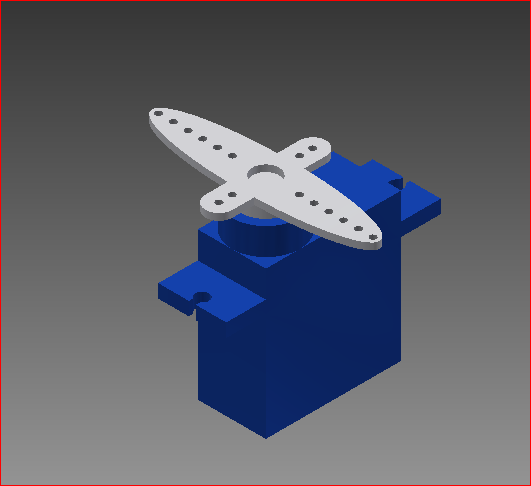

Body of servo

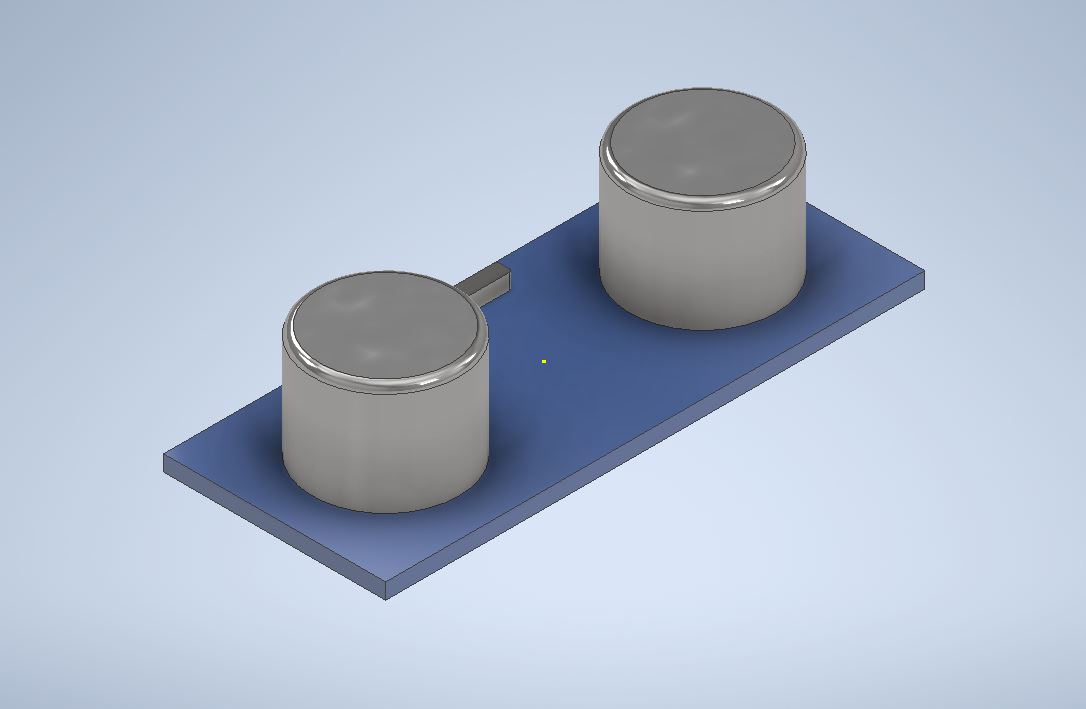

Ultrasonic Sensor

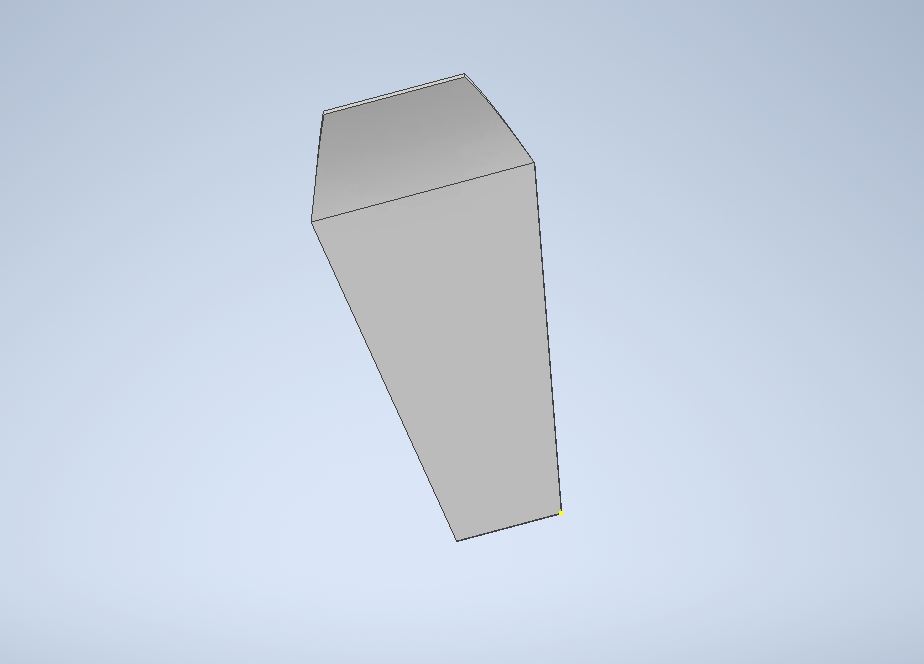

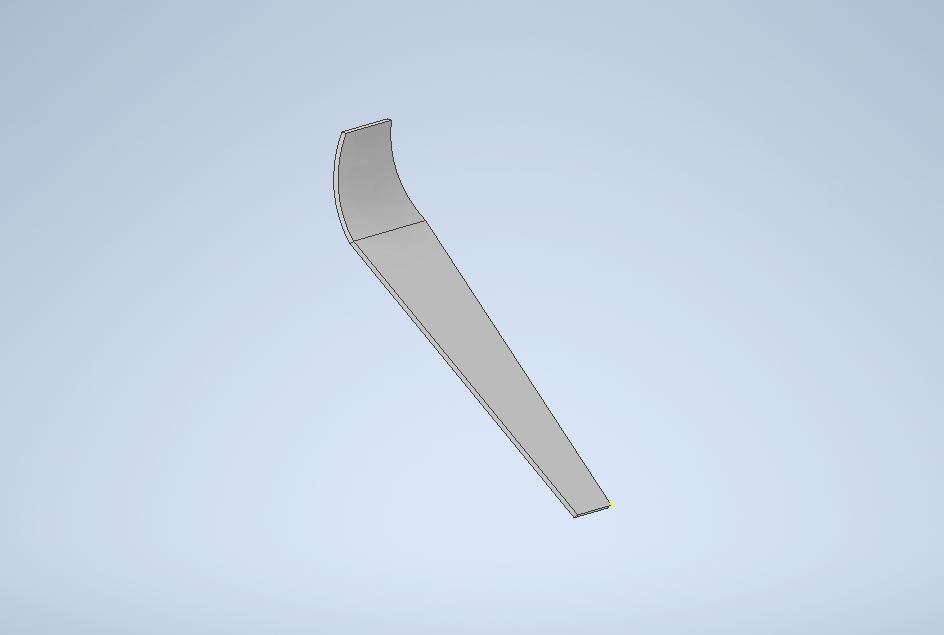

Petal

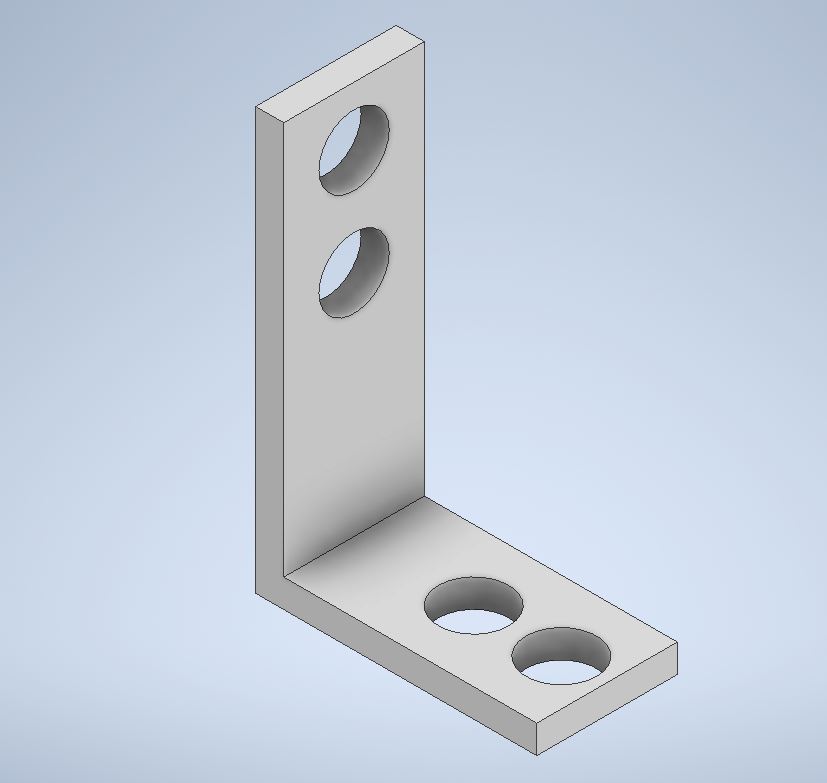

L Clamp

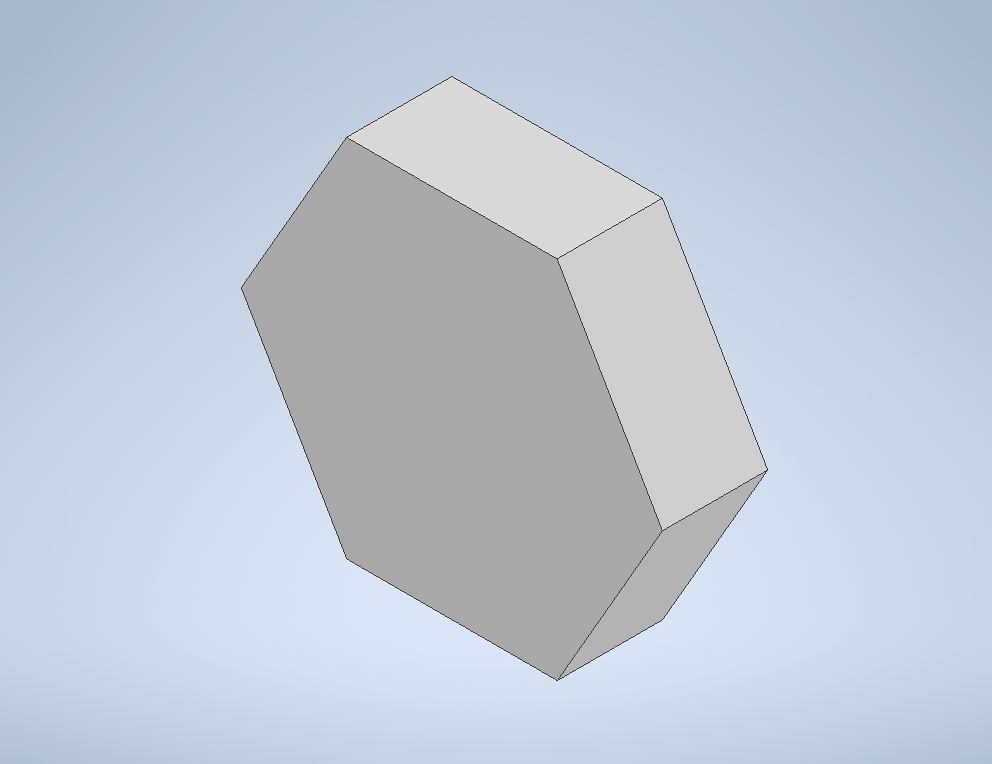

Hexagon Nut

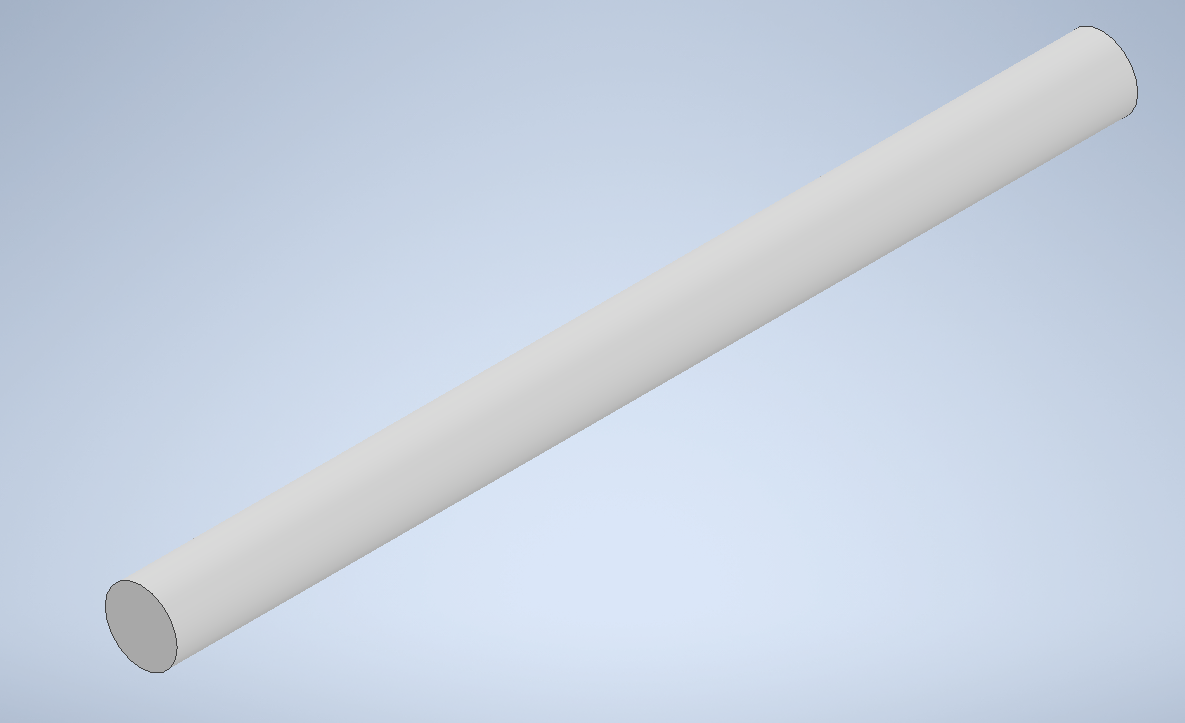

Stem

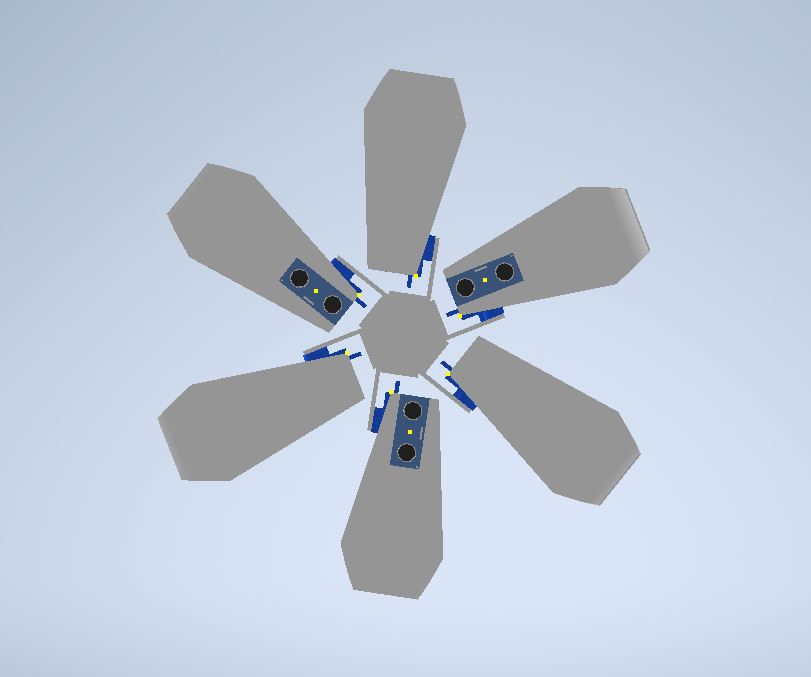

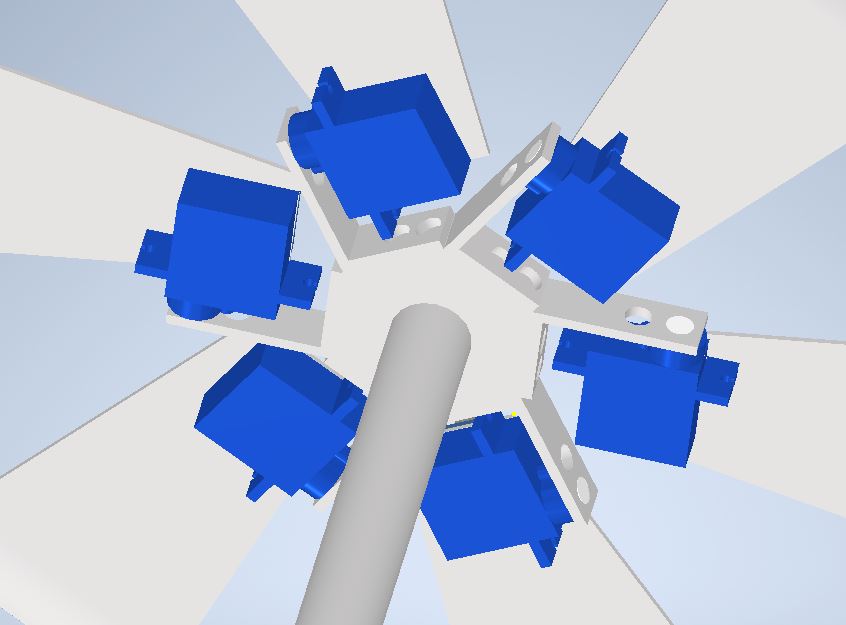

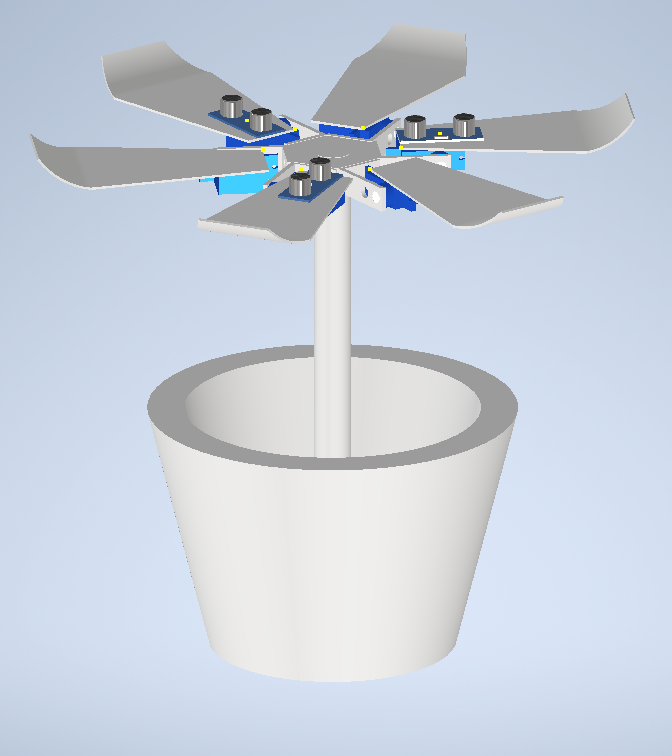

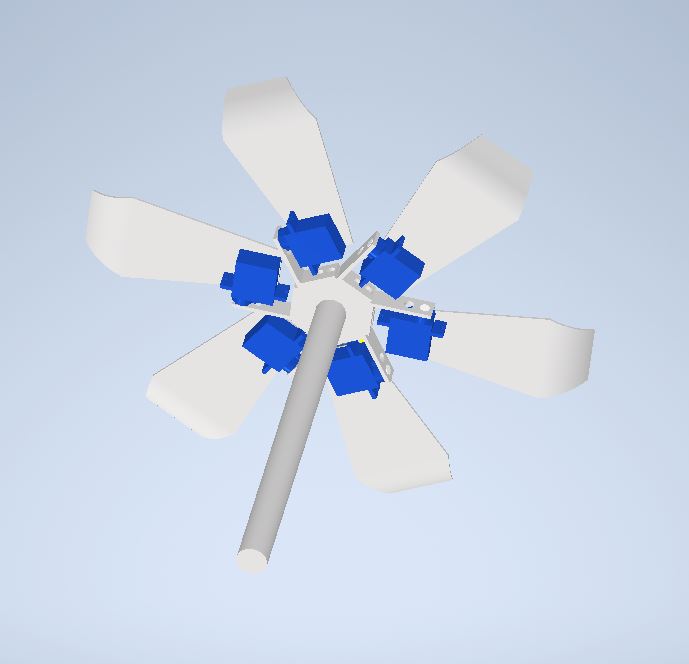

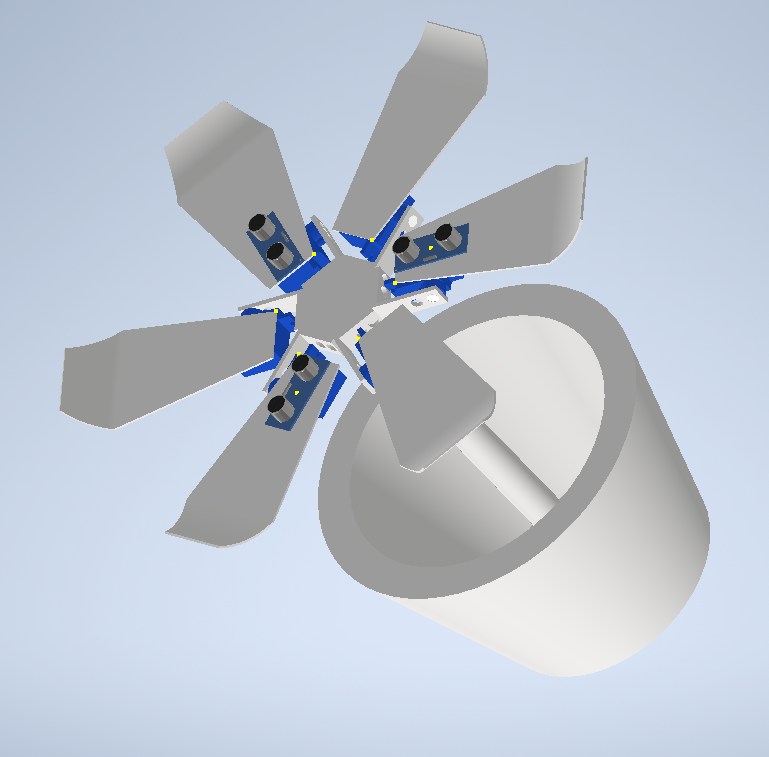

Final Assembled Prototype

6.5 Motor sizing and battery adapter

We are using servo motor for blooming of the petals.

Dimension : 244(cm) = 32cc

1. Density:1g/cc

2. U-coefficient of friction

Force required = U*mg

           = 0.3*1*2*4*4*10

           = 0.0096N

we are using 3cm long arm

Torque = 0.096 * 3 = 0.288 Ncm

FOS = 1.5

Total torque = 0.288 * 1.5 = 0.432 Ncm

SG90 servo motor is enough

Battery adapter:

petals = 6

adapter= 6* 650 rpm = 3900N

battery is 5V

FOS = 1.2

Total = 1.2 * 3900 = 4680 N/cm
