Problem definition

Design a automated machine such that it is attractive, occupy minimum space. It should be designed such that it is more efficient and consume less power. Its parts should be reusable and rust resistant. The machine should be able to sense the boxes of desired shape, size and place it into respective bins. It should also be portable. The machine should cost less than Rs5000/-. The length of the conveyor belt should be around 60cms. It should be able to carry 1 box at a time. It should be capable of lifting boxes which weighs maximum of 50gms. It should complete the work within 60 seconds. It should sense and work randomly.

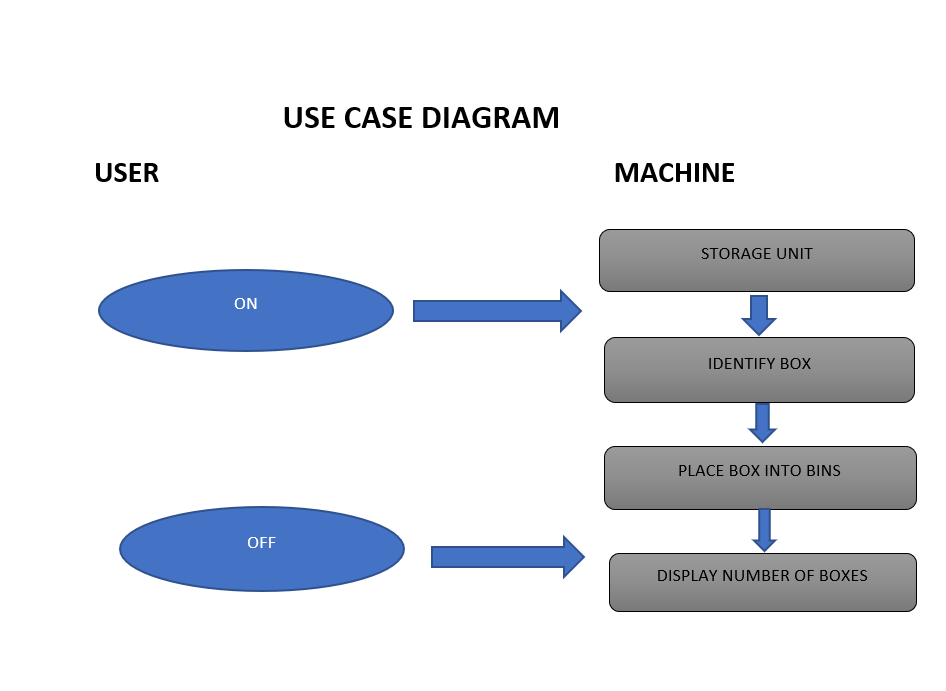

USE CASE DIAGRAM:

INPUT AND OUTPUT OF THE FUNCTION:

S.no.	INPUT	OUTPUT
1	Power supply	pick and drop box
2	switch on	display the workdone
3	Cargo box	cargo box

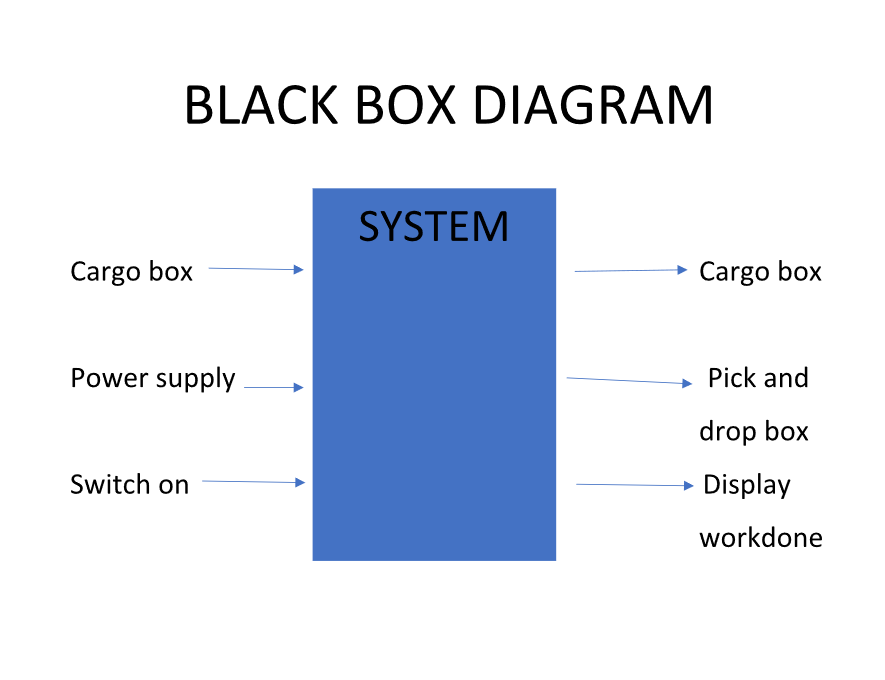

BLACK BOX:

GLASS BOX:

Morphological chart:

Sl.No	Functions	Means.1	Means.2	Means.3	Means.4
1	Storage unit	Funnel	Inclined tray	Rectangular	Cylindrical
2	Identification of boxes	color sensor	Image sensor	Bar code	Shape and size
3	Place box into bins	Robotic	Vacuum	Hook	Sliding of bins
4	Display number of boxes	LCD	Voice	Beep sound	LED
