SUBSYSTEM IDENTIFIED:

Robotic Arm

Subsystems

(1).User interface.

(2).Box storing and moving unit.

(3).Picking box and placing.

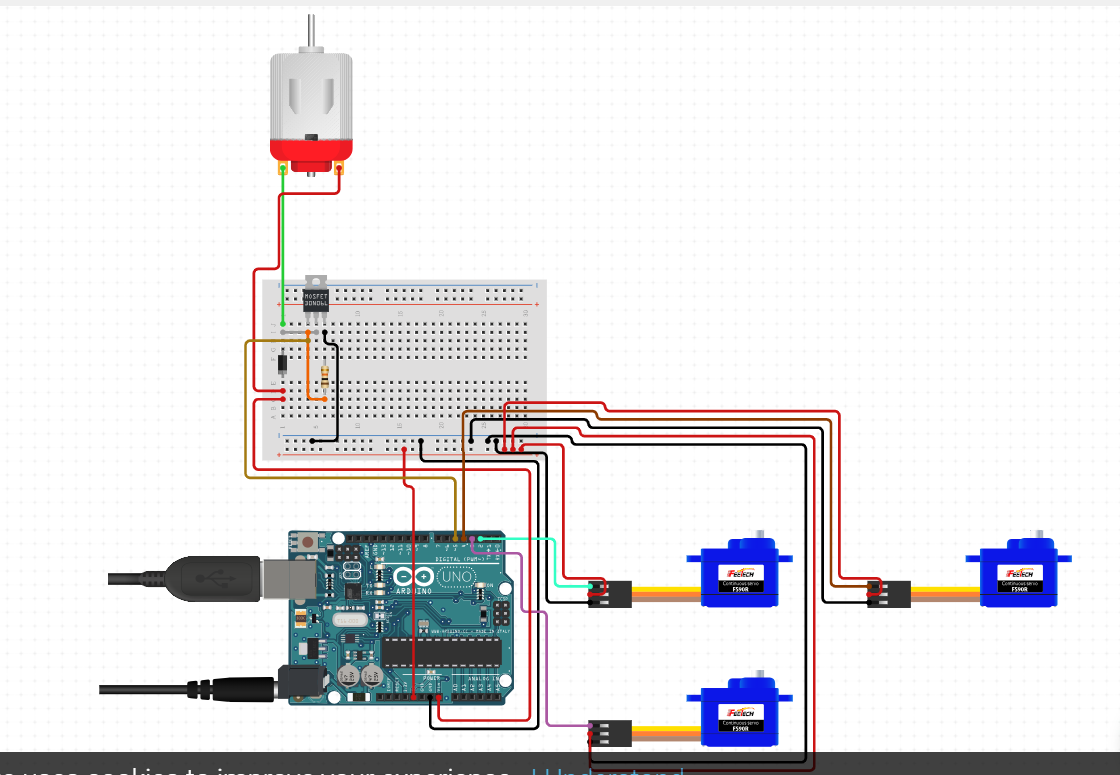

Circuit Diagram

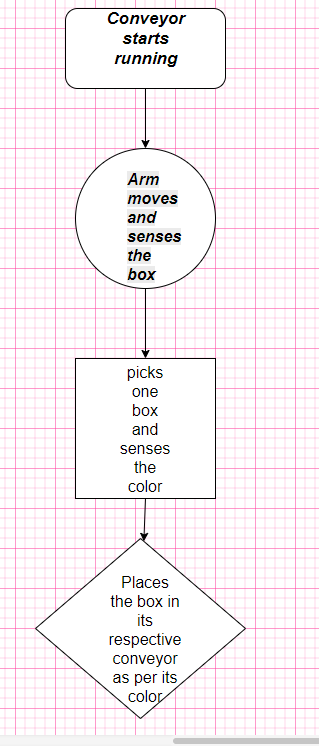

Extended flow chart

BILL OF MATERIALS(BOM)

SL.NO	NAME OF MATERIALS	MATERIALS MADE WITH	DESCRIPTION	QUANTITY	FABRICATION
1	body of robotic arm and gripper	acrylic sheet	round and tough	1	-
2	servo motor	-	-	4	-
3	nuts	iron	-	8	-
4	bolts	iron	-	8	-
5	foam sheet	-	-	1	cutting
