SUBSYSTEM IDENTIFIED:
CONVEYOR BELT

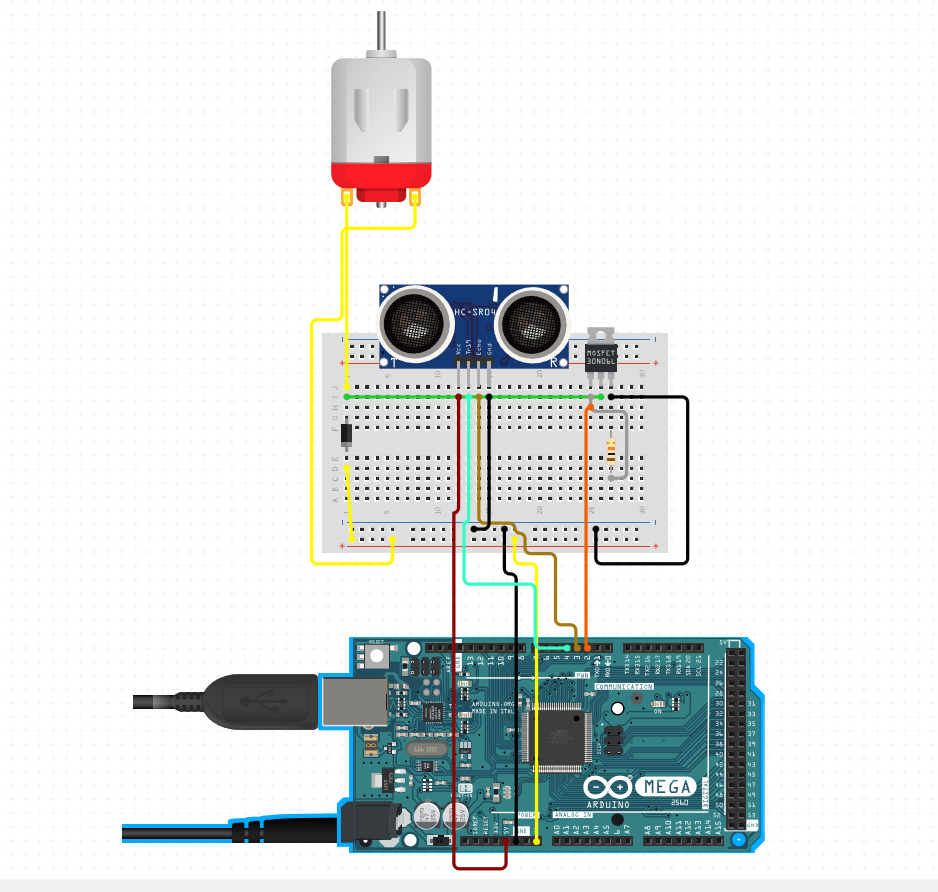

CIRCUIT DIAGRAM

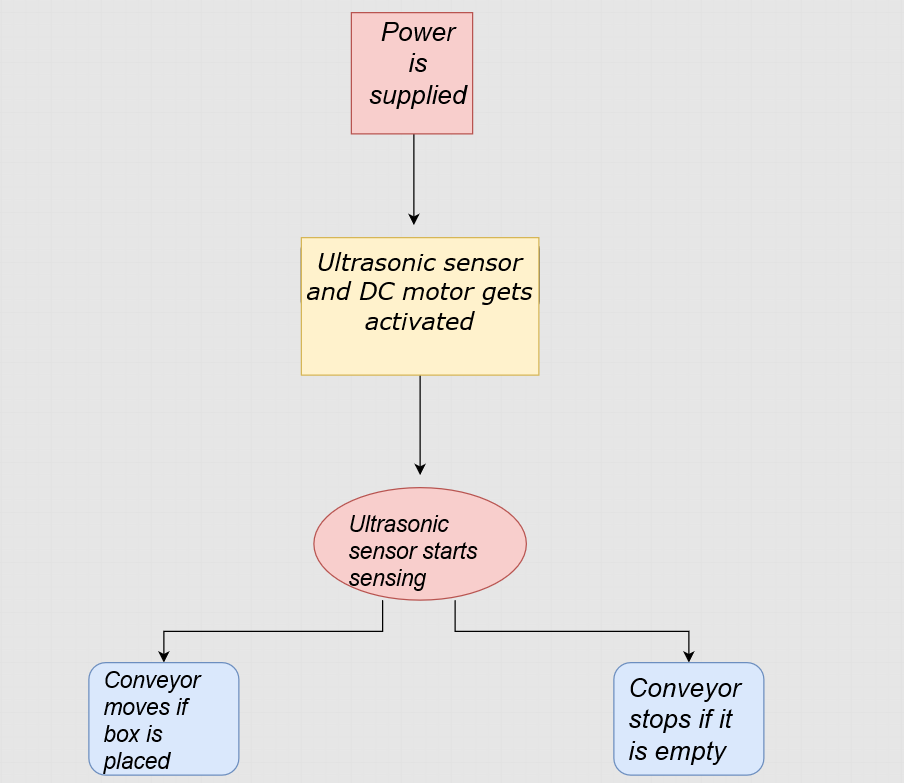

FLOW CHART
BILL OF MATERIALS(BOM)
| SL.NO | NAME OF MATERIALS | MATERIALS MADE WITH | DESCRIPTION | QUANTITY | FABRICATION |
|---|---|---|---|---|---|
| 1 | conveyor belt | crape band | 30 cm,tough and tensile | 1 | cutting |
| 2 | pulley | acrylic sheet | round and tough | 1 | - |
| 3 | dc motor | - | 30 rpm,12v | 1 | - |
| 4 | nuts | iron | - | 8 | - |
| 5 | Ultrasonic sensor | - | HC-SR04 | 1 | - |
| 6 | bolts | iron | - | 20 | - |
| 7 | Arduino Mega | - | AT2560 | 1 | - |

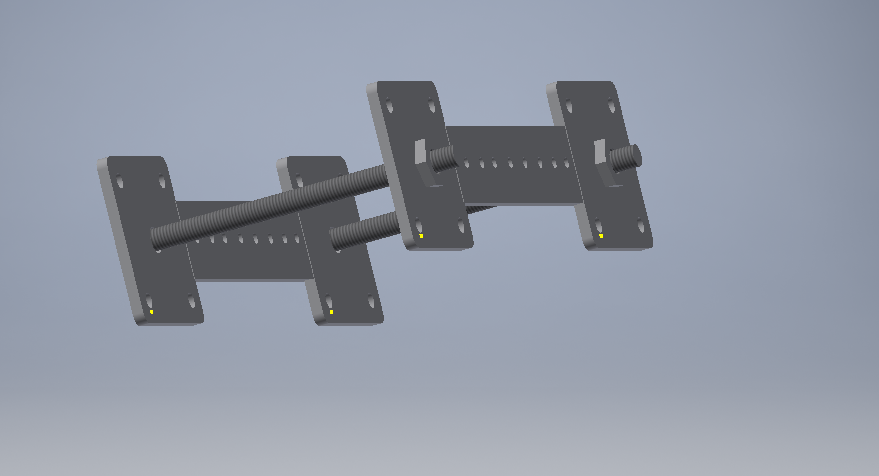

3d model
