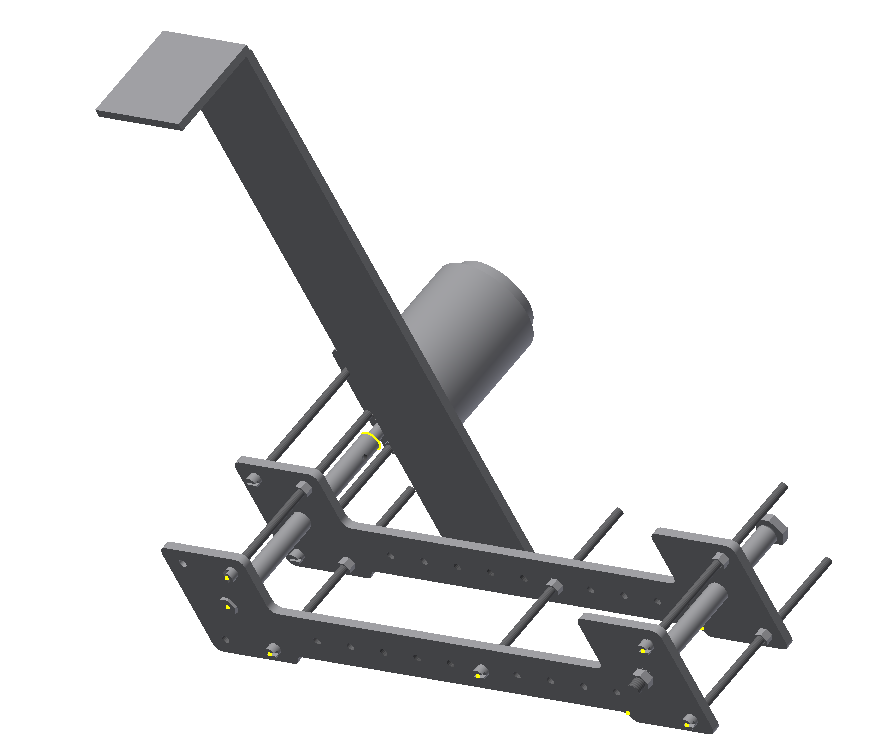

3-D model

sprint 1 1

Bill of materials

Sl.No part name material with which the part is made of description about part Quantity required
1 Ultrasonic sensors 1
2 conveyor support acrylic sheet 3mm thickness,30 cm height 1
3 ultrasonic support acrylic sheet 3mm thickness,5 cm height 1

Electronic Circuit Diagram

sprint 2

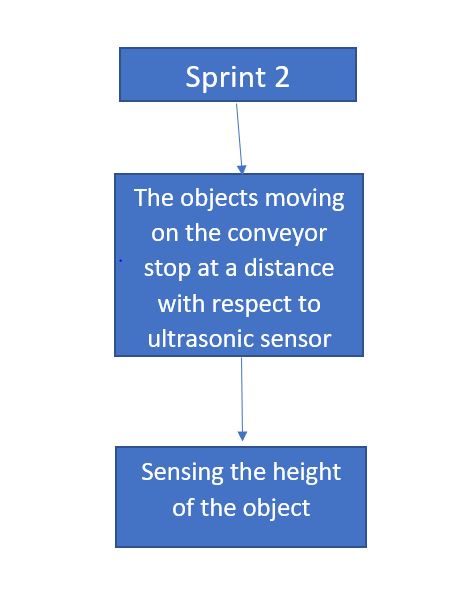

Flow Chart

sinp

Test plan

At the end of sprint 2,we made objects of different height with respect to the height of the ultrasonic sensor we placed. And we programmed accordingly to the height of the object we make.

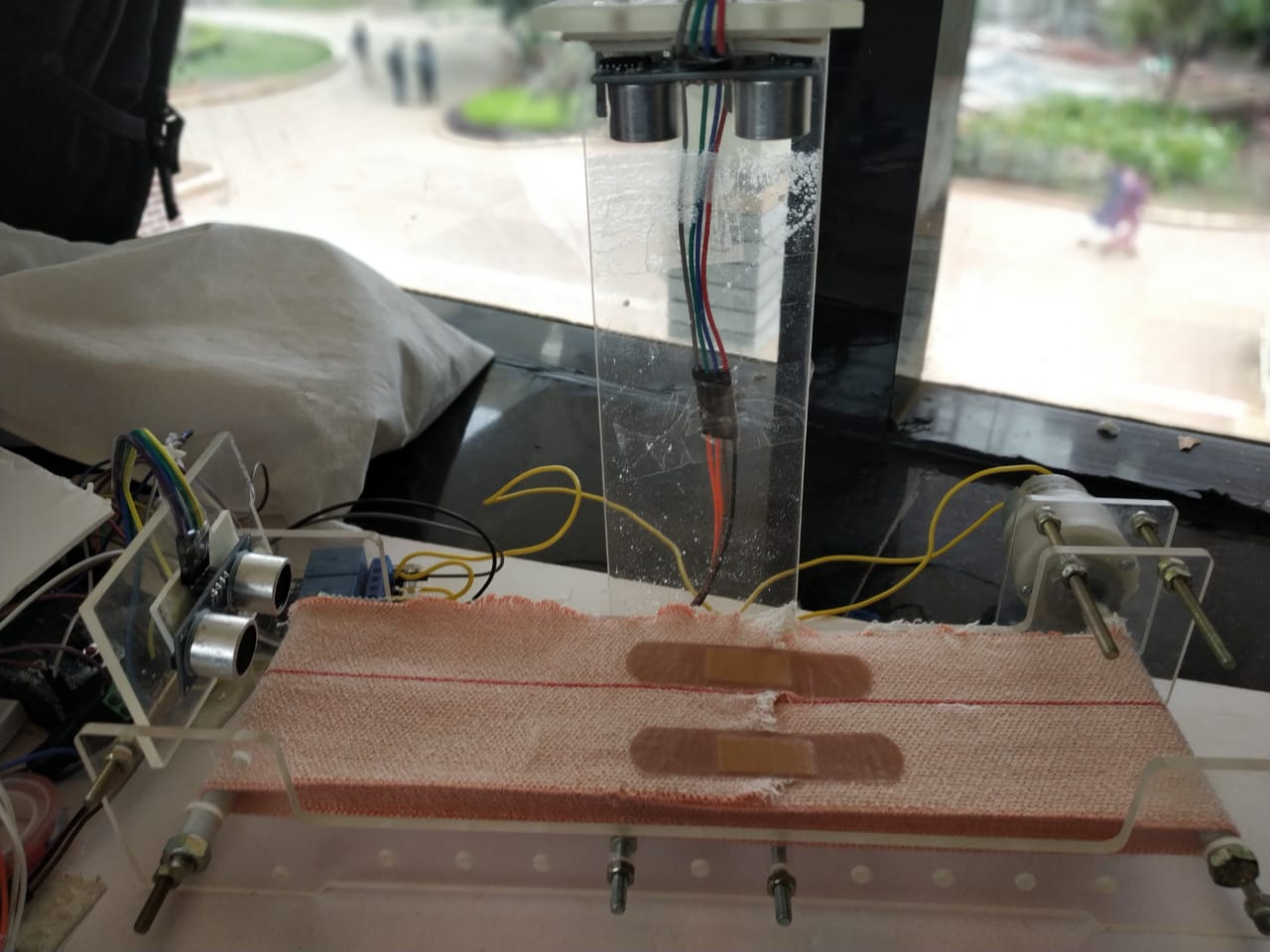

Fabricated Subsystem

whatsapp image 2018-12-05 at 12 07 25 pm

Test Results

On the conveyor belt the object coming towards the ultrasonic sensor and the ultrasonic sensor worked accordingly we programmed.
