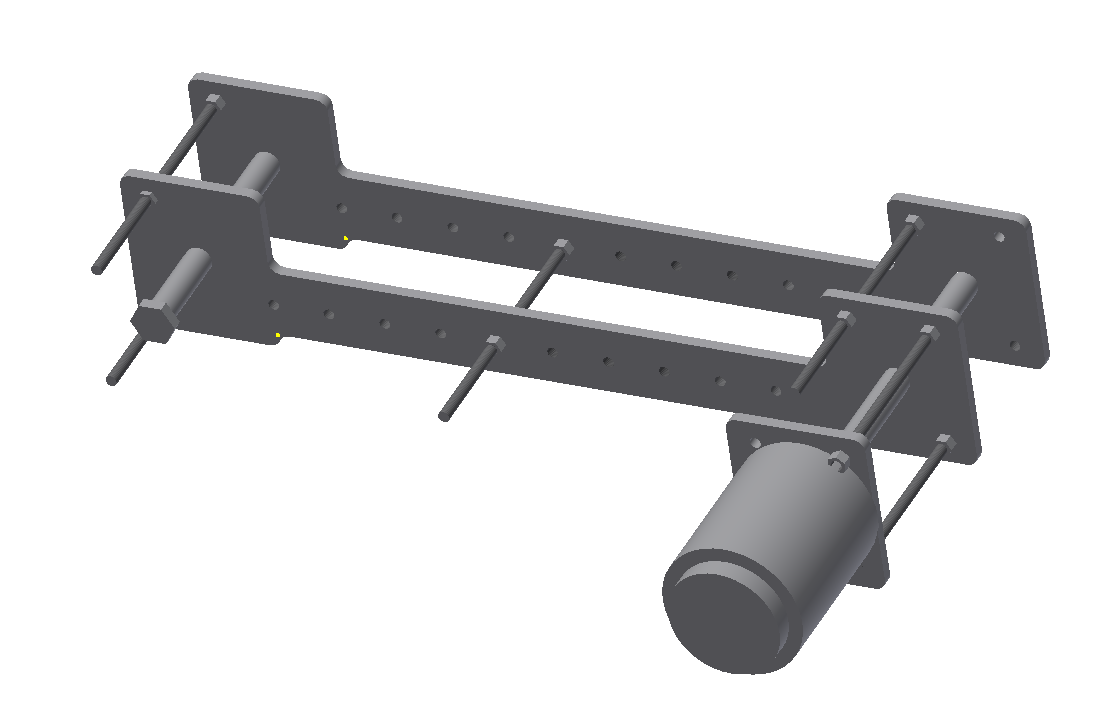

3-D Model
Bill of materials
| Sl.No | Part Name | Materials with which the part is made up of | Description about part | Quantity required |
|---|---|---|---|---|
| 1 | Conveyor Belt | Acrylic Sheet | Thickness 3mm,30cm length | 2 |
| 2 | DC support | Acrylic Sheet | Thickness 3mm,5cm length | 1 |
| 3 | Bolt | 4*75mm | 2 | |
| 4 | Bolt | 4*100mm | 5 | |
| 5 | Bolt | 6*100mm | 1 | |
| 6 | Bolt | 6*75mm | 1 | |
| 7 | Sleve | 9.5*100mm | 2 | |
| 8 | Nut | 4mm | 18 | |
| 9 | Nut | 6mm | 2 |

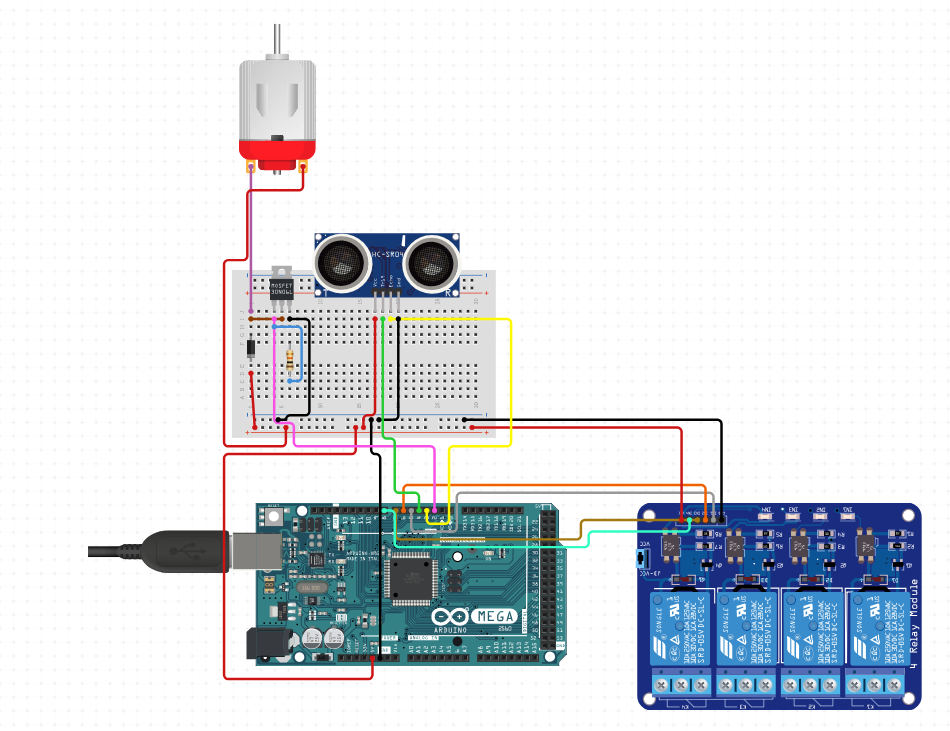

Electrical/Electronic Circuit Diagram

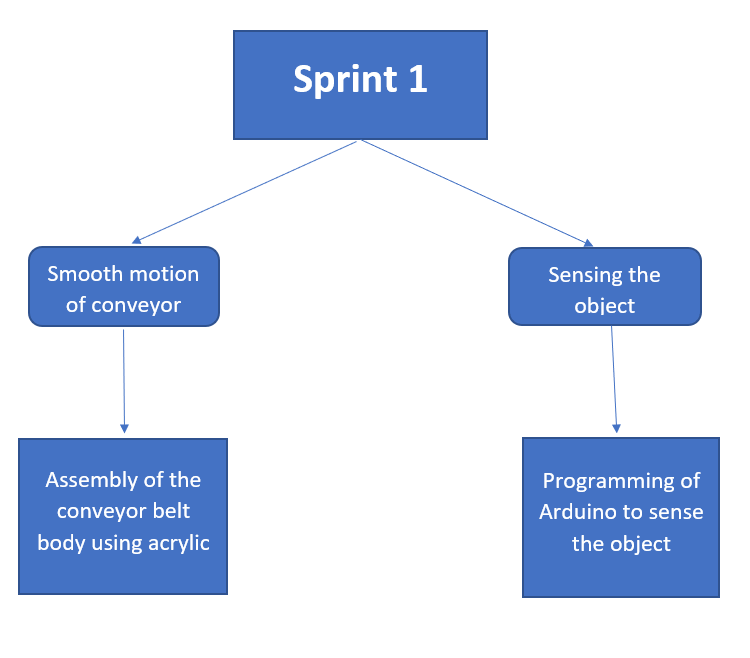

Flow chart
Test Plan
At the end of Sprint.1,we were expecting the conveyor belt to move smoothly when powered by a DC Motor and the Ultrasonic sensor to sense the distance of object from the ultrasonic sensor ,as accordingly programmed. So when the integration of Sprint 1 is done we were expecting the above mentioned functions to be achieved.

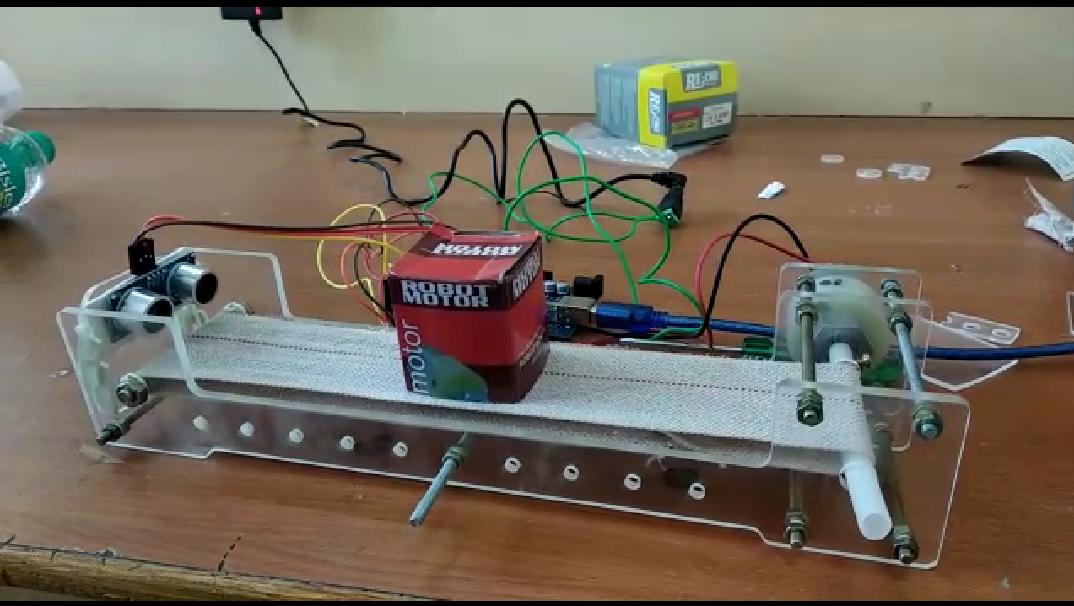

Fabricated subsystem
Test Results
During testing phase of subsystem 1,we wanted to see if the conveyor belt was working properly and the ultrasonic sensors were functioning properly as programmed.The results were as expected as the conveyor belt did function properly and the Ultrasonic sensor worked equally well.
