Below are the identified and prioritized Objects
-
Pick and Place Robot should be easy to carry
-
Pick and Place Robot should be easy to use
-
Pick and Place Robot should be User friendly
Assign the weightage for the stated objectives
| Objectives | Weightage |
|---|---|
| User Friendly | 8 |
| Easy to Use | 9 |
| Easy to carry | 7 |
PUGH CHART
| Objectives | Concept 1 | Concept 2 | Concept 3 | Concept 4 |
|---|---|---|---|---|
| User Friendly | + | Datum | ++ | + |
| Easy to Use | ++ | Datum | + | -- |
| Easy to carry | - | Datum | 0 | 0 |
| + Score | 26 | 0 | 25 | 8 |
| - Score | 7 | 0 | 0 | 18 |
| Total | 19 | 0 | 25 | -10 |
The Best Selected Concept is Concept 3
Justification
| Concept no | Objectives | Score Given | Justification |
|---|---|---|---|
| 1 | User Friendly | + | It is Light Weight |
| 1 | Easy to Use | ++ | It is easy to operate |
| 1 | Easy to carry | - | It can be carried easily |
| 2 | User Friendly | DATUM | ------------------- |
| 2 | Easy to Use | DATUM | --------------------- |
| 2 | Easy to carry | DATUM | ------------------- |
| 3 | User Friendly | ++ | -------------------- |
| 3 | Easy to Use | + | It is easy to operate |
| 3 | Easy to carry | - | It is to carry |
| 4 | User Friendly | + | It is Light Weight |
| 4 | Easy to Use | + | It is easy to operate |
| 4 | Easy to carry | -- | It can"t be carried easily |
Product Architecture

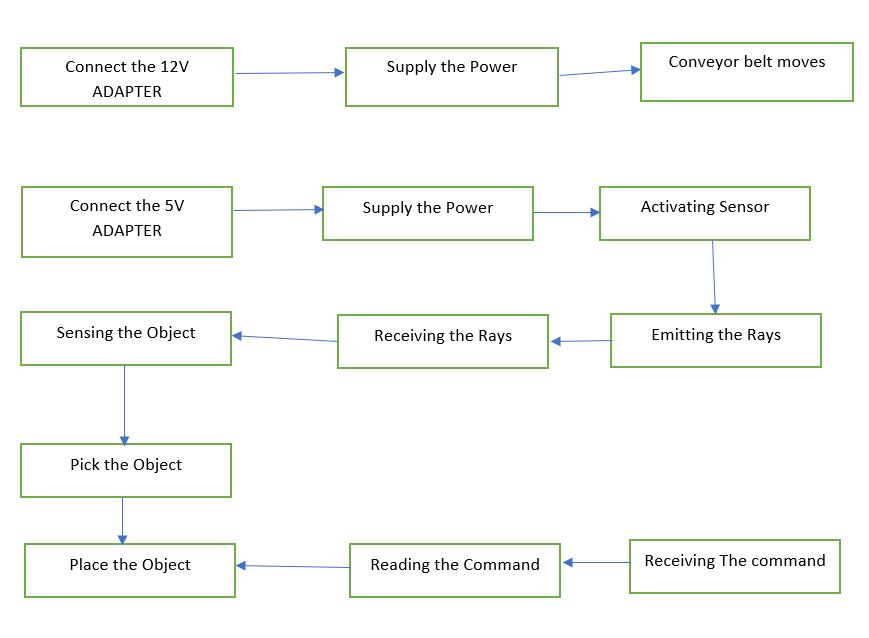

Creation of functional structure

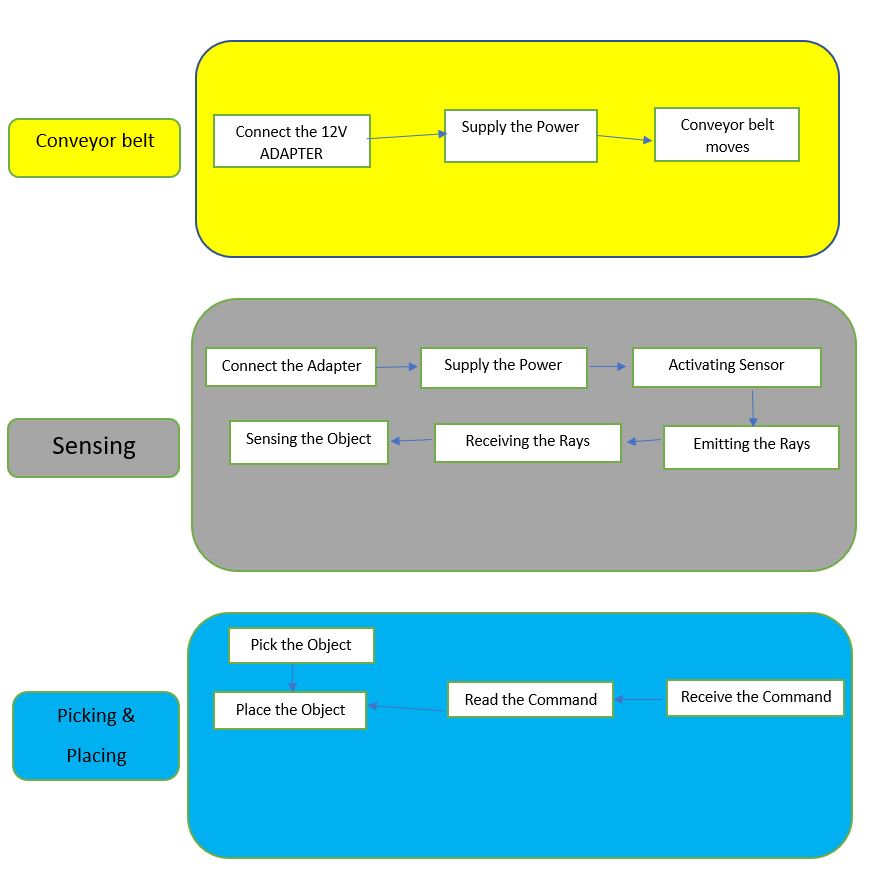

Clustering of associated functions and subfunctions

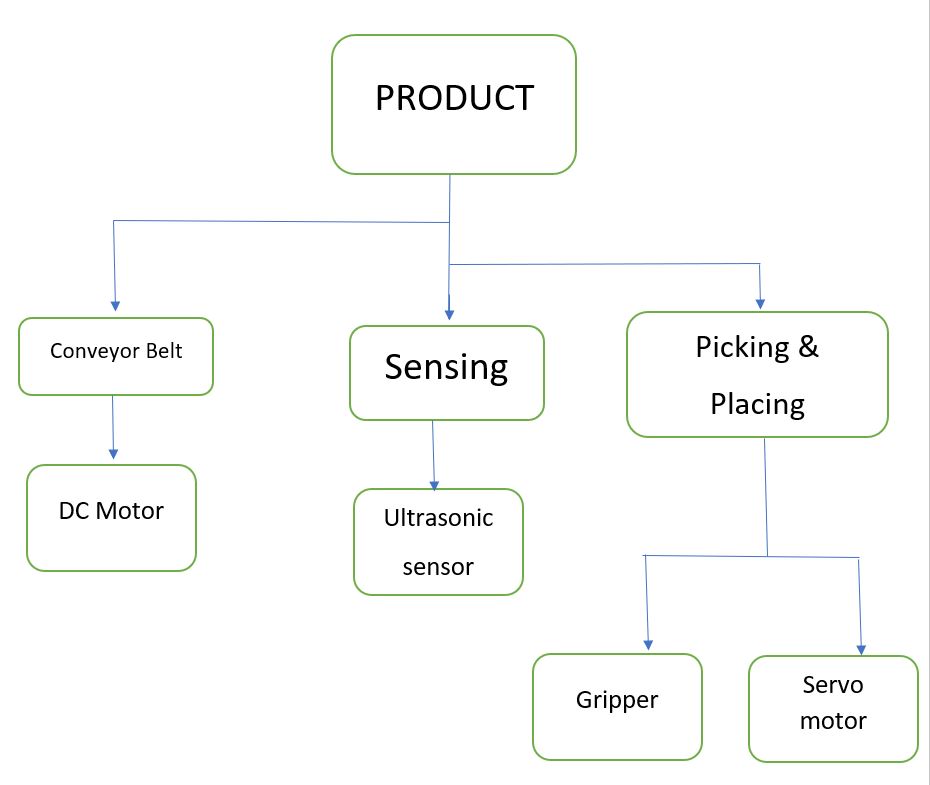

Component Hierarchy

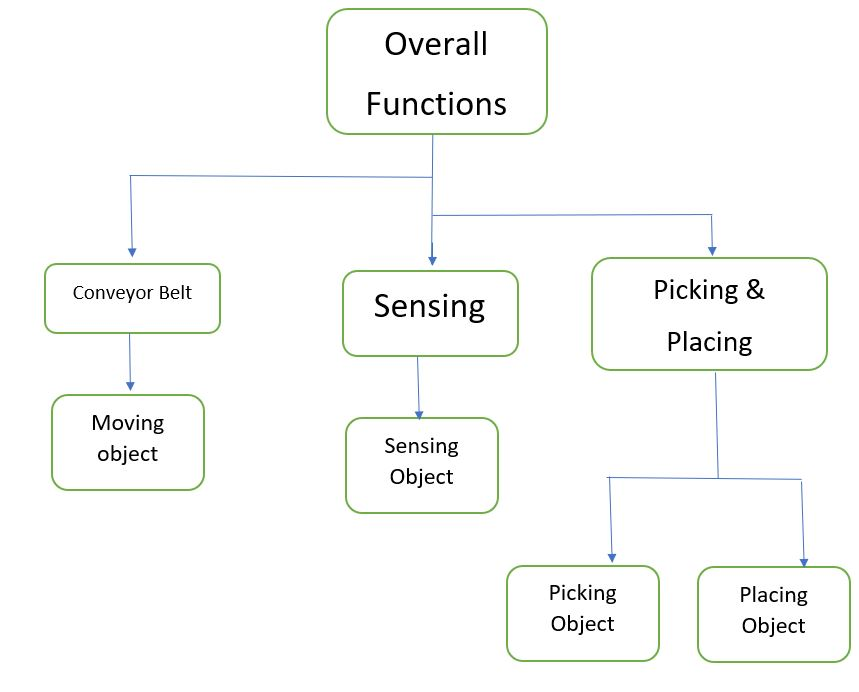

Functional Structure

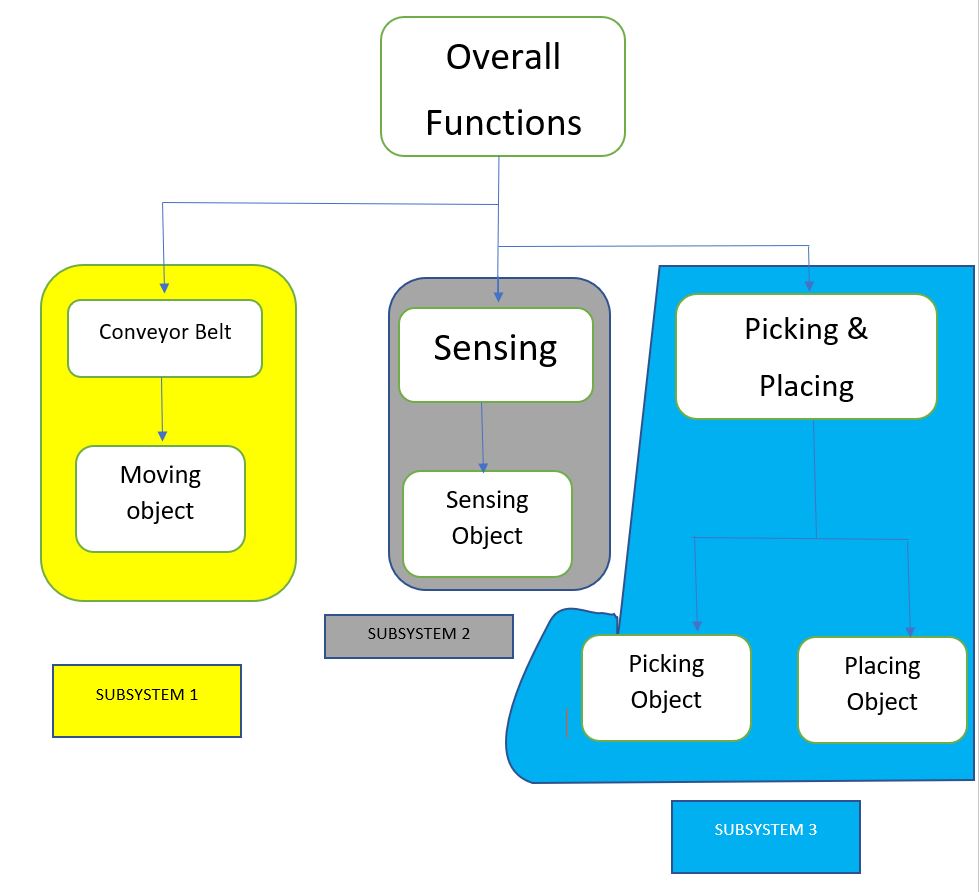

Clustering of Functional Sturcture
