3.1 Establishing Functions

Sr No Functions
1. Movement of gears
2. On-off system
3. Dancing dolls
4. Indication after completion
5. Playing music

3.2 Function Tree


3.3 MORPHOLOGICAL CHART

SL NO SUBFUNCTION MEAN 1 MEAN 2 MEAN 3 MEAN 4

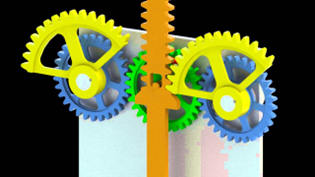

1. Movement of gears Bevel gearimage Chain driveimage Ball screwimage Gearimage
2. Movement of thread Stepper motorimage servo motorimage small ic engineimage Dc motorimage
3. Indication after completion LED lightimage Neon lampimage florocent lightimage Speakerimage
4. Music play sensors proximity sensorimage Infrared sensorimage IR sensorimage Sound sensorimage
5. Dancing dolles mechanism Cam mechanismimage Gear mechanismimage image image

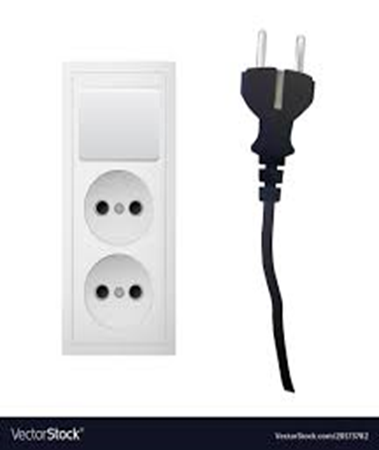

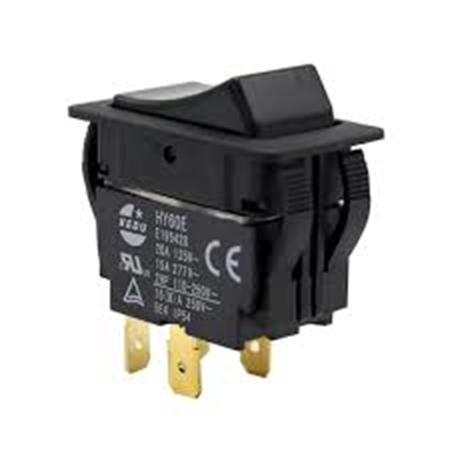

6. On-off system Buttonimage Swich and plugimage

Designs

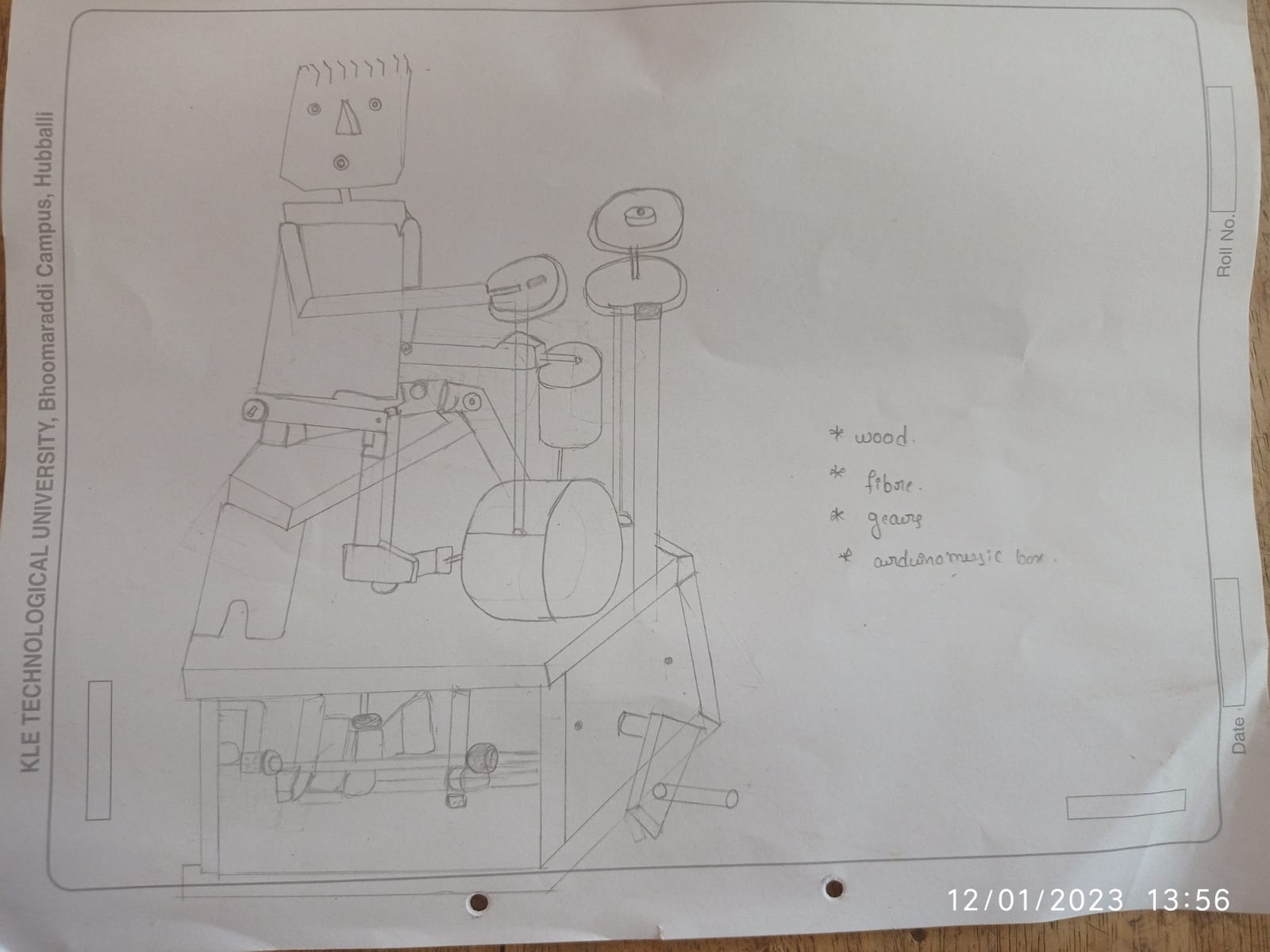

Design 1 Timberkits Drummer.

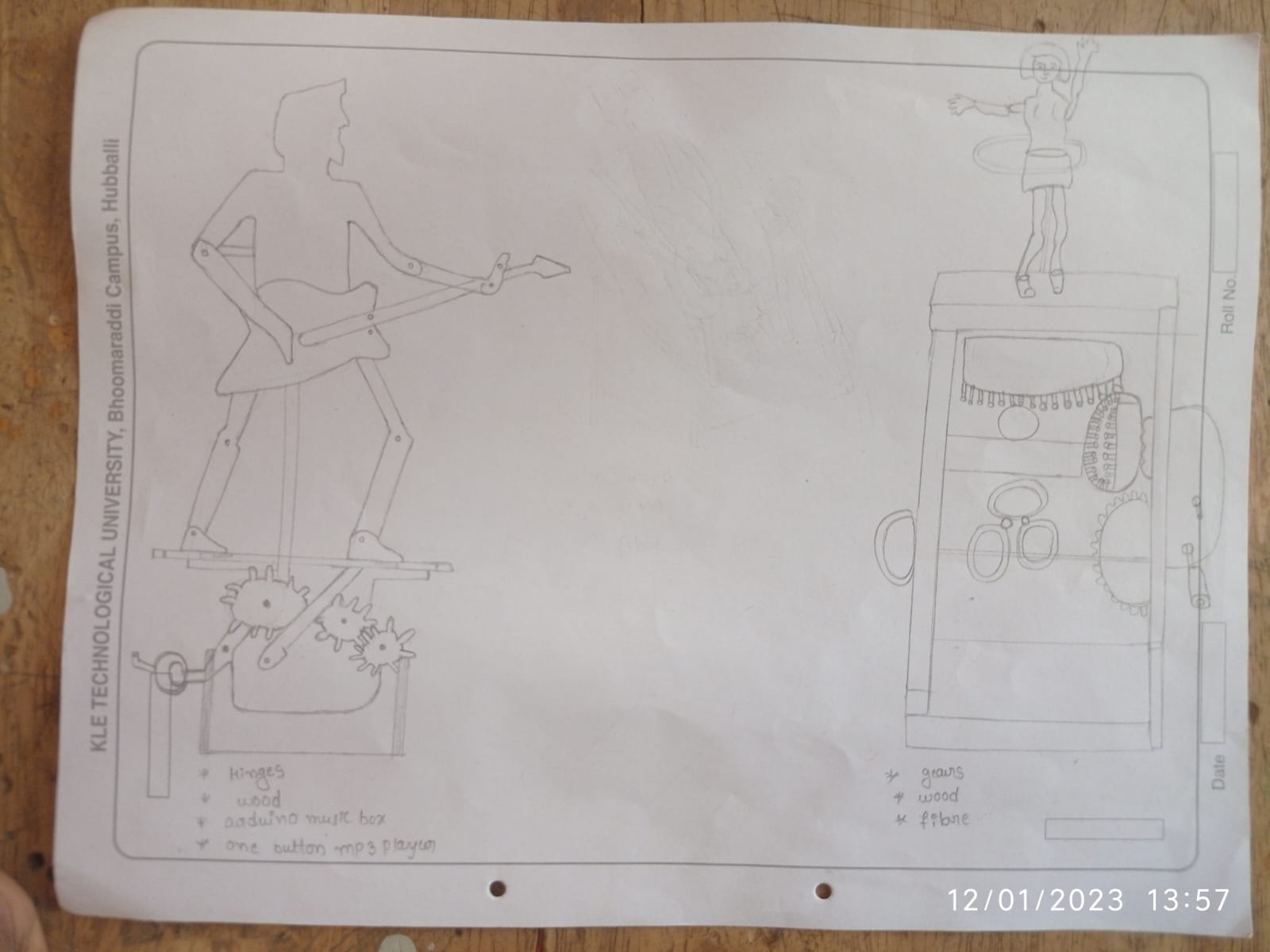

Design 2 Automaton Guitarist and Dancing girl .

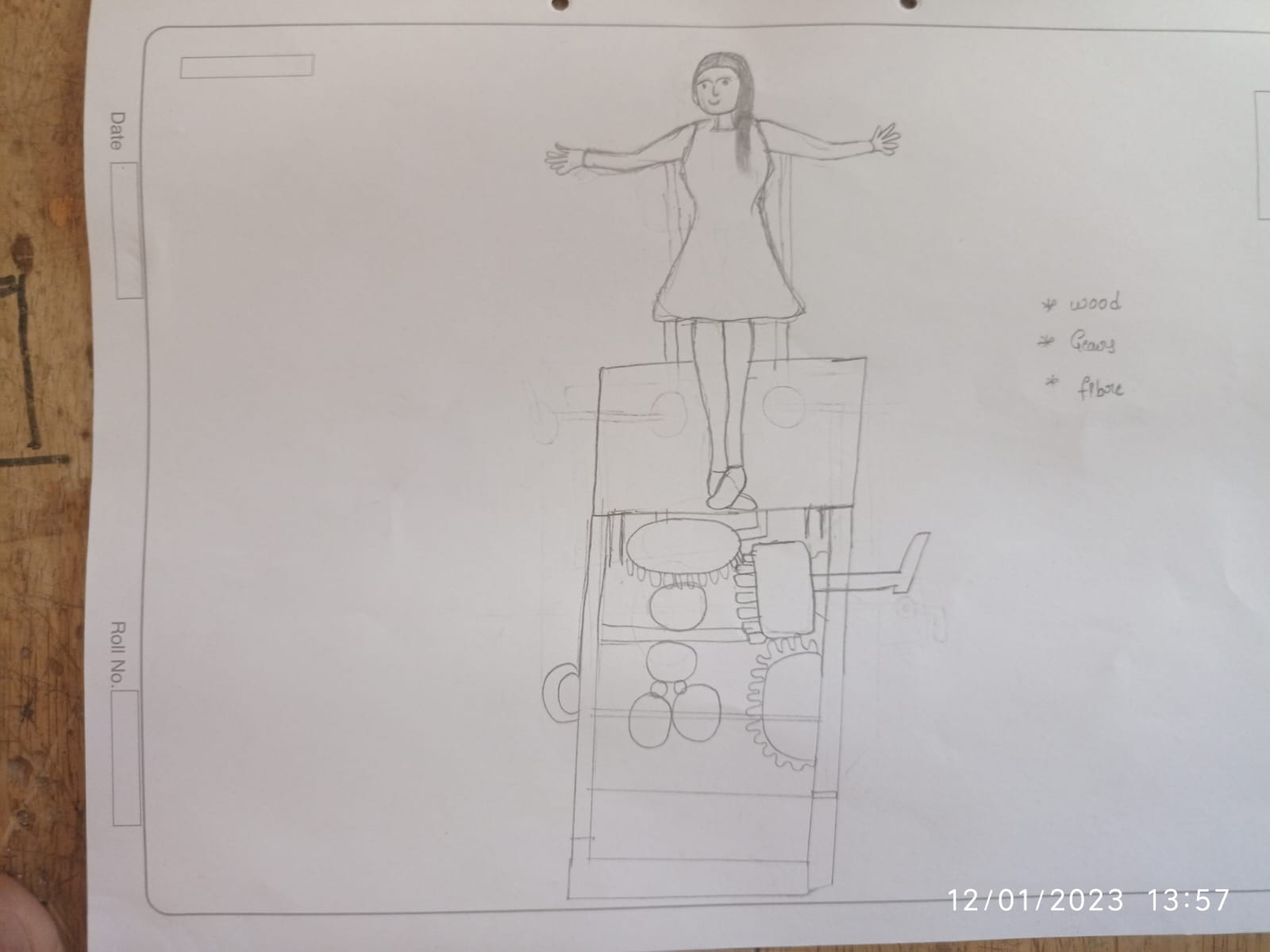

Design 3 Dancing girl.

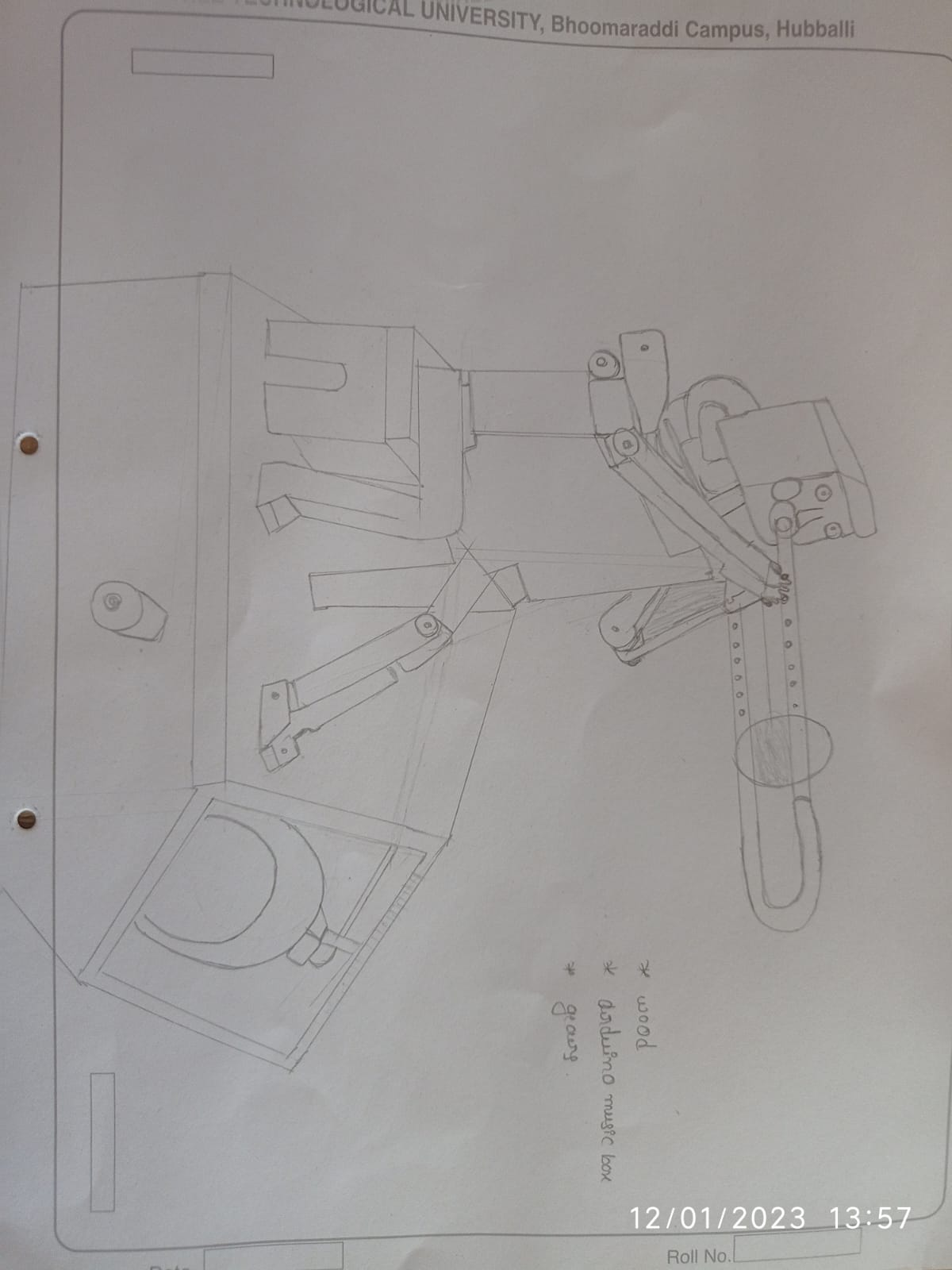

Design 4 Flute Artist.
