6. VIRTUAL IMPLEMENTATION - E-division-2021-2022-odd/Repo-05 GitHub Wiki
6.1 3D MODELING

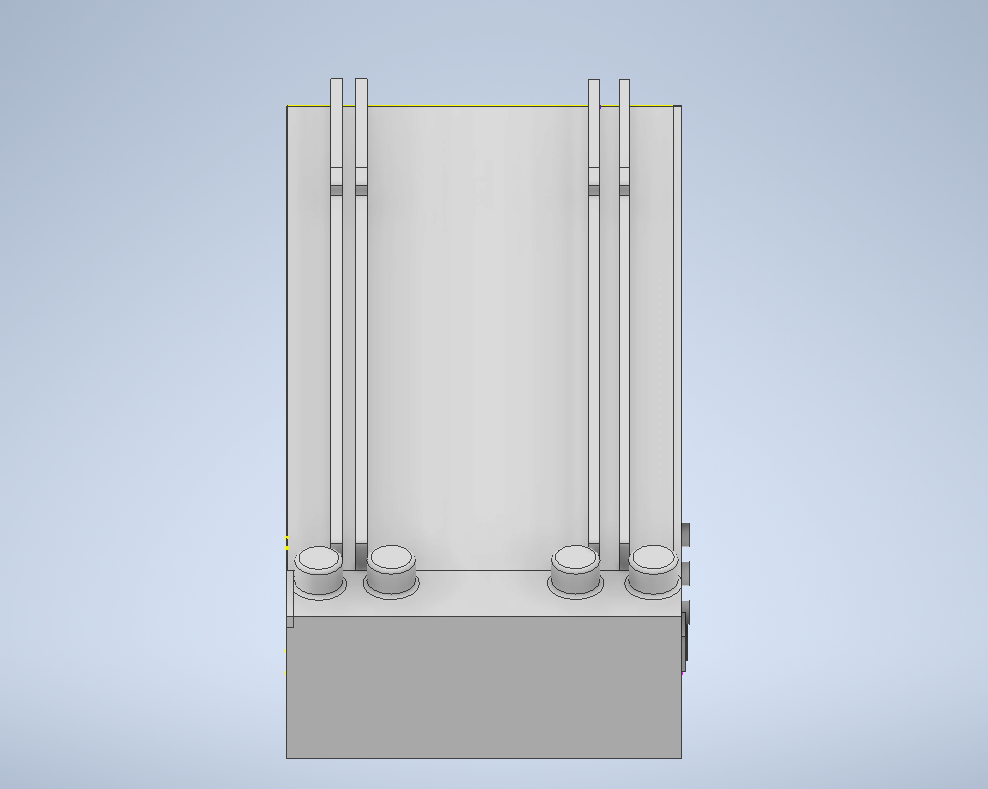

LAUNCHING UNIT

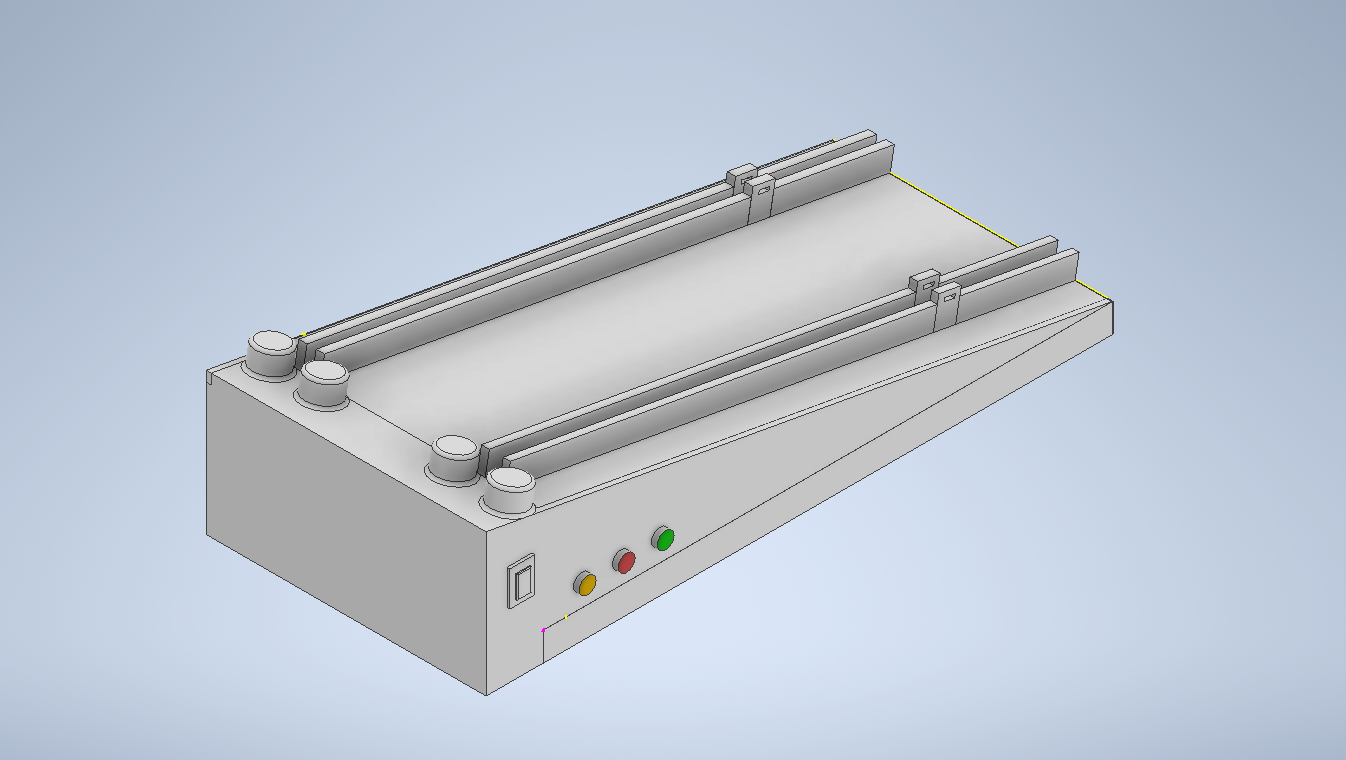

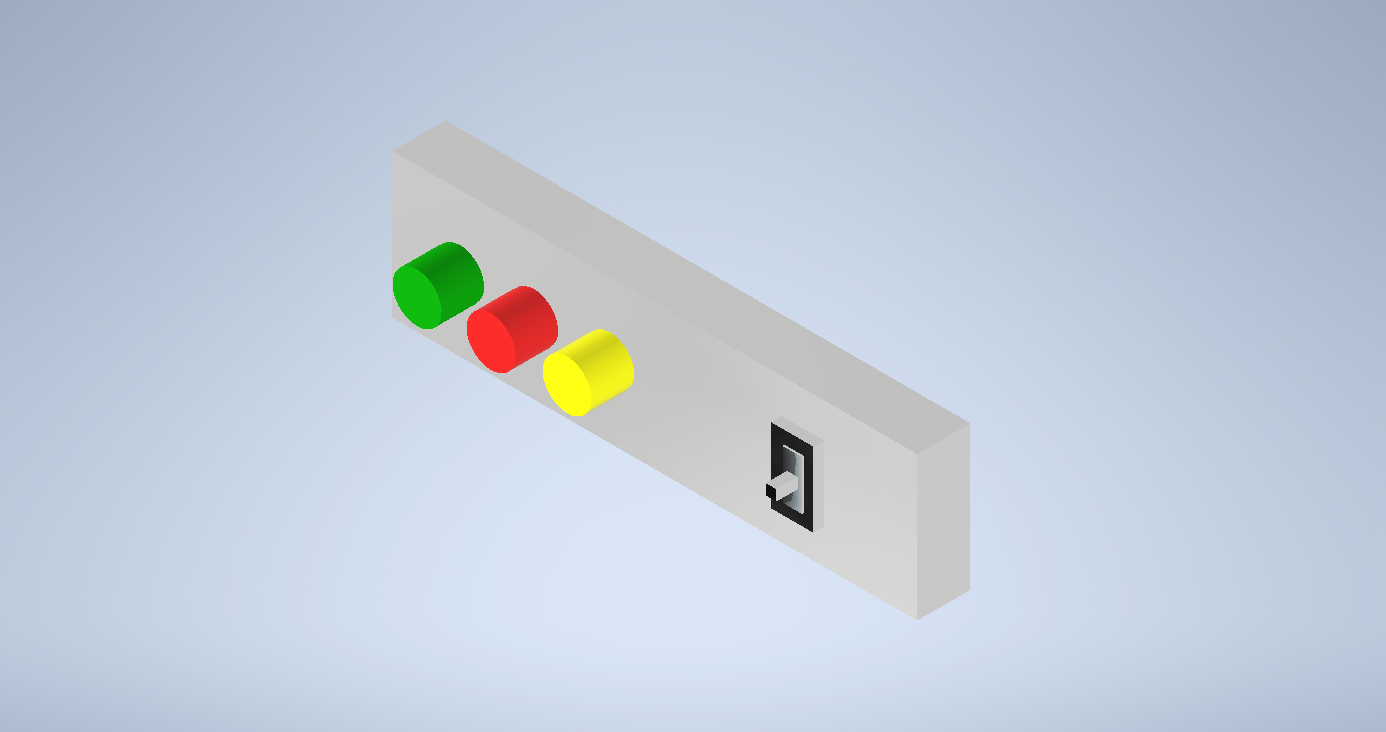

INDICATION UNIT
6.2 CIRCUIT DIAGRAM

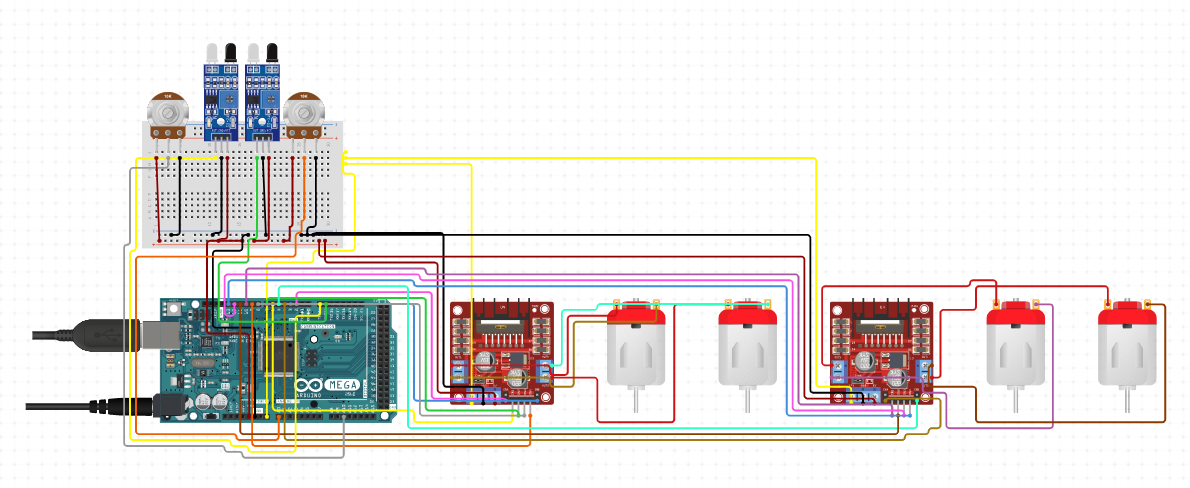

LAUNCHING UNIT
circuit

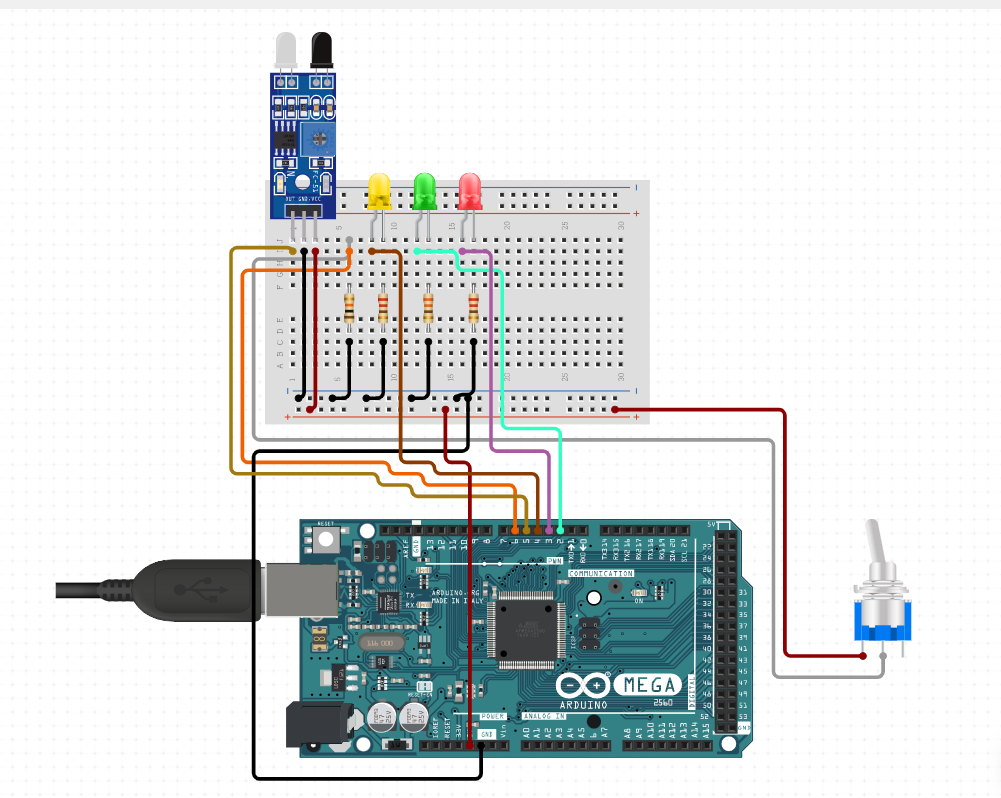

INDICATION UNIT

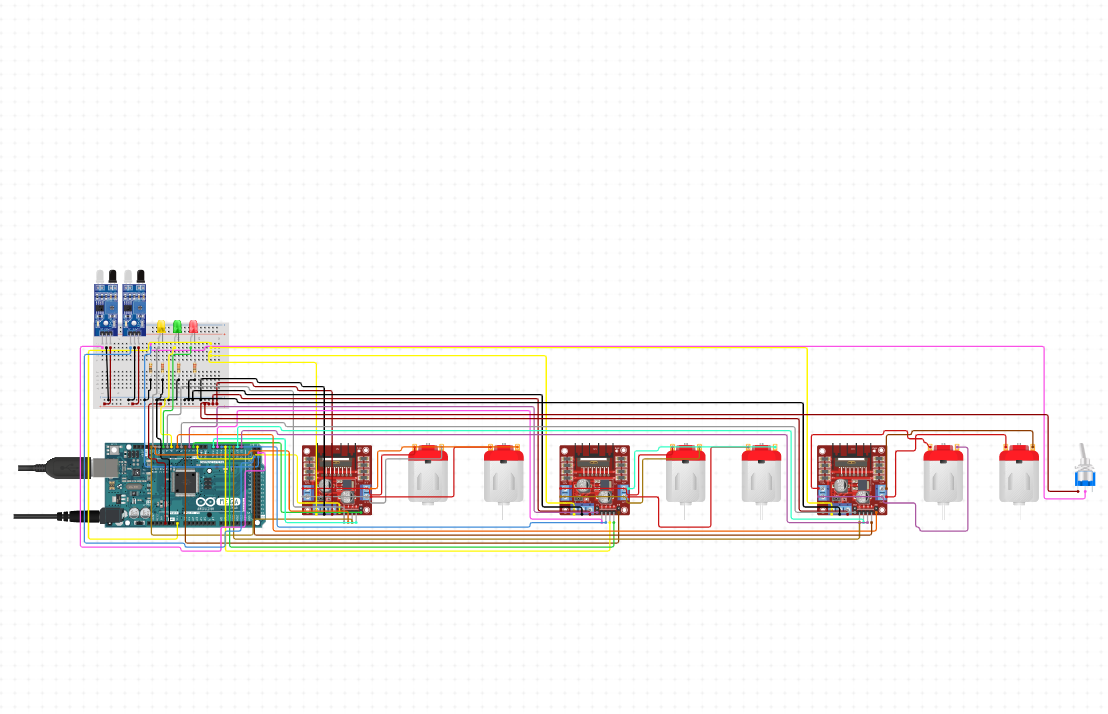

FINAL CIRCUIT DIAGRAM

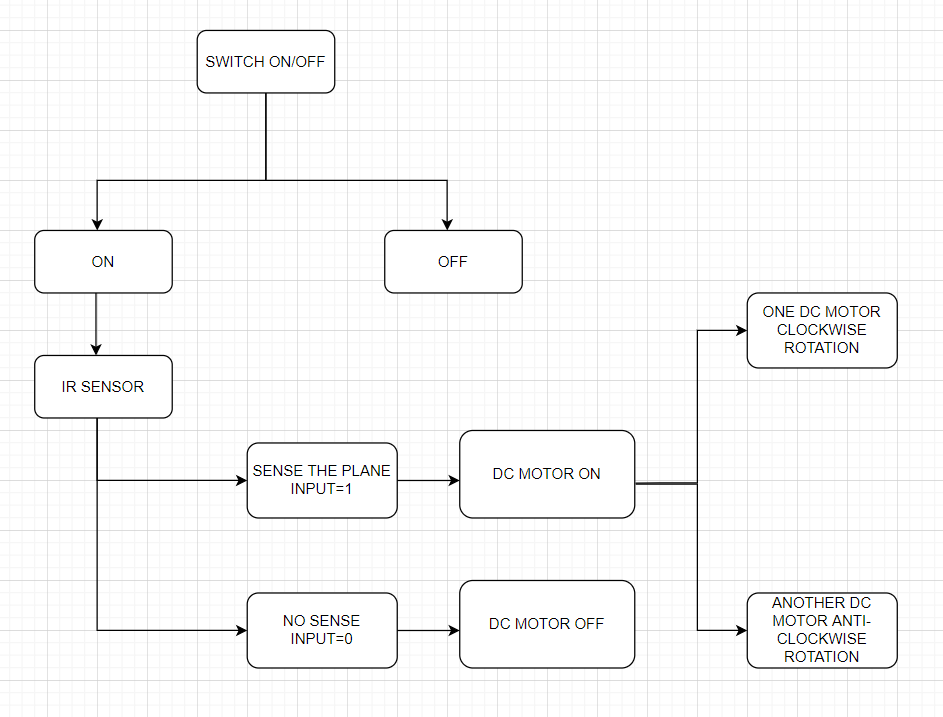

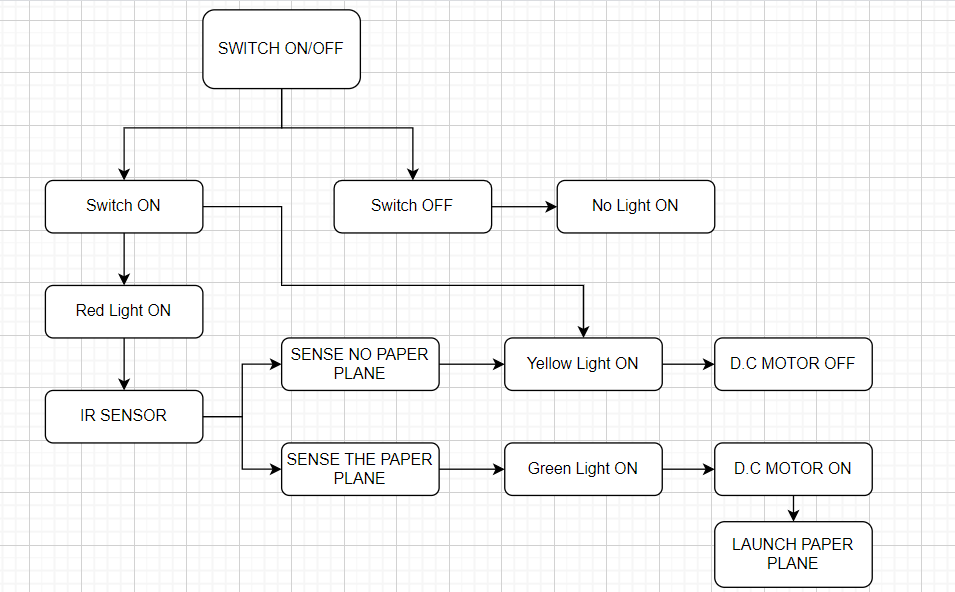

6.3 FLOW CHART

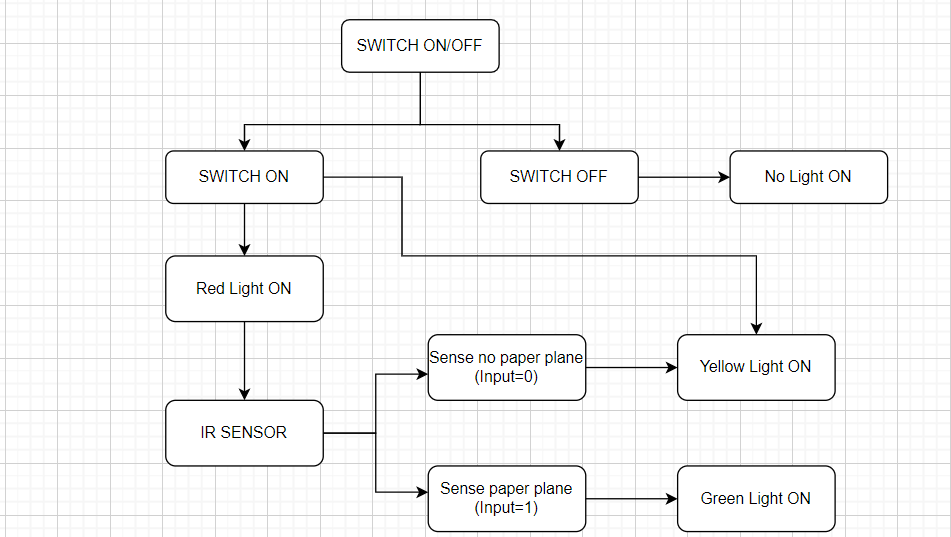

INDICATION UNIT
LAUNCHING UNIT
FINAL FLOW CHART
6.4 BILL OF MATERIALS(BOM)
| Sl.NO |
Part Name |
Material with which the part is made up of |
Description about part |
Quantity required |
Fabrication Process if needed |
| 1 |
Body |
Foam Sheet |
8 mm Thick(1ftx2ft) |
2 |
Cutting and Polishing |
| 2 |
Holding Unit |
Foam Sheet |
8 mm Thick(1ftx2ft) |
2 |
Cutting and Polishing |
| 3 |
DC Motor |
- |
2000 rpm,9-12V |
4 |
- |
| 4 |
Rollers |
- |
- |
4 |
- |
| 5 |
Battery |
- |
9V,12V |
1 |
- |
| 6 |
IR Sensor |
- |
- |
2 |
- |
| 7 |
Indicators |
LED Indicator |
Red,Green,Yellow |
1 Each |
- |
| 8 |
Laser |
- |
- |
2 |
- |
| 9 |
Switch |
- |
- |
1 |
- |
| 10 |
Aurdino |
- |
Aurdino Mega 3560 |
1 |
- |
| 11 |
Potentiometer |
- |
- |
1 |
- |
6.5 MOTOR AND BATTERY SIZING OF THE SYSTEM
Motor Description:
- Type:DC motor
- Motor RPM:2000
- Input voltage:9V-12V
Battery Description:
- Type:DC adaptor
- Output voltage:9V-12v

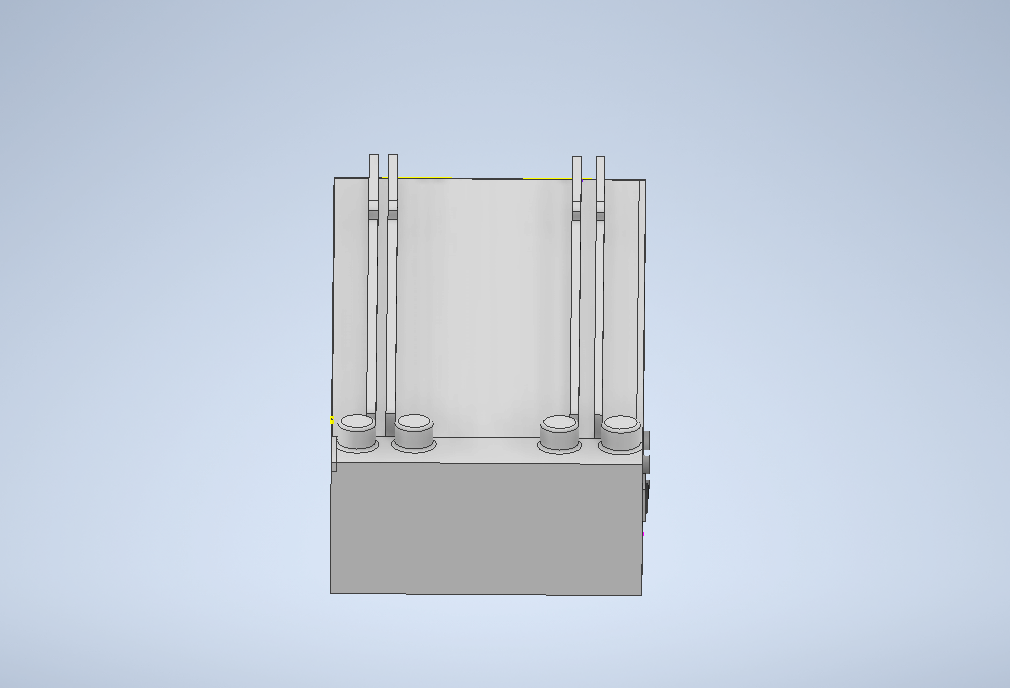

FRONT VIEW

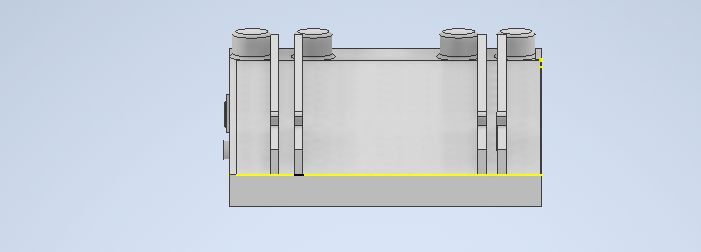

BACK VIEW

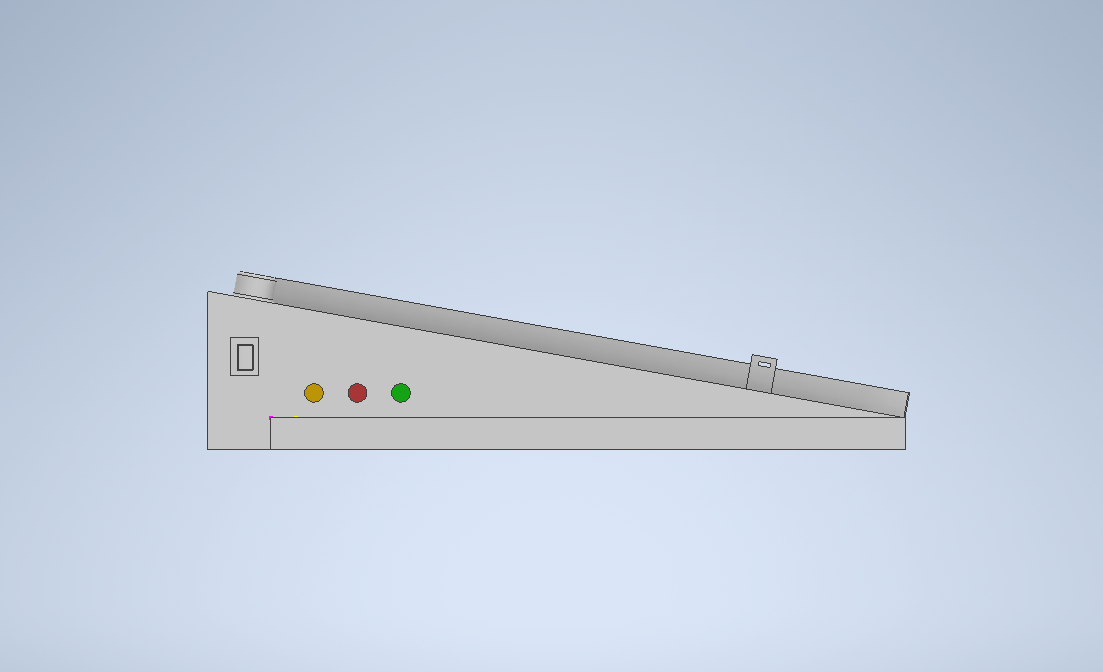

SIDE VIEW
6.6 FINAL 3D MODEL
