4.1 ESTABLISHING FUNCTIONS

Sl No. FUNCTIONS
1. Launch paper planes
2. Place the planes
3. Move the paper planes to the launcher
4. launch 2 planes at a time
5. Indicate while ON/OFF
6. Indicate when take off of planes
7. Work on Remote control
8. A Light should guide the path of plane
9. launch planes at distant greater than 1 meter
10. Indicate when no planes are there
11. Sense the planes

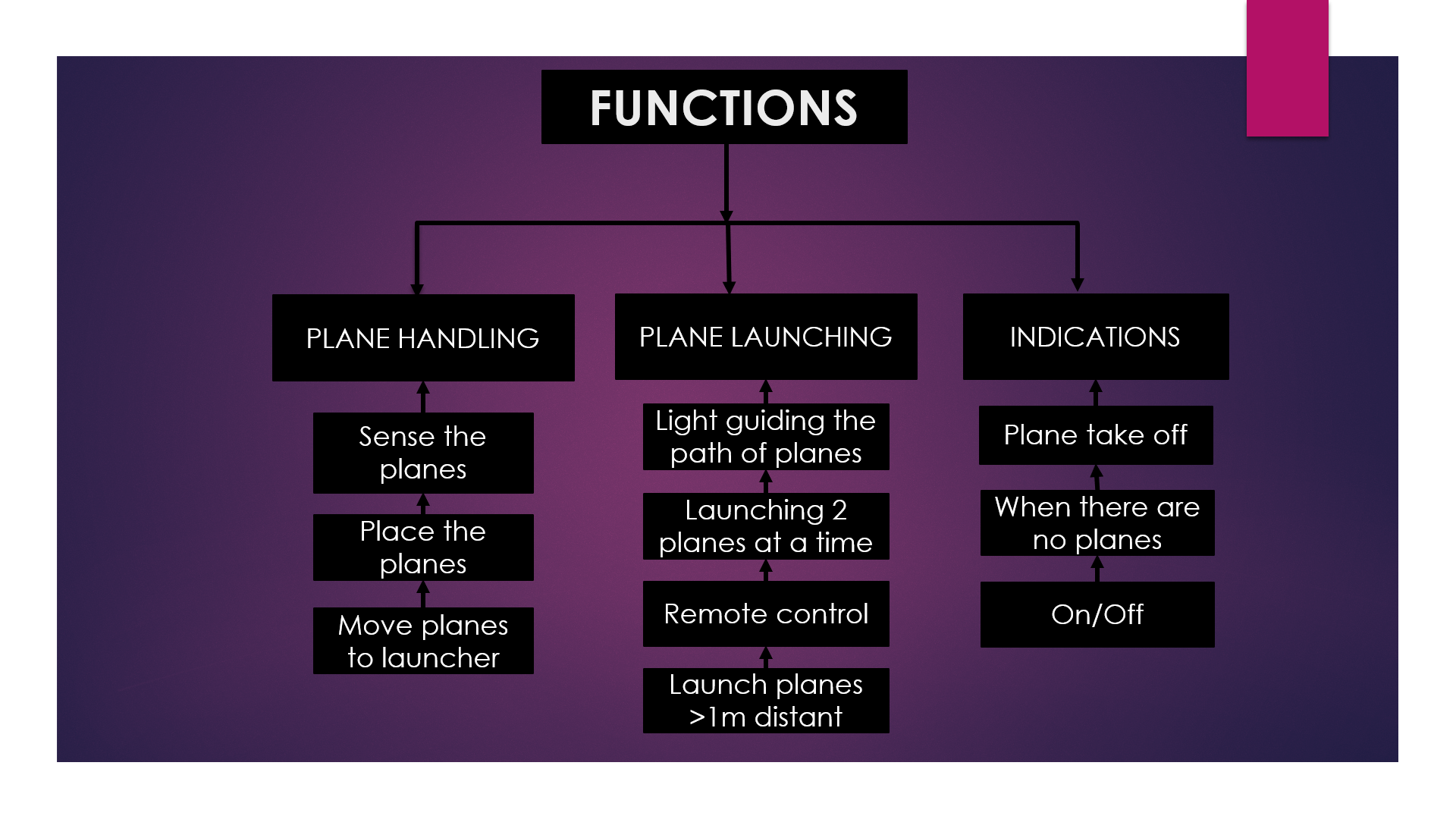

4.2 FUNCTION TREE

Screenshot (3)

4.3 MORPHOLIGICAL CHART

Sl No. SUBFUNCTIONS MEANS 1 MEANS 2 MEANS 3 MEANS 4
1. Launch paper planes ROLLERSROLLERS CONVEIR BELTCONVEYOR BELT FANSD.C FANS RUBBER BANDELASTIC RUBBER
2. Move the paper planes to the launcher PIPESPVC PIPES CONVEORE BELTCONVEYOR BELT
3. launch 2 planes at a time CONVORE BELTCONVEYOR BELT wooden boardWOODEN BOARD FOAM SHEETFOAM SHEET RUBBERELASTIC RUBBER
4. Indicate while ON/OFF LED LIGHTSLED LIGHTS SPEAKERSSPEAKERS Pilot light
5. Indicate when take off of planes LEDSLED LIGHTs
6. Work on Remote control JOYSTICKJOYSTICK PHONES MOBILE PHONES
7. A Light should guide the path of plane LASERLASER LEDLED LIGHTS
8. launch planes atleast 2m distant ROLLERSROLLERS FANSFANS RUBBERELASTIC RUBBER CONVAIR BELTCONVEYOR BELT
9. sense the plane I R sensorsIR SENSORS TACTILE SENSORS

4.4 GENERATED CONCEPTS

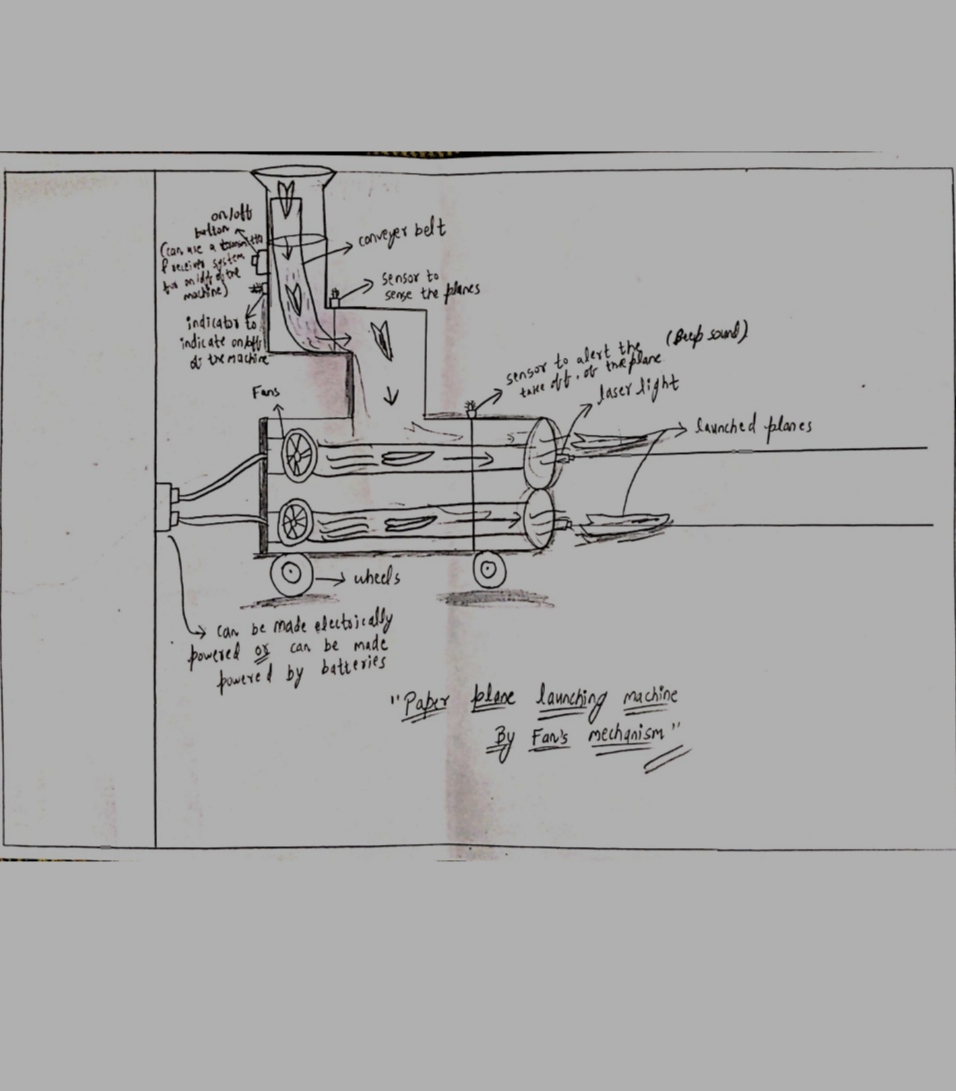

DESIGN 1: PAPER PLANE LAUNCHER(USING FAN MECHANISM)

IMG_20220131_002328

DESIGN 2: PAPER PLANE LAUNCHER USING ROLLER MECHANISM

WhatsApp Image 2022-01-31 at 3 00 08 PM

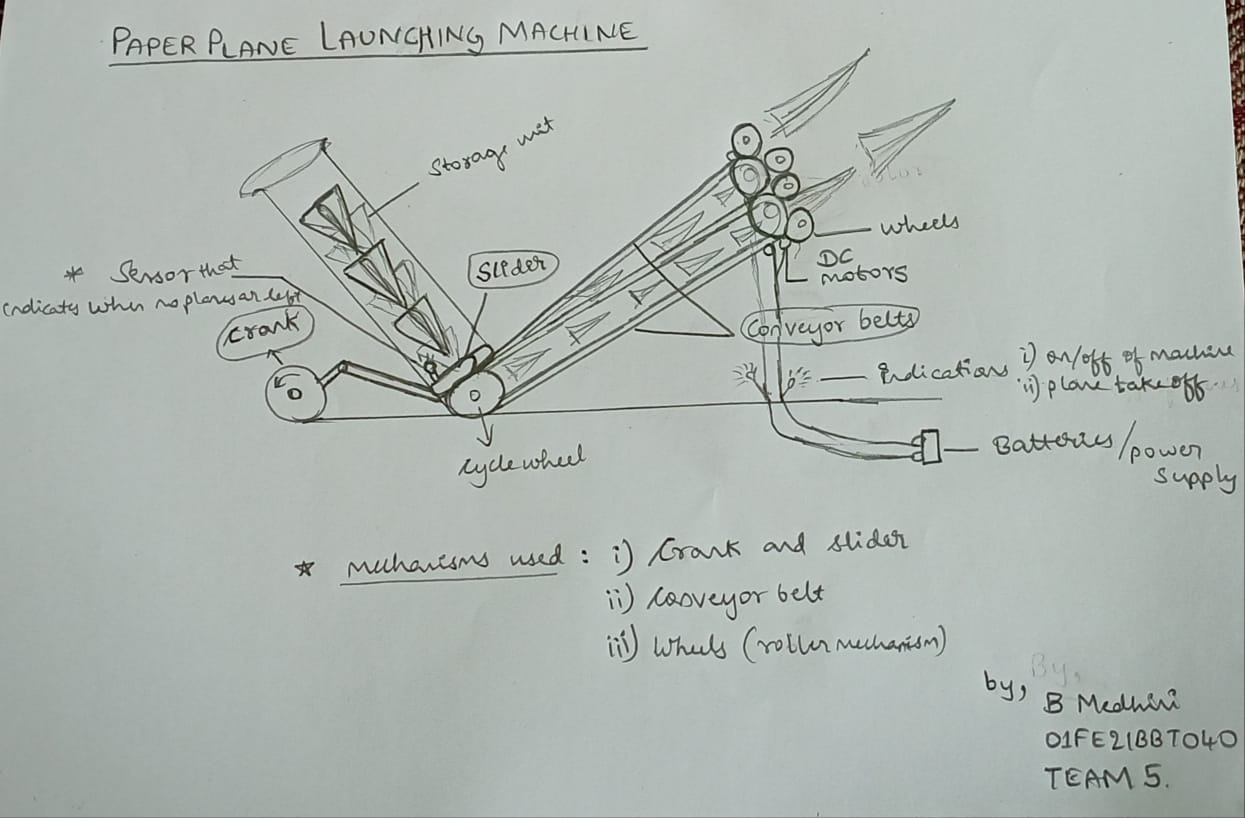

DESIGN 3: PAPER PLANE LAUNCHER(USING CRANK AND SLIDER, CONVERYOR BELT AND ROLLER MECHANISMS)

WhatsApp Image 2022-01-31 at 3 41 07 AM

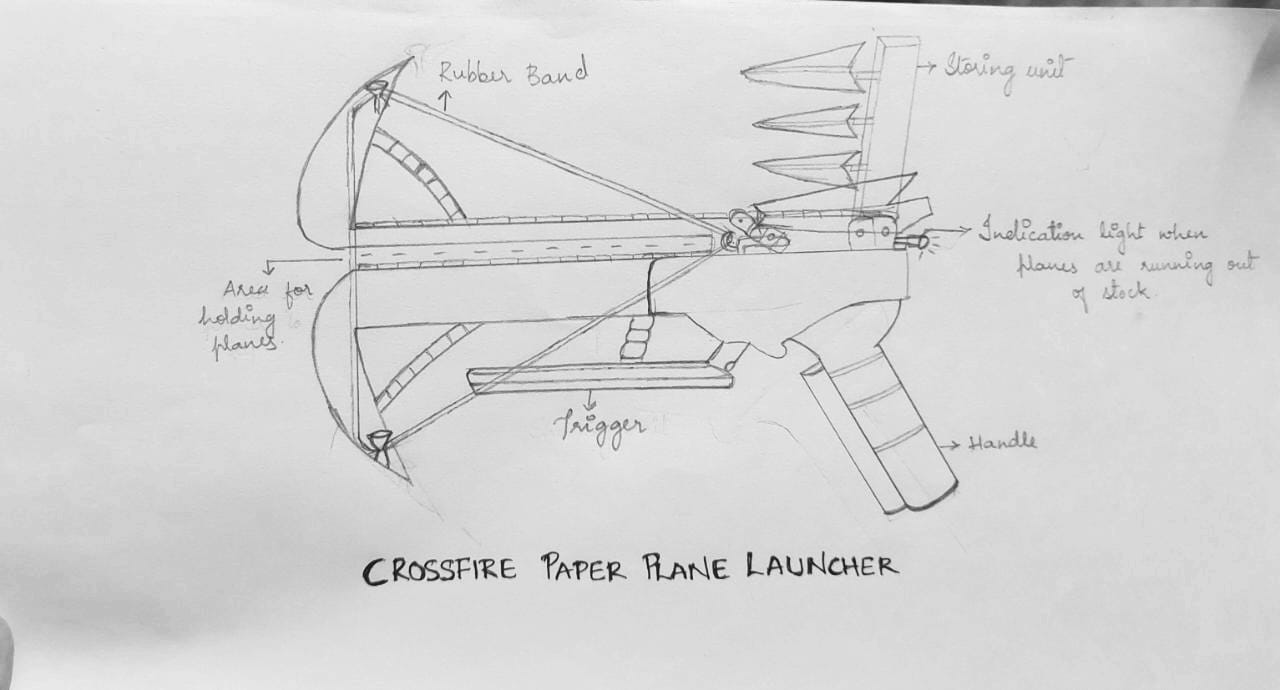

DESIGN 4: CROSSFIRE PAPER PLANE LAUNCHER

WhatsApp Image 2022-01-30 at 11 57 50 PM
