Before the lab Check if these are successful

• rw01 can ping web01 via its static route, rw01 can browse to web01
• wks01 can browse web01
• wks01 can browse wazuh
• web01 can ping wazuh

fw01 config

set zone-policy zone WAN interface eth0
set zone-policy zone DMZ interface eth1
set zone-policy zone LAN interface eth2
commit save

WAN and DMZ

set firewall name WAN-to-DMZ default-action drop
set firewall name DMZ-to-WAN default-action drop
set firewall name WAN-to-DMZ enable-default-log
set firewall name DMZ-to-WAN enable-default-log

Assigning Firewalls to Zones

set zone-policy zone WAN from DMZ firewall name DMZ-to-WAN
set zone-policy zone DMZ from WAN firewall name WAN-to-DMZ
commit
save

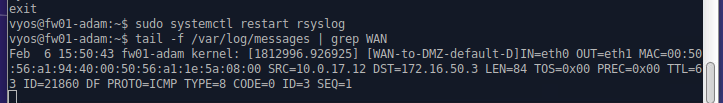

• on fw01 run the following

tail -f /var/log/messages | grep WAN

WAN-to-DMZ rules

configure
set firewall name WAN-to-DMZ rule 10 action accept
set firewall name WAN-to-DMZ rule 10 destination address 172.16.50.3
set firewall name WAN-to-DMZ rule 10 destination port 80
set firewall name WAN-to-DMZ rule 10 protocol tcp
set firewall name WAN-to-DMZ rule 10 description "Allow HTTP from WAN to DMZ"
commit
save

DMZ-to-WAN firewall rule

configure
set firewall name DMZ-to-WAN rule 1 action accept
set firewall name DMZ-to-WAN rule 1 state established enable
commit
save

• Zones

set zone-policy zone LAN from DMZ firewall name DMZ-to-LAN
set zone-policy zone DMZ from LAN firewall name LAN-to-DMZ

LAN to DMZ

set firewall name LAN-to-DMZ default-action drop
set firewall name DMZ-to-LAN default-action drop
set firewall name LAN-to-DMZ enable-default-log
set firewall name DMZ-to-LAN enable-default-log

set zone-policy zone LAN from DMZ firewall name DMZ-to-LAN
set zone-policy zone DMZ from LAN firewall name LAN-to-DMZ
commit
save

Firewall Rules

set firewall name LAN-to-DMZ rule 20 action accept
set firewall name LAN-to-DMZ rule 20 description "LAN to web01"
set firewall name LAN-to-DMZ rule 20 destination address 172.16.50.3
set firewall name LAN-to-DMZ rule 20 destination port 80
set firewall name LAN-to-DMZ rule 20 protocol tcp
commit
save

set firewall name LAN-to-DMZ rule 30 action accept
set firewall name LAN-to-DMZ rule 30 description "mgmt01 to DMZ"
set firewall name LAN-to-DMZ rule 30 destination address 172.16.50.3
set firewall name LAN-to-DMZ rule 30 destination port 22
set firewall name LAN-to-DMZ rule 30 protocol tcp
commit
save

set firewall name DMZ-to-LAN rule 1 action accept
set firewall name DMZ-to-LAN rule 1 state established enable
commit
save

set firewall name DMZ-to-LAN rule 10 action accept
set firewall name DMZ-to-LAN rule 10 description "wazuh agent communications with wazuh server"
set firewall name DMZ-to-LAN rule 10 destination address 172.16.200.10
set firewall name DMZ-to-LAN rule 10 destination port 1514,1515
set firewall name DMZ-to-LAN rule 10 protocol tcp
commit
save

LAN to WAN

set firewall name LAN-to-WAN default-action drop
set firewall name WAN-to-LAN default-action drop
set firewall name LAN-to-WAN enable-default-log
set firewall name WAN-to-LAN enable-default-log

set zone-policy zone LAN from WAN firewall name WAN-to-LAN
set zone-policy zone WAN from LAN firewall name LAN-to-WAN
commit
save

Firewall rules

set firewall name LAN-to-WAN rule 1 action accept
commit
save

set firewall name WAN-to-LAN rule 1 action accept
set firewall name WAN-to-LAN rule 1 state established enable
commit
save

fw-mgmt Config

set zone-policy zone LAN interface eth0
set zone-policy zone MGMT interface eth1
commit
save

LAN & MGMT

set firewall name LAN-to-MGMT default-action drop
set firewall name MGMT-to-LAN default-action drop
set firewall name LAN-to-MGMT enable-default-log
set firewall name MGMT-to-LAN enable-default-log
commit
save

set zone-policy zone LAN from MGMT firewall name MGMT-to-LAN
set zone-policy zone MGMT from LAN firewall name LAN-to-MGMT
commit
save

MGMT to LAN

set firewall name LAN-to-MGMT rule 10 action accept
set firewall name LAN-to-MGMT rule 10 destination address 172.16.200.10
set firewall name LAN-to-MGMT rule 10 destination port 1514,1515
set firewall name LAN-to-MGMT rule 10 protocol tcp
commit
save

set firewall name LAN-to-MGMT rule 20 action accept
set firewall name LAN-to-MGMT rule 20 description "allow established connections through"
set firewall name LAN-to-MGMT rule 20 destination address 172.16.200.10
set firewall name LAN-to-MGMT rule 20 destination port 443
set firewall name LAN-to-MGMT rule 20 protocol tcp

set firewall name LAN-to-MGMT rule 1 action accept
set firewall name LAN-to-MGMT rule 1 state established enable
commit
save

LAN to MGMT

set firewall name MGMT-to-LAN rule 10 action accept
set firewall name MGMT-to-LAN rule 10 description MGMT to all of LAN
set firewall name MGMT-to-LAN rule 10 destination address 172.16.150.0/24
commit
save

set firewall name MGMT-to-LAN rule 20 action 'accept'
set firewall name MGMT-to-LAN rule 20 description 'MGMT to all of DMZ'
set firewall name MGMT-to-LAN rule 20 destination address '172.16.50.0/29'

set firewall name MGMT-to-LAN rule 1 action 'accept'
set firewall name MGMT-to-LAN rule 1 state established 'enable'
commit
save
commit
save

Exporting VyOS Config

show configuration commands | grep -v "syslog global\|ntp\|login\|console\|config\|hw-id\|loopback\|conntrack"

Firewall Configs

fw-mgmt config Week 4

fw01 config Week 4

Reflection

Overall this was not a very difficult lab, but it was a very long lab with a Massive amount of documentation required. I learn a lot while running through this lab when it comes to firewalls and building a network. This lab challenged me with working with a large amount of config and changes and debugging when a typo occured.
