2.1 INTRODUCTION
Designing and making a kinematic art model covers a wide range of technical engineering skills. It can be built using various materials like; metal, wood, acrylic sheets, etc... These are also known as automata or mechanical toys, which are broadly used for analyzing motion, decorative purposes, and fun toys. kinematic arts are marvellous machines that use mechanical processes which can be seen everywhere around us.
Need statement: A mechanical bird automata toy depicting its motion.

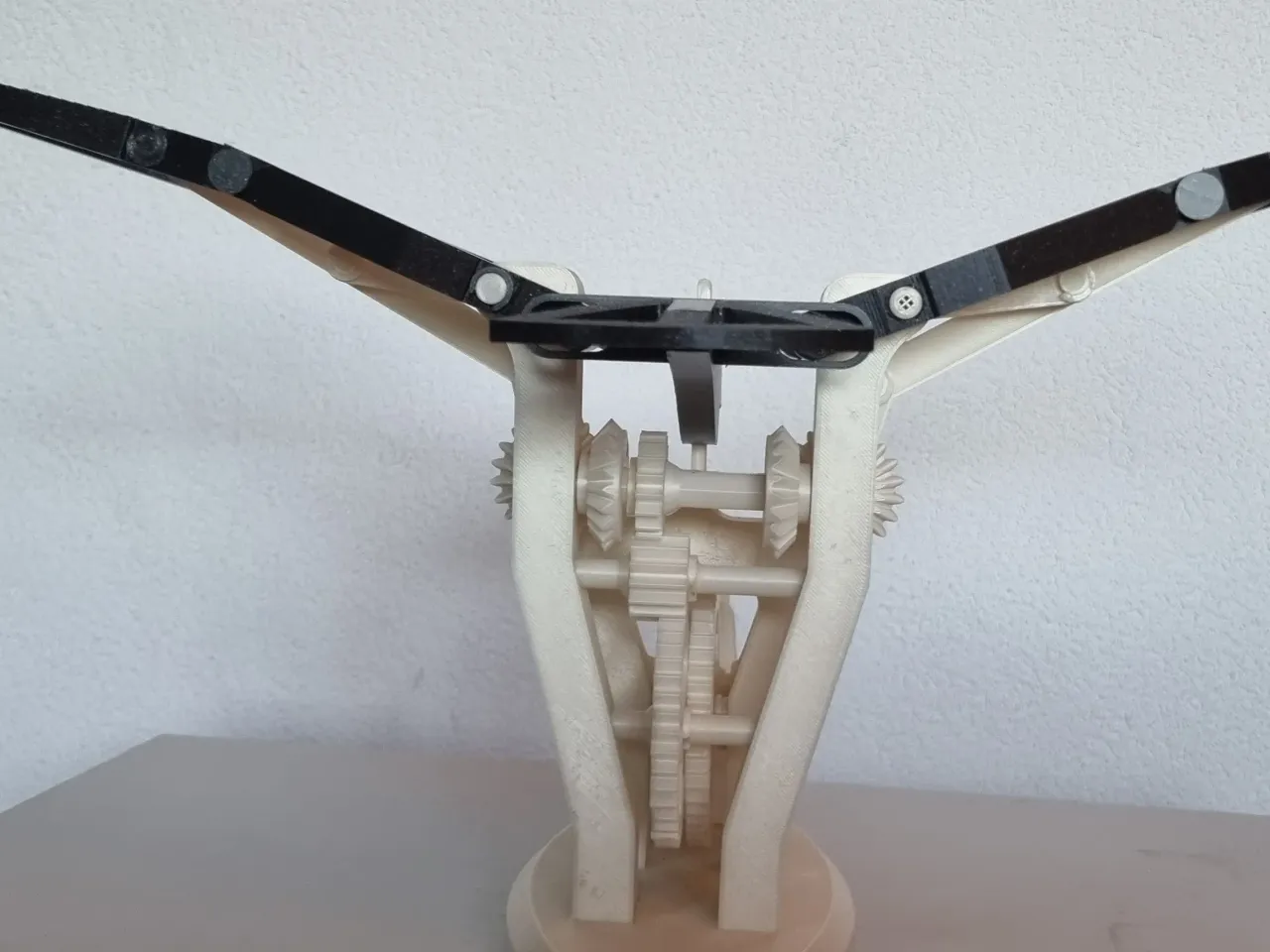

2.2 IMAGE
2.3 VIDEO
2.4 COMPONENTS
Sr no. | Components | Mechanism and functioning | Link |
---|---|---|---|
1 | Body material | Providing stiffness and depicting the bird | https://www.amazon.com/craft-metal-sheets/s?k=craft+metal+sheets |
2 | glue | building body | |
3 | Cams and Cranks | turn a circular motion into one that moves up and down | https://www.mechanical-toys.com/cams.html |
4 | Gears | control the speed of action | https://www.mechanical-toys.com/gears.html |
5 | Ratchet | used to slow things down and it happens in a very jerky manner. | https://www.mechanical-toys.com/ratchets.html |
6 | Levers and Pulleys | Translation of force | https://www.mechanical-toys.com/mechanisms.html |
7 | Motor | Motion of the bird | https://www.amazon.com/craft-metal-sheets/s?k=craft+metal+sheets |
8 | Batteries | Supply to motor | https://www.instructables.com/Arduino-How-to-Use-a-Servo-Motor-With-an-External-/ |
