##CONCEPT GENERATION

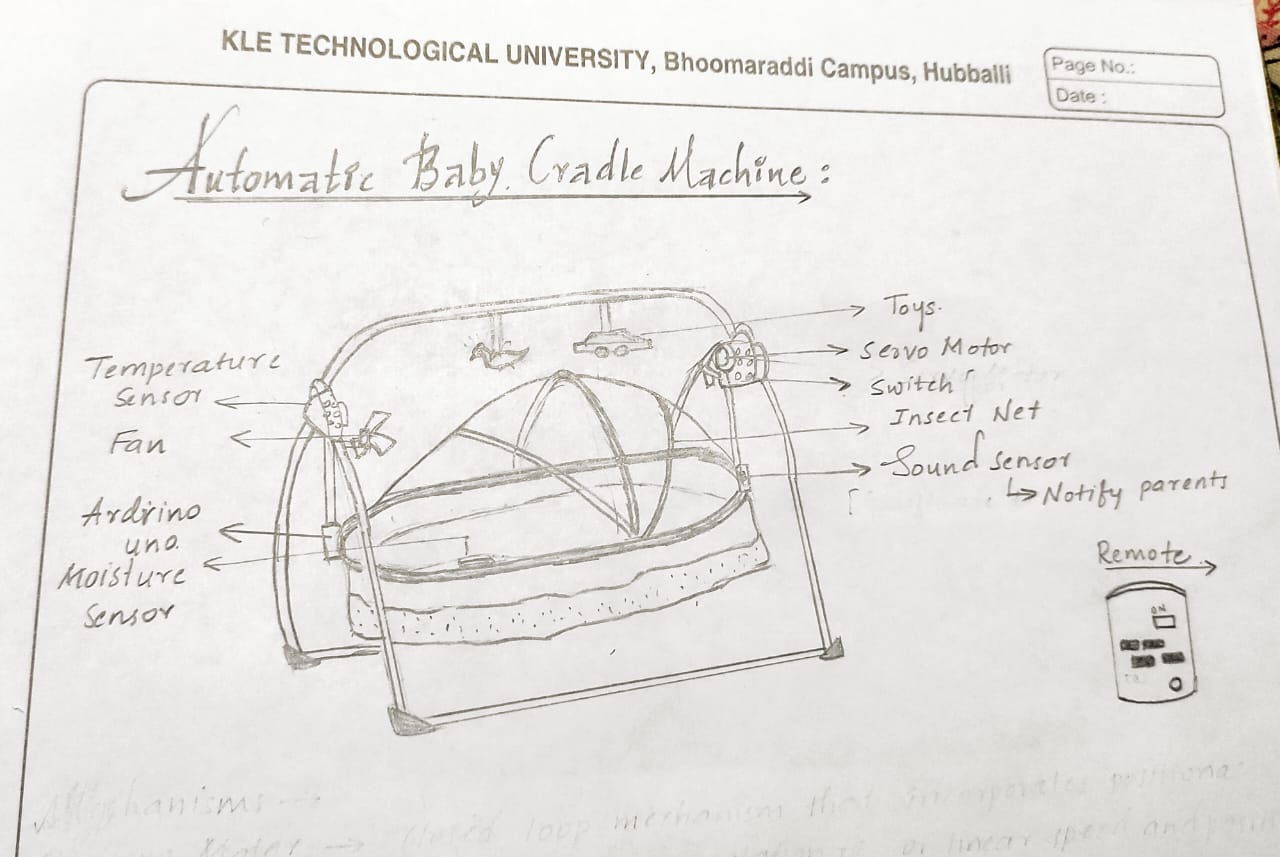

445 Concept design 1
404 Concept design 2
409 Concept design 3
403 Concept design 4
CIRCUIT DIAGRAM
List of materials
<style> </style>| sl no | part name | description about part | qunatity required | frabication process if needed |
|---|---|---|---|---|
| 1 | ultrasonic | - | 1 | - |
| 2 | sound detecting sensor | - | 1 | - |
| 3 | dc motor | - | 1 | - |
| 4 | stepper motor | - | 1 | - |
| 5 | moisture sensor | - | 1 | - |
| 6 | speaker | 1s1d1820 recording | 2 | - |
| 7 | bluetooth | - | 1 | - |
| 8 | IR sensor | - | 1 | - |
| 9 | aurdoino | - | 1 | - |
| 10 | bread board | - | 1 | - |
| 11 | led lights | red yellow and green | 3 | - |
| 12 | temperature sensor | digital with display | 1 | - |
| 13 | pulse sensor | - | 1 | - |
| 14 | toys | soft and small toys | 5 | stiching |
| 15 | casing | acrilyic material | 2*2 | cutting and bending |
| 16 | rope | 40cm length | 1 | joining |
| 17 | mosquito net | frabic | 1 | stiching |
