4.1 ESTABLISHING FUNCTIONS

FUNCTIONS FROM USER PERSPECTIVE FUNCTIONS FROM DESIGNER PERSCEPTIVE
Seed Sowing
Indication
Sensor
SOWING SEEDS Dispensor
Switch On/Off
Storing of seeds
Display of remaining seeds
Plough

4.2 FUNCTION TREE

FUCTION TREE

4.3 MORPHOLOGICAL CHART

SL.NO SUBFUNCTION MEAN 1 MEAN 2 MEAN 3 MEAN 4 MEAN 5
01 Switch On/Off imagePush Button imageTouch Sensor imageRocker switch imageMobile app
02 Mechanism imageGear image Chain Drive imageFour bar Mechanism imageSlider crank imageCrank Rocker
03 Indication imageLED Bulbs imageBuzzer imageLED Strips imageNeon lights
04 Storage Tank imageWooden Box imageAcrylic Box imageMetal Box imagePlastic Box
05 Display image7 Segment Display imageOLED Display imageLCD Display imageELD Display
06 Counting the seeds imageAutomated Sensor imageRotating Disk imageIR Sensor

4.4 GENERATED CONCEPTS

SL.NO SUBFUNCTIONS CONCEPT1 CONCEPT2 CONCEPT3 CONCEPT4 CONCEPT5
01 Switch On/Off Push button Rocker switch Push Button Rocker switch Push button
02 Mechanism Chain sprocket mechanism Chain mechanism Crank and rocker Slider crank Four bar
03 Indication LED Buzzer LED Strips LED Buzzer
04 Storage tank Acrylic Metal box Acrylic Metal box Acrylic
05 Display 7 Segmented display LCD Display 7 Segmented Display 7 Segmented Display LCD Display
06 Counting the seeds IR Sensor IR Sensor IR Sensor IR Sensor IR Sensor

4.5 GENERATED DESIGNS

  • Concept1:
  • NAME: ADTIYA METRANI
    ROLL.NO: 419

ADITYA

  • Concept2:
  • NAME: M.RENEE PRAVACHANA
    ROLL.NO: 452

RENEE

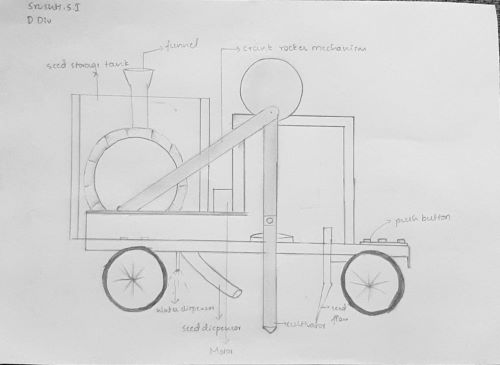

  • Concept3:
  • NAME: SRUSHTI S I
    ROLL.NO: 411

SRUSHTI

  • Concept4:
  • NAME: SHREYA ALUR
    ROLL.NO: 414

SHREYA

  • Concept5:

  • NAME: AKASH

    ROLL.NO: 405

final sketch
