SEC350 - Project 3 - Threat Hunting

Introduction

APT43, also known as Kimsuky, is a well-known and large threat actor group that is state-backed by North Korea. The group's technical capabilities are sophisticated using very aggressive social engineering tactics. APT43 has had a large focus on South Korean and U.S. government organizations, academics, and think tanks that focus on geopolitical issues within Korea as well as foreign policy and nuclear security issues.

The group specializes in espionage and cybercrime with the goal of collecting strategic intelligence. The group uses credential harvesting, social engineering, the use of spoofed domains and email addresses, and Domains masquerading as legitimate sites, as well as deploying malware. In 2018 APT43 used compromised sites as part of network infrastructure to deliver both PASSMARK and LATEOP malware, in 2021 APT43 conducted a credential harvesting campaign against religious groups, universities, and non-governmental organizations.

In 2022 the threat actor has observed harvesting credentials targeting academics, journalists, politicians, bloggers, and other private sector individuals. APT43, in the height of COVID-19, employed malware that had been used by Lazarus. The group also uses tools that are publicly available including Invoke-Mimikatz, METASPLOIT, and QUASARRAT which are the main focus of the simulated attack.

Required Infrastructure:

kali and attack network

Threat Actor: APT43

TTPs

Initial Access
- T1566 Phishing: achieved through manipulation of nginx site
Resource Development
- T1584 Compromise Infrastructure: achieved through manipulation of nginx site
Execution
- T1059 Command and Scripting Interpreter
- T1059.001 PowerShell
- T1059.003 Windows Command Shell
- T1204.002 Malicious File
Command and Control

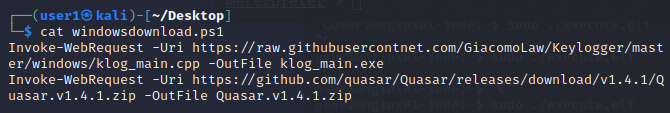

- T1105 Ingress Tool Transfer: done through kali box

Tools to achieve attack

metasploit
mimikatz
Remote Access Trojan (RAT)

Prep

Yara Rule Integration

Wazuh Manager

In the /var/ossec/etc/decoders/local_decoder.xml file add the following custom decoders:

# This extracts information from the YARA scan results
<decoder name="yara_decoder">
  <prematch>wazuh-yara:</prematch>
</decoder>

<decoder name="yara_decoder1">
  <parent>yara_decoder</parent>
  <regex>wazuh-yara: (\S+) - Scan result: (\S+) (\S+)</regex>
  <order>log_type, yara_rule, yara_scanned_file</order>
</decoder>

In the /var/ossec/etc/rules/local_rules.xml add the following custom rules:

# FOR LINUX
<group name="syscheck,">
  <rule id="100300" level="7">
    <if_sid>550</if_sid>
    <field name="file">/root/</field>
    <description>File modified in /root directory.</description>
  </rule>
  <rule id="100301" level="7">
    <if_sid>554</if_sid>
   <field name="file">/root/</field>
    <description>File added to /root directory.</description>
  </rule>
</group>

<group name="yara,">
  <rule id="108000" level="0">
    <decoded_as>yara_decoder</decoded_as>
    <description>Yara grouping rule</description>
  </rule>
  <rule id="108001" level="12">
    <if_sid>108000</if_sid>
    <match>wazuh-yara: INFO - Scan result: </match>
    <description>File "$(yara_scanned_file)" is a positive match. Yara rule: $(yara_rule)</description>
  </rule>

# FOR WINDOWS Replace <USER_NAME> with the username of the endpoint.
  <group name="syscheck,">
    <rule id="100303" level="7">
      <if_sid>550</if_sid>
      <field name="file">C:\\Users\\<USER_NAME>\\Downloads</field>
      <description>File modified in C:\Users\<USER_NAME>\Downloads directory.</description>
    </rule>
    <rule id="100304" level="7">
      <if_sid>554</if_sid>
      <field name="file">C:\\Users\\<USER_NAME>\\Downloads</field>
      <description>File added to C:\Users\<USER_NAME>\Downloads  directory.</description>
    </rule>
  </group>

  <group name="yara,">
    <rule id="108000" level="0">
      <decoded_as>yara_decoder</decoded_as>
      <description>Yara grouping rule</description>
    </rule>

    <rule id="108001" level="12">
      <if_sid>108000</if_sid>
      <match>wazuh-yara: INFO - Scan result: </match>
      <description>File "$(yara_scanned_file)" is a positive match. Yara rule: $(yara_rule)</description>
    </rule>
  </group>

Edit the /var/ossec/etc/ossec.conf and Configure the execution of the YARA script when files are added or modified to a monitored directory by adding the following:

# FOR LINUX
<ossec_config>
  <command>
    <name>yara_linux</name>
    <executable>yara.sh</executable>
    <extra_args>-yara_path /usr/local/bin -yara_rules /tmp/yara/rules/yara_rules.yar</extra_args>
    <timeout_allowed>no</timeout_allowed>
  </command>

  <active-response>
    <command>yara_linux</command>
    <location>local</location>
    <rules_id>100300,100301</rules_id>
  </active-response>
</ossec_config>

# FOR WINDOWS
<ossec_config>
  <command>
    <name>yara_windows</name>
    <executable>yara.bat</executable>
    <timeout_allowed>no</timeout_allowed>
  </command>

  <active-response>
    <command>yara_windows</command>
    <location>local</location>
    <rules_id>100303,100304</rules_id>
  </active-response>
</ossec_config>

Restart the Wazuh manager to apply the configuration changes:
```
sudo systemctl restart wazuh-manager
```

Download the malware samples to the /root/ directory of the monitored endpoint to test the rules:

sudo curl https://wazuh-demo.s3-us-west-1.amazonaws.com/mirai --output /root/mirai
sudo curl https://wazuh-demo.s3-us-west-1.amazonaws.com/xbash --output /root/Xbash

Wazuh Agents

Download, compile, and install YARA:

sudo apt update
sudo apt install -y make gcc autoconf libtool libssl-dev pkg-config
sudo curl -LO https://github.com/VirusTotal/yara/archive/v4.2.3.tar.gz
sudo tar -xvzf v4.2.3.tar.gz -C /usr/local/bin/ && rm -f v4.2.3.tar.gz
cd /usr/local/bin/yara-4.2.3/
sudo ./bootstrap.sh && sudo ./configure && sudo make && sudo make install && sudo make check

Download YARA detection rules:

sudo mkdir -p /tmp/yara/rules
sudo curl 'https://valhalla.nextron-systems.com/api/v1/get' \
-H 'Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8' \
-H 'Accept-Language: en-US,en;q=0.5' \
--compressed \
-H 'Referer: https://valhalla.nextron-systems.com/' \
-H 'Content-Type: application/x-www-form-urlencoded' \
-H 'DNT: 1' -H 'Connection: keep-alive' -H 'Upgrade-Insecure-Requests: 1' \
--data 'demo=demo&apikey=1111111111111111111111111111111111111111111111 111111111111111111&format=text' \
-o /tmp/yara/rules/yara_rules.yar

Create a /var/ossec/active-response/bin/yara.sh file and add the content below. This is the active response script that executes YARA scans when FIM detects changes in the monitored directory:

#!/bin/bash
# Wazuh - Yara active response
# Copyright (C) 2015-2022, Wazuh Inc.
#
# This program is free software; you can redistribute it
# and/or modify it under the terms of the GNU General Public
# License (version 2) as published by the FSF - Free Software
# Foundation.


#------------------------- Gather parameters -------------------------#

# Extra arguments
read INPUT_JSON
YARA_PATH=$(echo $INPUT_JSON | jq -r .parameters.extra_args[1])
YARA_RULES=$(echo $INPUT_JSON | jq -r .parameters.extra_args[3])
FILENAME=$(echo $INPUT_JSON | jq -r .parameters.alert.syscheck.path)

# Set LOG_FILE path
LOG_FILE="logs/active-responses.log"

size=0
actual_size=$(stat -c %s ${FILENAME})
while [ ${size} -ne ${actual_size} ]; do
    sleep 1
    size=${actual_size}
    actual_size=$(stat -c %s ${FILENAME})
done

#----------------------- Analyze parameters -----------------------#

if [[ ! $YARA_PATH ]] || [[ ! $YARA_RULES ]]
then
    echo "wazuh-yara: ERROR - Yara active response error. Yara path and rules parameters are mandatory." >>               ${LOG_FILE}
    exit 1
fi

#------------------------- Main workflow --------------------------#

# Execute Yara scan on the specified filename
yara_output="$("${YARA_PATH}"/yara -w -r "$YARA_RULES" "$FILENAME")"

if [[ $yara_output != "" ]]
then
    # Iterate every detected rule and append it to the LOG_FILE
    while read -r line; do
        echo "wazuh-yara: INFO - Scan result: $line" >> ${LOG_FILE}
    done <<< "$yara_output"
fi

exit 0;

Change the script ownership and permissions with the following commands:

sudo chmod 750 /var/ossec/active-response/bin/yara.sh
sudo chown root:wazuh /var/ossec/active-response/bin/yara.sh

Install the jq utility to process the JSON data from the FIM alerts:
```
sudo apt install -y jq
```
Add the following within the <syscheck> block of the Wazuh agent /var/ossec/etc/ossec.conf configuration file to monitor the /root/ directory:

/root/
Restart the Wazuh agent to apply the configuration changes:

sudo systemctl restart wazuh-agent

Windows Agent

Download Python executable installer the official Python website.

Run the Python installer once downloaded and make sure to check the following boxes:

`Install launcher for all users`
`Add Python 3.X to PATH.` This places the interpreter in the execution path.

Download and install the latest Visual C++ Redistributable package.

Open PowerShell with administrator privileges to download and extract YARA:

Invoke-WebRequest -Uri https://github.com/VirusTotal/yara/releases/download/v4.2.3/yara-4.2.3-2029-win64.zip - OutFile v4.2.3-2029-win64.zip
Expand-Archive v4.2.3-2029-win64.zip; Remove-Item v4.2.3-2029-win64.zip

Create a directory called C:\Program Files (x86)\ossec-agent\active-response\bin\yara\ and copy the YARA executable into it:

mkdir 'C:\Program Files (x86)\ossec-agent\active-response\bin\yara\'
cp .\v4.2.3-2029-win64\yara64.exe 'C:\Program Files (x86)\ossec-agent\active-response\bin\yara\'

Install the valhallaAPI module:
```
pip install valhallaAPI
```

Copy the following script and save it as download_yara_rules.py:

from valhallaAPI.valhalla import ValhallaAPI

v = ValhallaAPI(api_key="1111111111111111111111111111111111111111111111111111111111111111")
response = v.get_rules_text()

with open('yara_rules.yar', 'w') as fh:
    fh.write(response)

Run the following commands to download the rules and place them in the C:\Program Files (x86)\ossec-agent\active-response\bin\yara\rules\ directory:

python.exe download_yara_rules.py
mkdir 'C:\Program Files (x86)\ossec-agent\active-response\bin\yara\rules\'
cp yara_rules.yar 'C:\Program Files (x86)\ossec-agent\active-response\bin\yara\rules\'

Create the yara.bat script in the C:\Program Files (x86)\ossec-agent\active-response\bin\ directory. This is necessary for the Wazuh-YARA active response scans:

@echo off

setlocal enableDelayedExpansion

reg Query "HKLM\Hardware\Description\System\CentralProcessor\0" | find /i "x86" > NUL && SET OS=32BIT || SET OS=64BIT


if %OS%==32BIT (
    SET log_file_path="%programfiles%\ossec-agent\active-response\active-responses.log"
)

if %OS%==64BIT (
    SET log_file_path="%programfiles(x86)%\ossec-agent\active-response\active-responses.log"
)

set input=
for /f "delims=" %%a in ('PowerShell -command "$logInput = Read-Host; Write-Output $logInput"') do (
   set input=%%a
)


set json_file_path="C:\Program Files (x86)\ossec-agent\active-response\stdin.txt"
set syscheck_file_path=
echo %input% > %json_file_path%

for /F "tokens=* USEBACKQ" %%F in (`Powershell -Nop -C "(Get-Content 'C:\Program Files (x86)\ossec-agent\active-response\stdin.txt'|ConvertFrom-Json).parameters.alert.syscheck.path"`) do (set syscheck_file_path=%%F)

del /f %json_file_path%
set yara_exe_path="C:\Program Files (x86)\ossec-agent\active-response\bin\yara\yara64.exe"
set yara_rules_path="C:\Program Files (x86)\ossec-agent\active-response\bin\yara\rules\yara_rules.yar"
echo %syscheck_file_path% >> %log_file_path%
for /f "delims=" %%a in ('powershell -command "& \"%yara_exe_path%\" \"%yara_rules_path%\" \"%syscheck_file_path%\""') do (echo wazuh-yara: INFO - Scan result: %%a >> %log_file_path%)
exit /b

Add the C:\Users\<USER_NAME>\Downloads directory for monitoring within the <syscheck> block in the Wazuh agent configuration file C:\Program Files (x86)\ossec-agent\ossec.conf. Replace <USER_NAME> with the username of the endpoint:
```
<directories realtime="yes">C:\Users\<USER_NAME>\Downloads</directories>
```
Restart the Wazuh agent to apply the configuration changes:
```
Restart-Service -Name wazuh
```

Collect Windows Logs

In C:\Program Files (x86)\ossec-agent\ossec.conf add the following:

<localfile>
    <location>Security</location>
    <log_format>eventlog</log_format>
</localfile>

<localfile>
    <location>Microsoft-Windows-PrintService/Operational</location>
    <log_format>eventchannel</log_format>
</localfile>

<localfile>
  <location>Powershell</location>
  <log_format>eventchannel</log_format>
</localfile>

<localfile>
  <location>Terminal Services</location>
  <log_format>eventchannel</log_format>
</localfile>

<localfile>
  <location>Remote Access</location>
  <log_format>eventchannel</log_format>
</localfile>

File integrity monitoring

Wazuh Manager

in /var/ossec/etc/rules/local_rules.xml add the following

# Configuring the alert severity for the monitored files
<rule id="100345" level="12">
  <if_group>syscheck</if_group>
  <match>/var/www/html/index.nginx-debian.html</match>
  <description>Changes to /var/www/html/index.nginx-debian.html - Critical file!</description>
</rule>

Linux Agent

in /var/ossec/etc/ossec.conf add the following:

# Configuring syscheck
<syscheck>
  <directories check_all="yes">/etc,/usr/bin,/usr/sbin</directories>
  <directories check_all="yes">/root/users.txt,/bsd,/root/db.html</directories>
</syscheck>
<syscheck>
  <directories check_all="yes">/home/*/Downloads</directories>
</syscheck>
# Configuring reporting new files
<syscheck>
  <alert_new_files>yes</alert_new_files>
</syscheck>

Windows Agnet

In C:\Program Files (x86)\ossec-agent\ossec.conf add the following:

# Configuring Windows registry
<syscheck>
  <windows_registry arch="both" check_all="yes">HKEY_LOCAL_MACHINE\SOFTWARE</windows_registry>
  <windows_registry arch="32bit" check_all="no" check_mtime="yes">HKEY_LOCAL_MACHINE\SYSTEM\Setup</windows_registry>
</syscheck>
# Configuring reporting file and registry value changes
<syscheck>
  <directories check_all="yes" realtime="yes" report_changes="yes">/test</directories>
  <windows_registry arch="64bit" report_changes="yes">HKEY_LOCAL_MACHINE\SYSTEM\Setup</windows_registry>
</syscheck>

Malware detection

Wazuh Manager

in /var/ossec/etc/rules/local_rules.xml add the following

  # File integrity monitoring and threat detection rules
  <group name="linux, webshell, windows,">
    <!-- This rule detects file creation. -->
    <rule id="100500" level="12">
      <if_sid>554</if_sid>
      <field name="file" type="pcre2">         ( i).php$|.phtml$|.php3$|.php4$|.php5$|.phps$|.phar$|.asp$|.aspx$|.jsp$|.cshtml$|.vbhtml$</field>
      <description>[File creation]: Possible web shell scripting file ($(file)) created</description>
      <mitre>
        <id>T1105</id>
        <id>T1505</id>
      </mitre>
    </rule>

    <!-- This rule detects file modification. -->
    <rule id="100501" level="12">
      <if_sid>550</if_sid>
      <field name="file" type="pcre2">(?i).php$|.phtml$|.php3$|.php4$|.php5$|.phps$|.phar$|.asp$|.aspx$|.jsp$|.cshtml$|.vbhtml$</field>
      <description>[File modification]: Possible web shell content added in $(file)</description>
      <mitre>
        <id>T1105</id>
        <id>T1505</id>
      </mitre>
    </rule>

    <!-- This rule detects files modified with PHP web shell signatures. -->
    <rule id="100502" level="15">
      <if_sid>100501</if_sid>
      <field name="changed_content" type="pcre2">(?i)passthru|exec|eval|shell_exec|assert|str_rot13|system|phpinfo|base64_decode|chmod|mkdir|fopen|fclose|readfile|show_source|proc_open|pcntl_exec|execute|WScript.Shell|WScript.Network|FileSystemObject|Adodb.stream</field>
      <description>[File Modification]: File $(file) contains a web shell</description>
      <mitre>
        <id>T1105</id>
        <id>T1505.003</id>
      </mitre>
    </rule>
  </group>

Linux Agent

in /var/ossec/etc/ossec.conf add the following:

  # Rootkits behavior detection
  <rootcheck>
    <rootkit_files>etc/shared/rootkit_files.txt</rootkit_files>
    <rootkit_trojans>etc/shared/rootkit_trojans.txt</rootkit_trojans>
  </rootcheck>

Monitoring system calls

Linux Agent

Install auditd
```
apt-get install auditd
```

in /var/ossec/etc/ossec.conf add the following:

<localfile>
  <log_format>audit</log_format>
  <location>/var/log/audit/audit.log</location>
</localfile>

Restart the agent
```
systemctl restart wazuh-agent
```

Command monitoring

Wazuh Managment

in /var/ossec/etc/rules/local_rules.xml add the following

# Monitor running Windows processes
<rule id="100010" level="6">
  <if_sid>530</if_sid>
  <match>^ossec: output: 'tasklist'</match>
  <description>Important process not running.</description>
  <group>process_monitor,</group>
</rule>

<rule id="100011" level="0">
  <if_sid>100010</if_sid>
  <match>notepad.exe</match>
  <description>Processes running as expected</description>
  <group>process_monitor,</group>
</rule>

# Disk space utilization
<rule id="531" level="7" ignore="7200">
  <if_sid>530</if_sid>
  <match>ossec: output: 'df -P': /dev/</match>
  <regex>100%</regex>
  <description>Partition usage reached 100% (disk space monitor).</description>
  <group>low_diskspace,pci_dss_10.6.1,</group>
</rule>

# Check if the output changed
<rule id="533" level="7">
  <if_sid>530</if_sid>
 <match>ossec: output: 'netstat listening ports</match>
  <check_diff />
  <description>Listened ports status (netstat) changed (new port opened or closed).</description>
  <group>pci_dss_10.2.7,pci_dss_10.6.1,gpg13_10.1,gdpr_IV_35.7.d,</group>
</rule>

# Load average
<rule id="100101" level="7" ignore="7200">
  <if_sid>530</if_sid>
  <match>ossec: output: 'uptime': </match>
  <regex>load average: 2.</regex>
  <description>Load average reached 2..</description>
</rule>

Linux Agent

in /var/ossec/etc/ossec.conf add the following:

# Disk space utilization
<localfile>
    <log_format>command</log_format>
    <command>df -P</command>
</localfile>

# Check if the output changed
<localfile>
  <log_format>full_command</log_format>
  <command>netstat -tulpn | sed 's/\([[:alnum:]]\+\)\ \+[[:digit:]]\+\ \+[[:digit:]]\+\ \+\(.*\):\([[:digit:]]*\)\ \+\([0-9\.\:\*]\+\).\+\ \([[:digit:]]*\/[[:alnum:]\-]*\).*/\1 \2 == \3 == \4 \5/' | sort -k 4 -g | sed 's/ == \(.*\) ==/:\1/' | sed 1,2d</command>
  <alias>netstat listening ports</alias>
  <frequency>360</frequency>
</localfile>

# Load average
<localfile>
    <log_format>command</log_format>
    <command>uptime</command>
</localfile>

Windows Agnet

In C:\Program Files (x86)\ossec-agent\ossec.conf add the following:

# monitor windows commands
<localfile>
  <log_format>full_command</log_format>
  <command>tasklist</command>
  <frequency>120</frequency>
</localfile>

DHCP Server

DHCP server netplan config

DHCP server config

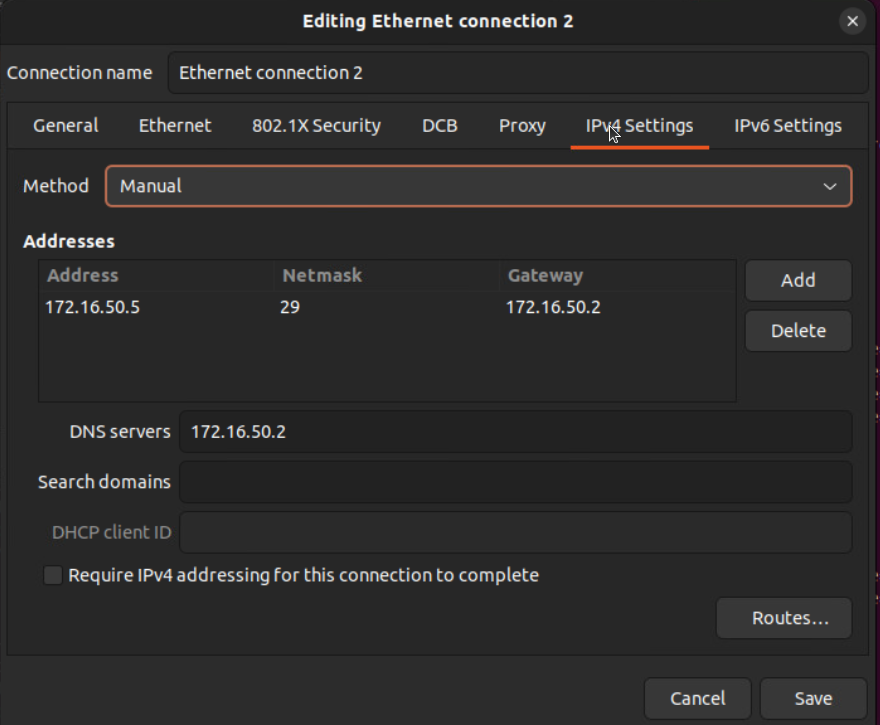

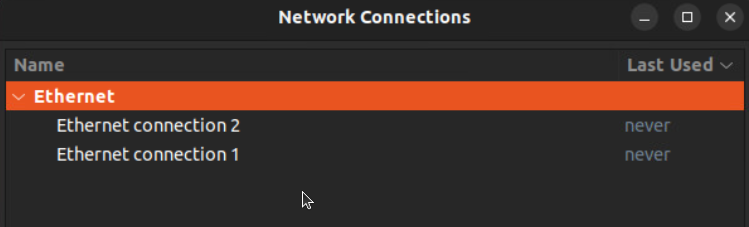

DHCP server network adapters

Kali Attack Box

Villain

To download run the following:

 git clone https://github.com/t3l3machus/Villain
 cd ./Villain
 pip3 install -r requirements.txt

payload.sh

nginx.sh

windowsdownload.ps1

Attack simulation

Target 1: Nginx

Enumeration

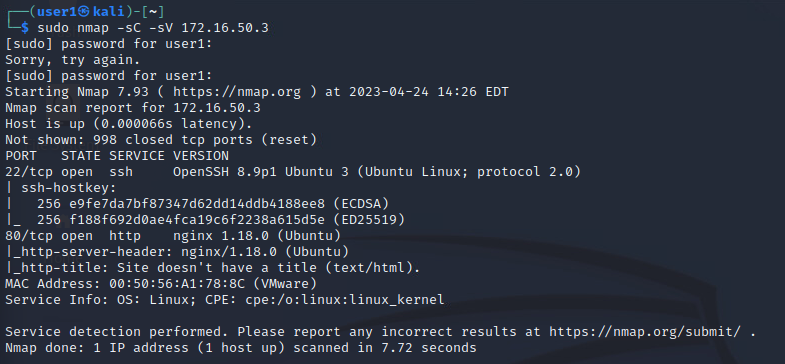

Nmap scan results

Target User password cracking

Backdoor

Note there is use of both Villain and Metasploit as a backdoor throught the attack this will be indicated.

Villian backdoor creating

ssh to target to deploy backdoor

Payload upload

Shell

verification of payload delivery and changing execution permissions

execution of linuxdownload.sh

execution of payload2.py

creation of metasploit backdoor

execution privilege change and execution of metasploit backdoor on target

Access through metasploit backdoor

2023-04-30 20_25_04-kali01-SEC350-01-jude lindale 2023-04-30 20_25_16-kali01-SEC350-01-jude lindale

tarnsfer nginx.sh

change nginx.sh execution privilage and execution

Privilage escalation

looking for root user

password cracking root user

escalating privilage to root user

looking for target to laterally move to wsk01

Lateral Movement

Edg01 through metasploit backdoor via nginx01

login to firewall

looking at firewall rules to see if changes need to be made continue attack

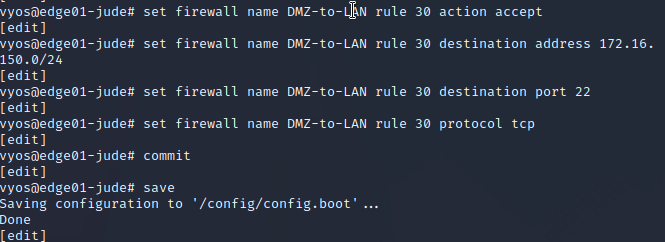

creation and editing of rules to allow ssh and rdp from DMZ to LAN

Target 2: Wsk01

shell

Using scp to transfer file to enable backdoor to wsk01

running powershell as admin and executing backdoor

checking anti-virus

disabling anti-virus to allow malicious code execution

Paylaod

uploading payload through backdoor to wsk01

changing of execution policy and execution of payload

RDP in to execute Quasar

RAT

execution and setup of Quasar

Metasploit and Mimikatz collection and exfil

Metasploit

Mimikatz

loading of mimicatz and beginning of credential harvesting

2023-04-30 21_34_49-kali01-SEC350-01-jude lindale

system collection

2023-04-30 21_38_04-kali01-SEC350-01-jude lindale

network discovery

2023-04-30 21_38_49-kali01-SEC350-01-jude lindale 2023-04-30 21_39_17-kali01-SEC350-01-jude lindale 2023-04-30 21_39_42-kali01-SEC350-01-jude lindale 2023-04-30 21_41_43-kali01-SEC350-01-jude lindale

getting NT Authority

2023-04-30 21_43_30-kali01-SEC350-01-jude lindale

domain information collection

2023-04-30 22_09_20-kali01-SEC350-01-jude lindale

Hive collection

2023-04-30 22_10_40-kali01-SEC350-01-jude lindale 2023-04-30 22_11_05-kali01-SEC350-01-jude lindale 2023-04-30 22_11_31-kali01-SEC350-01-jude lindale 2023-04-30 22_11_44-kali01-SEC350-01-jude lindale
