Log01

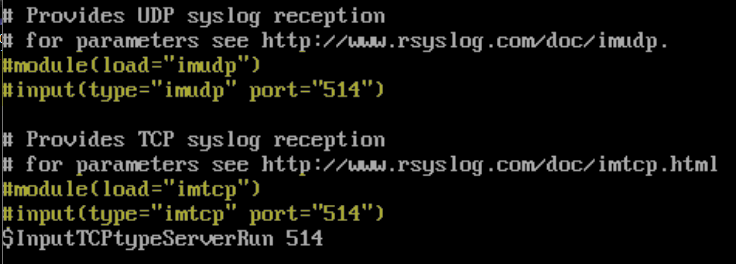

1. edit /etc/rsyslog.conf to match the following:

1. Custom rsyslog drop in file

   1. install wget

      sudo yum install wget -y

   2. change directories to /etc/rsyslog.d/ using the link https://raw.githubusercontent.com/gmcyber/sec350-share/main/03-sec350.conf run wget

      cd /etc/rsyslog.d/ wget https://raw.githubusercontent.com/gmcyber/sec350-share/main/03-sec350.conf

2. restart rsyslog and run the following command

    sudo systemctl restart rsyslog
    ls -lR --color /var/log/remote-syslog


3. on web01 run the following

FW01

Configuring fw01 for NAT and DNS Forwarding on fw01 (LAN)

1. To configure fw01 for NAT and DNS Forwarding on fw01 run the following commands:

   configure
   set nat source rule 20 description "NAT FROM LAN to WAN"
   set nat source rule 20 outbound-interface eth0
   set nat source rule 20 source address 172.16.150.0/24
   set nat source rule 20 translation address masquerade
   commit
   save
   exit


Configuring fw01 for DNS forwarding(LAN)

1. to configure fw01 for DNS forwarding run the following commands:

   configure
   set service dns forwarding listen-address 172.16.150.2
   set service dns forwarding allow-from 172.16.150.0/24
   set service dns forwarding system
   commit
   save
   exit


Logging Authorization Events

1. adjust the vyos configuration to send authentication messages from fw01 to log01

   configure
   set system syslog host 172.15.50.5 facility authpriv level info
   commit
   save


2. Exit out of vyos repeatedly until login

How to change password:

1. Restart machine
2. when presented with the VyOS GNU GRUB console screen, choose the *Lost password change option
3. from there it will ask if you want to reset the password and you just follow the prompts from there.

web01

1. test Log01 Organization

   logger -t SEC350 Testing web01->log01 custom rsyslog configuration


2. Logging Authorization Events

   1. In /etc/rsyslog.d/sec350.conf add the following:



3. restart rsyslog

4. SSH into web01 from mgmt01

MGMT01

Initial setup

1. Networking
   1. mgmt01 should be on the lan interface

1. next is to give the machines its assinged ip address and change the hostname to mgmt01-jude

1. disconnect and reconnect the network

2. create a new user

   adduser jude
   passwd jude
   usermod -aG sudo jude


3. logout and login to newly created account

4. open google and go to remotedesktop.google.come/access

5. install the remote destkop add-on

6. create a new remote desktop called mgmt01

7. create a NAT source rule for LAN on fw01

8. in a remote desktop session ssh into log01 from mgmt01
