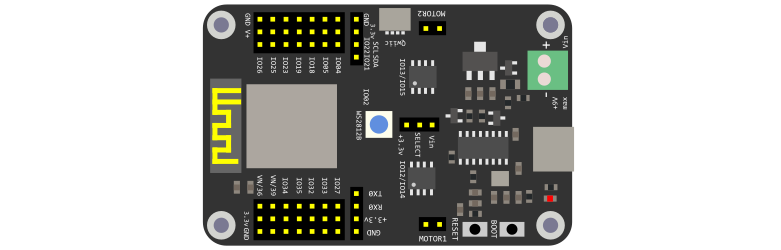

The IdeaBoard is an educational robotics development board created by CRCibernetica.com in Costa Rica.


The IdeaBoard is based on the ESP32 microcontroller and features the following characteristics:

  • ESP32-WROOM-32E microcontroller
    • 32bits @ 240MHz
    • 3.3V logic
    • 520KB SRAM
    • 8MB FLASH
    • WIFI 802.11b/g/n
    • Bluetooth V4.2 BR/EDR y Bluetooth LE
  • Dual H-Bridges for motor control (800mA for each motor)
  • Multi-color programmable RGB LED (WS2812B)
  • Programmable CircuitPython/Micropython, the Arduino IDE (C/C++) or PlatformIO
  • USB-C interfaz for programming and debugging (CH340G serial converter)
  • Standard .1" headers for convenient interfacing with GND and Vcc for each pin
  • STEMMA/QWIIC 4-pin interface for easy connections to Adafruit and Sparkfun i2c modules
  • Direct DC power for battery or power supply (5VDC - 9VDC)
