Creating a Regiment

Regiments are defined in /Crusader Kings III/game/common/men_at_arms_types Here you'll find several txt files, some MaA need to be in 00_regional_maa_types.txt if you wanna have your MaA as a regional type, while 00_cultural_maa_types.txt is for cultural ones, open these with Notepad++ .

For best compatibility, use unique file names.

Example:

example_maa = { # maa = Men at arms
	type = # Men at arms type of my_maa

	damage = # damage value of unit
	toughness = # toughness value of unit
	pursuit = # pursuit value of unit
	screen = # screen value of unit

	terrain_bonus = { # Terrain bonus
		forest = { # bonus values, i.e, damage = 10 }
	}

	counters = {
		# what type of men at arms this counters for example archers
	}

	buy_cost = { # cost of a unit }
	low_maintenance_cost = { # unraised maintenance cost of a unit }
	high_maintenance_cost = { # raised maintenance cost of a unit }

	stack = # Men in one unit
	ai_quality = { # ai weight value }
	icon = # name of icon without .dds
}

Example from lotr_cultural_regiment_types.txt: image

Variables

Here are some Variables that can be used when creating your MaA (WIP: taken from an old wiki, there are more varibles now).

Variable Type Description Example
type string Unit type type = skirmishers
can_recruit bool If player can recruit MaA unit. If answer is yes then you don't need to include it. If you want you can write '''can_recruit = yes''' but you can also not include it and the result will be the same can_recruit = no
damage int Unit's damage value damage = 10
toughness int Unit's toughness value toughness = 10
pursuit int Unit's pursuit value pursuit = 10
screen int Unit's screen value screen = 10
terrain_bonus block Terain bonus terrain_bonus = { forest = { damage = 3 screen = 3 }
}
counters block What unit types counters this unit. Can counter multiple units. counters = { heavy_infantry = 1
}
buy_cost block Cost of one unit buy_cost = { gold = 150 }
low_maintenance_cost block Low maintenance costs low_maintenance_cost = { gold = 1 }
high_maintenance_cost block High maintenance costs high_maintenance_cost = { gold = 5 }
mercenary_fallback bool --- mercenary_fallback = yes
holy_order_fallback bool --- holy_order_fallback = yes
stack int Amount of units per one stack stack = 100
max_sub_regiments int --- max_sub_regiments = 5
fallback_in_hired_troops_if_unlocked bool Mercs/holy orders won't have a preference towards this MaA if it is unlocked fallback_in_hired_troops_if_unlocked = yes
allowed_in_hired_troops bool --- allowed_in_hired_troops = no
fights_in_main_phase bool If set, only affects the pursuit phase. Handy for siege weapons fights_in_main_phase = no
siege_tier int How good it is at countering forts siege_tier = 1
ai_quality Variable AI weight which is determined in ''\common\script_values\00_men_at_arms_values'' value = culture_ai_weight_pikemen
icon string Name of the .dds icon file to represent this MaA type. If you use custom icon then it should be placed in ''\gfx\interface\icons\regimenttypes'' icon = skirmishers
hired_stack_size int Size of sub-regiment for the purpose of hired troops. If not set, this will be the same as the "stack" value hired_stack_size = 25
winter_bonus block Starting from game version 1.3.0, MaA can include Winter Bonus. Can include one or both bonuses (harsh or normal winter)

Regiments in Innovations

If you want your custom Innovation to unlock your custom MaA unit, you'll need to go to \LotRRealmsInExileDev\common\culture\innovations and open the file 00_cultural_maa_innovations or lotr_maa_innovations and put this code into the correct innovation.

unlock_maa = my_maa # Use the key of maa unit

Or you can also provide bonuses to the regiment.
'''Example''' (given by CK3 devs):

maa_upgrade = {
	type = cavalry
	damage = 0.1
	toughness = 0.1
	pursue = 0.1
	screen = 0.1
	siege_value = 0.1
	max_size = 1
}

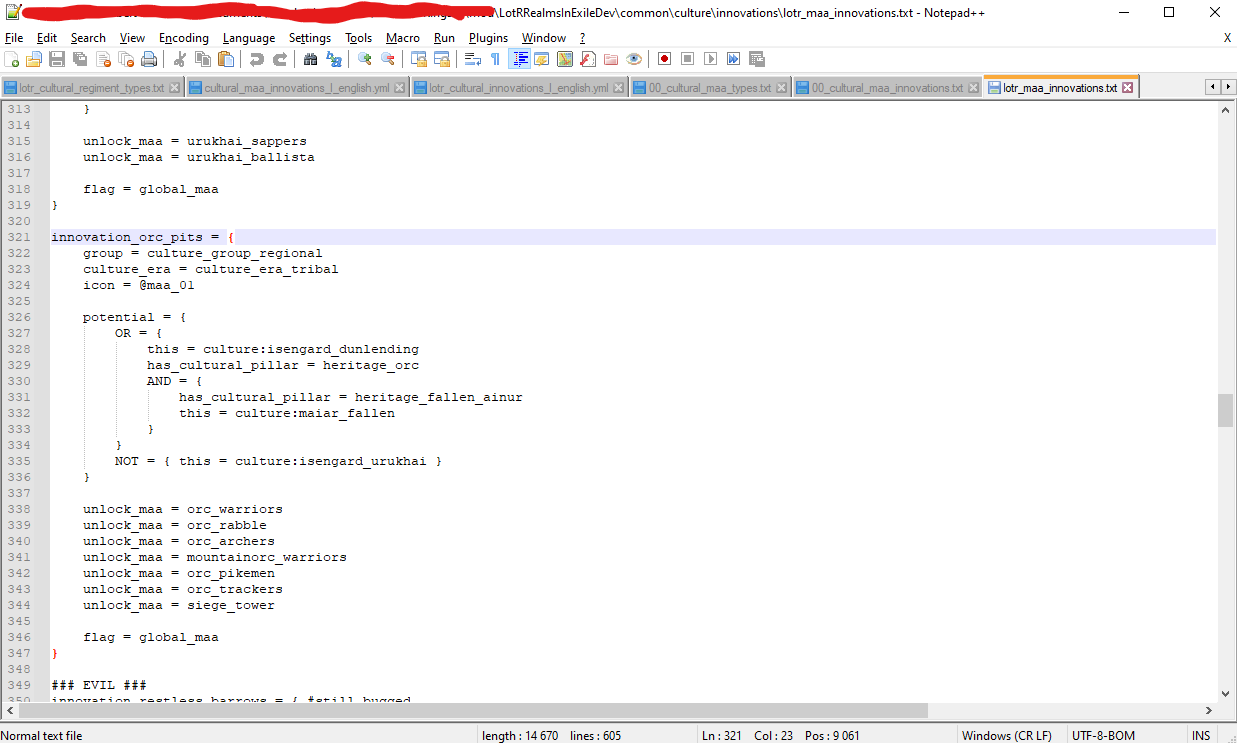

Example using lotr_maa_innovations.txt: image

Art

WIP

Traditions & MAA

You might want to unlock your regiments in a Tradition! And to do that you'll probably need to create an new custom Tradition! But adding new MAA into already existing traditions might be something you wanna do. The easiest step to do this is finding an already fitting tradition that unlocks MAA and repurpose it to what you want, the code that give a tradition a MAA is;

parameters = {
    unlock_maa_name_of_maa = yes
}
Click to expand

image Example of the creation of the Legions of Gundabad tradition, that unlock new MAA for them.

There are of course other variables that you can tie this into, like certain heritages or the tradition only be available to certain regions, But doing this should unlock the MAA into the Tradition if all the other steps of creating an MAA have been done.

WIP

Localization

Go to \LotRRealmsInExileDev\localization\english\culture and open the file lotr_cultural_innovations_l_english.yml and open it with Notepad++ . Then wrote your MaA name and description under the MaA section, and copy the code that's already existing there and switch in your name instead from the already copied one. Example:

my_maa_name:0 "My Men at Arms"
my_maa_name_flavor:0 "#F My Men at Arms are better than yours.#!"
Note that 'my_maa_flavor' is the regiment's description.

Example from the file lotr_maa_innovations.txt: image
