2.1 Establishing Functions

Table 1:List of all identified functions

SI NO	functions
1	Hold the container
2	Sensing the grains
3	Suction of the grains
4	Grains enter into the machine
5	Filtering the grains will takes place
6	Separation of the waste particles and grains will be takes place
7	Outlet of impurities will takes place
8	collection of grains in a container
9	Process completion

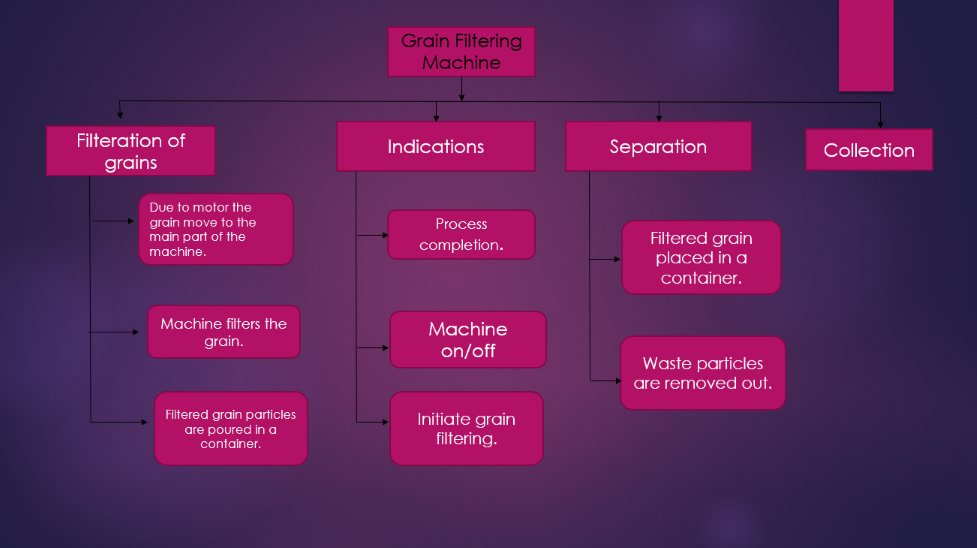

2.2 Function tree

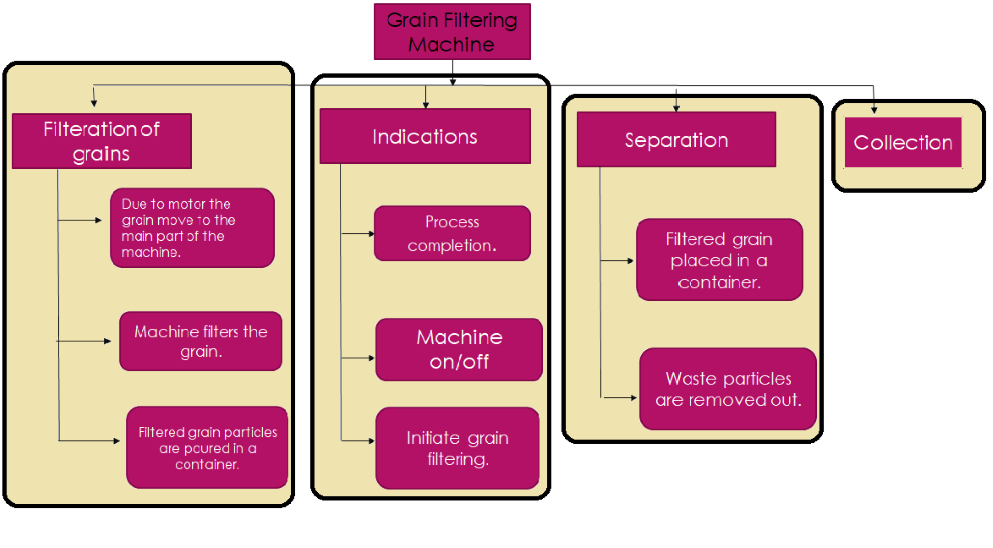

2.3 Function Clustering

2.4 Sub System Identified

1.Filteration of grain.

2.Indications.

3.Separation.

4.Collection.

2.5 Establishing Means-Morphological Chat

Sr.no	functions	mean1	mean2	mean3
1	Filtering jar	Sieve	Mesh strainer	sift
2	motors	DC motor	AC motor	Stepper motor
3	Indication	LCD display	LED	Buzzer
4	Sensors	IR sensor	Ultrasonic sensor	Photoelectric sensor
5	Power source	AC source	DC battery	solar panel
6	motors pullers	belt	chain
7	containers	square type	cylinder type

2.6 Concept Generation

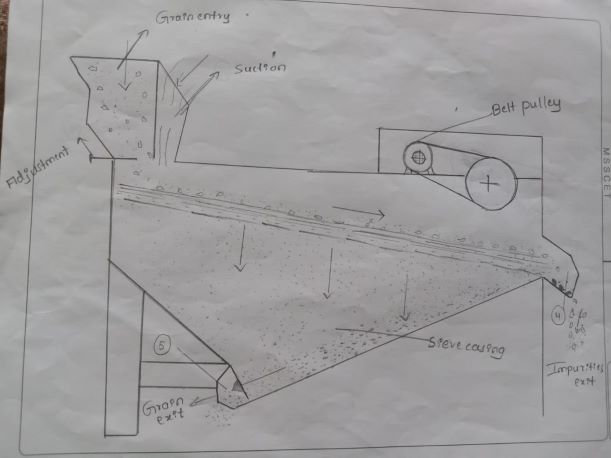

2.6.1 Concept 1

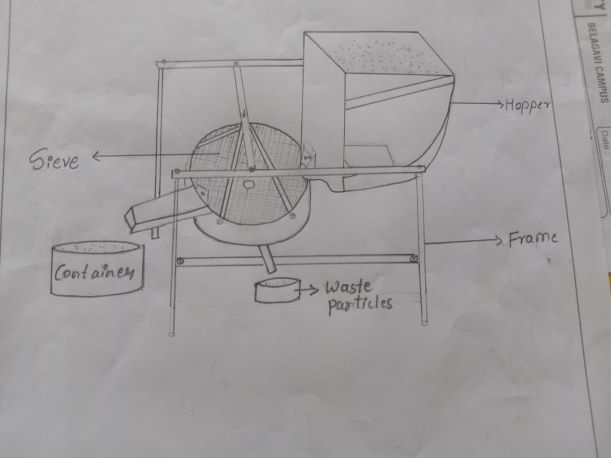

2.6.2 Concept 2

2.6.3 Concept 3
