6.1. 3D model
| sl 1 | Part | made by |
|---|---|---|
| 1 | wheel | Om prashanth |
| 2 | servo motar | Om Prashanth |
| 3 | servo motar holder | Om prashanth |
| 4 | Base | Om Prashanth |
| 5 | side parts | Shashank |
| 6 | Top part | Shashank |
| 7 | Input box | Maria |
| 8 | Keyboard | Maria |
| 9 | speaker space | Pavitra |
| assembely | Om Prashanth |
|---|

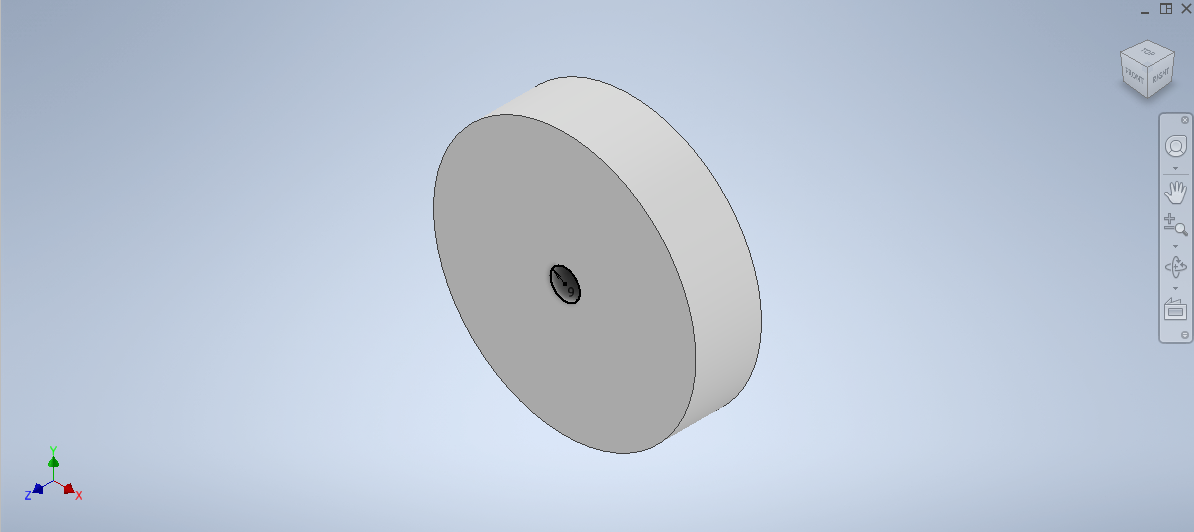

Wheel

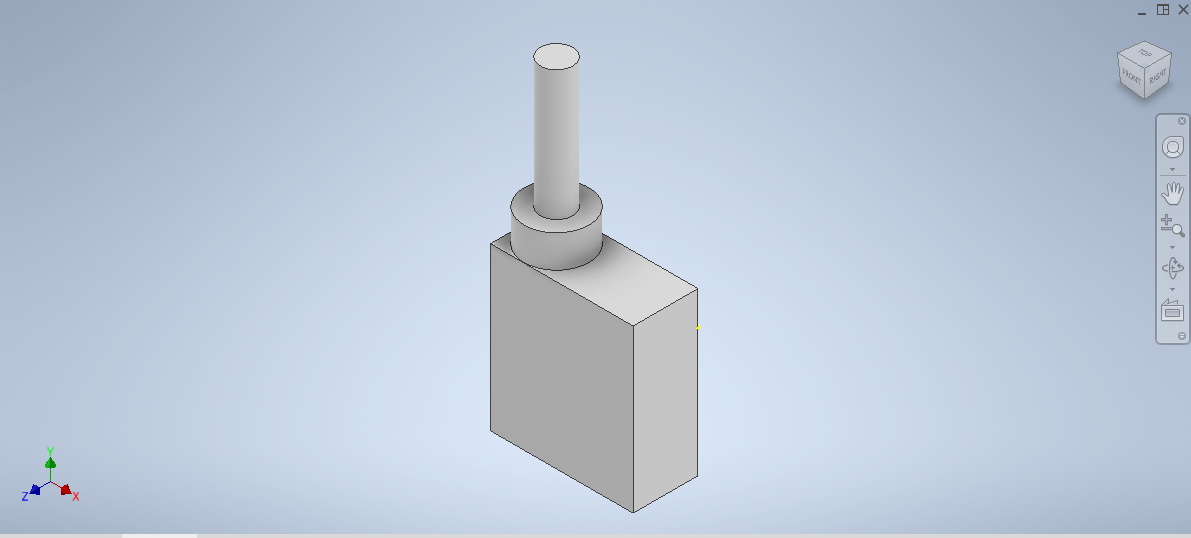

servo
servo holder

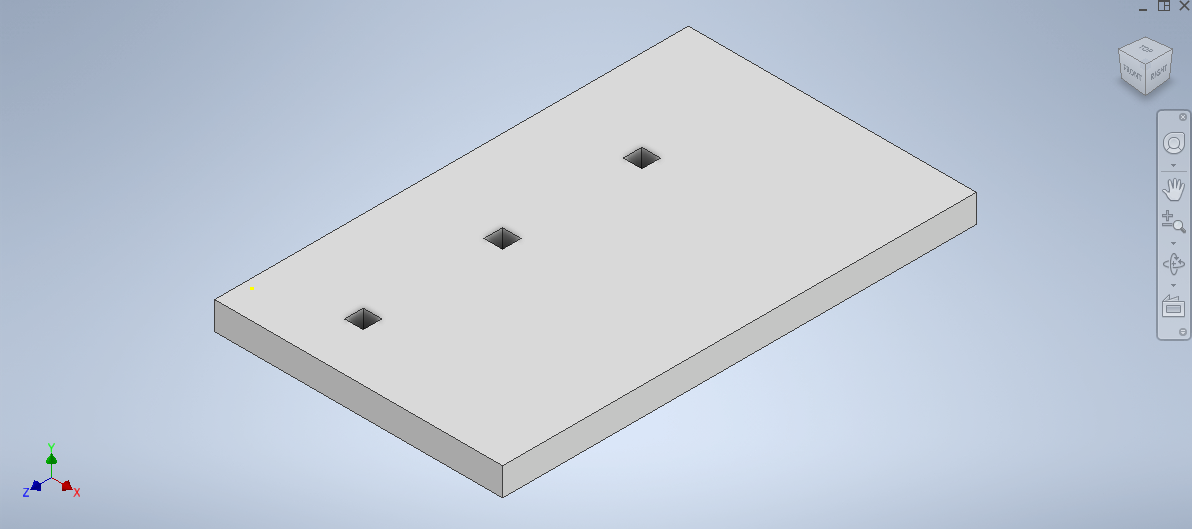

Base

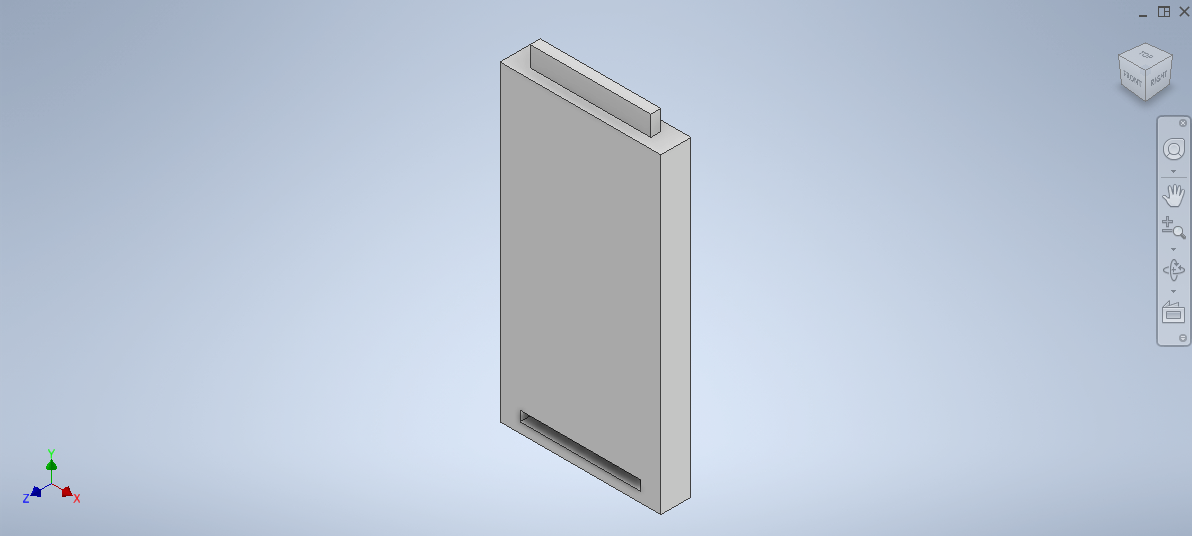

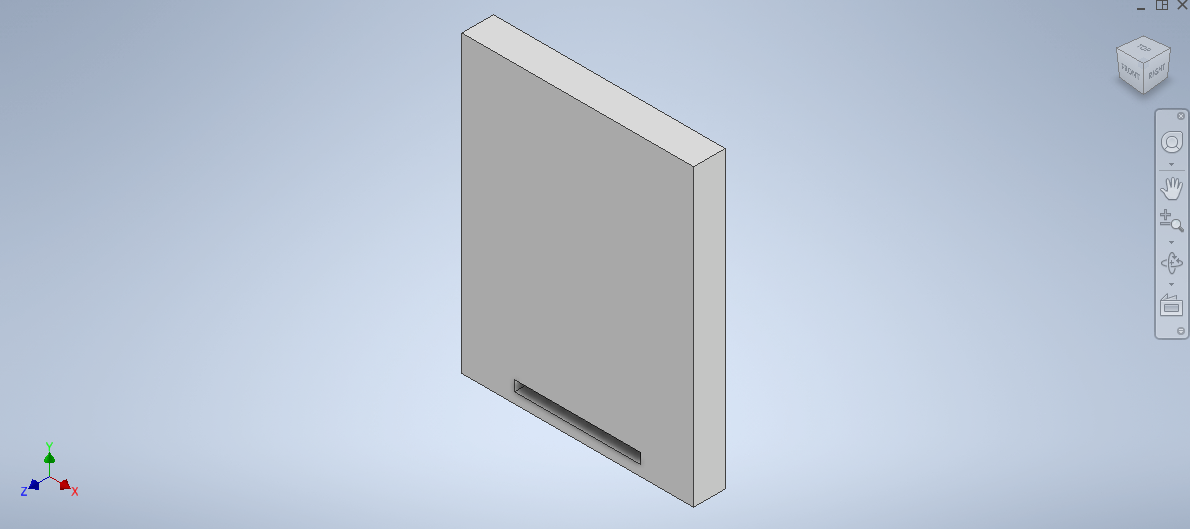

side

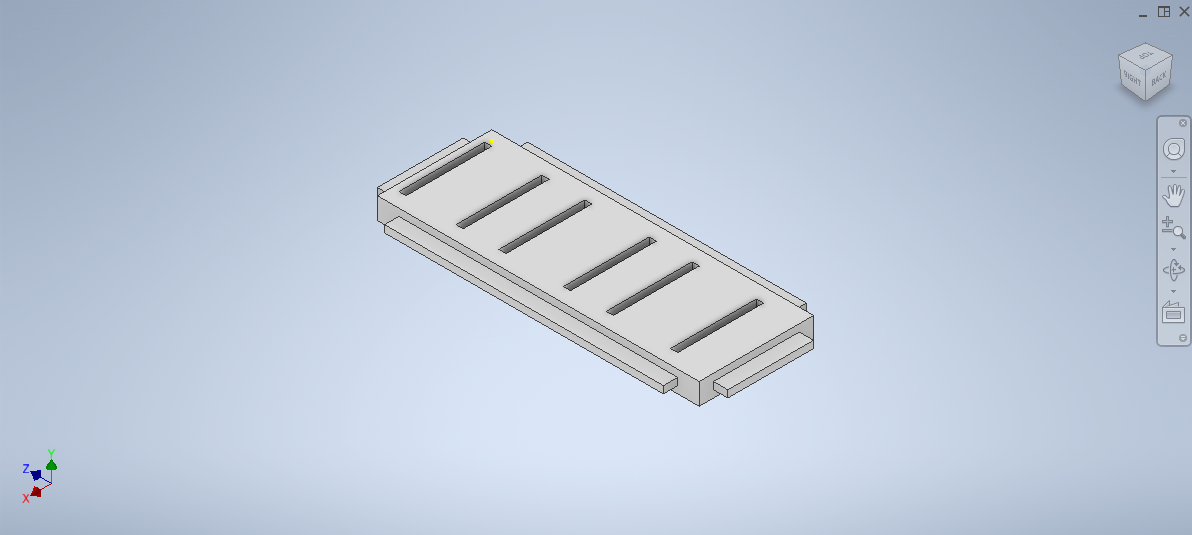

Top
Input part

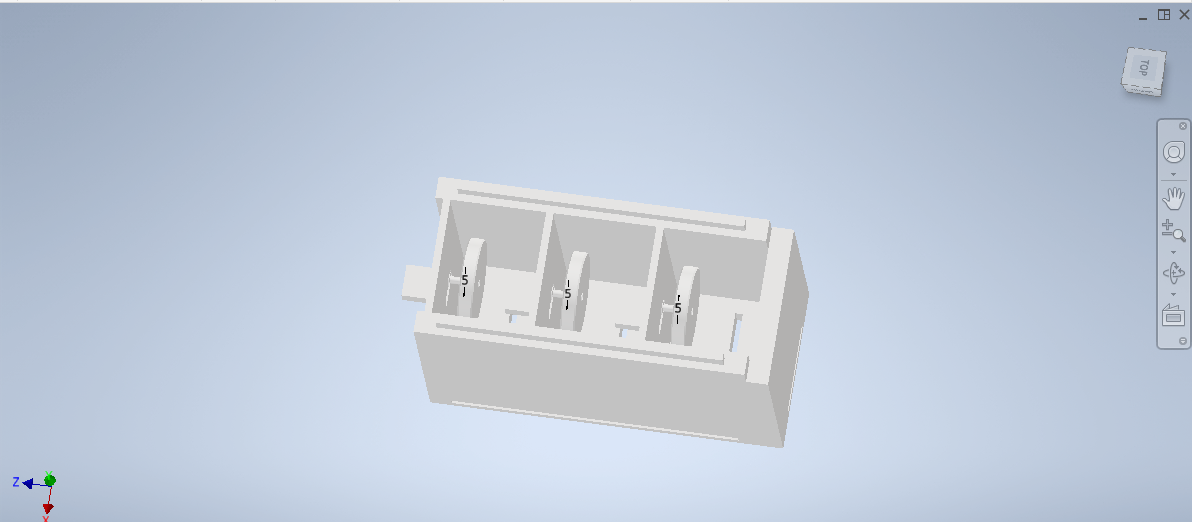

INNERVIEW OF ASSEMBLEY
Complet view of assembley

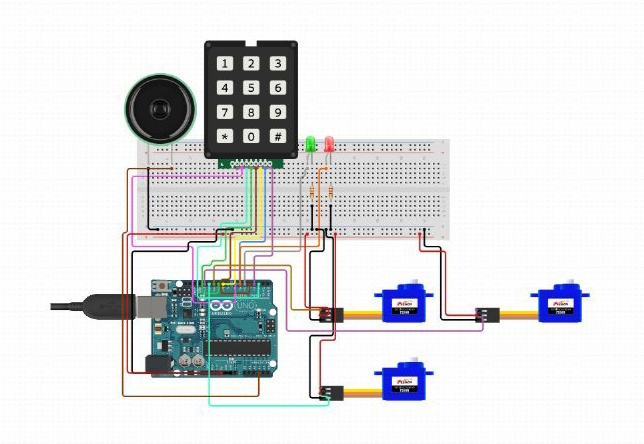

6.2 CIRCUIT DIAGRAM
BILL OF MATERIAL
| SL NO. | PARTS | SPECIFICATION | QUANTITY |
|---|---|---|---|
| 1 | BREADBOARD | LARGE | 1 |
| 2 | SERVO MOTOR | 200 RPM 5V | 3 |
| 3 | FOAM SHEET | 10MM | 4 |
| 4 | L CLAMPS | 20*20MM | 4 |
| 5 | NUTS AND BOLTS | 5MM | 8 |
| 6 | ARDUINO | MEGA 2560 | 1 |
| 7 | ACRYLIC SHEET | 10MM | 3 |
| 8 | HINGE | 2 INCH | 2 |
| 9 | NYLON SLEEVE PIPE | 6MM | 3 |
| 10 | FEVI BOND | - | 1 |
6.3 ALGORITHM
STEP:1:START
STEP:2:READ VALUES A AND B;
STEP:3:if X = +, GOTO step 4; else X = -,GOTO step 5;
STEP:4:COMPUTE A+B;
STEP:5:COMPUTE A-B;
STEP:6:IF A+B=TRUE;GOTO STEP 8; ELSE GOTO STEP 9;
STEP:7:IF A-B=TRUE;GOTO STEP 8; ** ELSE GOTO STEP9;**
STEP:8:DISPLAY RIGHT;
STEP:9:DISPLAY WRONG;
STEP:10:STOP.
