4.1 ESTABLISHING FUNCTIONS
Sl.No | Functions |
---|---|
1 | asking questions |
2 | taking inputs |
3 | performing mathametical operations |
4 | assesing answer |
5 | displaying correct answer |
6 | storing mathematical data |
7 | showing progress |
8 | process completion indication |
4.2 FUNCTION TREE
4.3 MORPHOLOGICAL CHART
sl.no | Sub Functions | Means 1 | Means 2 | Means 3 | Means 4 |
---|---|---|---|---|---|
1 | Indication | Notification | |||
2 | Output | Display | REELS | Android APP | |
3 | User inputs | Button | Voice Input | Android App | |
4 | Acutator | Stepper | DC MOTOR | Servo motor | |

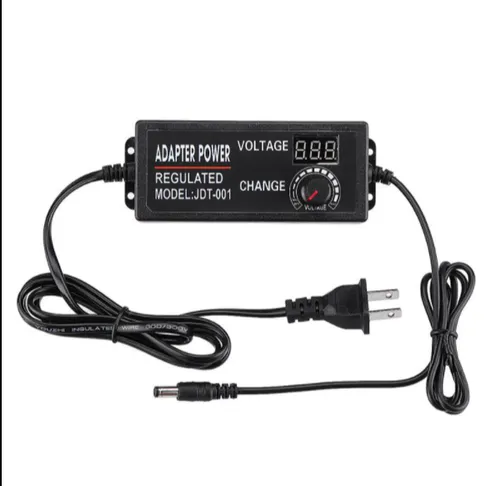

5 | Power source | Regulator | Adaptor | Battery | USB |
6 | Materials used | PLastic | Wood | Steel | Acrylic Sheet |
4.4 GENERATED CONCEPTS

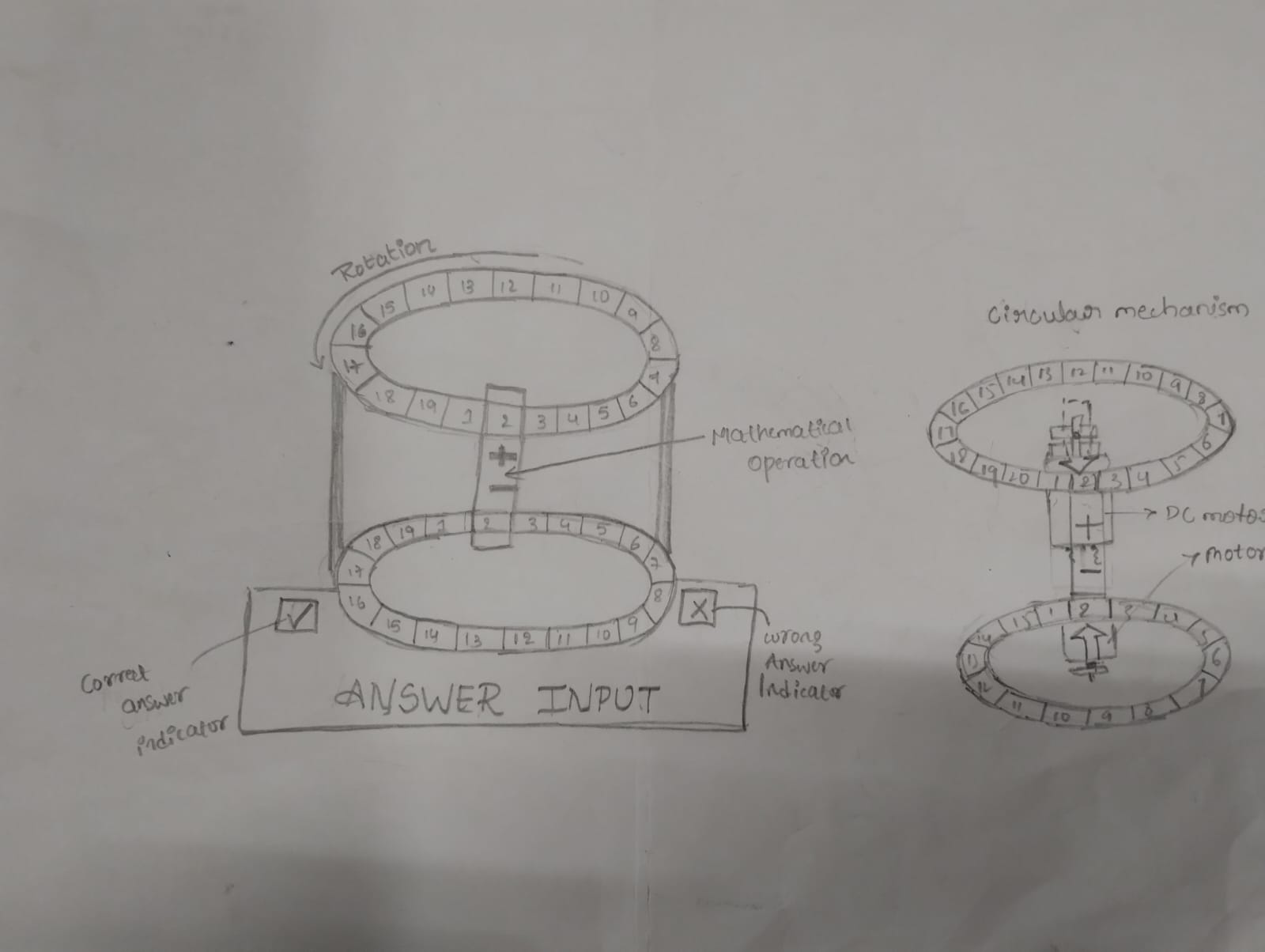

4.4.1 DESIGN 1

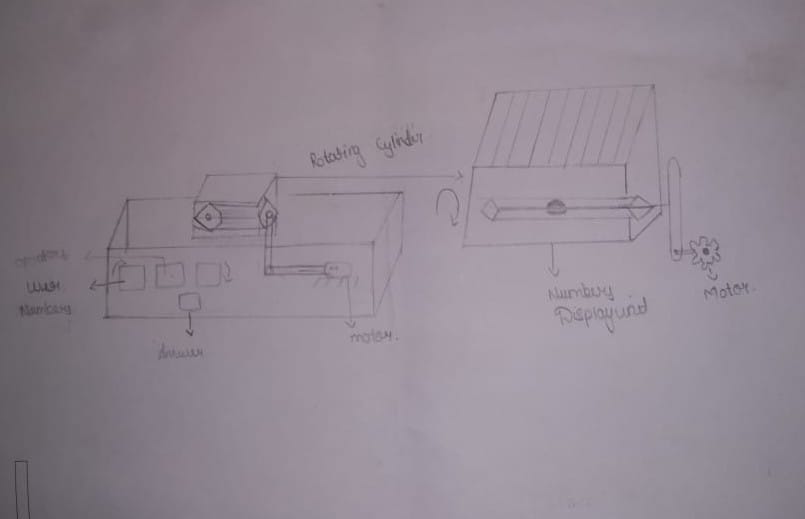

4.4.2 DESIGN 2 : SHASHANK H 325

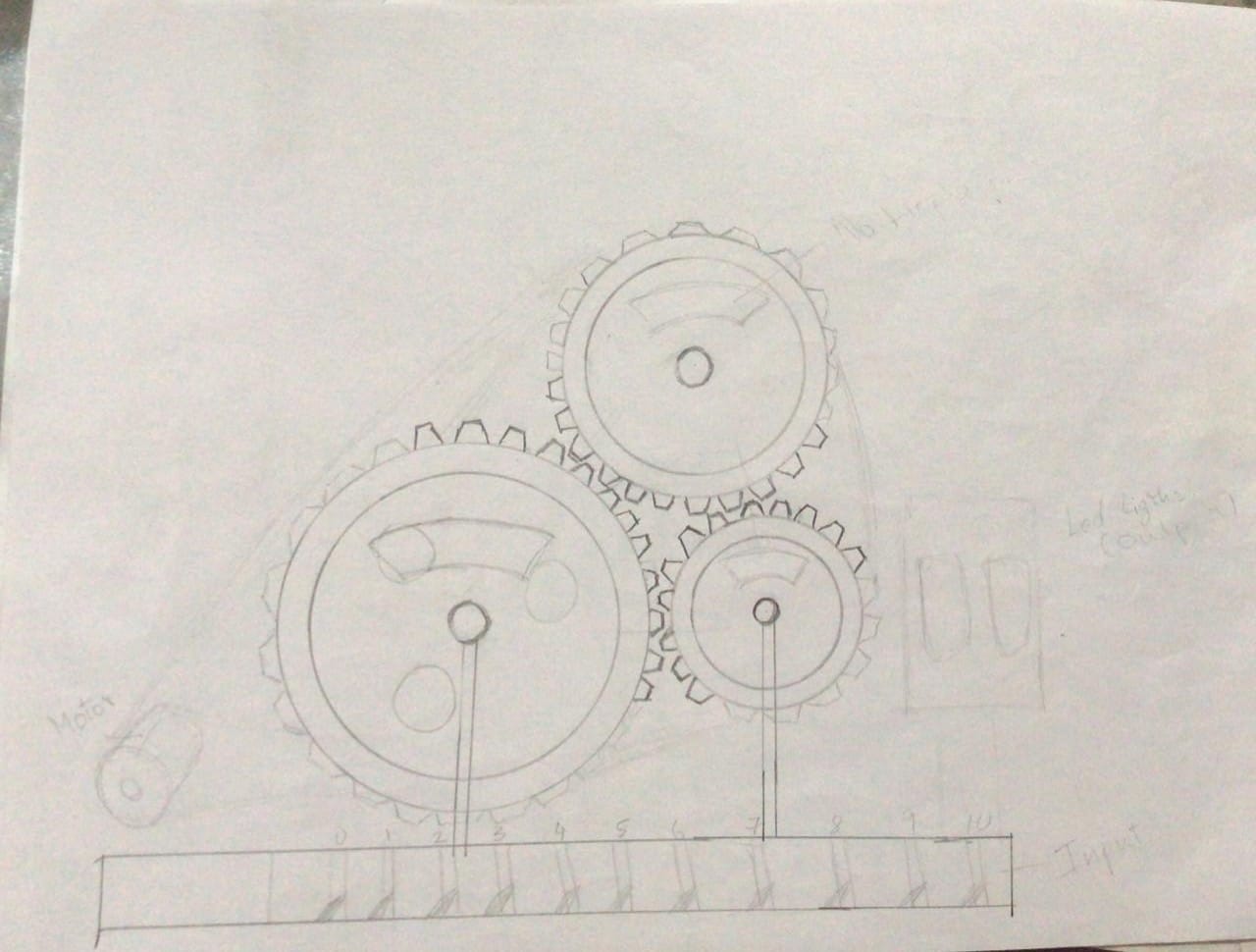

4.4.3 DESIGN 3 :MARIA KHAN
4.4.4 DESIGN 4 : PAVITRA GULGANDI 314
